Description
Brand: Maswell

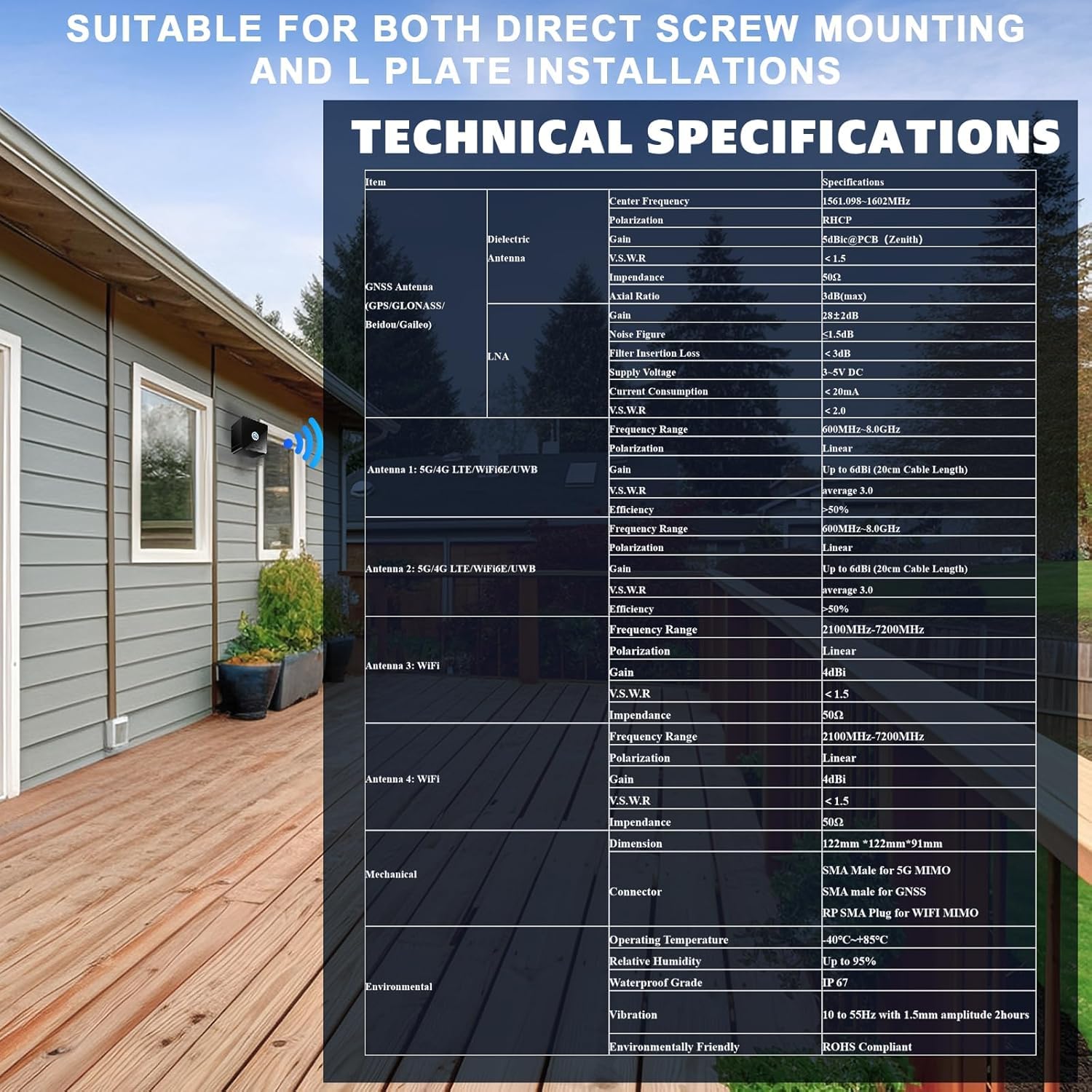

<p>Item ID: AN_Master_Cubic_2C2W1GN-LP</p> <p>GNSS Antenna(GPS/GLONASS/Beidou/Gaileo)</p> <p>Dielectric Antenna<br />Center Frequency?1561.098~1602MHz<br />Polarization?RHCP<br />Gain?5dBic@PCB?Zenith?<br />V.S.W.R??1.5<br />Impendance?50Ω<br />Axial Ratio?3dB(max)</p> <p>LNA<br />Gain?28±2dB<br />Noise Figure?≤1.5dB<br />Filter Insertion Loss??3dB<br />Supply Voltage?3~5V DC<br />Current Consumption??20mA<br />V.S.W.R??2.0</p> <p>Antenna 1:5G/4G LTE/WiFi6E/UWB <br />Frequency Range:600MHz~8.0GHz<br />Polarization:Linear<br />Gain:Up to 6.0 dBi ?20cm Cable Length)<br />V.S.W.R:average 3.0<br />Efficiency:>50%</p> <p>Antenna 2:5G/4G LTE/WiFi6E/UWB <br />Frequency Range:600MHz~8.0GHz<br />Polarization:Linear<br />Gain:Up to 6.0 dBi ?20cm Cable Length)<br />V.S.W.R:average 3.0<br />Efficiency:>50%</p> <p>Antenna 3: WiFi<br />Frequency Range:2100MHz~7200MHz <br />Polarization:Linear<br />Gain:4 dBi <br />V.S.W.R:<1.5<br />Impendance:50Ω</p> <p>Antenna 4: WiFi<br />Frequency Range:2100MHz~7200MHz <br />Polarization:Linear<br />Gain:4 dBi <br />V.S.W.R:<1.5<br />Impendance:50Ω</p> <p>Mechanical<br />Dimension:122mm *122mm*91mm<br />Connector:SMA

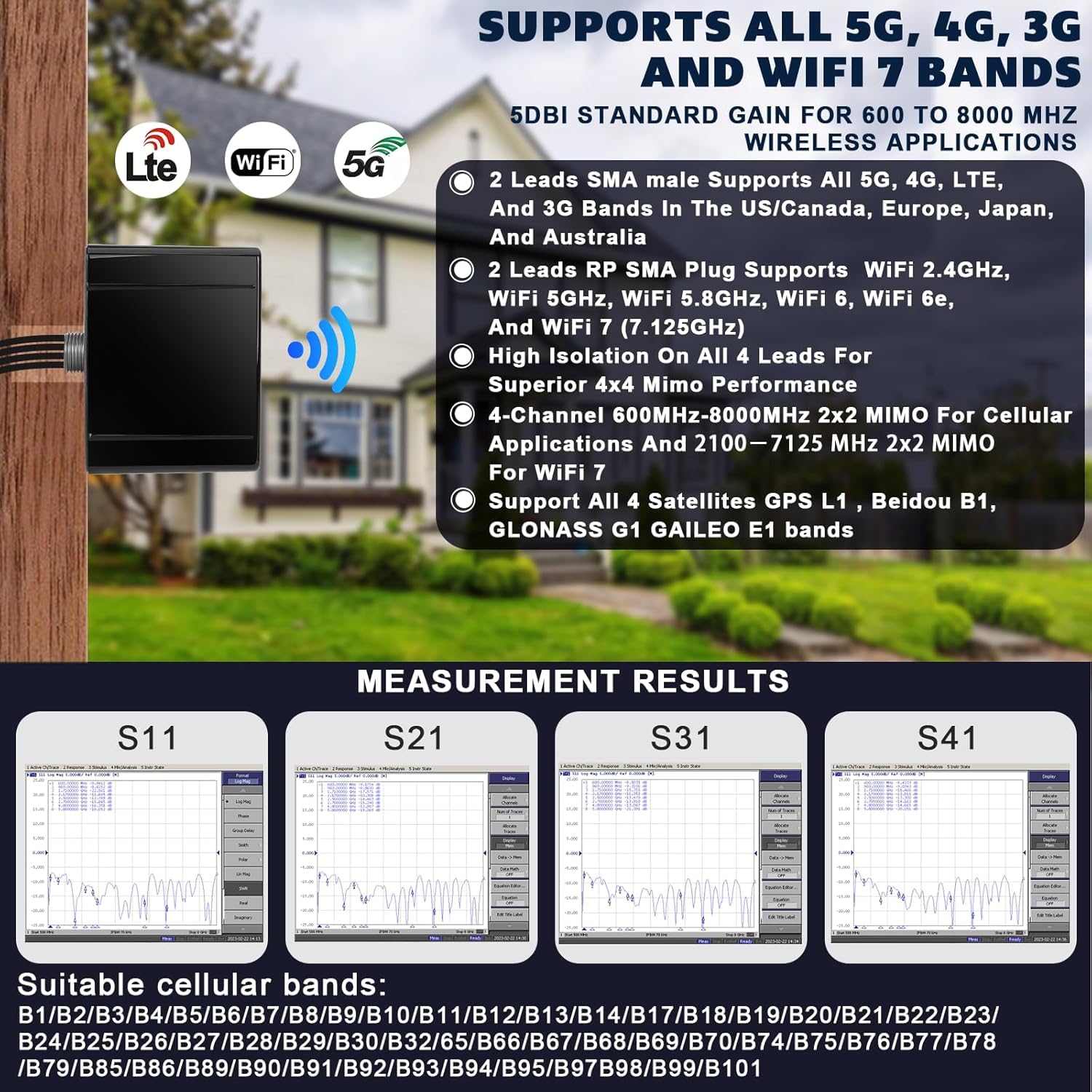

• Full Band: Cubic_2C2W1GN includes 2x MIMO 5G/4G antennas, 2x MIMO WiFi 7 antennas, and 1x GNSS antenna. gain up to 6dBi (tested on 20cm cable). 600-8000MHz ultra-wide bandwidth supports all WiFi (WiFi 6, WiFi 7, Bluetooth, NB-IoT, LoRa, ZigBee, WiMax ) and cellular (GSM, 3G, 4G, LTE, 4G+, 5G NR, 5G

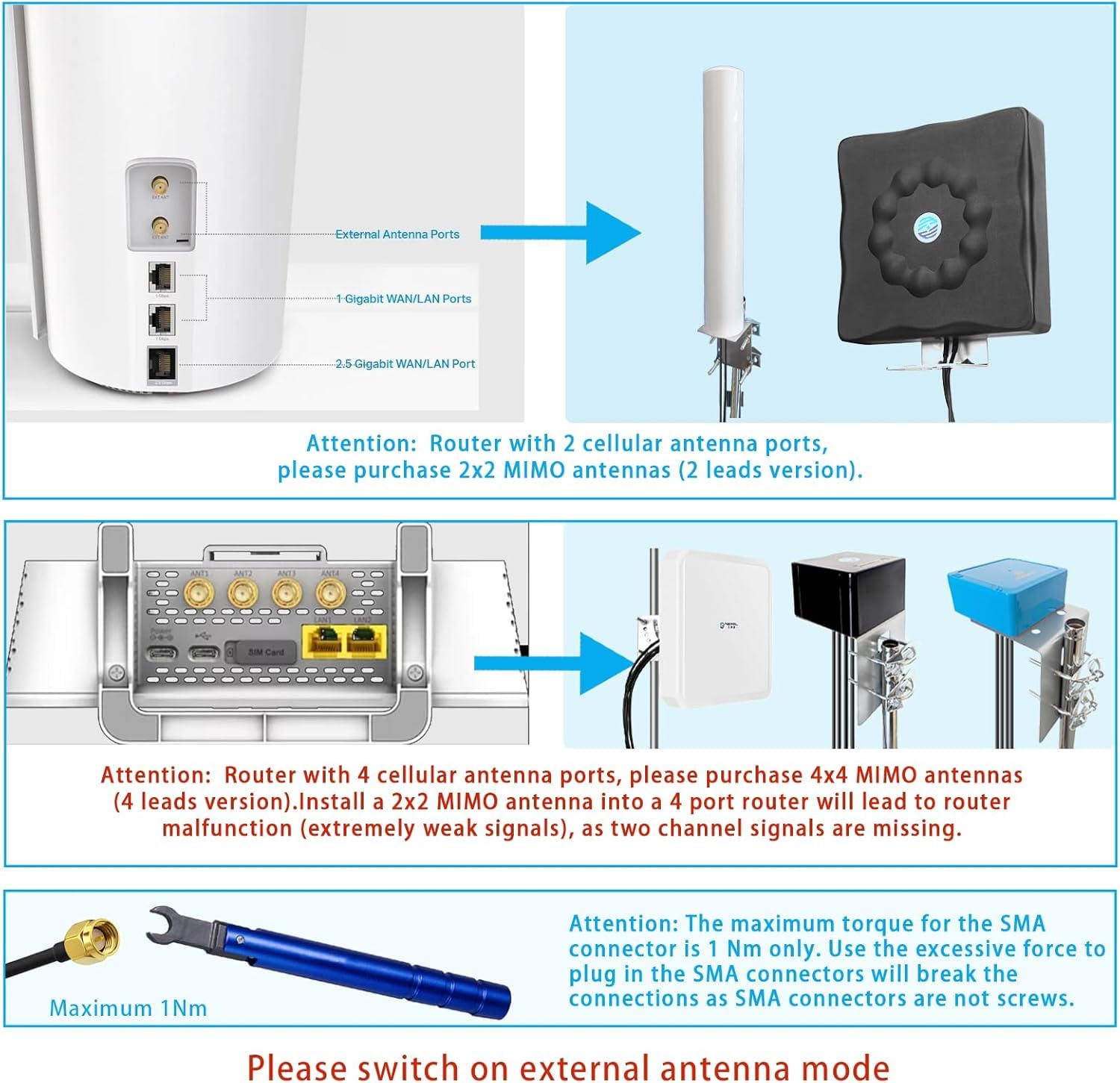

• Usage Notes: After connecting, enable the external antenna mode on your router and restart it. Avoid using inferior cables like RG58/RG174
• we recommend LMR240-equivalent or higher (total length not exceeding 5m). For professional-grade cables and guidance, get from Maswell
• Wide range of applications: Cubic_2C2W1GN achieves a good balance between radiation omnidirectionality and power, and supports future-oriented WiFi 6E and WiFi 7 technologies. Ideal for various network equipment for urban, camping and rural 5G, industrial and commercial uses. Compatible with all

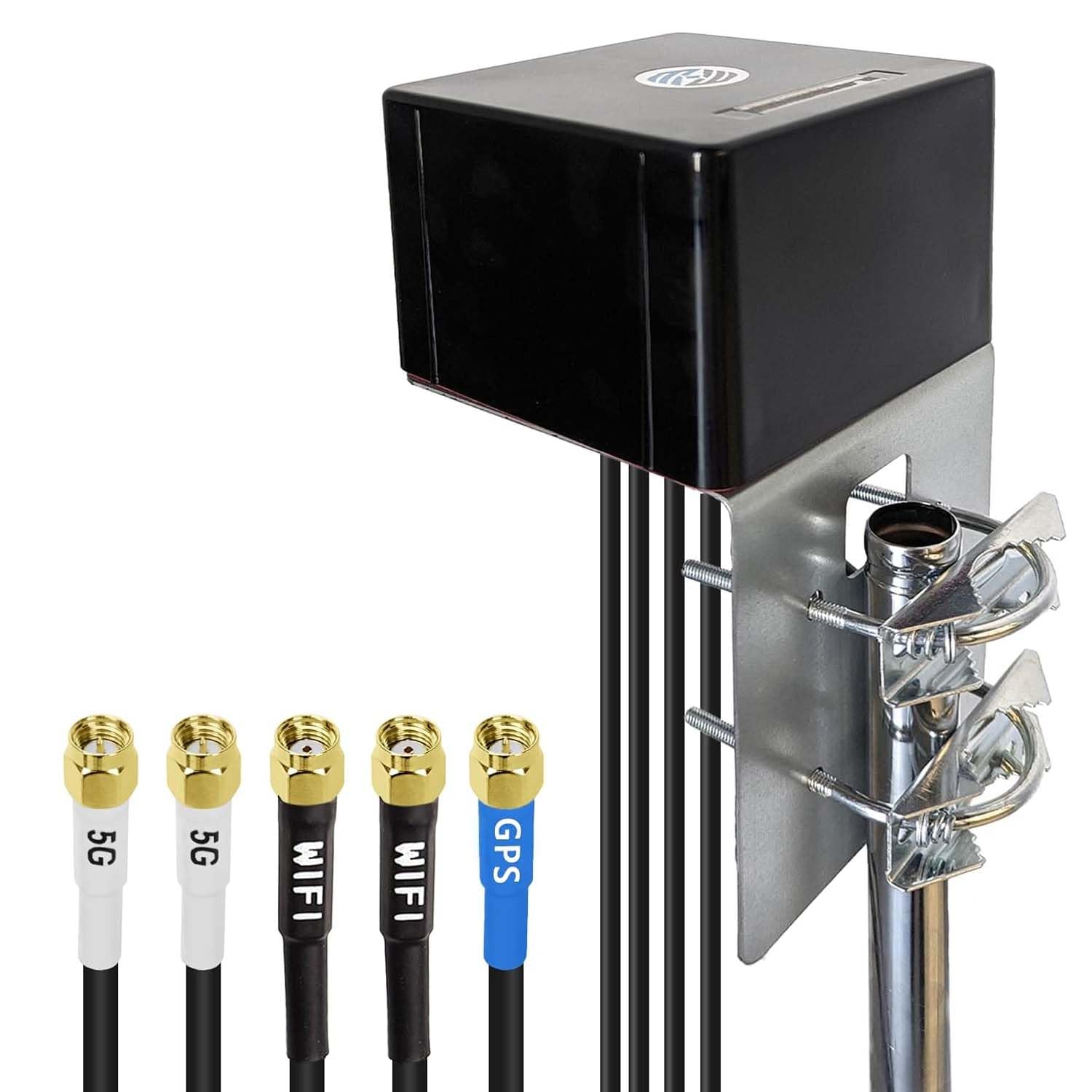

• Rugged Antenna: The high-impact radome is IP67 rated and UV-stabilized, manufactured by ASA for excellent mechanical properties and can be used in hot and cold environments. The mini form factor allows for a variety of mounting options, including wall or pole mounting, and comes with waterproof
<p>Item ID: AN_Master_Cubic_2C2W1GN-LP</p> <p>GNSS Antenna(GPS/GLONASS/Beidou/Gaileo)</p> <p>Dielectric Antenna<br />Center Frequency?1561.098~1602MHz<br />Polarization?RHCP<br />Gain?5dBic@PCB?Zenith?<br />V.S.W.R??1.5<br />Impendance?50Ω<br />Axial Ratio?3dB(max)</p> <p>LNA<br />Gain?28±2dB<br />Noise Figure?≤1.5dB<br />Filter Insertion Loss??3dB<br />Supply Voltage?3~5V DC<br />Current Consumption??20mA<br />V.S.W.R??2.0</p> <p>Antenna 1:5G/4G LTE/WiFi6E/UWB <br />Frequency Range:600MHz~8.0GHz<br />Polarization:Linear<br />Gain:Up to 6.0 dBi ?20cm Cable Length)<br />V.S.W.R:average 3.0<br />Efficiency:>50%</p> <p>Antenna 2:5G/4G LTE/WiFi6E/UWB <br />Frequency Range:600MHz~8.0GHz<br />Polarization:Linear<br />Gain:Up to 6.0 dBi ?20cm Cable Length)<br />V.S.W.R:average 3.0<br />Efficiency:>50%</p> <p>Antenna 3: WiFi<br />Frequency Range:2100MHz~7200MHz <br />Polarization:Linear<br />Gain:4 dBi <br />V.S.W.R:<1.5<br />Impendance:50Ω</p> <p>Antenna 4: WiFi<br />Frequency Range:2100MHz~7200MHz <br />Polarization:Linear<br />Gain:4 dBi <br />V.S.W.R:<1.5<br />Impendance:50Ω</p> <p>Mechanical<br />Dimension:122mm *122mm*91mm<br />Connector:SMA
• Full Band: Cubic_2C2W1GN includes 2x MIMO 5G/4G antennas, 2x MIMO WiFi 7 antennas, and 1x GNSS antenna. gain up to 6dBi (tested on 20cm cable). 600-8000MHz ultra-wide bandwidth supports all WiFi (WiFi 6, WiFi 7, Bluetooth, NB-IoT, LoRa, ZigBee, WiMax ) and cellular (GSM, 3G, 4G, LTE, 4G+, 5G NR, 5G
• Usage Notes: After connecting, enable the external antenna mode on your router and restart it. Avoid using inferior cables like RG58/RG174
• we recommend LMR240-equivalent or higher (total length not exceeding 5m). For professional-grade cables and guidance, get from Maswell
• Wide range of applications: Cubic_2C2W1GN achieves a good balance between radiation omnidirectionality and power, and supports future-oriented WiFi 6E and WiFi 7 technologies. Ideal for various network equipment for urban, camping and rural 5G, industrial and commercial uses. Compatible with all
• Rugged Antenna: The high-impact radome is IP67 rated and UV-stabilized, manufactured by ASA for excellent mechanical properties and can be used in hot and cold environments. The mini form factor allows for a variety of mounting options, including wall or pole mounting, and comes with waterproof
