Brand: Maswell

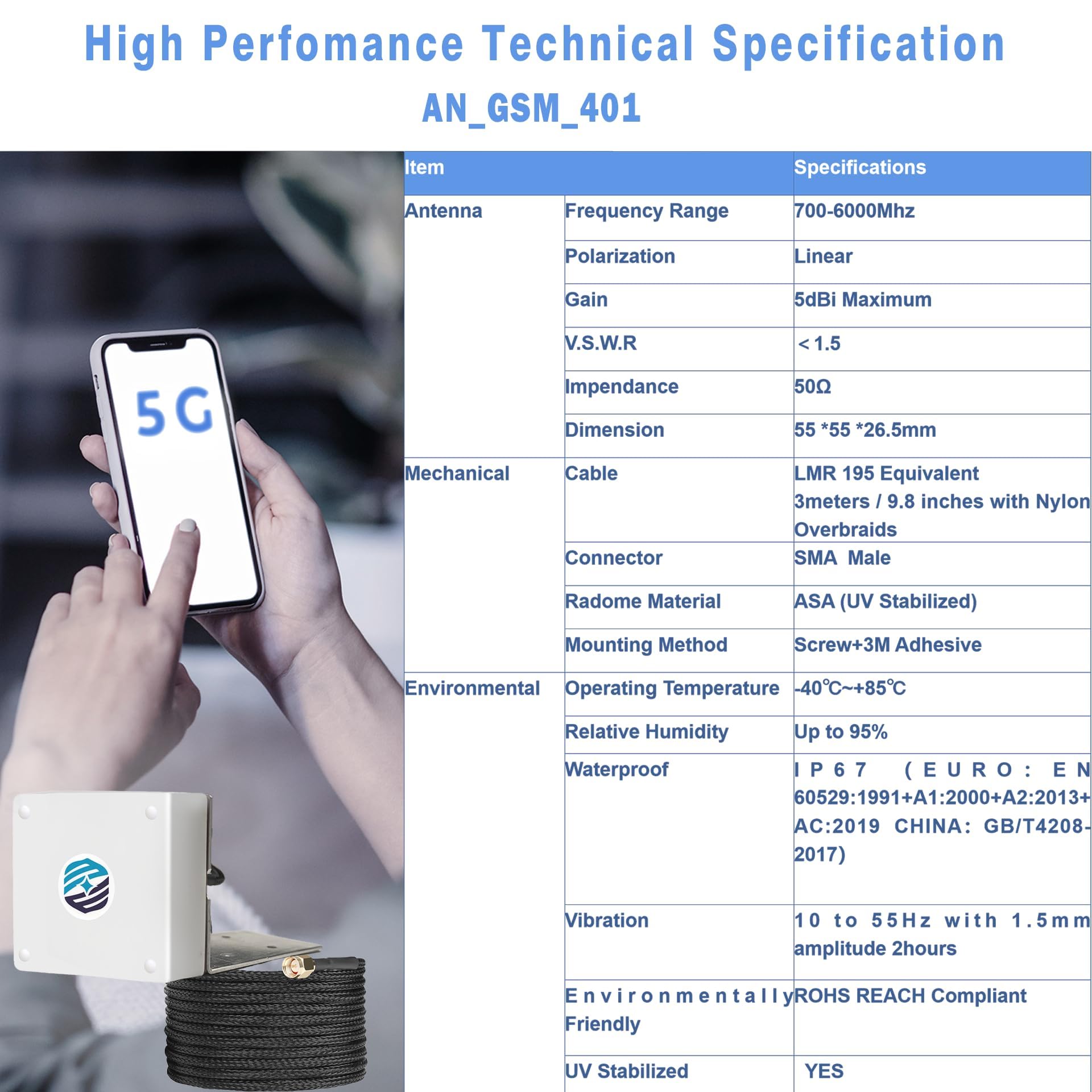

<p>Frequency:700MHz~6000MHz<br/>Polarization:Linear<br/>Gain:1dBi (Low Frequency Band) and 5dBi (High Frequency Band)<br />V.S.W.R: &lt;1.5<br />Impendance: 50Ohms<br />Dimension: 55*55*26.5mm</p> <p>Mechanical</p> <p>Cable:RG174(3M)<br />Connector:SMA,TS9<br />Radome Material?ASA(UV Stabilized)<br />Mounting Method : Screw+3M Adhesive</p> <p>Environmental</p> <p>Operating Temperature?-40?~+85?<br />Relative Humidity : Up to 95%<br />Ingress Protection?IP67<br />Vibration:10 to 55Hz with 1.5mm amplitude 2hours<br />Environmentally Friendly:ROHS Compliant</p> <p>?GSM/3G/4G/5G/WIFI FREQUENCY?:700~6000MHz. Ideal for signal reception of GSM 2G/3G/4G/5G WIFI6 wireless devices.</p> <p>?PREMIUM QUALITY ANTENNA?: Our Omni-Directional Screw and 3M Adhesive Mount Antenna is made from durable material - reinforced plastic, copper wire. It will be a professional, durable accessory!</p> <p>?Multiple applications?: For industrial, commercial and Internet Of Things (IOT) applications such as: Hotspots, Kiosks, Vending, Point-of-Sale (POS), Machine-to-Machine (M2M), Video Surveillance (Cameras, DVRs, NVRs), Vehicles, SCADA, Telemetry, PLCs, RTUs, Digital Signage etc.</p> <p>?IP67 WATERPROOF?: This antenna is completely waterproof (IP67) . Ideal for use outdoors, in vending machines, meter housings, equipment sheds, or other locations requiring a low-profile HIGH PERFORMANCE external antenna.</p> <p>?100% Satisfaction Guarantee?: We are committed to providing customers with the best product and services. If you have any question, please feel free to contact us and if the good is with any quality issue, we're happy to offer you a new one!</p>

Features:

• Frequency range: 700-6000 MHz, compatible with GSM, 3G, 4G, 5G, and WiFi6 devices: Suitable for signal reception across a wide range of wireless devices

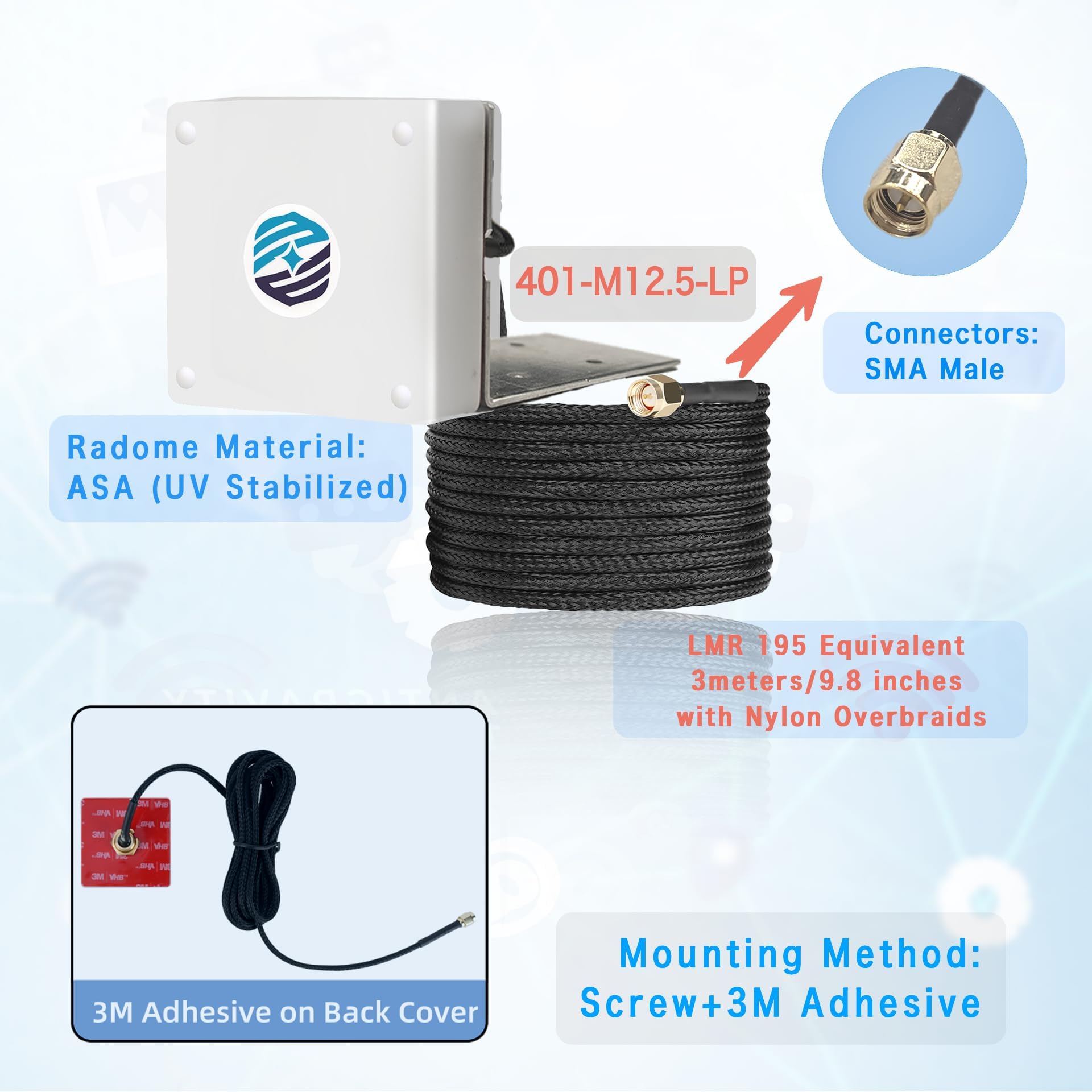

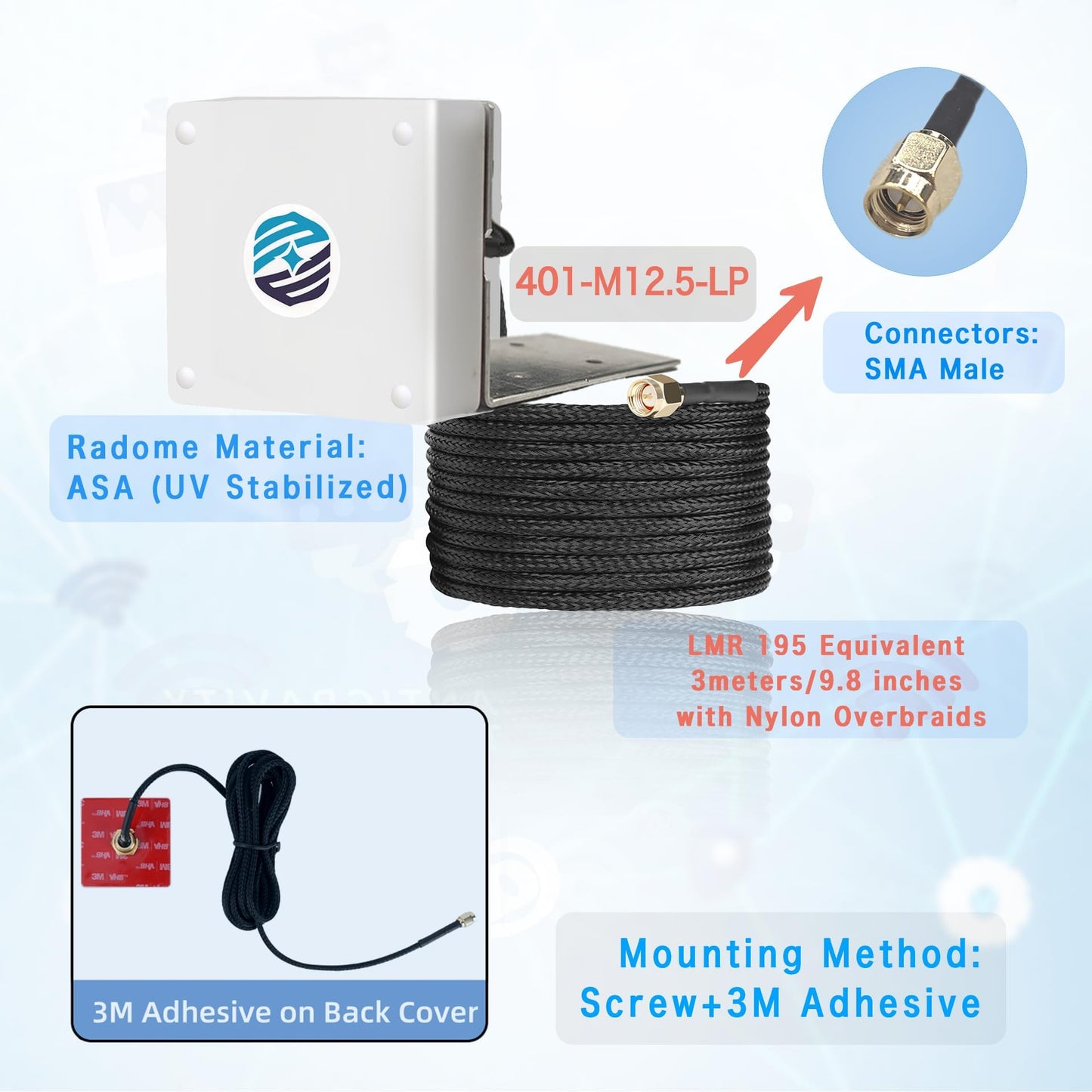

• Screw and 3M adhesive mount: Standard M12 screw and nut for screw mount, 3M adhesive under the radome for permanent outdoor installations
• Versatile applications: Suitable for industrial, commercial, and Internet of Things (IoT) applications, such as hotspots, kiosks, vending machines, point-of-sale systems, machine-to-machine communication, video surveillance, and digital signage
• Waterproof (IP67): Designed for outdoor use, in vending machines, meter housings, equipment sheds, or other locations requiring a low-profile, high-performance external antenna
• Moderate gain performance: 4dBi antenna, not designed for high gain requirements, primarily for areas with good coverage, external antenna mode must be enabled

Product Details:

• Size: SMA-Male with TS9
• Model: GSM_401 TS9
• Package Quantity: 1
