Brand: Maswell

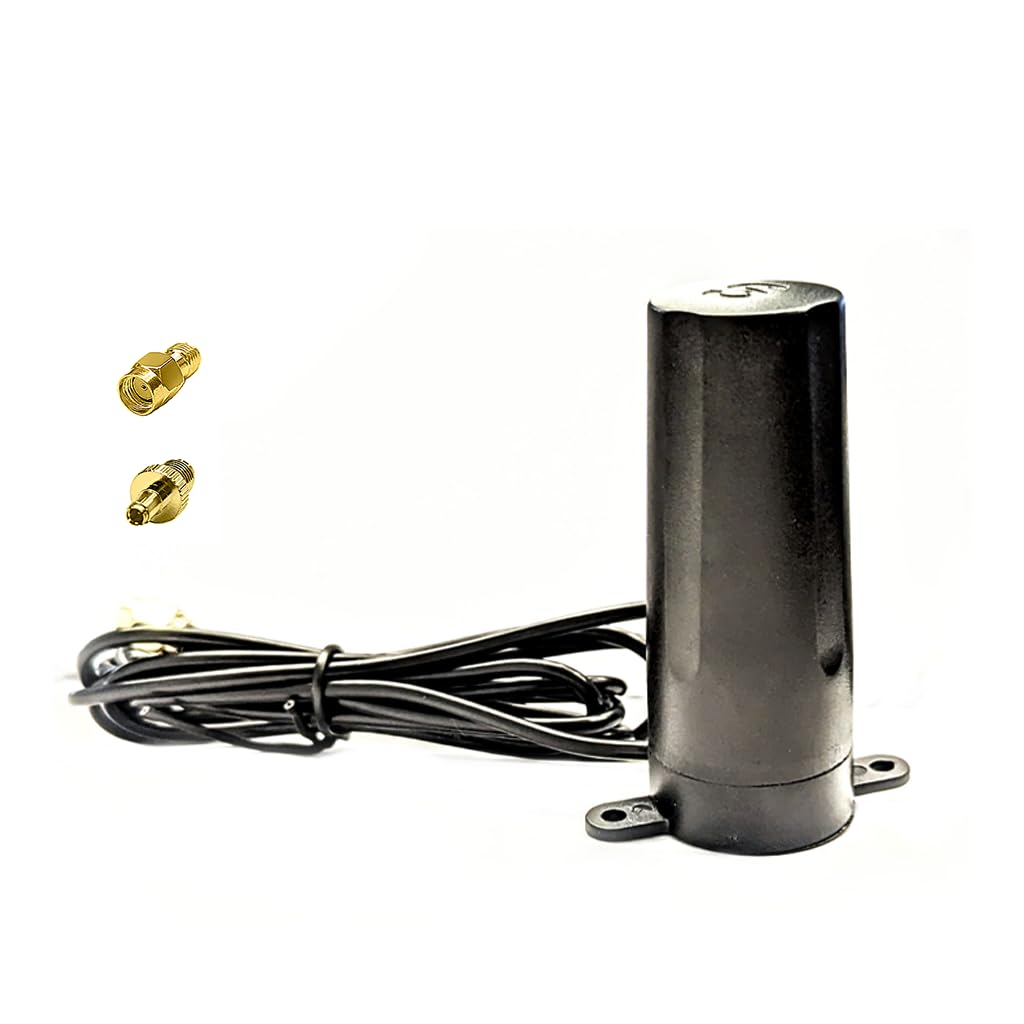

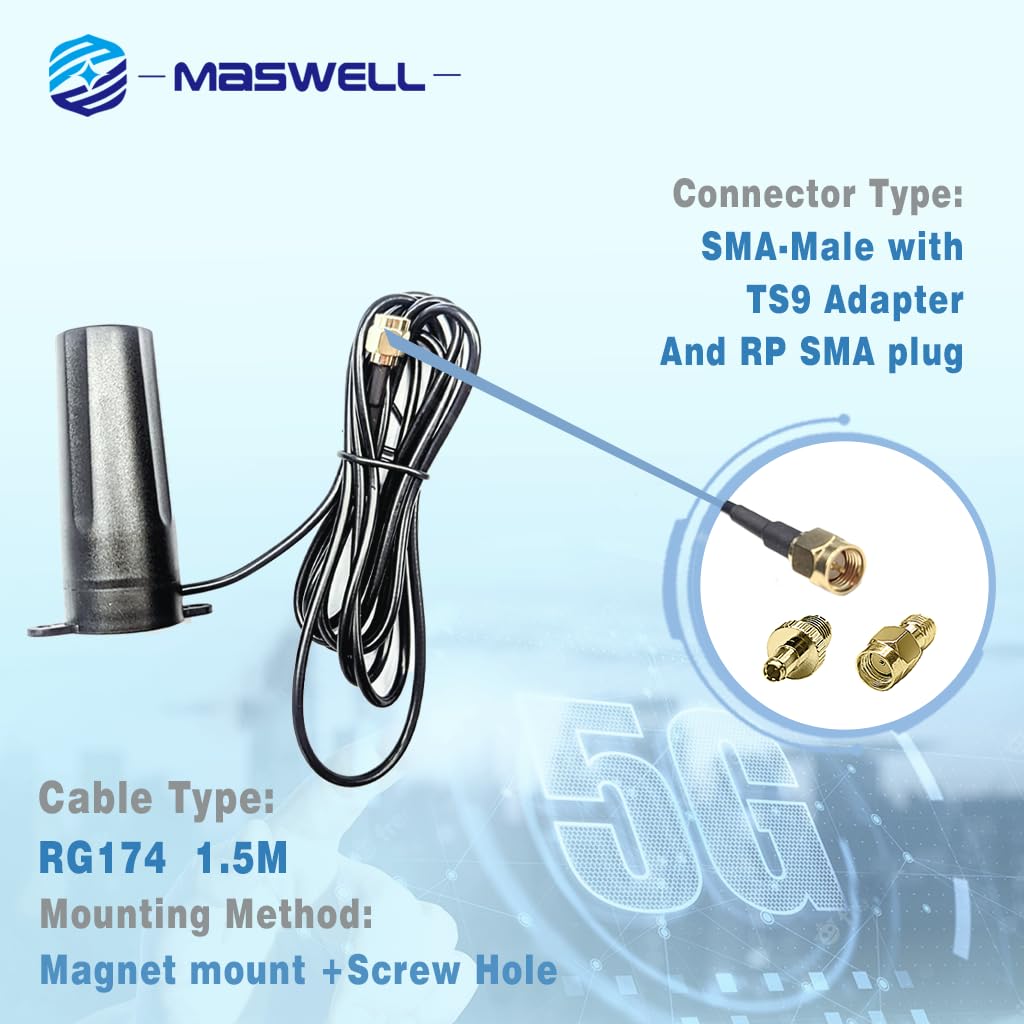

<p>ITEM ID: AN_5G_095-Magnet-TS9-RP</p> <p>Maswell Cellular Antenna 5G 4G WiFi6 Magnet and Screw Mount</p> <p>Antenna</p> <p>Frequency Range:600-960/1710-6000MHz<br />Polarization:Linear<br />Gain:6dBi Maximum<br />V.S.W.R:?2.0<br />Impendance:50Ω<br />Dimension:71 *48 *28.3mm</p> <p>Mechanical</p> <p>Cable:RG174?1.5M or customised)<br />Connector:SMA or others<br />Radome Material:ABS<br />Mounting Method:Magnet mount +Screw Hole</p> <p>Environmental</p> <p>Operating Temperature:-40?~ 85?</p> <p>Vibration:10 to 55Hz with 1.5mm amplitude 2hours<br />Environmentally Friendly:ROHS Compliant<br />Relative Humidity:Up to 95%<br />Waterproof:IP65<br />Vibration:10 to 55Hz with 1.5mm amplitude 2hours<br />Environmentally Friendly:ROHS Compliant<br />
• Full Frequency Coverage: Spanning a broad frequency range from 600-960/1710-6000MHz, this antenna is ideal for capturing signals from GSM 2G/3G/4G/5G and WIFI6 wireless devices.
• Effortless Installation: Featuring a magnetic function, you can easily place it on the surface of metal equipment for quick installation, or secure it with screws for long-lasting outdoor use. When affixed to a metal surface measuring at least 10cm*10cm, it can achieve a maximum gain of 6dBi.
• Multiple applications: For industrial, commercial and Internet Of Things IOT applications such as: Hotspots, Kiosks, Vending, Point-of-Sale POS, Machine-to-Machine M2M, Video Surveillance Cameras, DVRs, NVRs, Vehicles, SCADA, Telemetry, PLCs, RTUs, Digital Signage etc.
• Waterproof Design: Certified with a robust waterproof rating IP65, it's suitable for outdoor use in vending machines, meter enclosures, equipment sheds, or any scenario necessitating a low-profile, high-performance external antenna.
• Not for High Gain Requirement: This is an 5G model with moderate gain performances around 2dBi. It is mainly designed for area with good coverage. The antenna can not be considered as a high gain antenna option!
Color: Black
<p>ITEM ID: AN_5G_095-Magnet-TS9-RP</p> <p>Maswell Cellular Antenna 5G 4G WiFi6 Magnet and Screw Mount</p> <p>Antenna</p> <p>Frequency Range:600-960/1710-6000MHz<br />Polarization:Linear<br />Gain:6dBi Maximum<br />V.S.W.R:?2.0<br />Impendance:50Ω<br />Dimension:71 *48 *28.3mm</p> <p>Mechanical</p> <p>Cable:RG174?1.5M or customised)<br />Connector:SMA or others<br />Radome Material:ABS<br />Mounting Method:Magnet mount +Screw Hole</p> <p>Environmental</p> <p>Operating Temperature:-40?~ 85?</p> <p>Vibration:10 to 55Hz with 1.5mm amplitude 2hours<br />Environmentally Friendly:ROHS Compliant<br />Relative Humidity:Up to 95%<br />Waterproof:IP65<br />Vibration:10 to 55Hz with 1.5mm amplitude 2hours<br />Environmentally Friendly:ROHS Compliant<br />
• Full Frequency Coverage: Spanning a broad frequency range from 600-960/1710-6000MHz, this antenna is ideal for capturing signals from GSM 2G/3G/4G/5G and WIFI6 wireless devices.
• Effortless Installation: Featuring a magnetic function, you can easily place it on the surface of metal equipment for quick installation, or secure it with screws for long-lasting outdoor use. When affixed to a metal surface measuring at least 10cm*10cm, it can achieve a maximum gain of 6dBi.
• Multiple applications: For industrial, commercial and Internet Of Things IOT applications such as: Hotspots, Kiosks, Vending, Point-of-Sale POS, Machine-to-Machine M2M, Video Surveillance Cameras, DVRs, NVRs, Vehicles, SCADA, Telemetry, PLCs, RTUs, Digital Signage etc.
• Waterproof Design: Certified with a robust waterproof rating IP65, it's suitable for outdoor use in vending machines, meter enclosures, equipment sheds, or any scenario necessitating a low-profile, high-performance external antenna.
• Not for High Gain Requirement: This is an 5G model with moderate gain performances around 2dBi. It is mainly designed for area with good coverage. The antenna can not be considered as a high gain antenna option!
Color: Black
