Description
Brand: MakerFocus
<br/>Description: <br/>TFmini-s is a upgraded single-point micro ranging module based on TFmini. <br/>The blind zone is shortened to 10cm, the outdoor performance and accuracy of different reflectivity are improved, it can achieve stable, accuracy, sensitive and high frequency range detection. <br/>TFmini-s is compatible with both the UART and I2C interface. <br/>Different interfaces can be switched by commands. <br/>Performance: <br/>Operating Range : 0.1m~12m@90%Reflectivity <br/>Accuracy: ±6cm@(0.1-6m), ±1% @ (6m-12m) <br/>Distance Resolution: 1cm <br/>Frame Rate: 100Hz <br/>Ambient Light Immunity: 70Klux <br/>Operating Temperature: 0?~60? <br/>Optical Parameters: <br/>Light Source: VCSEL <br/>Central Wavelength: 850nm <br/>Photobiological Safety: Class1 (EN60825) <br/>Electrical Parameters: <br/>Supply Voltage: 5V±0.1V <br/>Average Current: ?140mA <br/>Power Consumption: ?0.7W <br/>Peak Current: 200mA <br/>Communication Level: LVTTL(3.3V) <br/>Communication Interface: UART / I2C <br/>Main application scenario: <br/>Pedestrian detection <br/>Vehicle detection <br/>Intelligent barrier gate and altimeter<br/> packing list<br/> 1 * TFmini-s UART / I2C Laser Range Finder Module<br/>

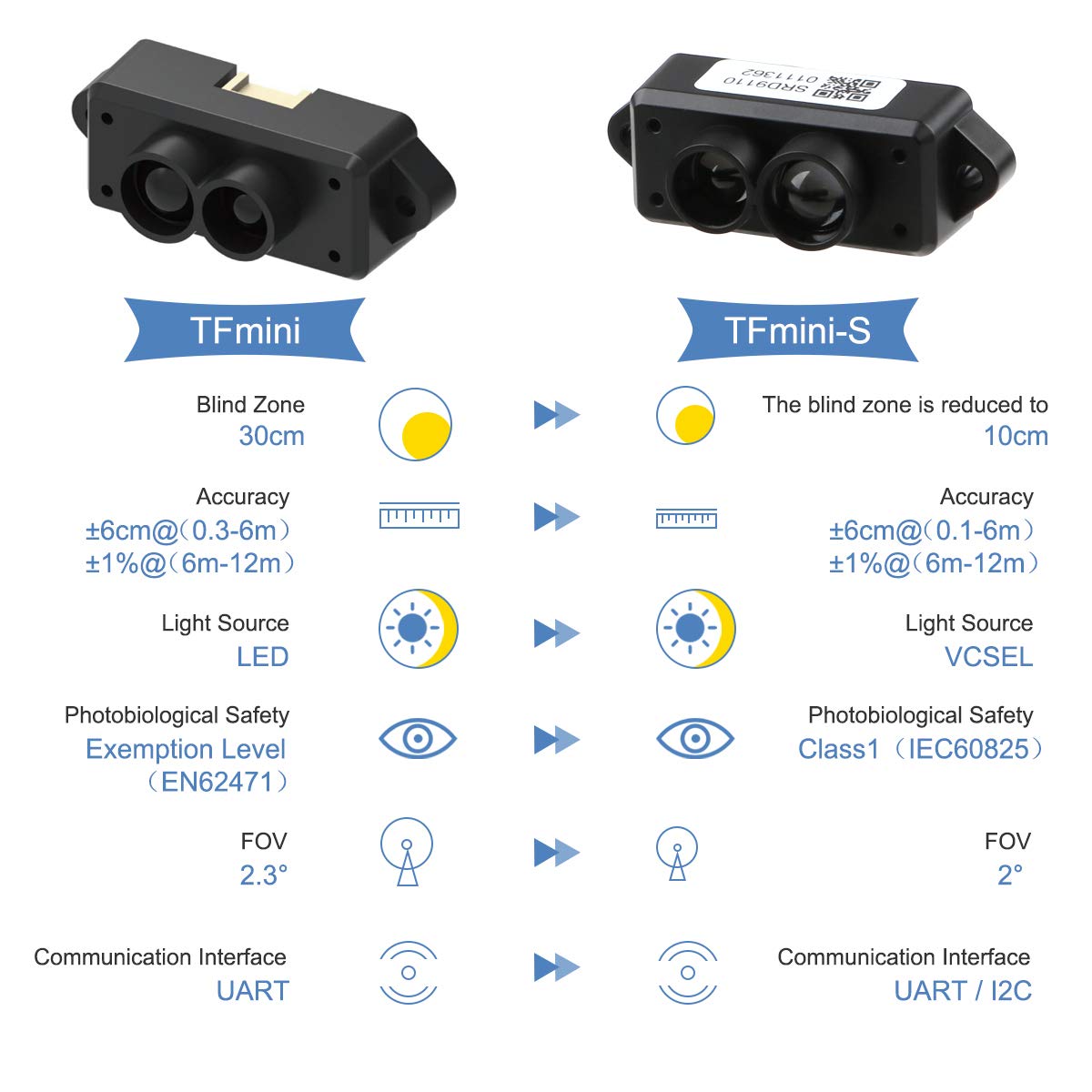

• Upgraded LiDAR Module: TFmini-s is an upgraded single-point micro ranging module based on TFmini. The dead zone is shortened to 10 cm, and the outdoor performance and accuracy of different reflectances are improved

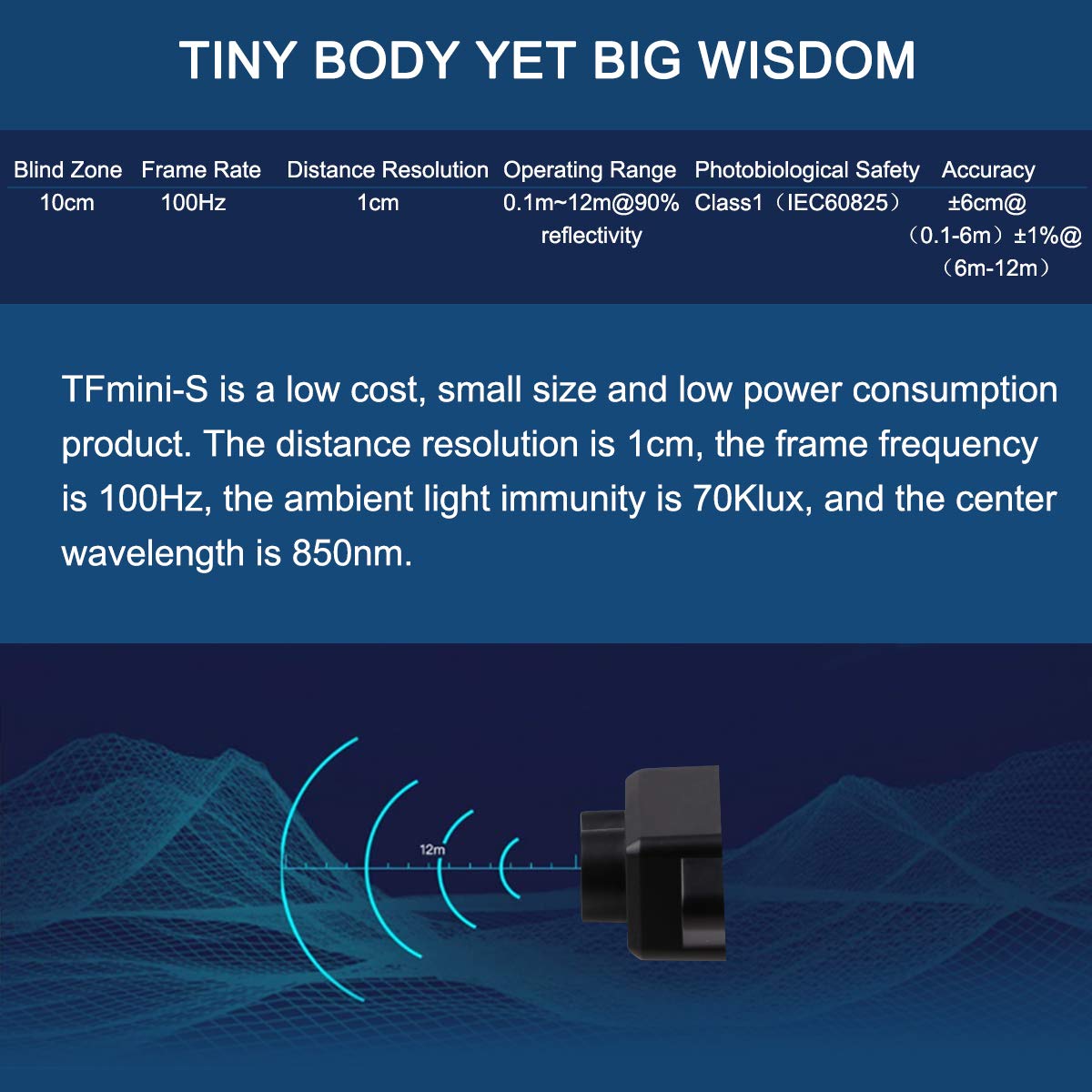

• Tiny Body Yet Big Wisdom: low-cost, small-size and low power consumption. Distance Resolution is 1cm, frame rate is 100Hz, ambient light immunity is 70Klux and central wavelength is 850nm
• Tiny Yet Powerful: It is based on ToF (Time of Flight) principle and integrated with unique optical and electrical designs, so as to achieve stable, precise, high sensitivity and high-speed distance detection
• Main Application Scenario: Pedestrian detection, vehicle detection, intelligent barrier gate and altimeter
• Note: TFmini-s version is UART by default. If you need I2C, please switch by yourself. It is compatible with Raspberry Pi and Arduino
<br/>Description: <br/>TFmini-s is a upgraded single-point micro ranging module based on TFmini. <br/>The blind zone is shortened to 10cm, the outdoor performance and accuracy of different reflectivity are improved, it can achieve stable, accuracy, sensitive and high frequency range detection. <br/>TFmini-s is compatible with both the UART and I2C interface. <br/>Different interfaces can be switched by commands. <br/>Performance: <br/>Operating Range : 0.1m~12m@90%Reflectivity <br/>Accuracy: ±6cm@(0.1-6m), ±1% @ (6m-12m) <br/>Distance Resolution: 1cm <br/>Frame Rate: 100Hz <br/>Ambient Light Immunity: 70Klux <br/>Operating Temperature: 0?~60? <br/>Optical Parameters: <br/>Light Source: VCSEL <br/>Central Wavelength: 850nm <br/>Photobiological Safety: Class1 (EN60825) <br/>Electrical Parameters: <br/>Supply Voltage: 5V±0.1V <br/>Average Current: ?140mA <br/>Power Consumption: ?0.7W <br/>Peak Current: 200mA <br/>Communication Level: LVTTL(3.3V) <br/>Communication Interface: UART / I2C <br/>Main application scenario: <br/>Pedestrian detection <br/>Vehicle detection <br/>Intelligent barrier gate and altimeter<br/> packing list<br/> 1 * TFmini-s UART / I2C Laser Range Finder Module<br/>
• Upgraded LiDAR Module: TFmini-s is an upgraded single-point micro ranging module based on TFmini. The dead zone is shortened to 10 cm, and the outdoor performance and accuracy of different reflectances are improved
• Tiny Body Yet Big Wisdom: low-cost, small-size and low power consumption. Distance Resolution is 1cm, frame rate is 100Hz, ambient light immunity is 70Klux and central wavelength is 850nm
• Tiny Yet Powerful: It is based on ToF (Time of Flight) principle and integrated with unique optical and electrical designs, so as to achieve stable, precise, high sensitivity and high-speed distance detection
• Main Application Scenario: Pedestrian detection, vehicle detection, intelligent barrier gate and altimeter
• Note: TFmini-s version is UART by default. If you need I2C, please switch by yourself. It is compatible with Raspberry Pi and Arduino
