Description
Brand: AIR802
Applications 4G/LTE Cellular 5G NR Cellular WiFi (2.4 + 5 GHz) Specifications Frequency 617-960 MHz, 1427-1518 MHz, 1710-2170 MHz, 2300-2800 MHz, 3300-3500 MHz, 5150-5925 MHz Gain 0.77 dB 0.6600 GHz 3.24 dB 1.5000 GHz 3.15 dB 1.9000 GHz 5.22 dB 2.5000 GHz 4.31 dB 3.3000 GHz 5.57 dB 5.3500 GHz *Gain is ground plane dependent *Recommended minimum size of ground plane is 60 x 60 cm (2 x 2 feet). VSWR <2 0.617 - 0.66 GHz <2 0.66 - 0.96 GHz <2 1.427 - 1.518 GHz <1.5 1.71 - 2.11 GHz <1.5 2.3 - 2.8 GHz <1.5 3.3 - 3.5 GHz <1.5 5.15 - 5.925 GHz *VSWR is ground plane dependent *Recommended minimum size of ground plane is 60 x 60 cm (2 x 2 feet). <p> * The antenna connector pin is not spring loaded and requires a low/high frequency style connector such as our CN2NMOLP, CN2NMOLP-TM and CN2NMOHFR or Larsen connectors. These connectors have a removeable pin. <p> *Polarization: Vertical Plating: Tri-Metal aka White Bronze (Copper-Tin-Zinc) for Low Passive Intermodulation Distortion (PIM) Impedance: 50? Max. Input Power: 200 watts Weight: 3.1 ounces (90 grams) Dimension: 1.37 x 2.79 inches (35 x 71 mm) Connector: 3/8" NMO RoHS Compliant: Yes
• Low Profile
• Ground Plane Dependent (2 Feet by 2 Feet)
• 5G NR - 617 MHz to 5925 MHz
• Tri-metal aka white bronze plated for low passive internodulation distortion (PIM)
• Manufactured in USA

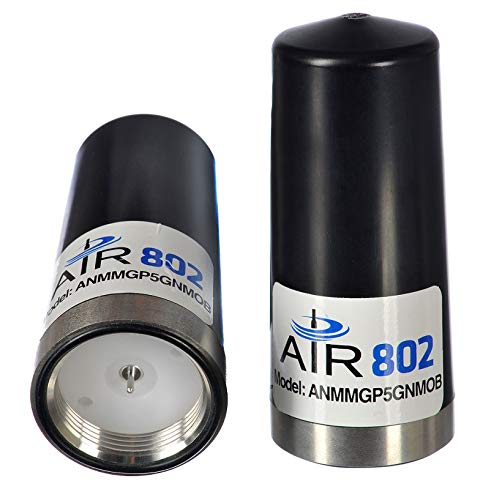

Model: ANMMGP5GNMOB
Color: Black
Applications 4G/LTE Cellular 5G NR Cellular WiFi (2.4 + 5 GHz) Specifications Frequency 617-960 MHz, 1427-1518 MHz, 1710-2170 MHz, 2300-2800 MHz, 3300-3500 MHz, 5150-5925 MHz Gain 0.77 dB 0.6600 GHz 3.24 dB 1.5000 GHz 3.15 dB 1.9000 GHz 5.22 dB 2.5000 GHz 4.31 dB 3.3000 GHz 5.57 dB 5.3500 GHz *Gain is ground plane dependent *Recommended minimum size of ground plane is 60 x 60 cm (2 x 2 feet). VSWR <2 0.617 - 0.66 GHz <2 0.66 - 0.96 GHz <2 1.427 - 1.518 GHz <1.5 1.71 - 2.11 GHz <1.5 2.3 - 2.8 GHz <1.5 3.3 - 3.5 GHz <1.5 5.15 - 5.925 GHz *VSWR is ground plane dependent *Recommended minimum size of ground plane is 60 x 60 cm (2 x 2 feet). <p> * The antenna connector pin is not spring loaded and requires a low/high frequency style connector such as our CN2NMOLP, CN2NMOLP-TM and CN2NMOHFR or Larsen connectors. These connectors have a removeable pin. <p> *Polarization: Vertical Plating: Tri-Metal aka White Bronze (Copper-Tin-Zinc) for Low Passive Intermodulation Distortion (PIM) Impedance: 50? Max. Input Power: 200 watts Weight: 3.1 ounces (90 grams) Dimension: 1.37 x 2.79 inches (35 x 71 mm) Connector: 3/8" NMO RoHS Compliant: Yes
• Low Profile
• Ground Plane Dependent (2 Feet by 2 Feet)
• 5G NR - 617 MHz to 5925 MHz
• Tri-metal aka white bronze plated for low passive internodulation distortion (PIM)
• Manufactured in USA
Model: ANMMGP5GNMOB
Color: Black
