Description
Brand: LIBO Smart Home
Product Introduction:
Suitable for controlling various access control controllers and building intercom equipment, especially suitable for various types of electric locks. Can be connected to various normally open (NO) or normally closed (NC) electric locks.
The electric lock can be directly controlled through the signal line (PUSH) or other switch signal output of the access control controller, which can reduce the compliance of the access control controller and minimize safety hazards.

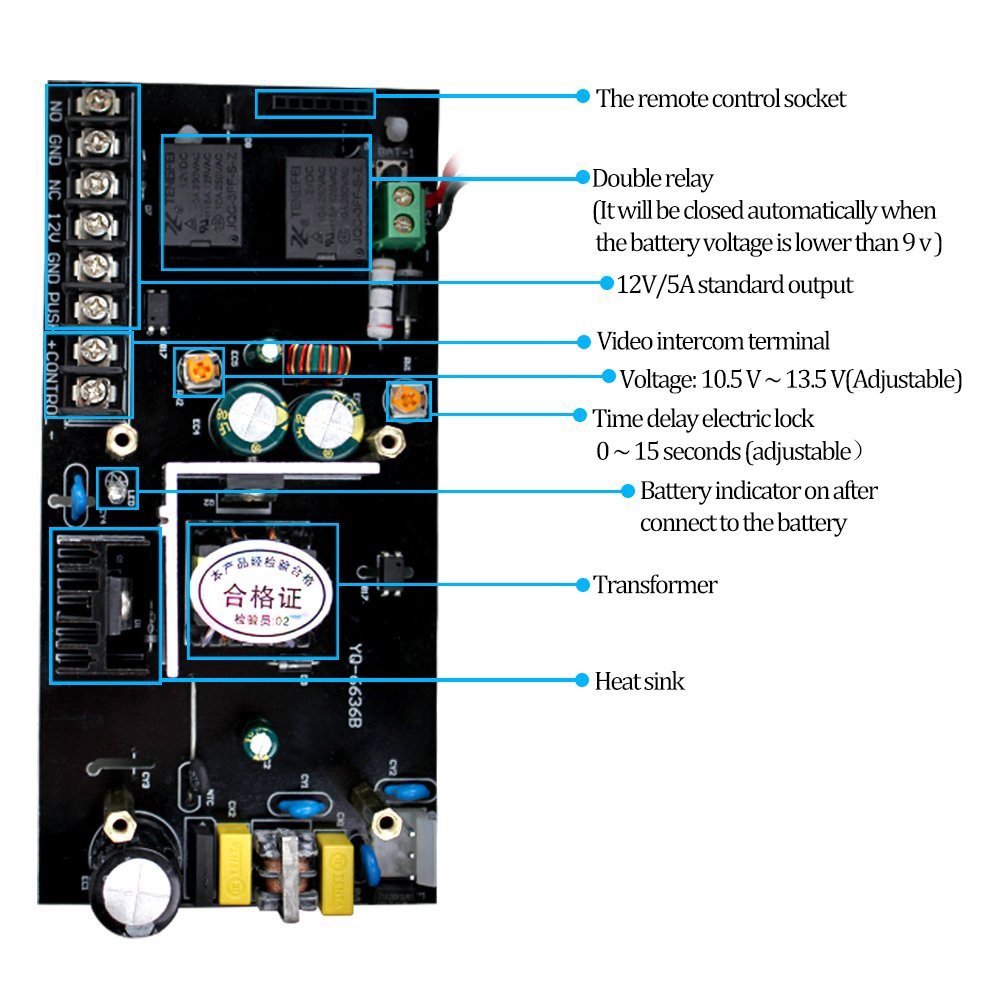

Set a delay circuit to set the unlocking time, which can input a 12V electrical signal to control the opening and closing of the electric lock. An automatic protection circuit is installed inside the circuit of the power supply device. When external lines are short circuited, the load is too large, the temperature is too high, or the voltage is too high, this power supply device will automatically cut off the signal output, while the signal output will automatically recover when the fault is resolved.
Product Specifications:
Input Voltage: AC 90V - AC 260V / 50HZ
Output Voltage: DC 12V
Momentary Current: 5A
Persistent Current: 3.5A
Unlocking Time Delay: 0 ~ 15 seconds
Poder Protection: short circuit/overload/over current over voltage protection
Poder: 50W
Operating Temperature: -20?~65?
Size: 212*173*70mm
Package List:
1 x UPS Access Controller Power
1 x User Manual
• Working Voltage: input voltage: AC 90 V ~ 260V / 50HZ, output voltage/current: 12 VDC / 5 A.
• Backup Battery: Support external backup battery 12V / 7AH. The backup battry is not included in package, need to buy in addtional.
• Output Ports: Set NC / NO outputs, can control various types of electric locks.
• Over-voltage Protection: Has over-voltage protection, over-current protection, and fault protection. The power supply will automatic shutdown protection if voltage less than 9V.
• Applications: Suitable for building intercom, various entrances access control, particularly suitable for all kinds of electric locks.
Product Introduction:
Suitable for controlling various access control controllers and building intercom equipment, especially suitable for various types of electric locks. Can be connected to various normally open (NO) or normally closed (NC) electric locks.
The electric lock can be directly controlled through the signal line (PUSH) or other switch signal output of the access control controller, which can reduce the compliance of the access control controller and minimize safety hazards.
Set a delay circuit to set the unlocking time, which can input a 12V electrical signal to control the opening and closing of the electric lock. An automatic protection circuit is installed inside the circuit of the power supply device. When external lines are short circuited, the load is too large, the temperature is too high, or the voltage is too high, this power supply device will automatically cut off the signal output, while the signal output will automatically recover when the fault is resolved.
Product Specifications:
Input Voltage: AC 90V - AC 260V / 50HZ
Output Voltage: DC 12V
Momentary Current: 5A
Persistent Current: 3.5A
Unlocking Time Delay: 0 ~ 15 seconds
Poder Protection: short circuit/overload/over current over voltage protection
Poder: 50W
Operating Temperature: -20?~65?
Size: 212*173*70mm
Package List:
1 x UPS Access Controller Power
1 x User Manual
• Working Voltage: input voltage: AC 90 V ~ 260V / 50HZ, output voltage/current: 12 VDC / 5 A.
• Backup Battery: Support external backup battery 12V / 7AH. The backup battry is not included in package, need to buy in addtional.
• Output Ports: Set NC / NO outputs, can control various types of electric locks.
• Over-voltage Protection: Has over-voltage protection, over-current protection, and fault protection. The power supply will automatic shutdown protection if voltage less than 9V.
• Applications: Suitable for building intercom, various entrances access control, particularly suitable for all kinds of electric locks.
