Description
Brand: LIBO Smart Home

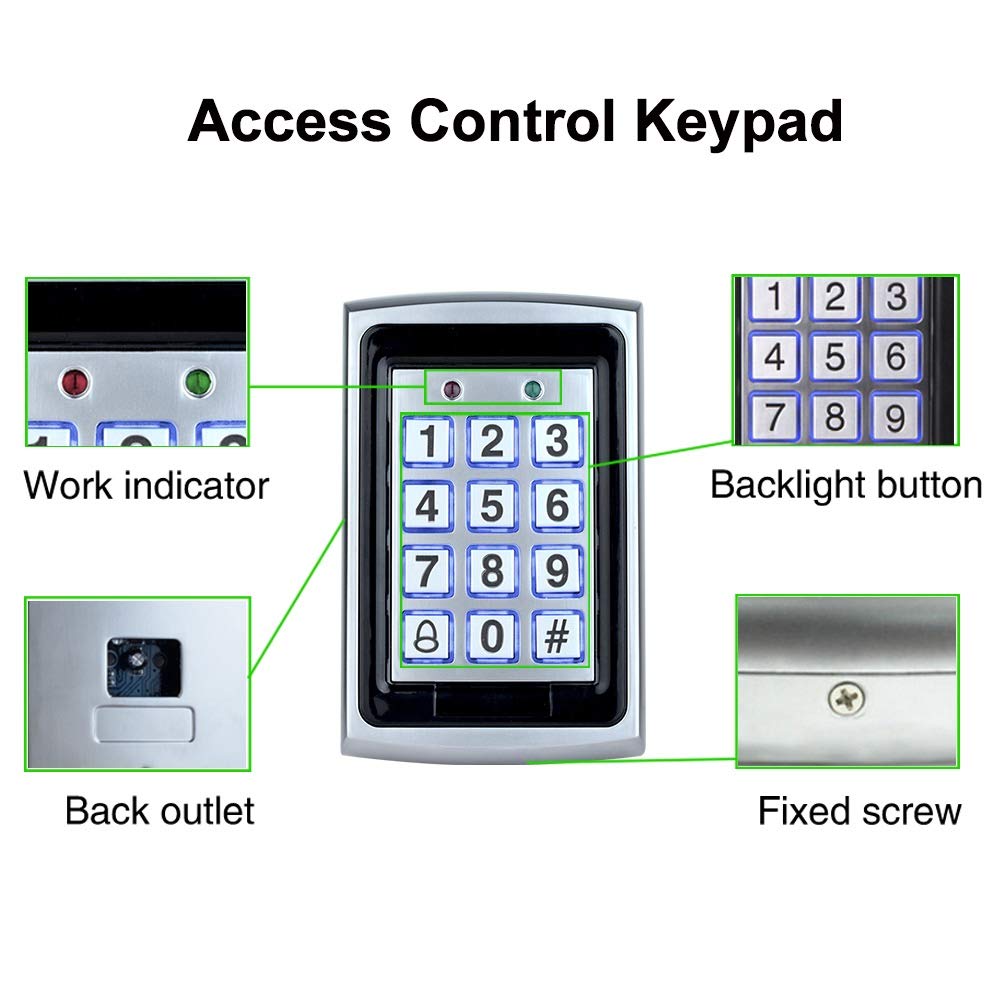

Access Controller
1.Voltage: 12VDC, Current: <1200mA
2.User capacity: 1000 users
3.Proximity Reader Frequency: 125KHz
4.Compatible Cards: EM or EM compatible card
5.External Reader: Not support
6.Reading Distance: 3-10cm
7.Door Open Options: RFID Card Only / Password Only / RFID Card + Password.
8.Full programming from the keypad, doesn't need to connect on the computer, can works alone.
9. Dimension: 120*77*27mm, Material: metal

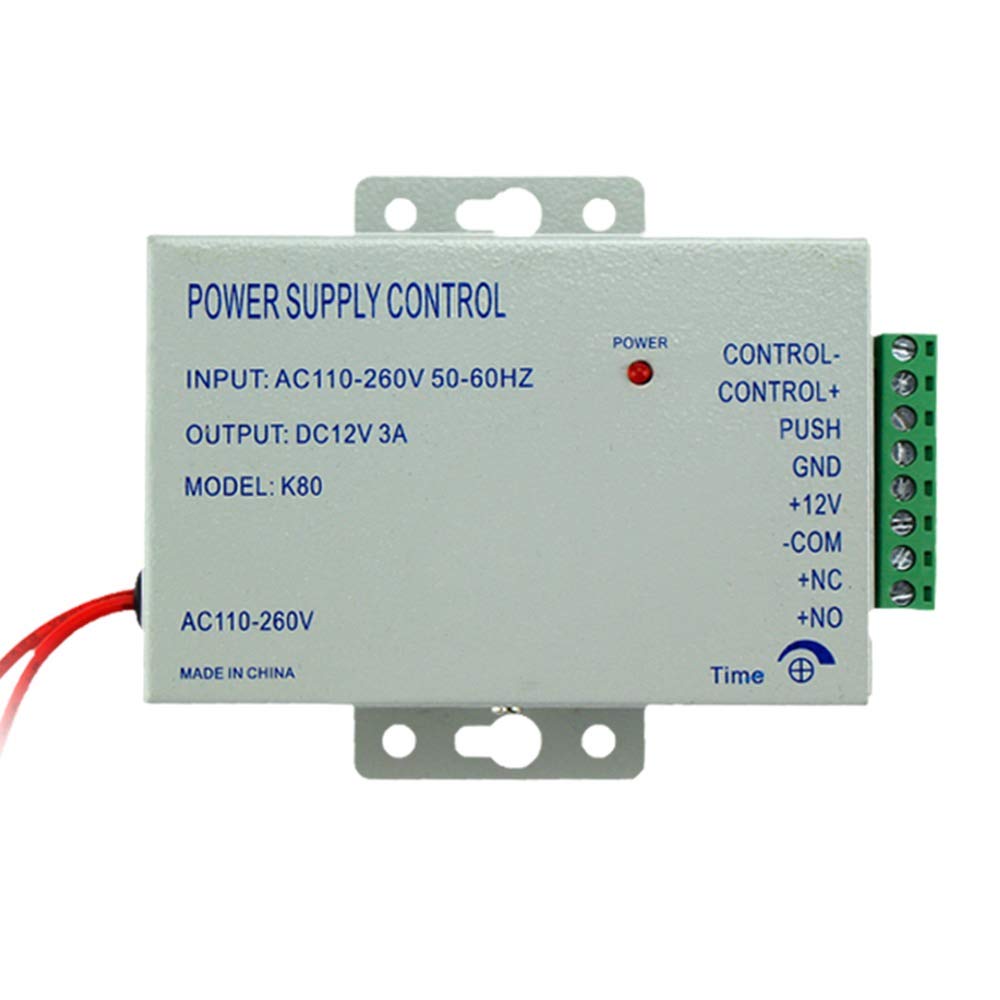

Access Control Power Supply
1.AC input: Standard AC100V-240V 50-60HZ 36W, DC output: DC12V/ 3 A
2.Set NC / NO outputs, can control various types of electric locks.
3.Automatic protection function: It will protect automatically and no voltage output when short circuit happening in the circumferential circuit.
4.Dimension:100*65*32mm, Material: metal

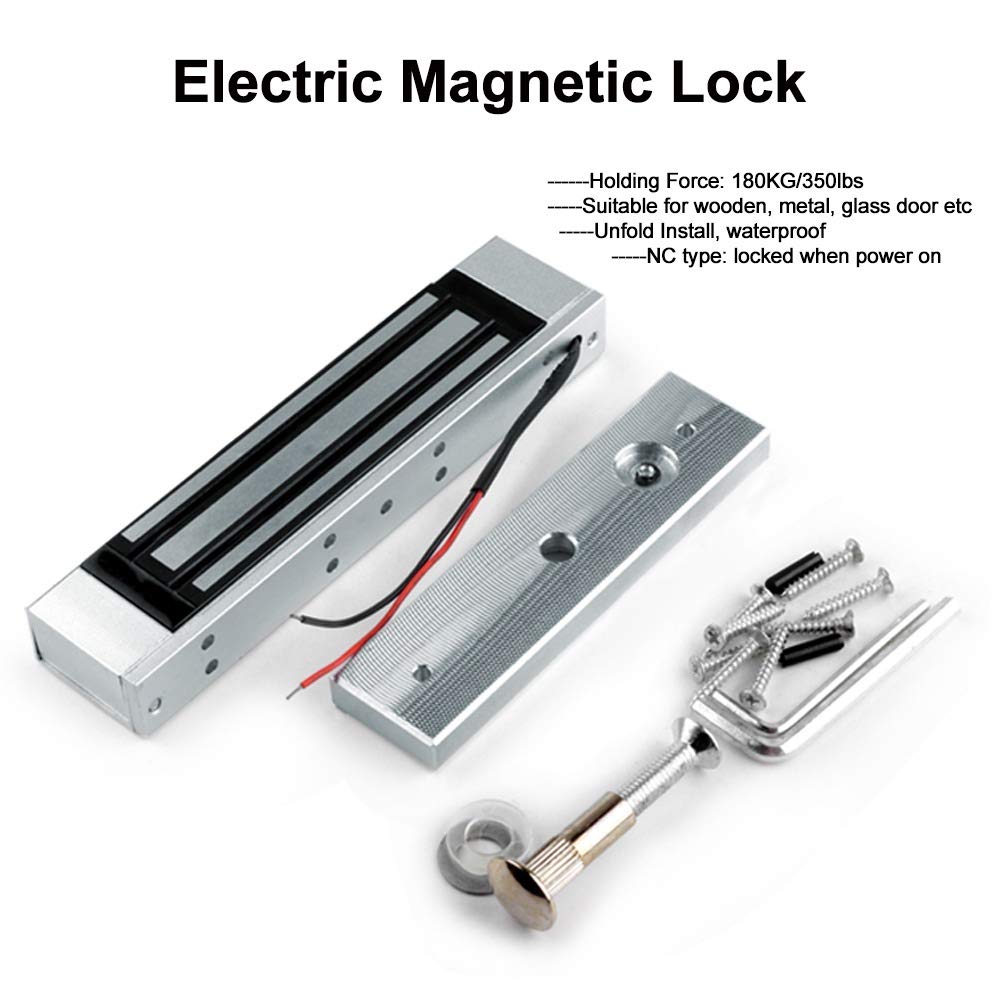

Electric Magnetic Lock
1. Working Voltage: DC12V, Working Current: 380-500mA
2.Holding Force: 180kg/350lbs.
3.NC Mode: Fail-safe type, unlocked when power off, locked when power on.
4. Features: unfold install, Built-in voltage spike suppressor, waterproof, without LED working indicator light.
5.Suitable For: Wooden door, Glass door, Metal door, Fireproof door, etc.
6.Dimensions: 170x23x39mm / 130x33x9.3mm

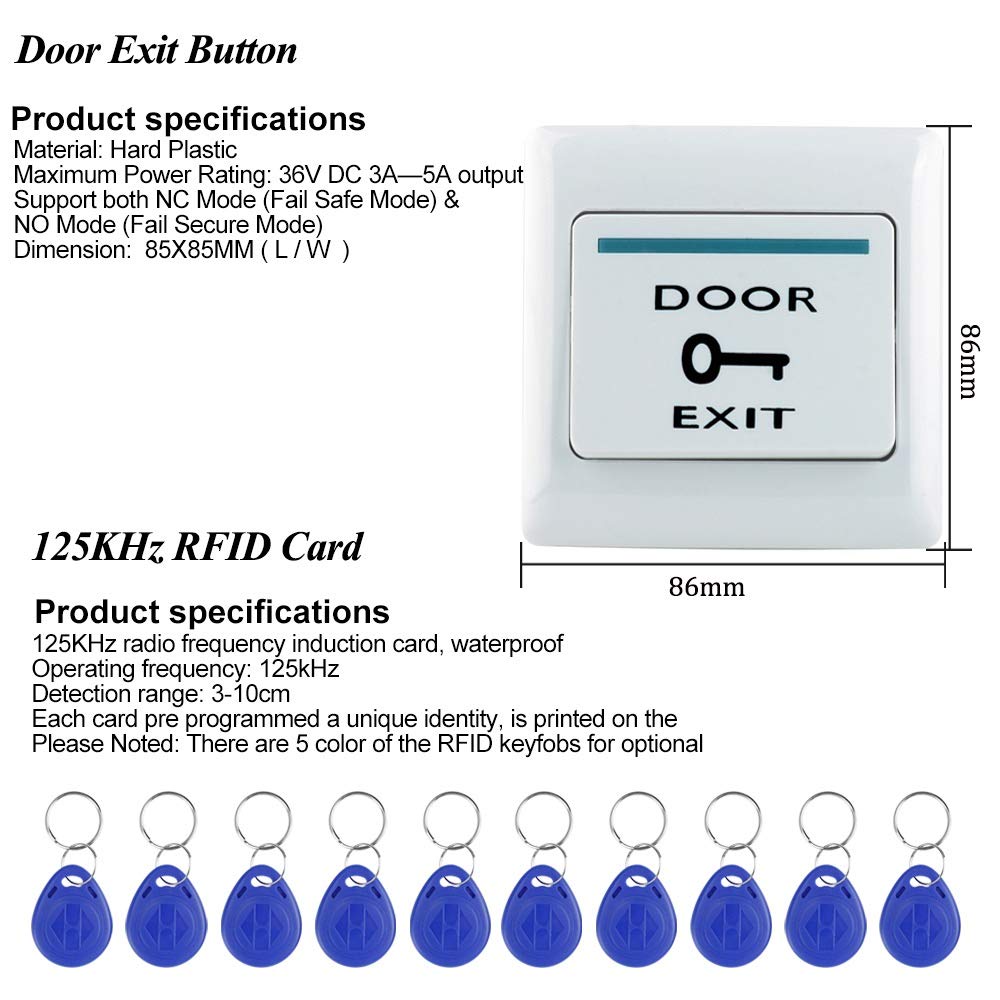

Door Exit Button
1.Dimensions: 86*86*8mm
2.Material: fireproof ABS plastic
3.Power Input: DC 12V
4.Output Contact: NO / COM
RFID Keyfobs
1.Frequency: 125KHz, EM ID type
2.Chip: TK4100
3.Color: blue
4. Read Only
5.Quantity: 10pcs

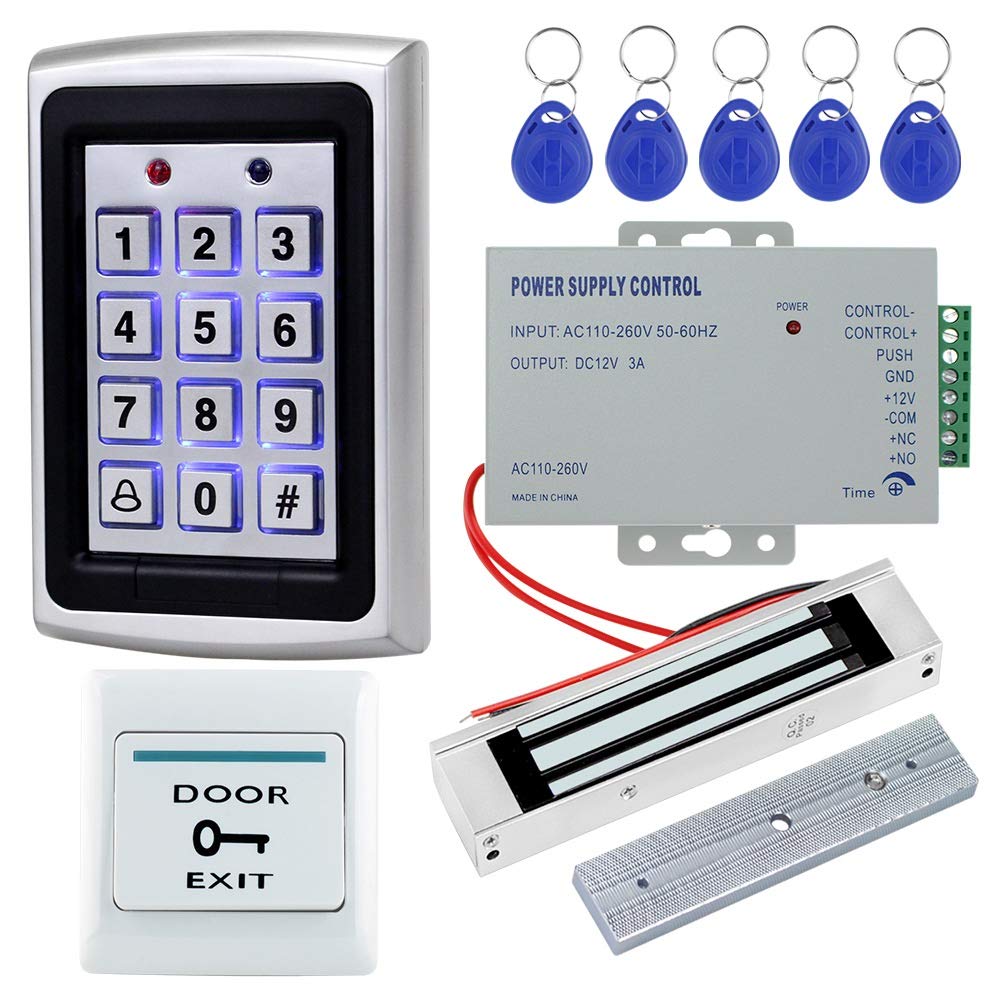

Package Including
1 x Access Control Keypad
1 x Power Supply
1 x Electric Magnetic Lock
1 x Door Exit Button
10 x RFID Keyfobs
1 x User Manual(EN)
• 1. Support 1000 users. Three open door method: RFID card, password, RFID card + Password.
• 2. Full Program from the number keypad, don't need to connect to computer.
• 3.Electric Magnetic Lock:180kg/350lbs holding force, NC mode: locked when power on, Waterproof: can be used in outside.
• 4. Equipped with door exit button and 10 pieces 125KHz RFID keychains. Easy to use and install.
• 5. Suitable For: Wooden door, Framed glass door, Metal door, Fireproof door, etc.
Access Controller
1.Voltage: 12VDC, Current: <1200mA
2.User capacity: 1000 users
3.Proximity Reader Frequency: 125KHz
4.Compatible Cards: EM or EM compatible card
5.External Reader: Not support
6.Reading Distance: 3-10cm
7.Door Open Options: RFID Card Only / Password Only / RFID Card + Password.
8.Full programming from the keypad, doesn't need to connect on the computer, can works alone.
9. Dimension: 120*77*27mm, Material: metal
Access Control Power Supply
1.AC input: Standard AC100V-240V 50-60HZ 36W, DC output: DC12V/ 3 A
2.Set NC / NO outputs, can control various types of electric locks.
3.Automatic protection function: It will protect automatically and no voltage output when short circuit happening in the circumferential circuit.
4.Dimension:100*65*32mm, Material: metal
Electric Magnetic Lock
1. Working Voltage: DC12V, Working Current: 380-500mA
2.Holding Force: 180kg/350lbs.
3.NC Mode: Fail-safe type, unlocked when power off, locked when power on.
4. Features: unfold install, Built-in voltage spike suppressor, waterproof, without LED working indicator light.
5.Suitable For: Wooden door, Glass door, Metal door, Fireproof door, etc.
6.Dimensions: 170x23x39mm / 130x33x9.3mm
Door Exit Button
1.Dimensions: 86*86*8mm
2.Material: fireproof ABS plastic
3.Power Input: DC 12V
4.Output Contact: NO / COM
RFID Keyfobs
1.Frequency: 125KHz, EM ID type
2.Chip: TK4100
3.Color: blue
4. Read Only
5.Quantity: 10pcs
Package Including
1 x Access Control Keypad
1 x Power Supply
1 x Electric Magnetic Lock
1 x Door Exit Button
10 x RFID Keyfobs
1 x User Manual(EN)
• 1. Support 1000 users. Three open door method: RFID card, password, RFID card + Password.
• 2. Full Program from the number keypad, don't need to connect to computer.
• 3.Electric Magnetic Lock:180kg/350lbs holding force, NC mode: locked when power on, Waterproof: can be used in outside.
• 4. Equipped with door exit button and 10 pieces 125KHz RFID keychains. Easy to use and install.
• 5. Suitable For: Wooden door, Framed glass door, Metal door, Fireproof door, etc.
