Description
Brand: Lazmin
Description:

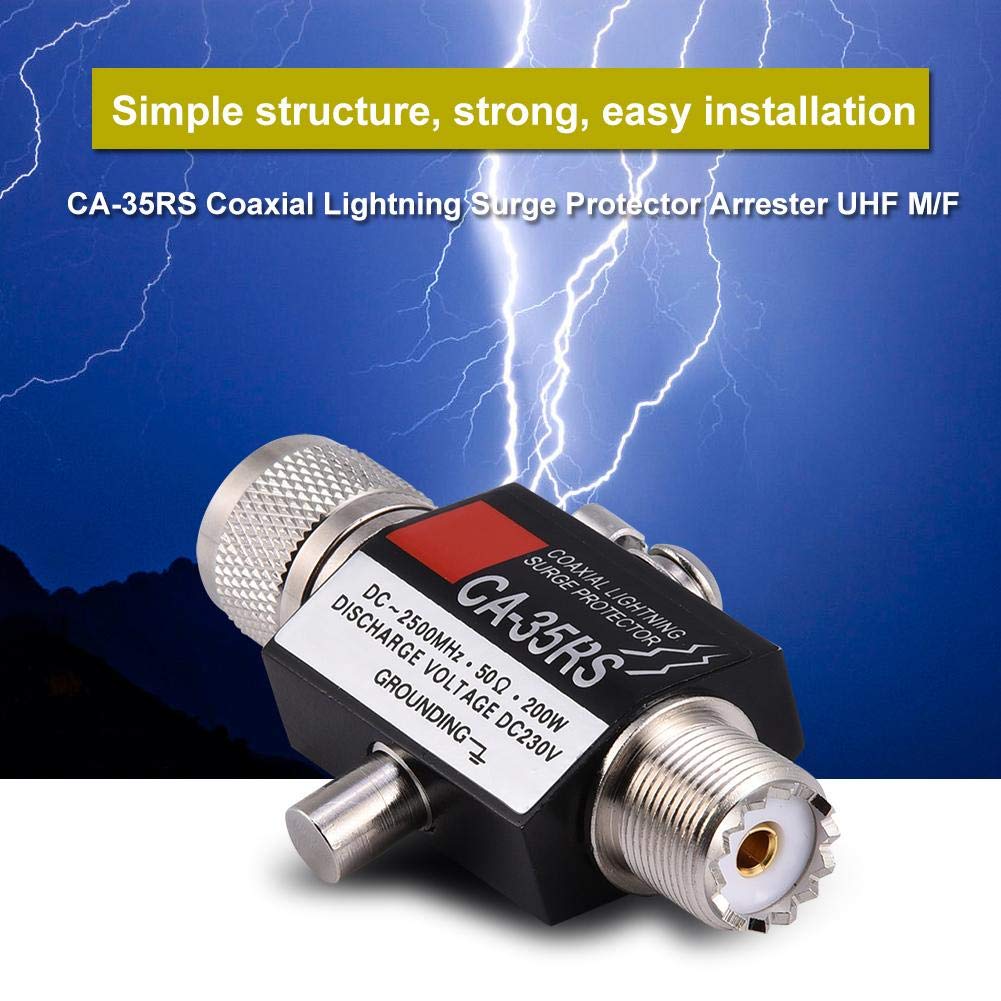

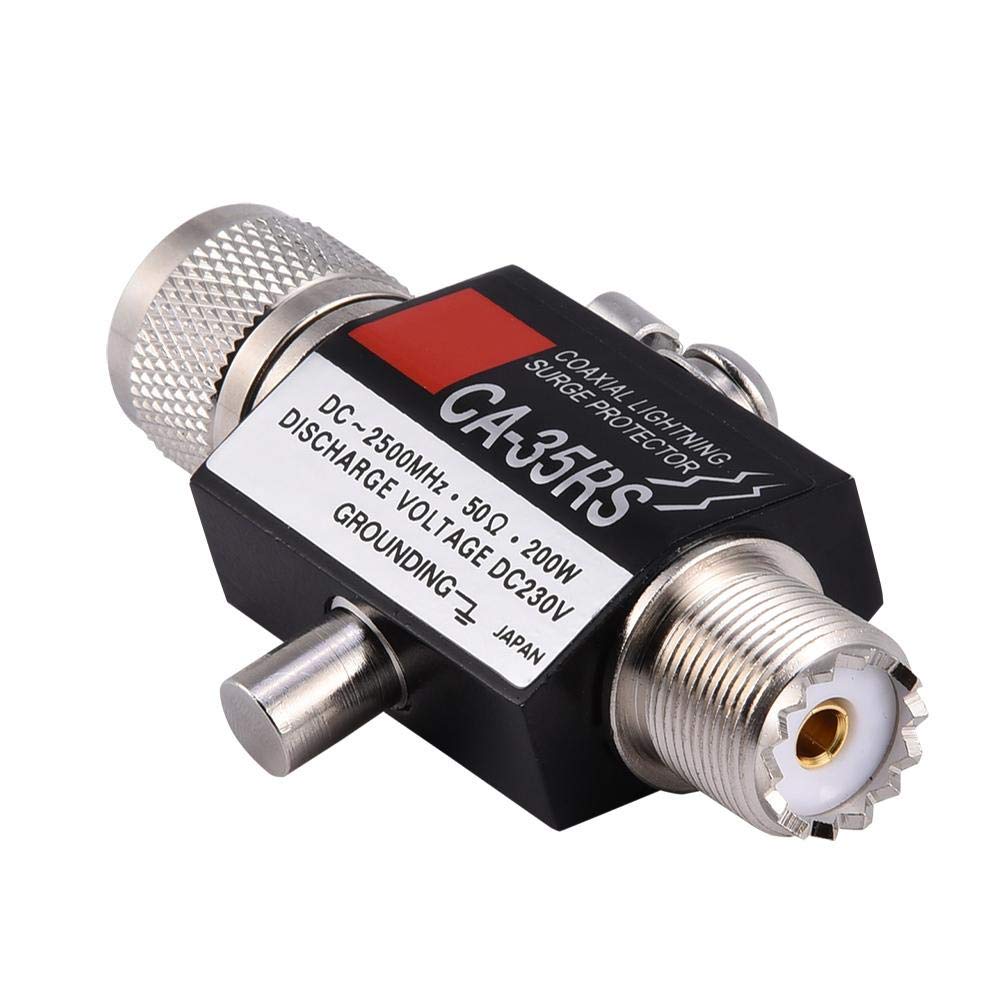

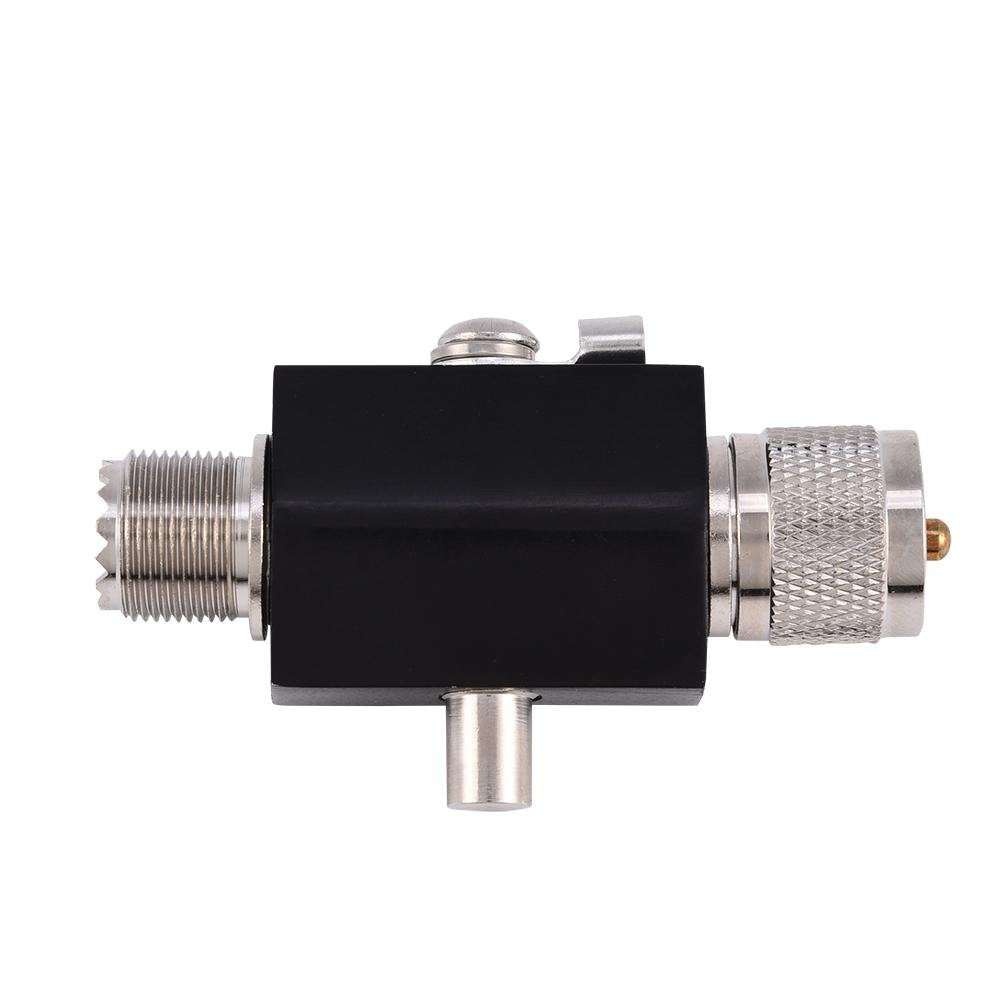

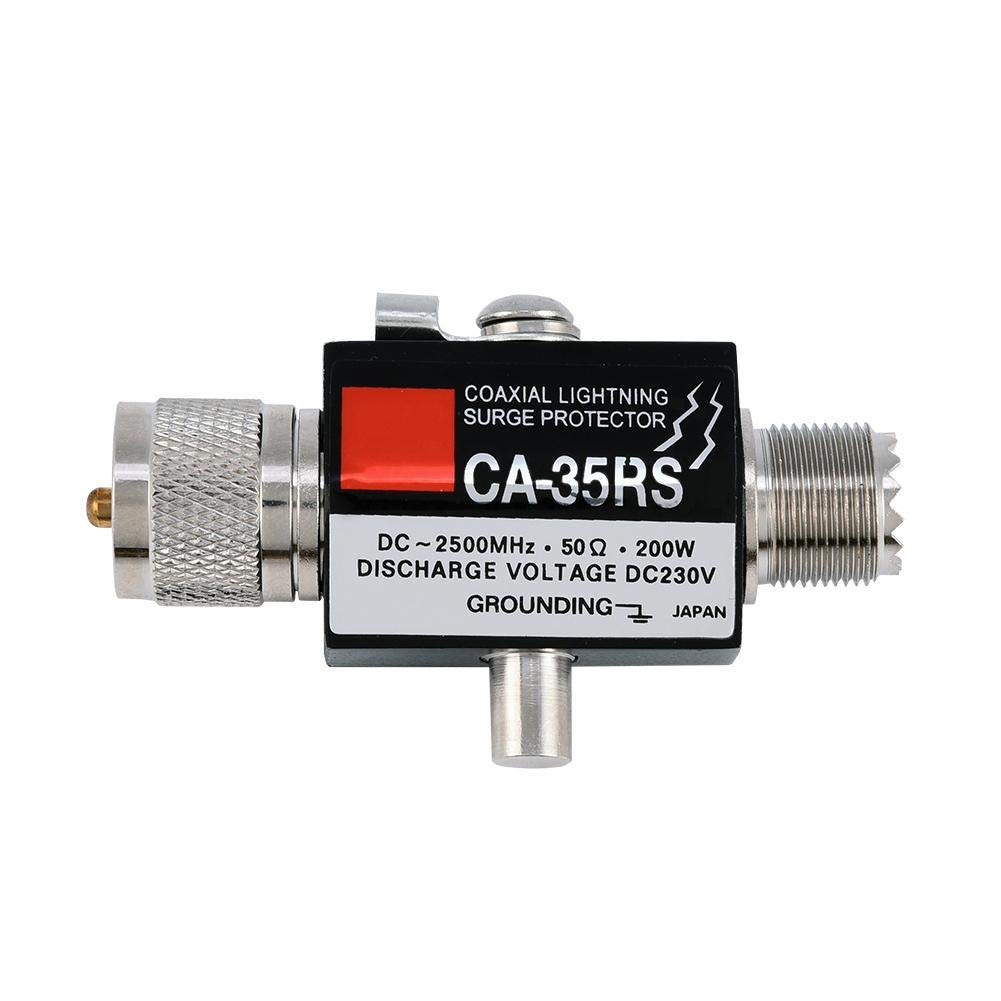

The Surge Protector is a lightning arrester of coaxial construction. The device is designed to absorb the surge of lightning strikes on an antenna at the top of a building and ground it, thus providing full lightning protection for transceivers, receivers, etc.
Specifications:
Material: Iron
Color: Black
Model: CA to 35RS
Connector: UHF/UHF
Frequency range: 0 to 3000MHz
Voltage standing wave ratio: 1.1
Peak power: 200w
Voltage: DC 230A
Current: 500A
Impedance: 50 ohms
Size: 78 * 41 * 20mm / 3.1 * 1.6 * 0.8in
Package weight: 105g
Package List:
1 x Coaxial Lightning Surge Protector
• APPLICATION: The coaxial lightning arrester adopts Male to Female UHF connector, with simple structure and durable enough, easy to install, can easily be replaced with a new element and providing full lightning protection for transceivers, receivers, etc.
• HIGH SAFETY GAS CHARGING SURGE ARRESTOR ELEMENT: The UHF lightning surge protector has built in gas charging surge arrestor element which discharges and grounds the surge at the moment the surge voltage exceeds a specified level. It designed with a stress on high safety, absorb the surge of lightning strikes on an antenna at the top of a building and ground it.
• REPEATEDLY SURGE DISCHARGE & DAMAGE: The device makes the actions of surge discharge and restoration as repeatedly as necessary, high quality construction, reliable frequency range performance from DC 0-2500MHz. Provide it a longer useful life.
• LIGHTNING PROTECTION EFFECT: The male to female HUF lightning surge protector adopts 1/4 wavelength short circuit principle, equivalent impedance at the load is converted to Z0 to achieve impedance matching. With a good lightning protection effect.

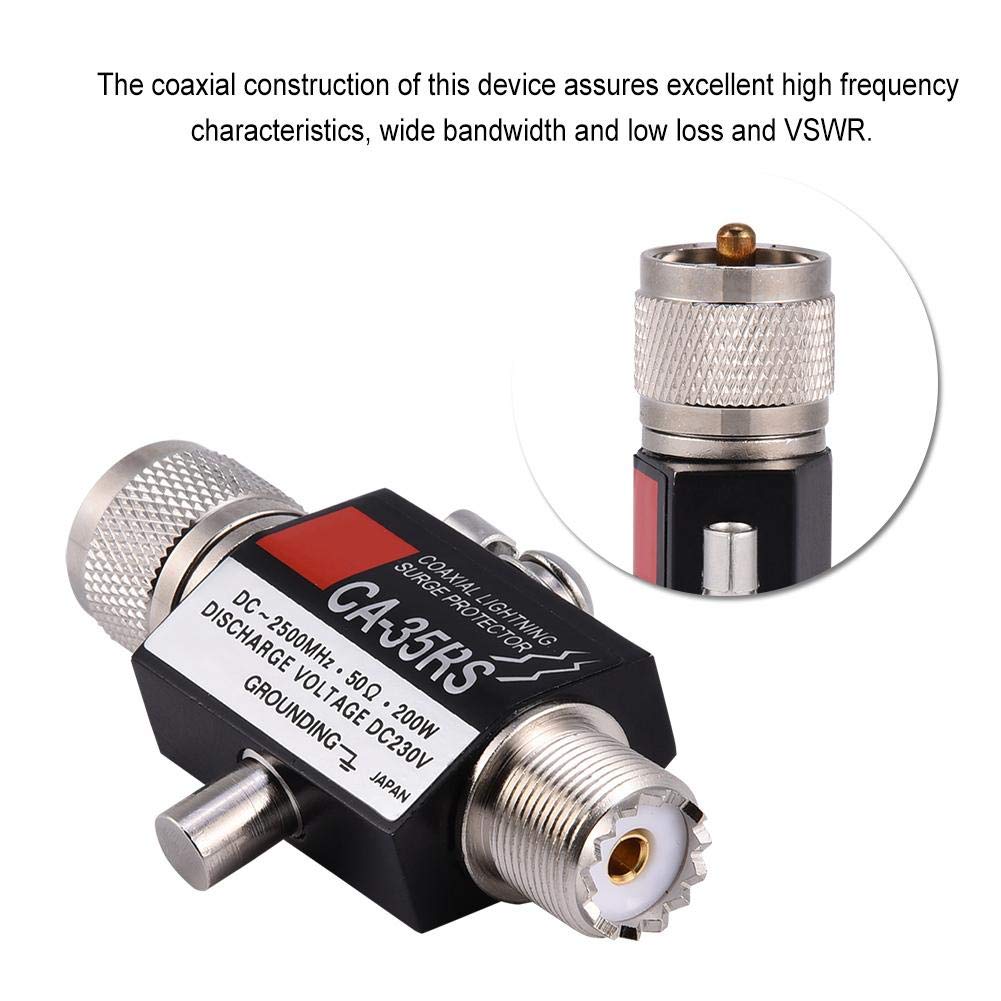

• EXCELLENT CHARACTERISTICS: The surge protector with wide bandwidth and low loss and ?1.1 VSWR these excellent characterisitics, its coaxial construction also assures excellent high frequency characteristics.
Color: default
Description:
The Surge Protector is a lightning arrester of coaxial construction. The device is designed to absorb the surge of lightning strikes on an antenna at the top of a building and ground it, thus providing full lightning protection for transceivers, receivers, etc.
Specifications:
Material: Iron
Color: Black
Model: CA to 35RS
Connector: UHF/UHF
Frequency range: 0 to 3000MHz
Voltage standing wave ratio: 1.1
Peak power: 200w
Voltage: DC 230A
Current: 500A
Impedance: 50 ohms
Size: 78 * 41 * 20mm / 3.1 * 1.6 * 0.8in
Package weight: 105g
Package List:
1 x Coaxial Lightning Surge Protector
• APPLICATION: The coaxial lightning arrester adopts Male to Female UHF connector, with simple structure and durable enough, easy to install, can easily be replaced with a new element and providing full lightning protection for transceivers, receivers, etc.
• HIGH SAFETY GAS CHARGING SURGE ARRESTOR ELEMENT: The UHF lightning surge protector has built in gas charging surge arrestor element which discharges and grounds the surge at the moment the surge voltage exceeds a specified level. It designed with a stress on high safety, absorb the surge of lightning strikes on an antenna at the top of a building and ground it.
• REPEATEDLY SURGE DISCHARGE & DAMAGE: The device makes the actions of surge discharge and restoration as repeatedly as necessary, high quality construction, reliable frequency range performance from DC 0-2500MHz. Provide it a longer useful life.
• LIGHTNING PROTECTION EFFECT: The male to female HUF lightning surge protector adopts 1/4 wavelength short circuit principle, equivalent impedance at the load is converted to Z0 to achieve impedance matching. With a good lightning protection effect.
• EXCELLENT CHARACTERISTICS: The surge protector with wide bandwidth and low loss and ?1.1 VSWR these excellent characterisitics, its coaxial construction also assures excellent high frequency characteristics.
Color: default
