Description
Brand: Lapetus
*Signal bandwidth: 0-80MHZ
*Common-mode rejection ratio(CMRR):60dB
Cable Port: pure copper BNC Male, 75?impedance: Press terminal, 50?impedance.
Video format: NTSC,PAL HD CVI/TVI/AHD/CVBS video signal
*LED indication: Power-Blue; Signal-Green
*Power: <0.15W
*Transient overvoltage protection: 2KV
*Operation Temp: -10?-70?
*Storage Temp: -40?-80?
*Case Material: ABS plastic
*Product size: 55x28.6x20mm
Cable Standard:
Cable’s quality directly affect the video signal transmission quality. In order to achieve good quality signal transmission, recommend use Standard CAT 5e/6 or better UTP cable. Warm Tip:
The Cable quality, could use “Multimeter” check one pcs twist pair wire’s DC Impedance. Normally request DC Impedance<18?/100m, that means < 54?/Carton.

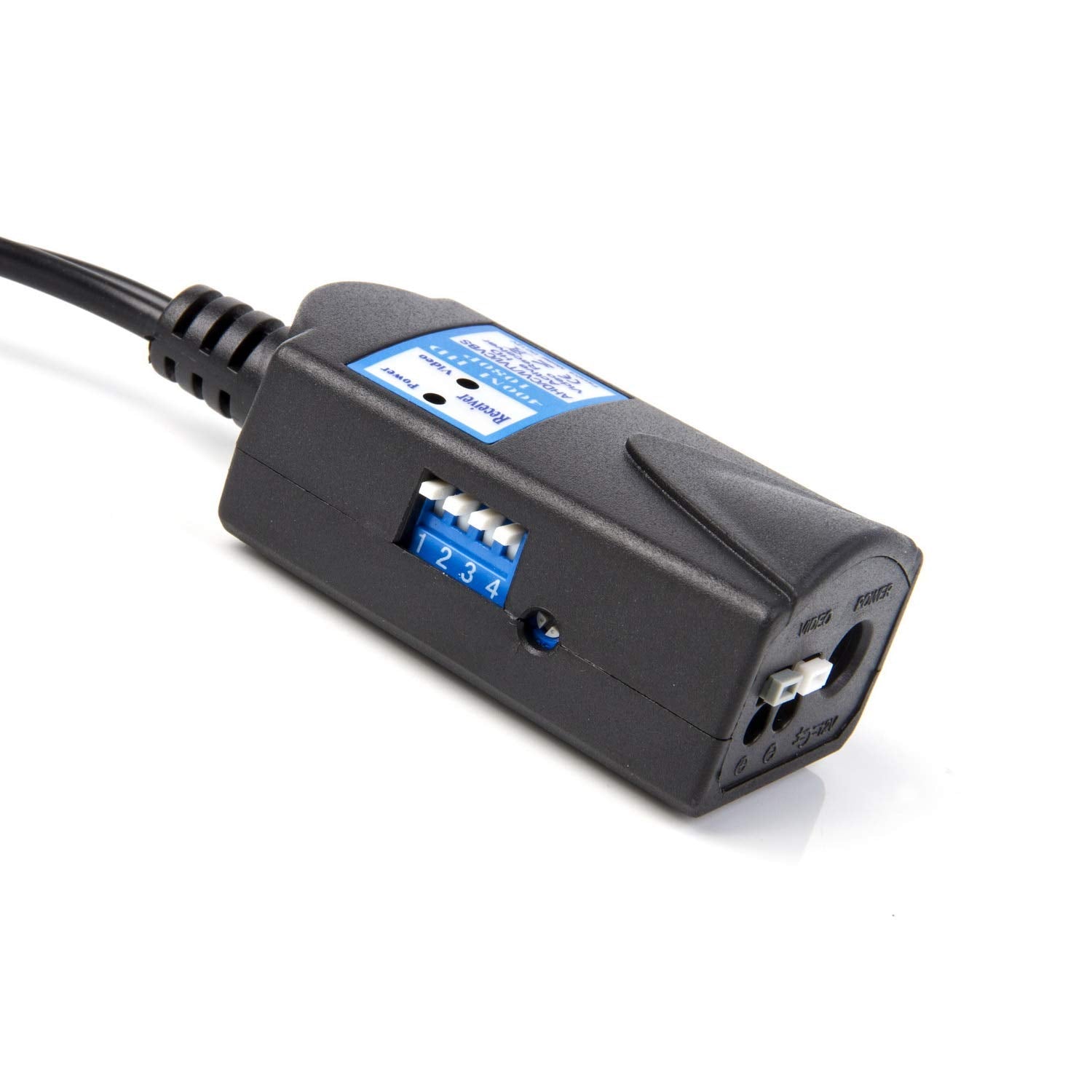

Dial Switch
Dial Switch use for adjust contrast. Different compound mode makes
different level of contrast.
Level 1 (Lowest) : “1” “2” “3” “4” all the tap position turn up
Level 2: “1” turn down, “2” “3” “4” turn up.
Level 3: “1” “2” turn down, “3” “4” turn up.
Level 4: “1” “2” “3” turn down, “4” turn up.
Level 5 (Hightest): “1” “2” “3” “4” all the tap position turn down
Notic: HD CVI/TVI/AHD Cameras only have to use “1” tap position. (“2” “3” “4” can not use, otherwise , the image will be abnormal), the Max distance: 400M

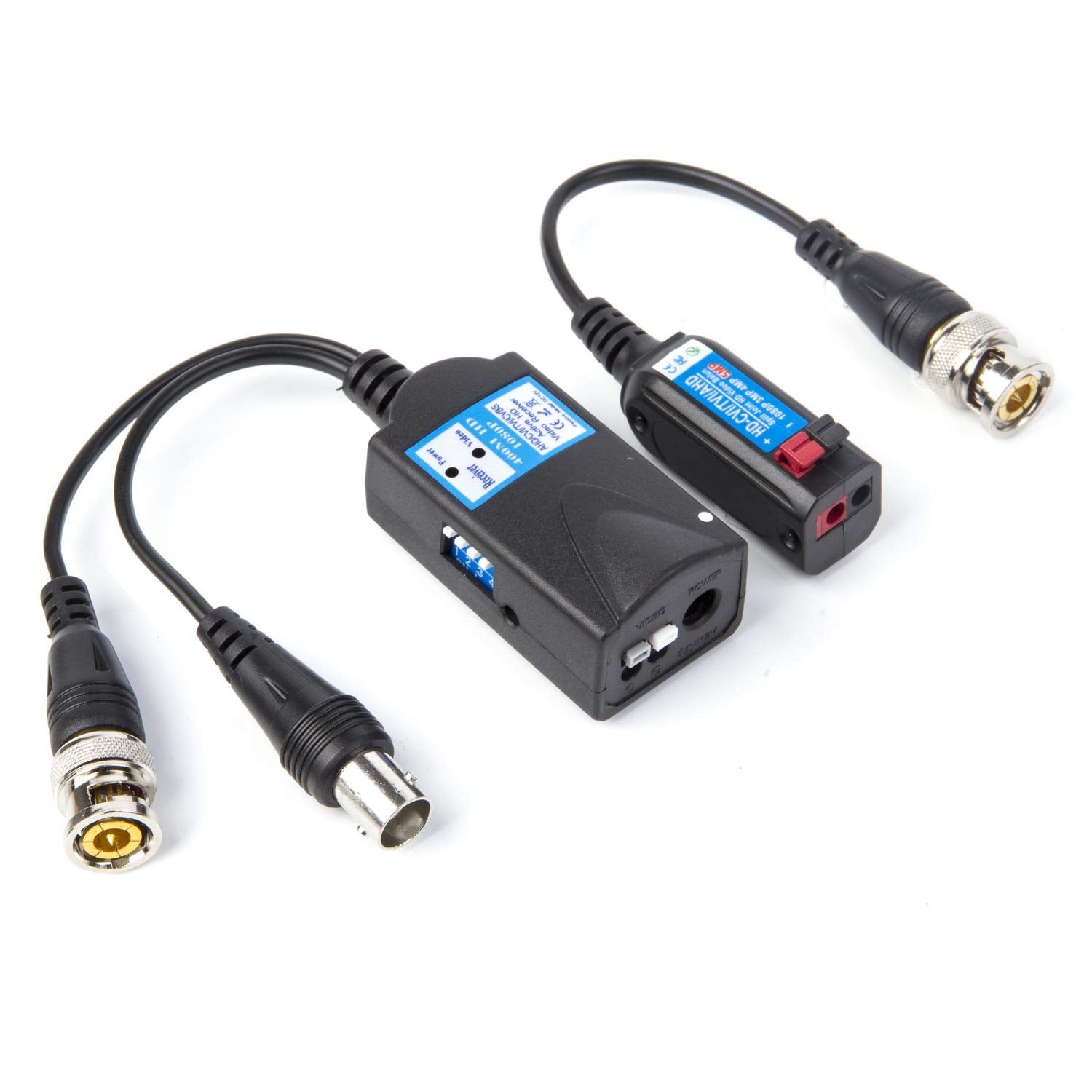

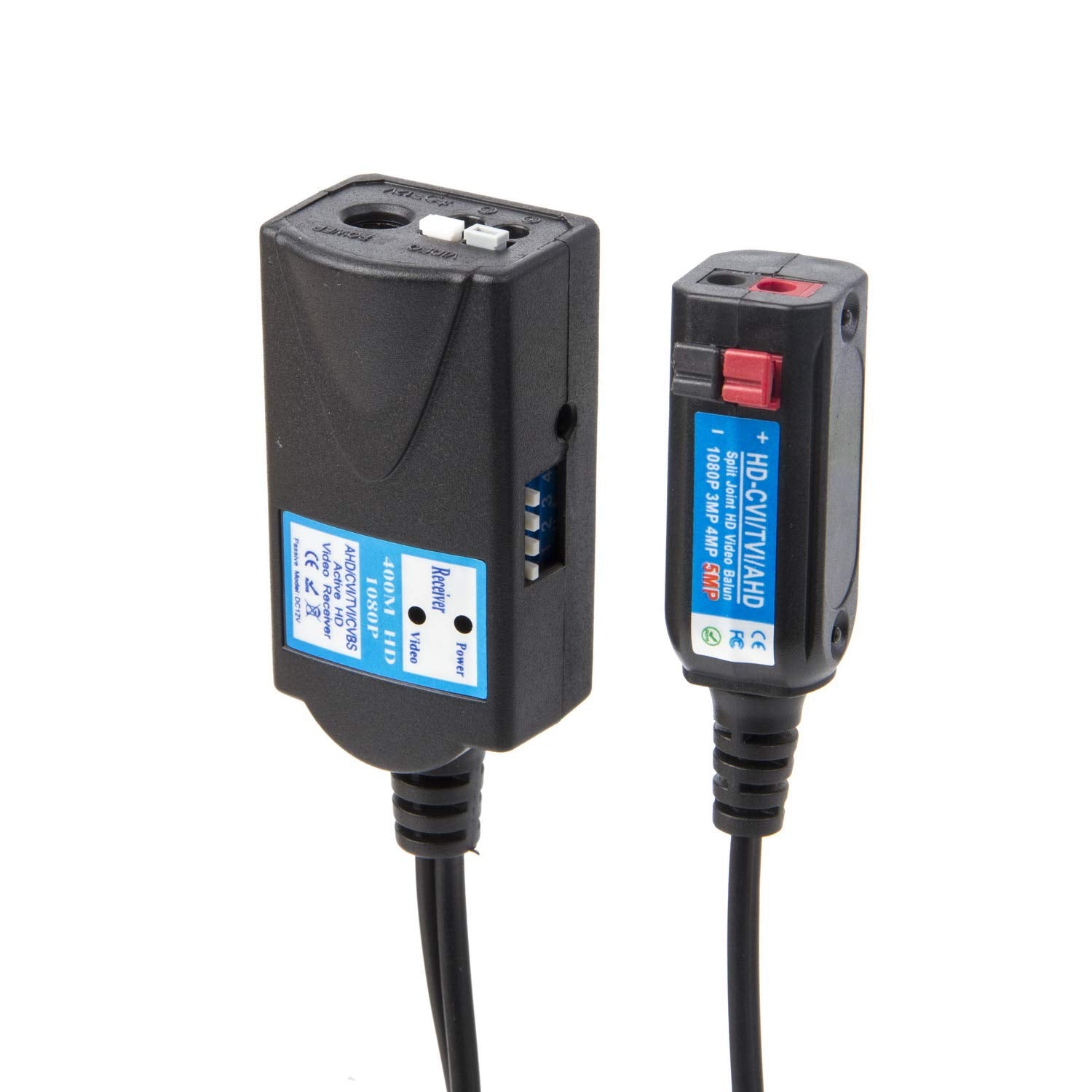

• ?Video & Power Receiver?: Difference from other kinds of CCTV video balun transceiver, this 1 pair video balun is composed of 1x1080P 400M CCTV BNC HD CVI/TVI/AHD/CVBS HD Active Video Balun& Power Receiver and 1x 5MP HD-CVI/TVI/AHD Video Balun Transmitter. Smallest size in Chinese Mainland, BNC male connector, directly connect with DVR, video splitter, Matrix or Monitor.
• ?400M-800M Distance? : Up to 400M, work with Passive video balun, for HD CVI/TVI/AHD Cameras. Up to 800M, work with Passive video balun, for CVBS Cameras. In order to achieve high quality video signal transmission, we recommend you use Standard CAT5e/6 or better UTP cable.
• ?Dial Switch?: Transmit PAL/NTSC HD CVI/TVI/AHD/CVBS Video signal via UTP, DC 12V power supply. Use Dial Switch to control contrast, use Knob switch to adjust brightness, use press Terminal block (screwless), easy to install.
• ?Video Format?: These video balun support NTSC, PAL HD CVI/TVI/AHD/CVBS video signal. LED indicate Power (Blue Light), Signal (Green Light). Lightning proof, common-mode anti interference function. High cost performance ratio!

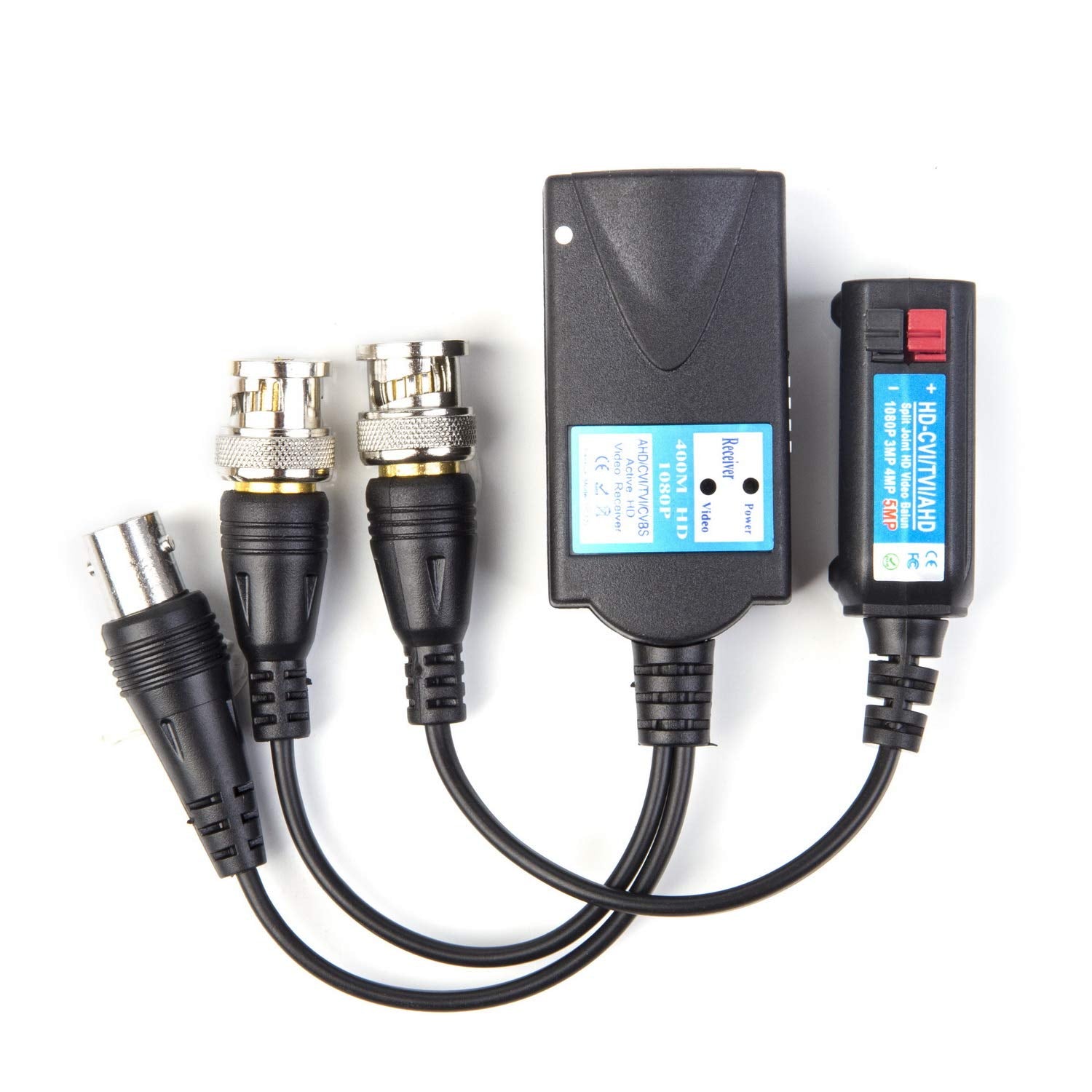

• ?What You Get?: 1x 1080P 400M CCTV BNC HD CVI/TVI/AHD/CVBS HD Active Video Balun& Power Receiver and 1x 5MP HD-CVI/TVI/AHD Video Balun Transmitter. +Installation Specification+1 Year Friendly of Warranty Service.
*Signal bandwidth: 0-80MHZ
*Common-mode rejection ratio(CMRR):60dB
Cable Port: pure copper BNC Male, 75?impedance: Press terminal, 50?impedance.
Video format: NTSC,PAL HD CVI/TVI/AHD/CVBS video signal
*LED indication: Power-Blue; Signal-Green
*Power: <0.15W
*Transient overvoltage protection: 2KV
*Operation Temp: -10?-70?
*Storage Temp: -40?-80?
*Case Material: ABS plastic
*Product size: 55x28.6x20mm
Cable Standard:
Cable’s quality directly affect the video signal transmission quality. In order to achieve good quality signal transmission, recommend use Standard CAT 5e/6 or better UTP cable. Warm Tip:
The Cable quality, could use “Multimeter” check one pcs twist pair wire’s DC Impedance. Normally request DC Impedance<18?/100m, that means < 54?/Carton.
Dial Switch
Dial Switch use for adjust contrast. Different compound mode makes
different level of contrast.
Level 1 (Lowest) : “1” “2” “3” “4” all the tap position turn up
Level 2: “1” turn down, “2” “3” “4” turn up.
Level 3: “1” “2” turn down, “3” “4” turn up.
Level 4: “1” “2” “3” turn down, “4” turn up.
Level 5 (Hightest): “1” “2” “3” “4” all the tap position turn down
Notic: HD CVI/TVI/AHD Cameras only have to use “1” tap position. (“2” “3” “4” can not use, otherwise , the image will be abnormal), the Max distance: 400M
• ?Video & Power Receiver?: Difference from other kinds of CCTV video balun transceiver, this 1 pair video balun is composed of 1x1080P 400M CCTV BNC HD CVI/TVI/AHD/CVBS HD Active Video Balun& Power Receiver and 1x 5MP HD-CVI/TVI/AHD Video Balun Transmitter. Smallest size in Chinese Mainland, BNC male connector, directly connect with DVR, video splitter, Matrix or Monitor.
• ?400M-800M Distance? : Up to 400M, work with Passive video balun, for HD CVI/TVI/AHD Cameras. Up to 800M, work with Passive video balun, for CVBS Cameras. In order to achieve high quality video signal transmission, we recommend you use Standard CAT5e/6 or better UTP cable.
• ?Dial Switch?: Transmit PAL/NTSC HD CVI/TVI/AHD/CVBS Video signal via UTP, DC 12V power supply. Use Dial Switch to control contrast, use Knob switch to adjust brightness, use press Terminal block (screwless), easy to install.
• ?Video Format?: These video balun support NTSC, PAL HD CVI/TVI/AHD/CVBS video signal. LED indicate Power (Blue Light), Signal (Green Light). Lightning proof, common-mode anti interference function. High cost performance ratio!
• ?What You Get?: 1x 1080P 400M CCTV BNC HD CVI/TVI/AHD/CVBS HD Active Video Balun& Power Receiver and 1x 5MP HD-CVI/TVI/AHD Video Balun Transmitter. +Installation Specification+1 Year Friendly of Warranty Service.
