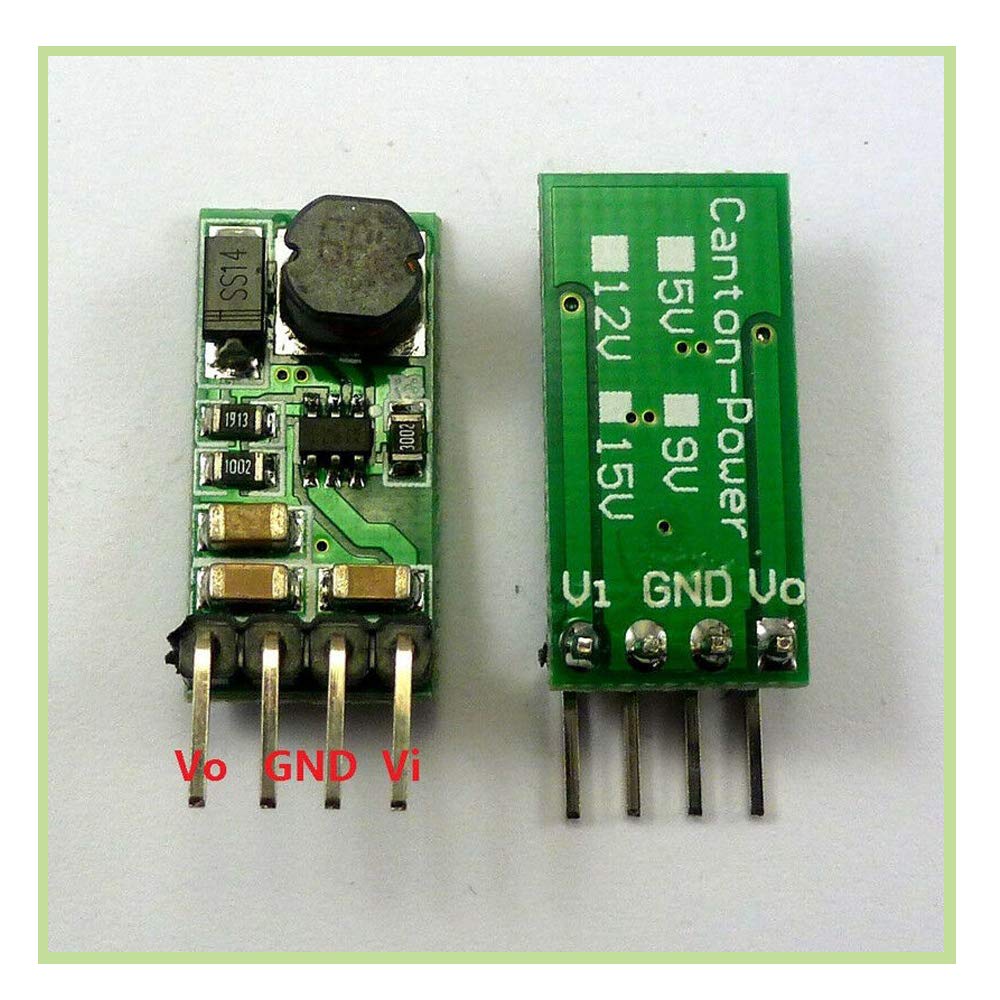

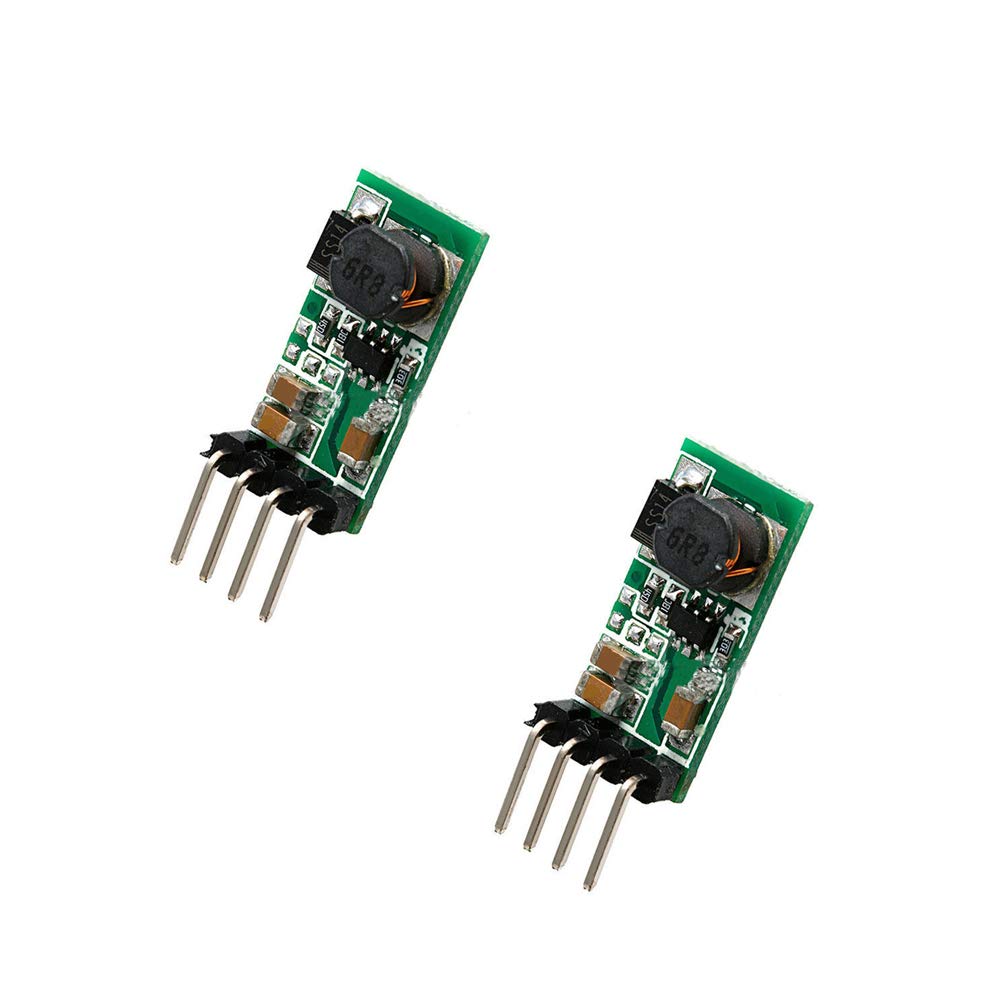

Brand: KOOBOOK
Model: KB267
Specifications:
Operating ambient temperature:-40-+85 Degrees Celsius

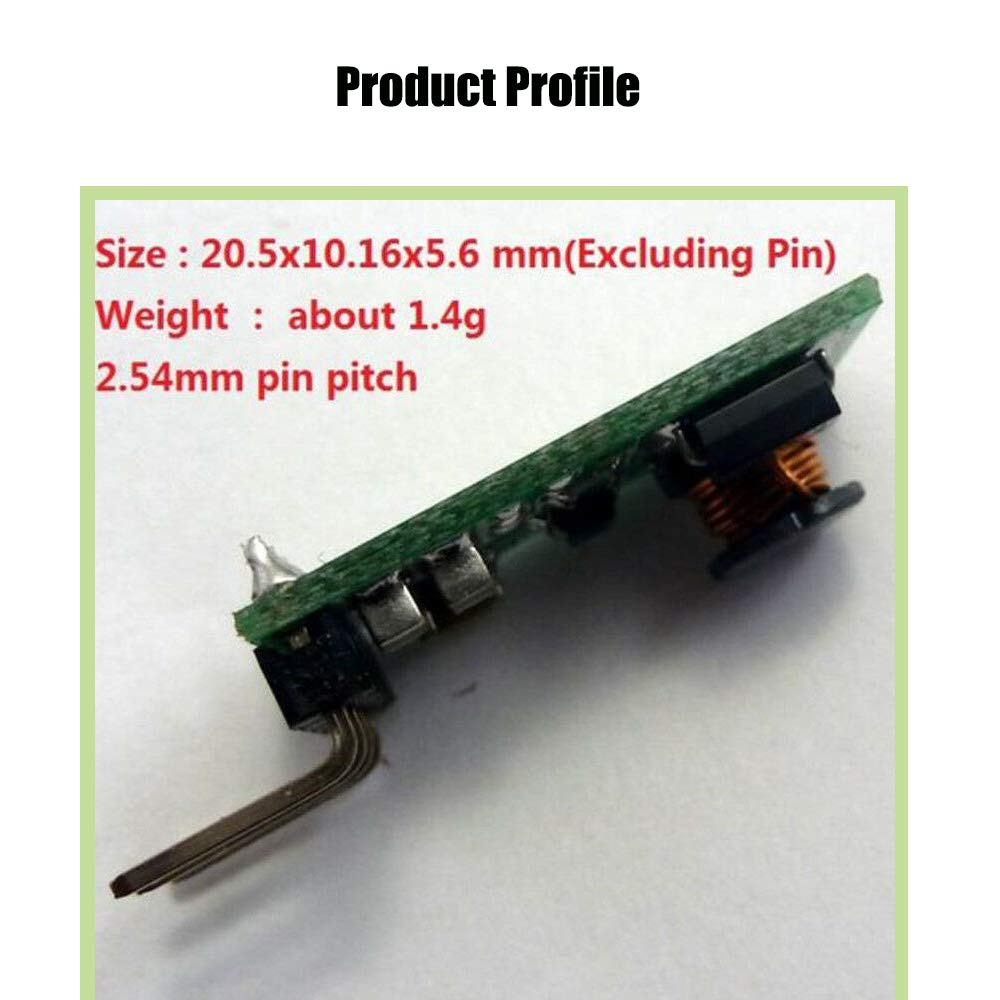

Excluding Pin Size:( L * W）2.05 * 1.00cm / 0.81“* 0.39”(Very small)
Weight:about 1.4g(Very light)
Start Voltage 2.8V, Output Current 50MA
INPUT 3 V I A; OUTPUT 12V 220MA
INPUT 3.3V IA; OUTPUT 12V 250MA
INPUT 3.7V IA; OUTPUT 12V 280MA
INPUT 4.5V IA; OUTPUT 12V 340MA
INPUT 5V IA; OL IFUI，12V 370MA
INPUT 6V IA; OUTPUT 12V 450MA
Applications:
MCU Development Board,FPGA/CPLD UNO MEGA2560 DUE 8051 AVR C8051 etc PLC Modbus RS485
VCR
LED Lighting
12V Relay board
Wireless communication equipment
315M 433M Wireless remote controller
Attention:
This is a DC-DC voltage converter module,Must be noted when using:
Input voltage can not be greater than the maximum input range
Output power can not be greater than the maximum load for a long time
Input power must be greater than the output power, because the power consumption of the module itself
We highly appreciate all customers opinions to improve the selling, also if anything you unsatisfied, please contact us for probable best solution.
Package Includes: 2Pcs

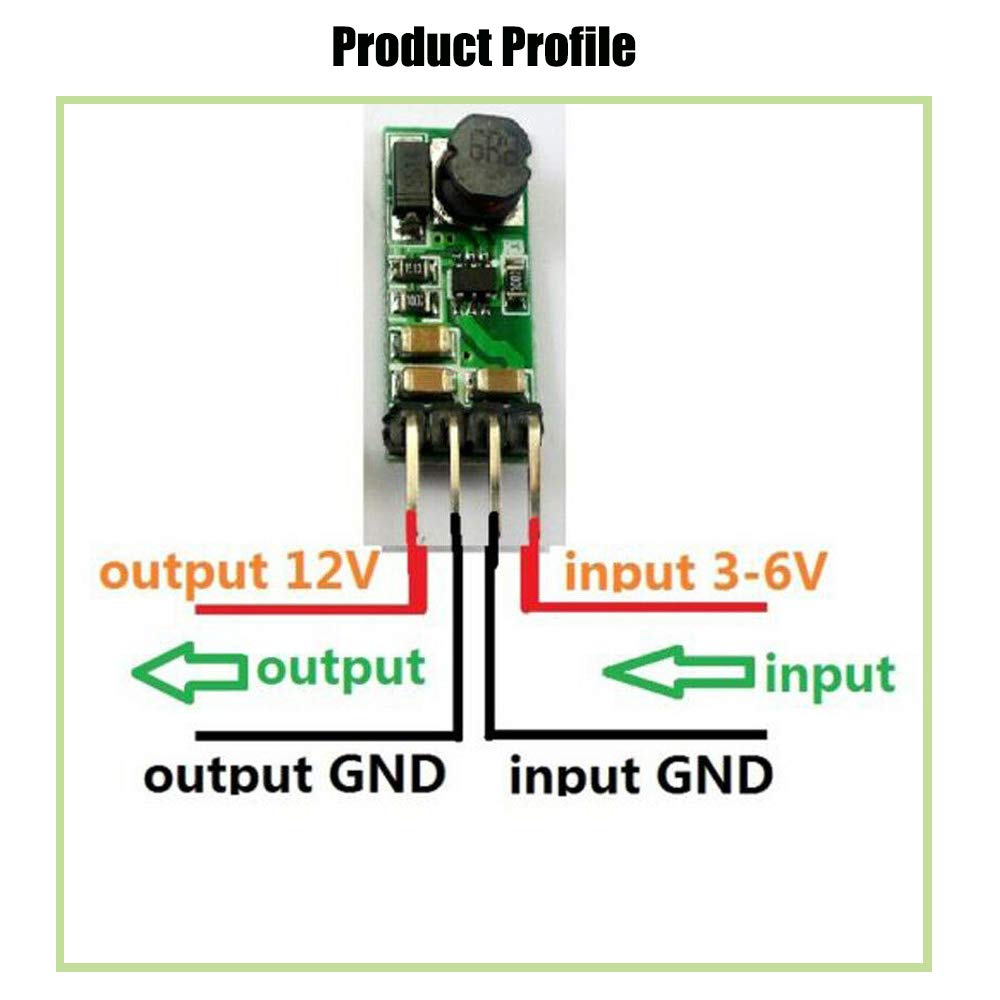

• Input voltage 3-6V, output 12V
• Maximum input current:1.2A
• Long-term work Current : IA

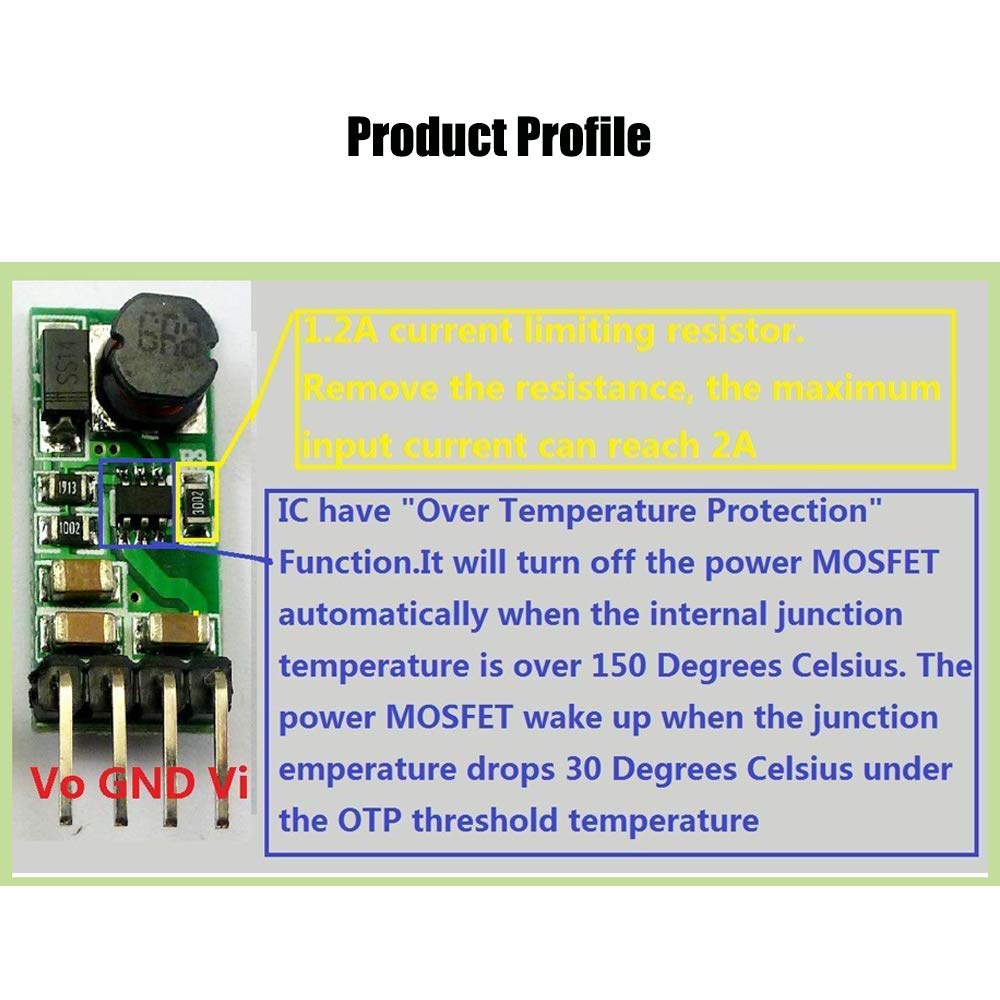

• 1.2A current limiting resistor,Remove the resistance, the maximum input current can reach 2A.
• But IC have "Over Temperature Protection" Function.It will turn off the power MOSFET automatically when the internal junction temperature is over 150 °. The power MOSFET wake up when the junction emperature drops 30 ° under the OTP threshold temperature.
• Conversion efficiency:80-90%
• DC-DC Boost module working frequency 1.0MHZ.
• 2.54mm pin pitch,Arduiuo UNO DUE Breadboard FPGA / CPLD Development Board friendly.
Color: Multicolor
Model: KB267
Specifications:
Operating ambient temperature:-40-+85 Degrees Celsius
Excluding Pin Size:( L * W）2.05 * 1.00cm / 0.81“* 0.39”(Very small)
Weight:about 1.4g(Very light)
Start Voltage 2.8V, Output Current 50MA
INPUT 3 V I A; OUTPUT 12V 220MA
INPUT 3.3V IA; OUTPUT 12V 250MA
INPUT 3.7V IA; OUTPUT 12V 280MA
INPUT 4.5V IA; OUTPUT 12V 340MA
INPUT 5V IA; OL IFUI，12V 370MA
INPUT 6V IA; OUTPUT 12V 450MA
Applications:
MCU Development Board,FPGA/CPLD UNO MEGA2560 DUE 8051 AVR C8051 etc PLC Modbus RS485
VCR
LED Lighting
12V Relay board
Wireless communication equipment
315M 433M Wireless remote controller
Attention:
This is a DC-DC voltage converter module,Must be noted when using:
Input voltage can not be greater than the maximum input range
Output power can not be greater than the maximum load for a long time
Input power must be greater than the output power, because the power consumption of the module itself
We highly appreciate all customers opinions to improve the selling, also if anything you unsatisfied, please contact us for probable best solution.
Package Includes: 2Pcs
• Input voltage 3-6V, output 12V
• Maximum input current:1.2A
• Long-term work Current : IA
• 1.2A current limiting resistor,Remove the resistance, the maximum input current can reach 2A.
• But IC have "Over Temperature Protection" Function.It will turn off the power MOSFET automatically when the internal junction temperature is over 150 °. The power MOSFET wake up when the junction emperature drops 30 ° under the OTP threshold temperature.
• Conversion efficiency:80-90%
• DC-DC Boost module working frequency 1.0MHZ.
• 2.54mm pin pitch,Arduiuo UNO DUE Breadboard FPGA / CPLD Development Board friendly.
Color: Multicolor
