Brand: KNACRO

Model: 12V to 24V

Never connect to solar panel, PWM/MPPT charge controller, inverter or wind turbine.

Never charge the battery. Keep good air convection.

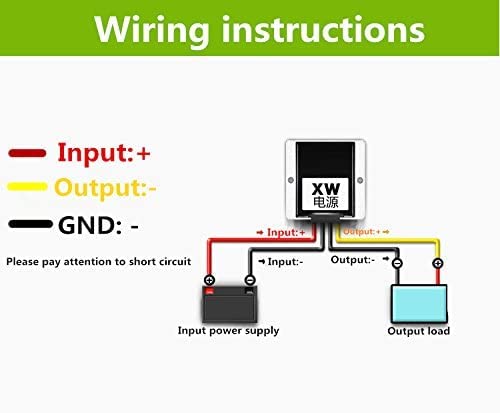

Never reverse the polarity.
Use the enough big cable to avoid the voltage drop. Specifications:

1. 100% full power and stable current output, non-isolated module.

2. Industry grade DC 12V to DC 24V 20A 480W step up converter, efficiency up to 95%.

3. Die-cast aluminum shell, epoxy potting, cooling by free air convection; Waterproof level IP68 and anti-shock protection.

4. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating.

5. Certificates: CE/RoHS, 1 year warranty, lifetime up to 100,000 hours.

Input Rated Voltage: 12V DC

Input Voltage Range: 10V-23V DC

Output voltage: 24V DC

Output Current: 20 Amp

Output Rated Power: 480W

Efficiency: 97% (half load); 95% (full load)

Ripple: 200mVp

Line Regulation: ±0.2%

Load Regulation: ±0.2%

Voltage Accuracy: ±1.5%

Enclosures: IP68

Case Operating Temperature: -40~85°C
Weight: 550g
Note:

1. Can not used long time under the max listed load power. Choose the twice bigger ampere than your machine need is perfect. Because it can avoid long time max load work，enhance the converter's work lifetime
2. Please ensure enough input voltage and power so that the module will output enough voltage and power so that the module will output enough voltage and power.

• Input Voltage:DC 12V (10-23V DC)
• Output: DC 24V 20A 480W
• Stability: Aluminum Shell & Silicone Sealed, Anti-shock, Anti-humidity and Dust-proof, Waterproof, more durable
• Waterproof: 100% waterproof guarantee, IP68 (The highest waterproof standard)
• Efficiency: May reach up to 96% Conversion Efficiency, better than most in the market
• Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage

Power/Wattage: 24V 20A
