Description
Brand: KNACRO
Model: 4350282345
Module Properties: non-isolated step-up module (BOOST).
Input voltage: 10-60V.
Input Current: 20A.
Quiescent current: 15mA (12V liter 20V, the output voltage, the higher the current will increase too quiet).
Output voltage: 12-80V continuously adjustable.
Output Current: 20A MAX, more than 12A, please enhance heat dissipation (input, output pressure related, the greater the pressure the smaller the output current).
Constant Range: 0.3~20A.
Output Power:=Input voltage * 20A, such as: input 12V * 20A = 240W, input 24V * 20A = 480W. input 36V * 20A = 720W, input 48V * 20A = 960W, input 60V * 20A = 1200W.
Working temperature: -40 to + 85 degrees (ambient temperature is too high, please enhance heat dissipation).
Operating frequency: 150KHz.
Conversion efficiency: up to 95% (efficiency and input and output voltage, current, pressure related).
Overcurrent protection: Yes (with reduced flow adjustment, adjustable output current limit, current exceeds the current limit, the output current is automatically reduced to a minimum 5A, vary according to the nature of the load current will be.).
Short circuit protection: Yes (input 30A fuse) double short circuit protection, the use of more security.
Input reverse polarity protection: None, (if necessary, please enter the string into the diode).
Output Counter filling: Yes, for charging plus blocking diode is not required.
Installation: four 3mm screws.
Connection: solderless terminals output.
Module dimensions: 85mm(length) * 63mm(width) * 64mm(height).
Weight: 300 g.

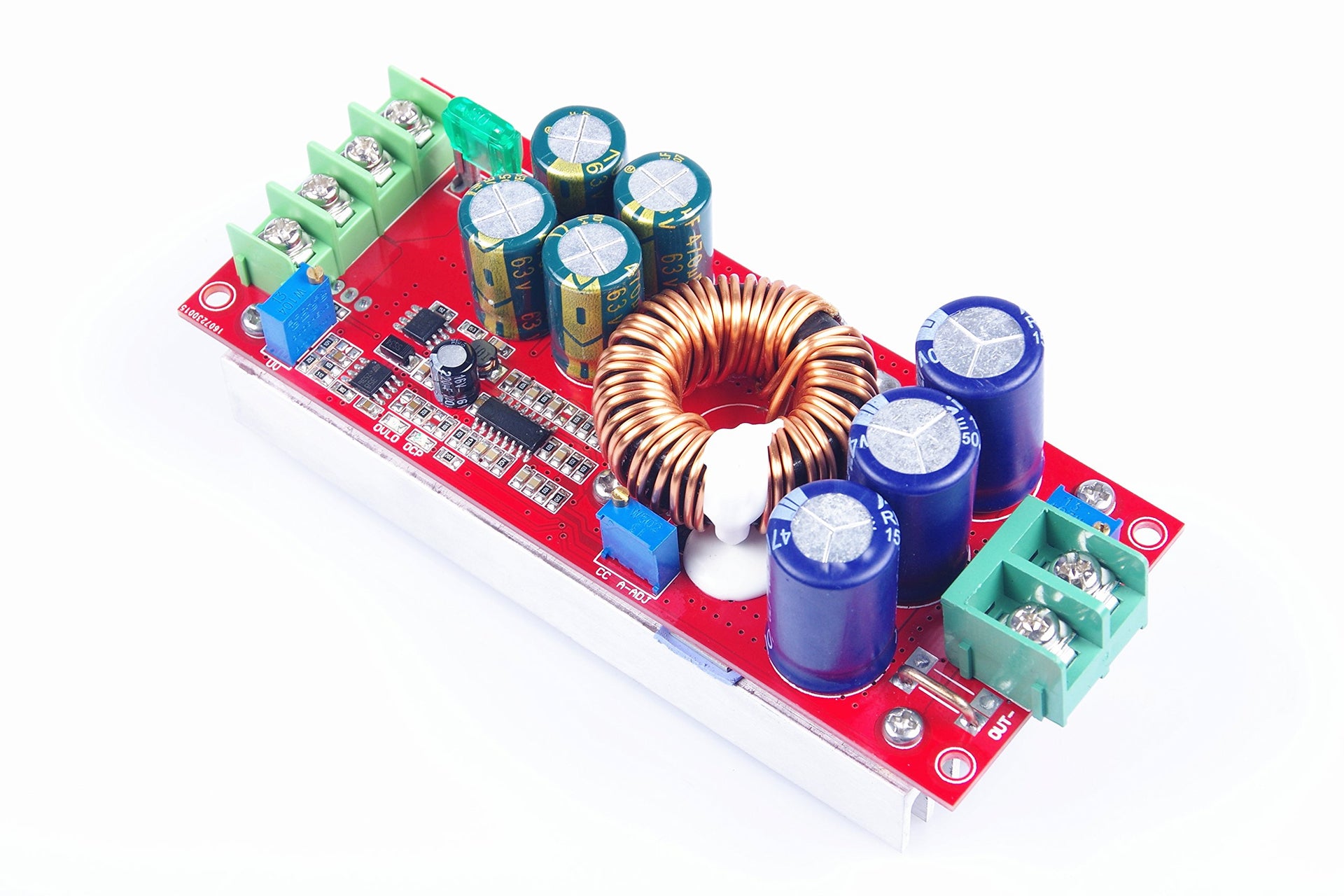

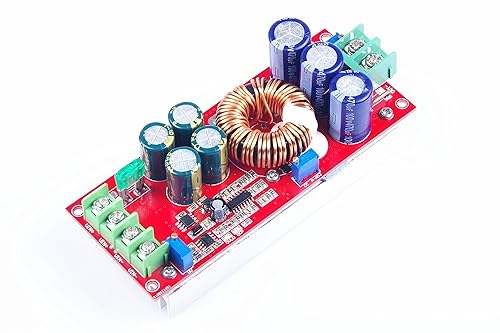

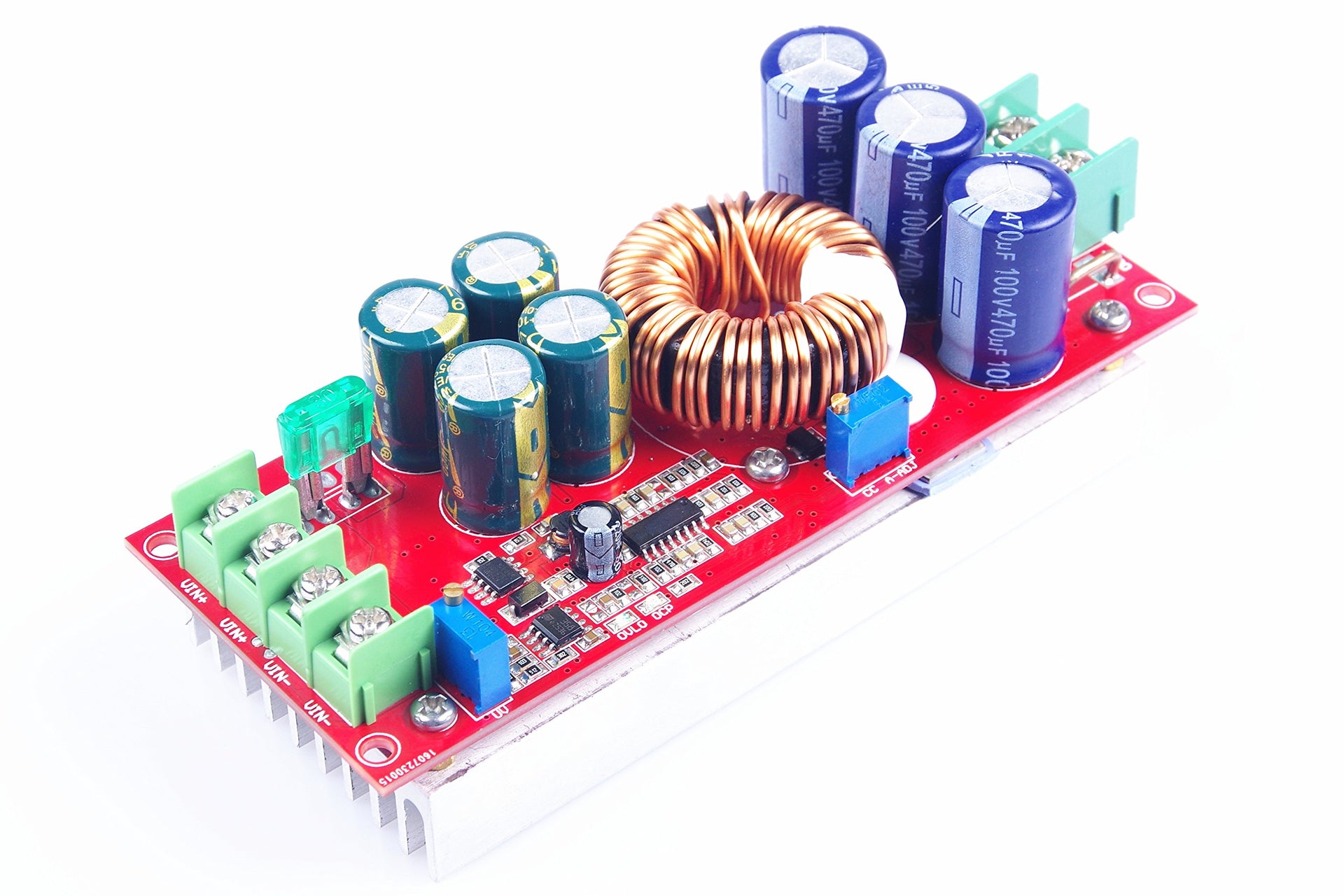

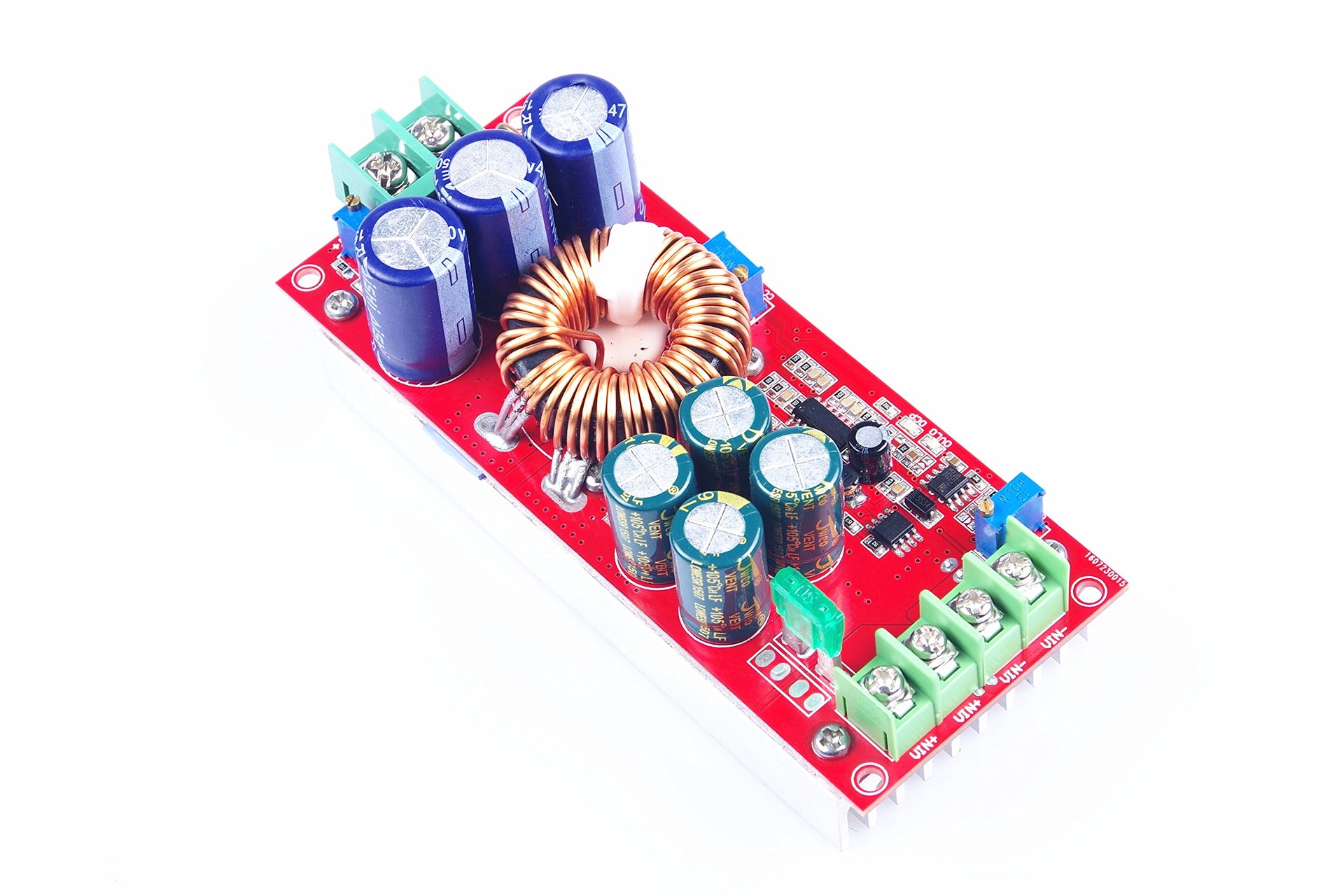

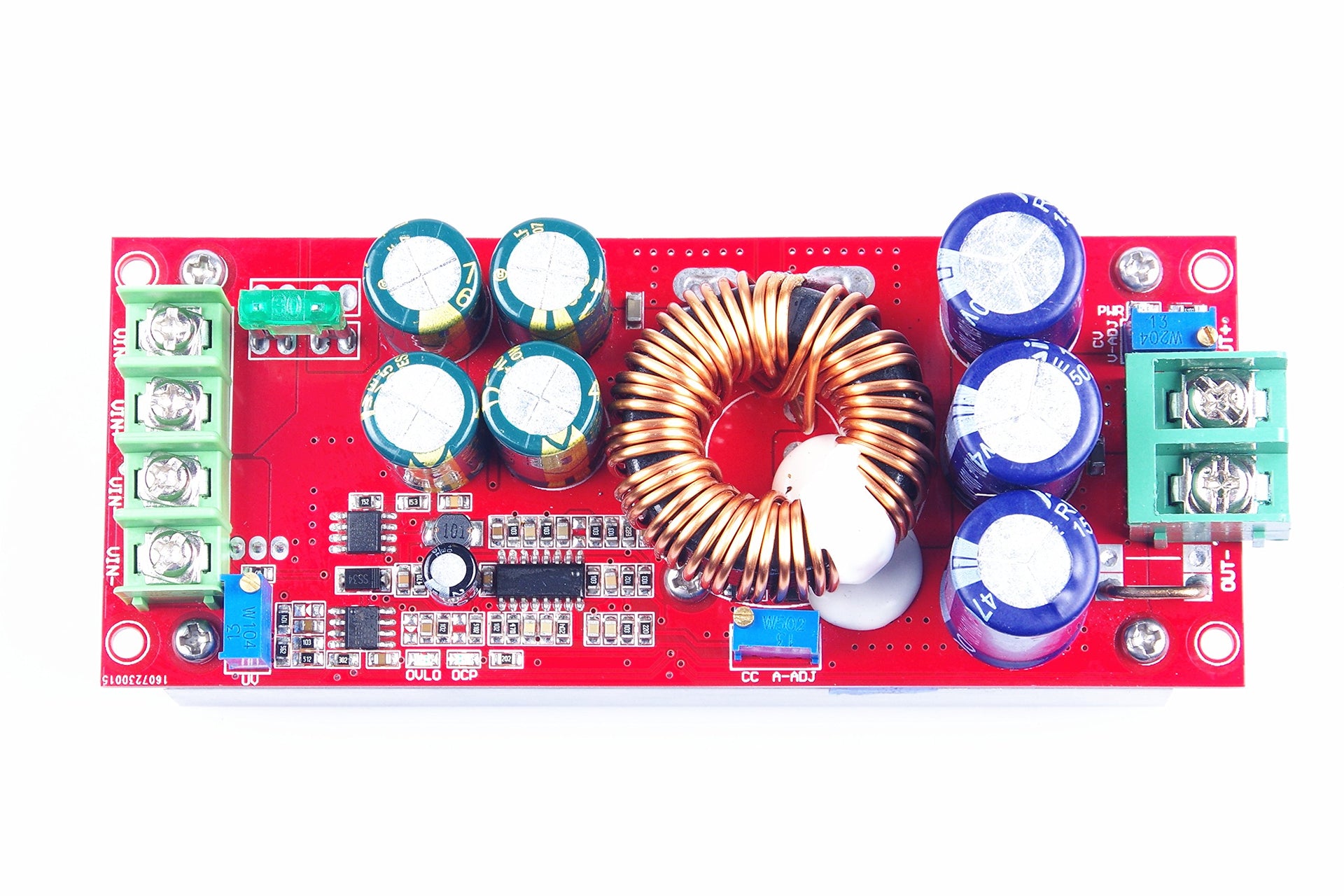

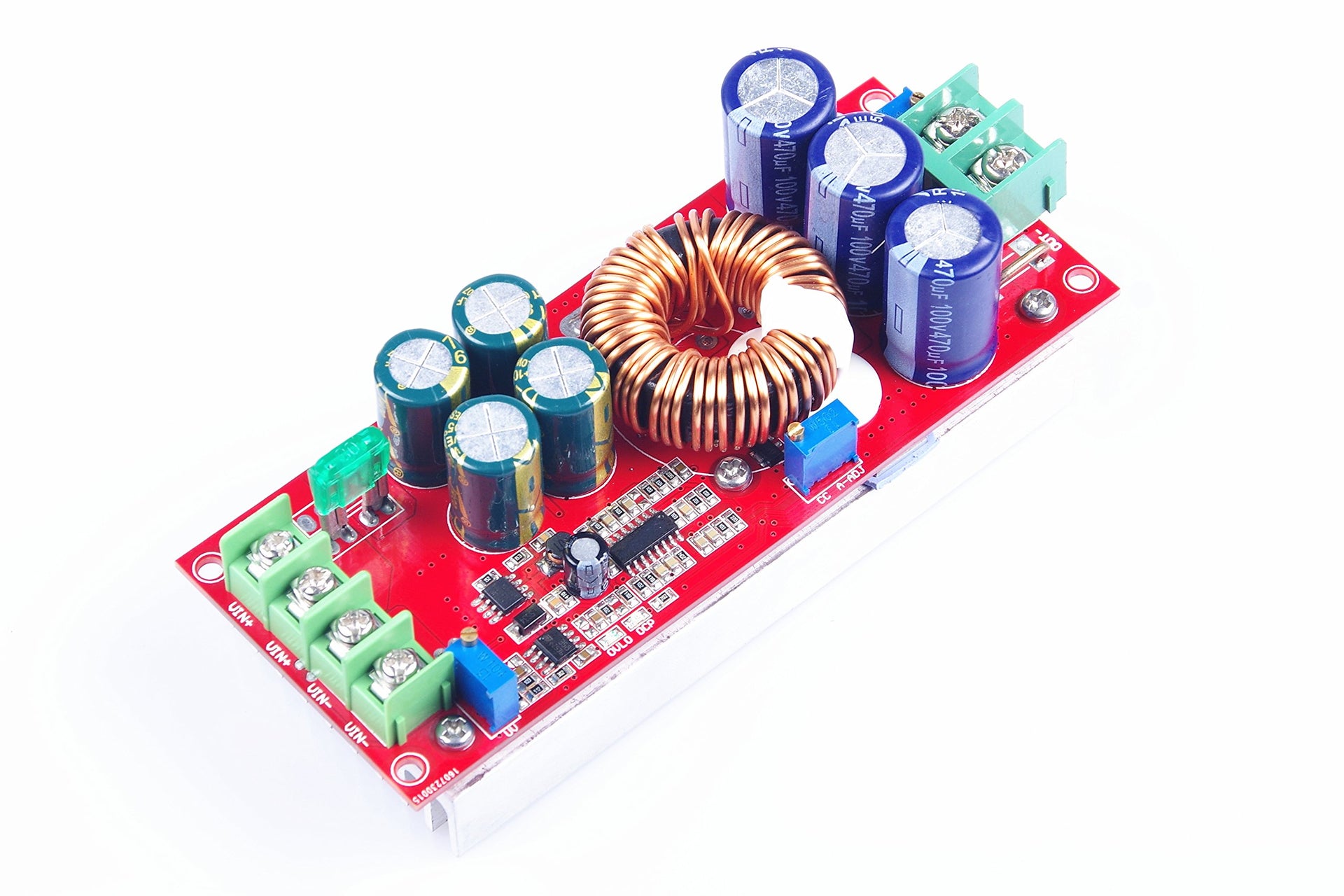

Package Include: 1 x 1200W 20A DC Converter Boost Step-up Power Supply Module IN 10-60V OUT 12-83V.
• Large heat sink design , supports a wide input voltage 10-60V, 12-83V wide adjustable output voltage, low dropout voltage.
• Using four 63V / 470UF high-frequency low-impedance electrolytic capacitors, output 3 100V / 470UF electrolytic capacitor. 33mm Super Power Kool magnetic ring with three 1.2MM of copper wire and wound to prevent magnetic saturation temperature of the flow through the case.
• The back four where two high-power tube is 140A / 100V current switching power MOS two 30A / 100V freewheeling Schottky.
• Using a 116mm * 58mm * 14mm aluminum radiator heat. 5015 fan and heat sink (5mm * 5mm * 15mm) mounting holes
• import power management chip output voltage and current are continuously adjustable.
• If you need more power, you can use two modules in parallel, such as the output to 30A, two modules can be used in parallel.
Color: Multicolor
Power/Wattage: Pest repeller Model BH-2 Ver.161
Model: 4350282345
Module Properties: non-isolated step-up module (BOOST).
Input voltage: 10-60V.
Input Current: 20A.
Quiescent current: 15mA (12V liter 20V, the output voltage, the higher the current will increase too quiet).
Output voltage: 12-80V continuously adjustable.
Output Current: 20A MAX, more than 12A, please enhance heat dissipation (input, output pressure related, the greater the pressure the smaller the output current).
Constant Range: 0.3~20A.
Output Power:=Input voltage * 20A, such as: input 12V * 20A = 240W, input 24V * 20A = 480W. input 36V * 20A = 720W, input 48V * 20A = 960W, input 60V * 20A = 1200W.
Working temperature: -40 to + 85 degrees (ambient temperature is too high, please enhance heat dissipation).
Operating frequency: 150KHz.
Conversion efficiency: up to 95% (efficiency and input and output voltage, current, pressure related).
Overcurrent protection: Yes (with reduced flow adjustment, adjustable output current limit, current exceeds the current limit, the output current is automatically reduced to a minimum 5A, vary according to the nature of the load current will be.).
Short circuit protection: Yes (input 30A fuse) double short circuit protection, the use of more security.
Input reverse polarity protection: None, (if necessary, please enter the string into the diode).
Output Counter filling: Yes, for charging plus blocking diode is not required.
Installation: four 3mm screws.
Connection: solderless terminals output.
Module dimensions: 85mm(length) * 63mm(width) * 64mm(height).
Weight: 300 g.
Package Include: 1 x 1200W 20A DC Converter Boost Step-up Power Supply Module IN 10-60V OUT 12-83V.
• Large heat sink design , supports a wide input voltage 10-60V, 12-83V wide adjustable output voltage, low dropout voltage.
• Using four 63V / 470UF high-frequency low-impedance electrolytic capacitors, output 3 100V / 470UF electrolytic capacitor. 33mm Super Power Kool magnetic ring with three 1.2MM of copper wire and wound to prevent magnetic saturation temperature of the flow through the case.
• The back four where two high-power tube is 140A / 100V current switching power MOS two 30A / 100V freewheeling Schottky.
• Using a 116mm * 58mm * 14mm aluminum radiator heat. 5015 fan and heat sink (5mm * 5mm * 15mm) mounting holes
• import power management chip output voltage and current are continuously adjustable.
• If you need more power, you can use two modules in parallel, such as the output to 30A, two modules can be used in parallel.
Color: Multicolor
Power/Wattage: Pest repeller Model BH-2 Ver.161
