Description
Brand: Key Digital

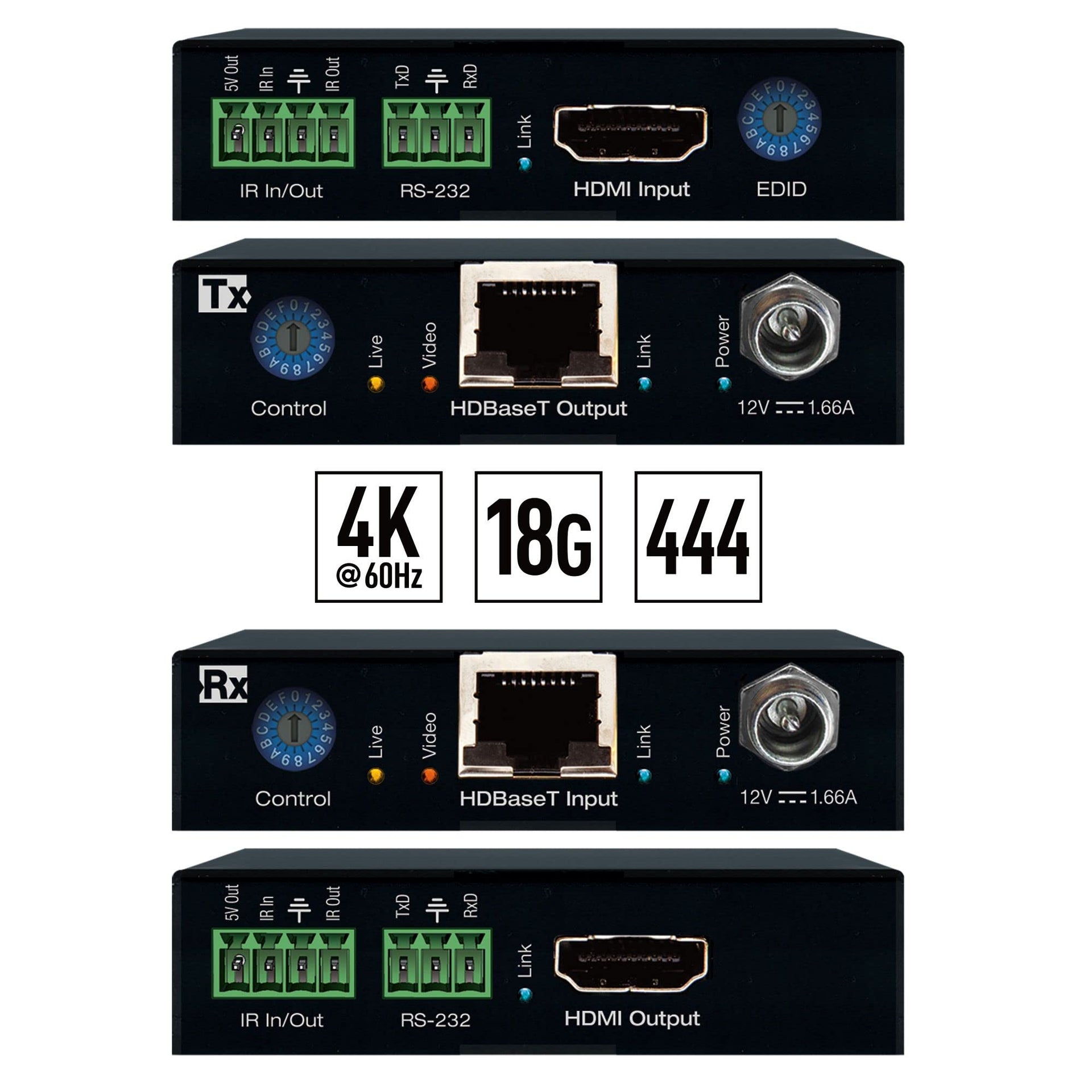

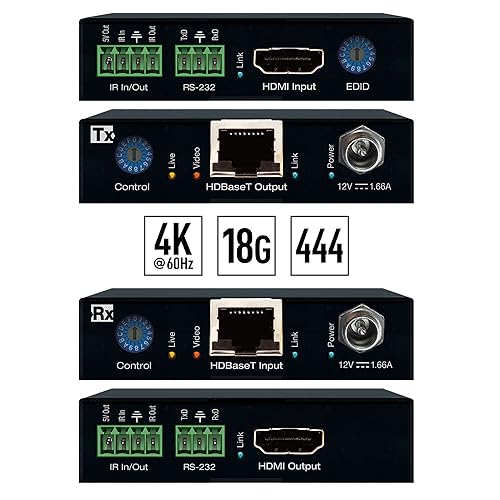

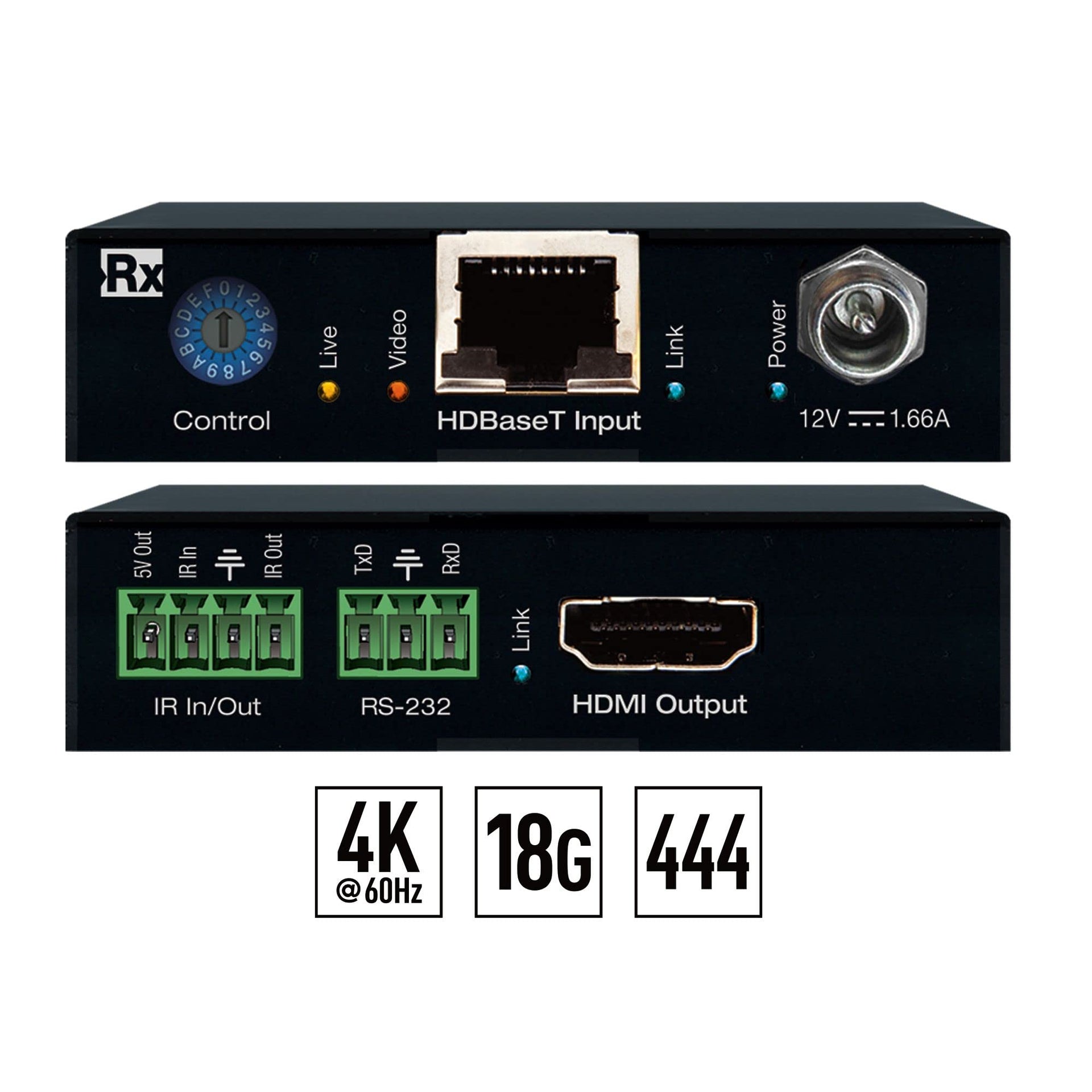

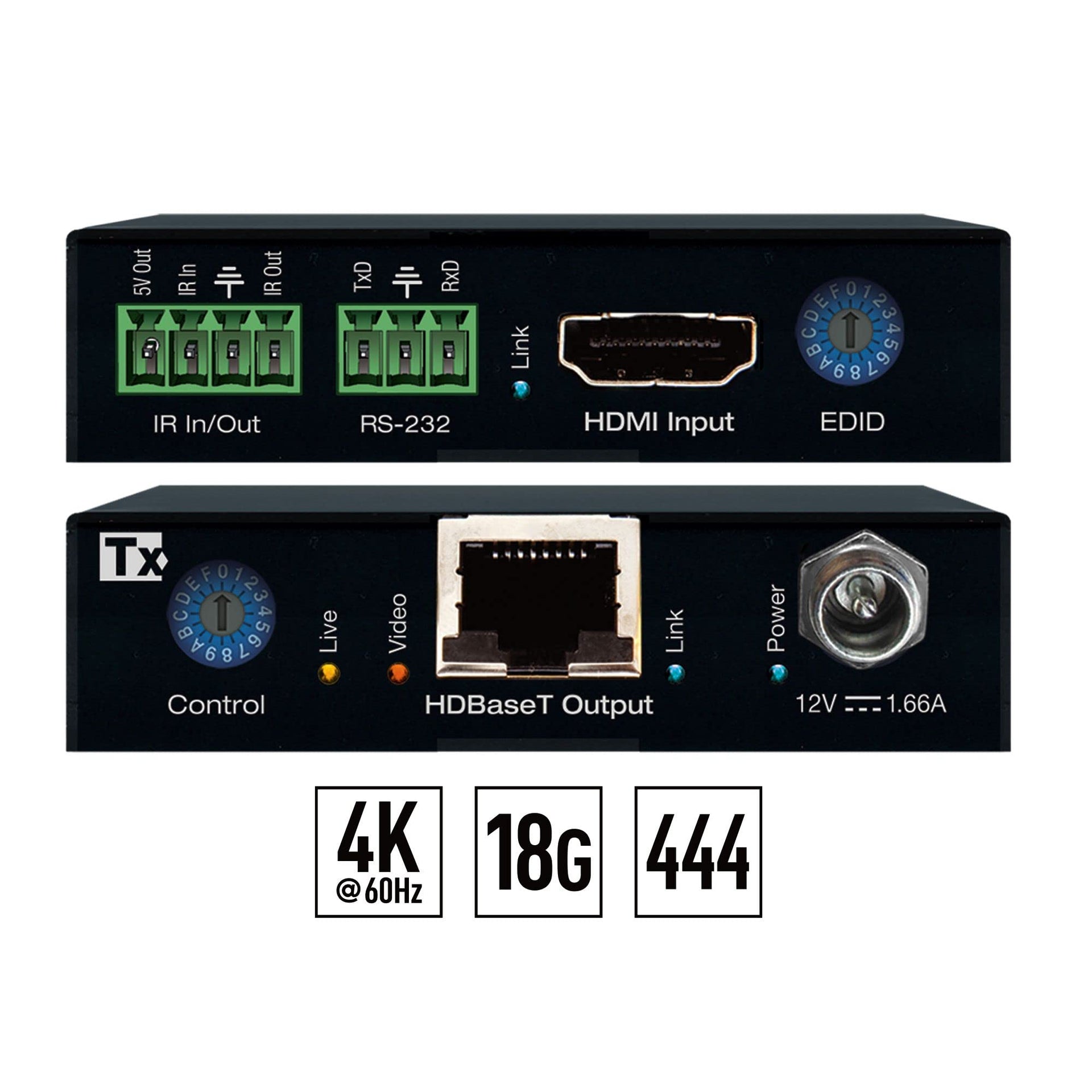

HDBaseT via Single CAT5e/6 UTP/STP Extension: With fully automatic adjustment of feedback, equalization, and amplification depending on cabling length4K Support: 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)Flexible Power over HDBaseT: Only one power connection needed. Tx may power Rx, or Rx may power Tx.Low Profile: Super slim chassis designSignal Extension: For resolution and cable quality4K/UHD: Up to 130 ft. (40m) using CAT5e/61080p: Up to 230 ft. (70m) maximum (Valens VS10)10G Pass-thru: Mode enables uncompressed 10.2Gbps signal extensionHDR10 (High Dynamic Range): More life-like images through a greater range of luminance levelsHDCP 2.2: Compliancy up to HDCP 2.2 and backward compliant+Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bitEDID Control: Internal library with 15 EDID handshakes including 4K with HDR in addition to native EDID data from Output/Display device connected to RxHot Plug Detection Control: Enables integrator to choose if active signal voltage is forced to connected input and output devicesFull Buffer System: Manages TMDS re-clocking / signal re-generation, HDCP authentication with source & display, EDID Control handshake, and Hot Plug Detection controlIR Sensor: Sensor powering via +5V on IR In ports collects line-of-sight IR from remote(s) without external IR connecting blockUp/Down IR: Two channels of IR enable control to/from devices or control systems connected to Tx and Rx unitsRS-232: Bi-Directional control to/from Tx and Rx unit on Phoenix connector Lossless compressed digital audio: Support for Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, and DTS-HD Master AudioCEC Pass-thru: For inter-device control between input and output HDMI channelTechnical:Inputs Tx (Each): 1 HDMI, 1 IR, 1 RS-232Outputs Tx (Each): 1 HDBaseT, 1 IR, 1 RS-232Inputs Rx (Each): 1 HDBaseT, 1 IR, 1 RS-232Outputs Rx (Each): 1 HDMI, 1 IR, 1 RS-232Bandwidth: TMDS bandwidth 18Gbps Deep Color Support: Digital video
HDBaseT via Single CAT5e/6 UTP/STP Extension: With fully automatic adjustment of feedback, equalization, and amplification depending on cabling length4K Support: 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)Flexible Power over HDBaseT: Only one power connection needed. Tx may power Rx, or Rx may power Tx.Low Profile: Super slim chassis designSignal Extension: For resolution and cable quality4K/UHD: Up to 130 ft. (40m) using CAT5e/61080p: Up to 230 ft. (70m) maximum (Valens VS10)10G Pass-thru: Mode enables uncompressed 10.2Gbps signal extensionHDR10 (High Dynamic Range): More life-like images through a greater range of luminance levelsHDCP 2.2: Compliancy up to HDCP 2.2 and backward compliant+Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bitEDID Control: Internal library with 15 EDID handshakes including 4K with HDR in addition to native EDID data from Output/Display device connected to RxHot Plug Detection Control: Enables integrator to choose if active signal voltage is forced to connected input and output devicesFull Buffer System: Manages TMDS re-clocking / signal re-generation, HDCP authentication with source & display, EDID Control handshake, and Hot Plug Detection controlIR Sensor: Sensor powering via +5V on IR In ports collects line-of-sight IR from remote(s) without external IR connecting blockUp/Down IR: Two channels of IR enable control to/from devices or control systems connected to Tx and Rx unitsRS-232: Bi-Directional control to/from Tx and Rx unit on Phoenix connector Lossless compressed digital audio: Support for Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, and DTS-HD Master AudioCEC Pass-thru: For inter-device control between input and output HDMI channelTechnical:Inputs Tx (Each): 1 HDMI, 1 IR, 1 RS-232Outputs Tx (Each): 1 HDBaseT, 1 IR, 1 RS-232Inputs Rx (Each): 1 HDBaseT, 1 IR, 1 RS-232Outputs Rx (Each): 1 HDMI, 1 IR, 1 RS-232Bandwidth: TMDS bandwidth 18Gbps Deep Color Support: Digital video
