Description
Brand: KEAcvise
Description

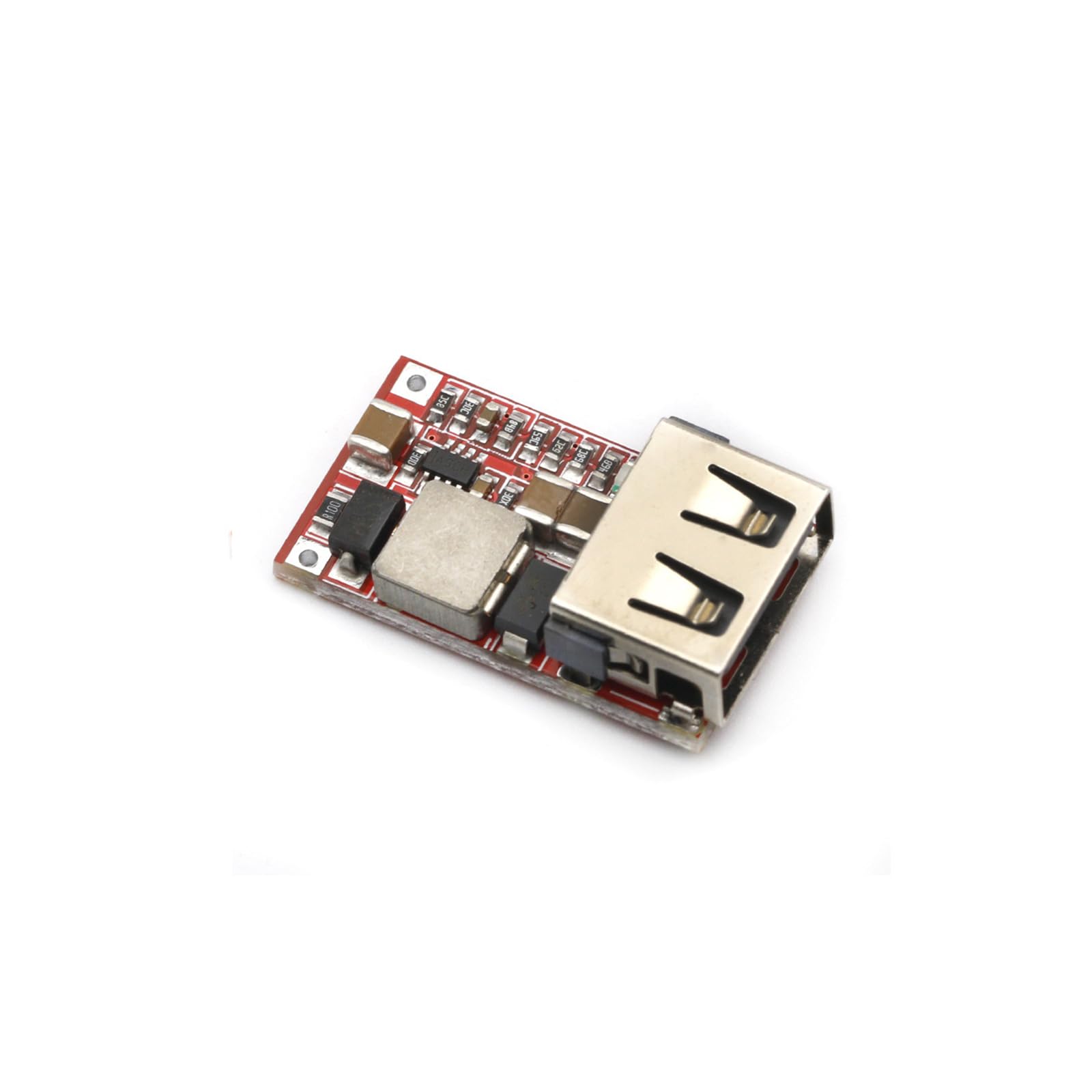

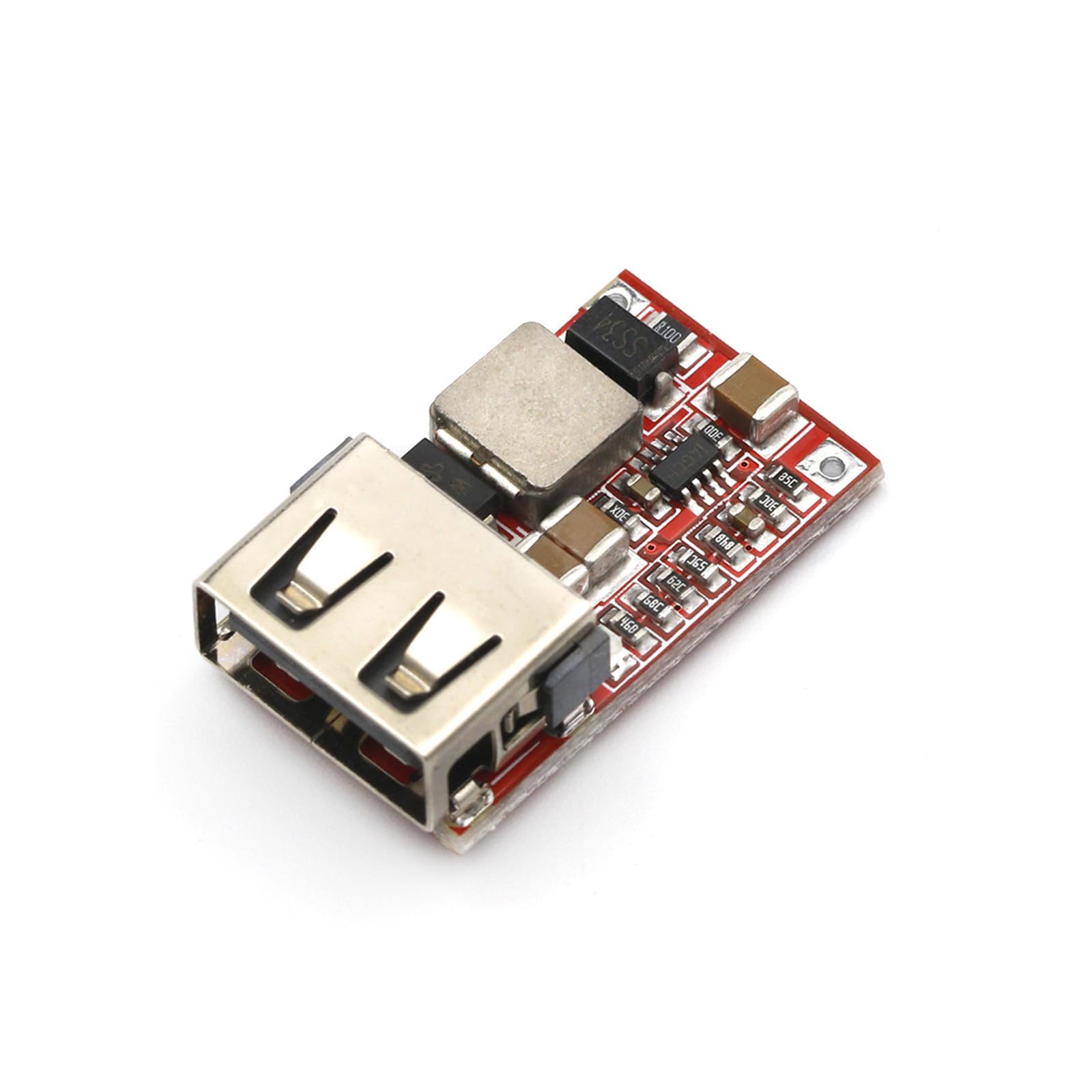

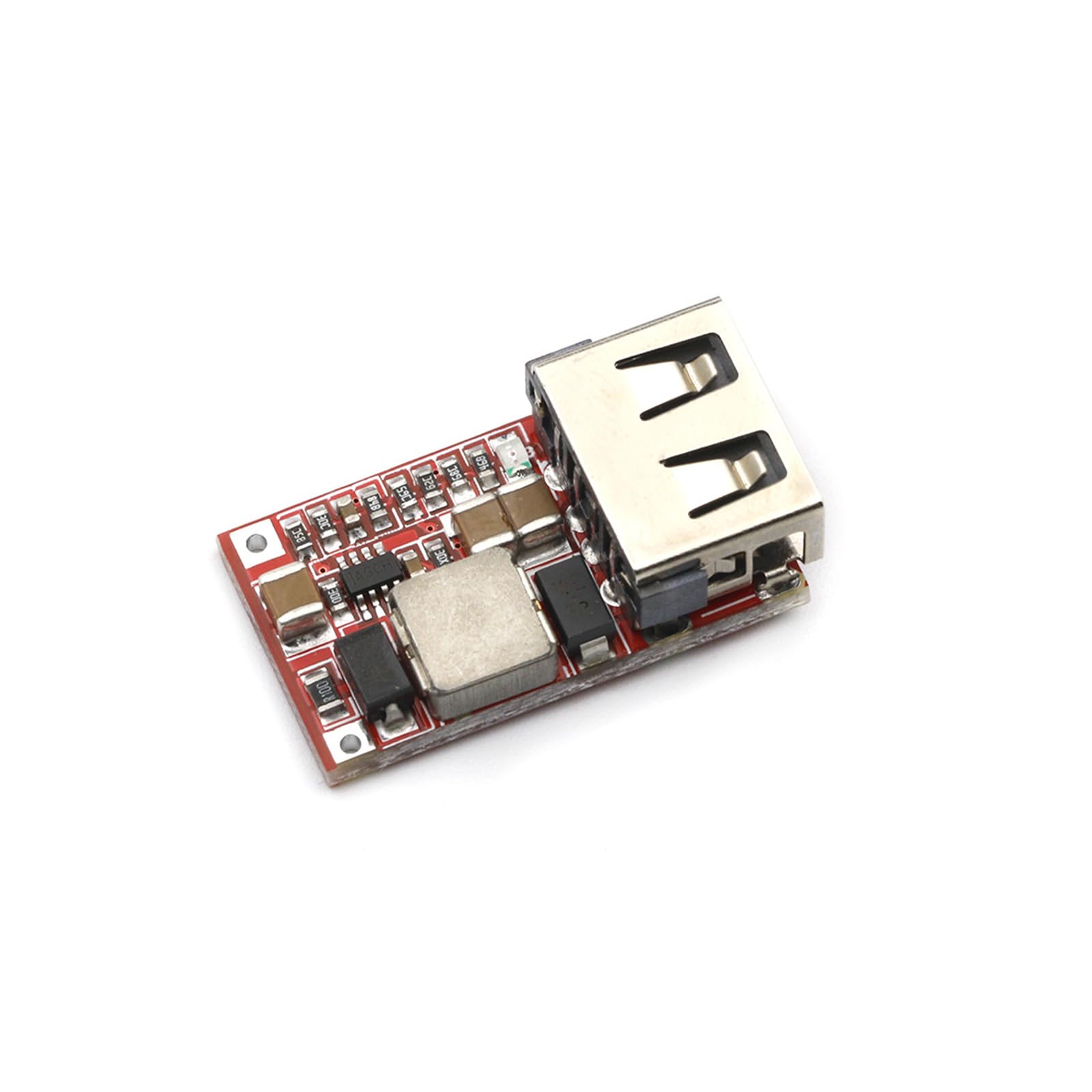

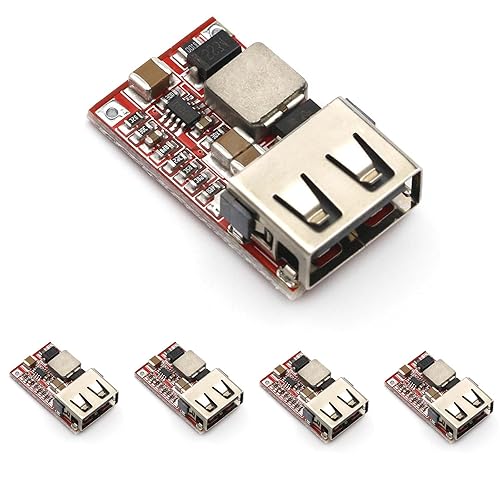

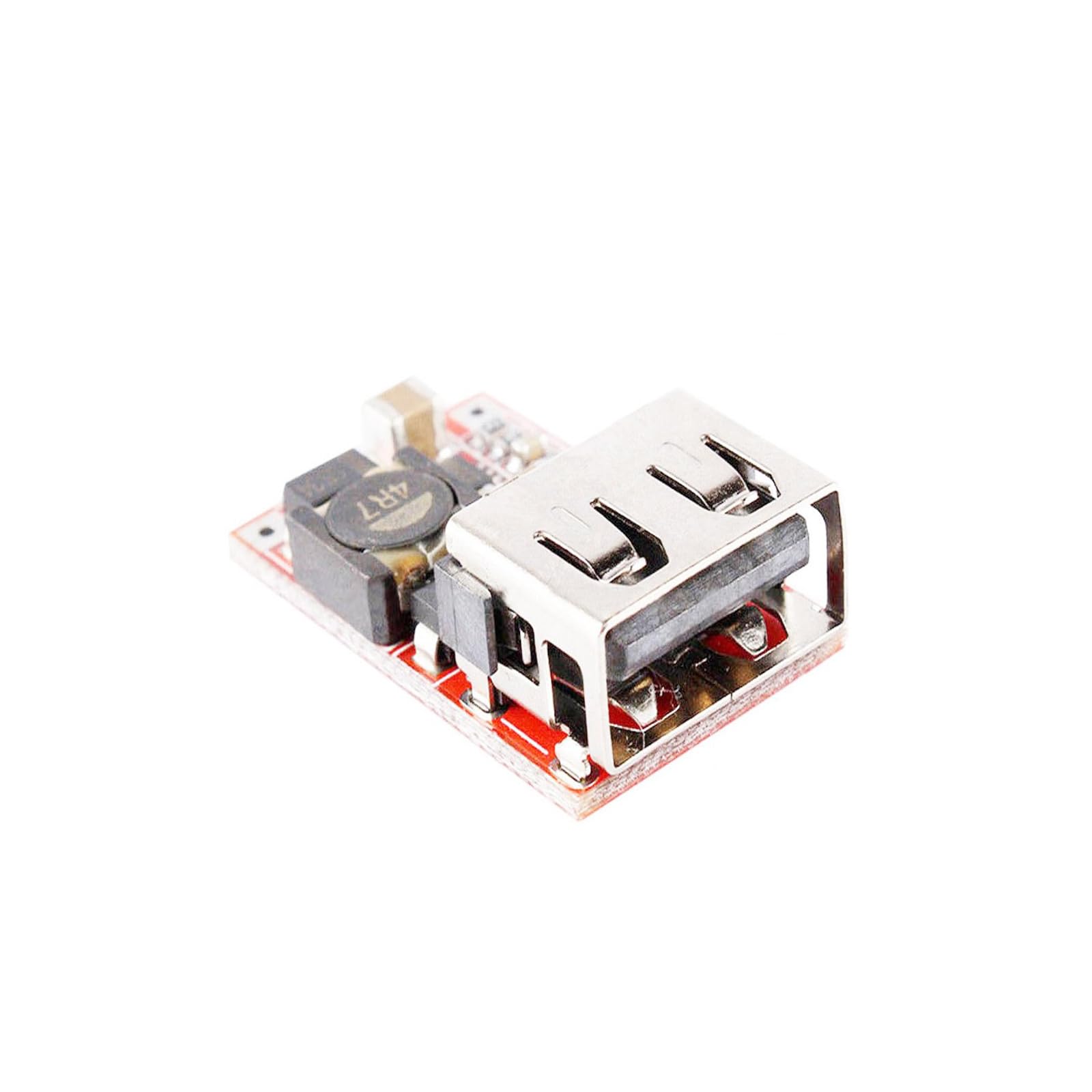

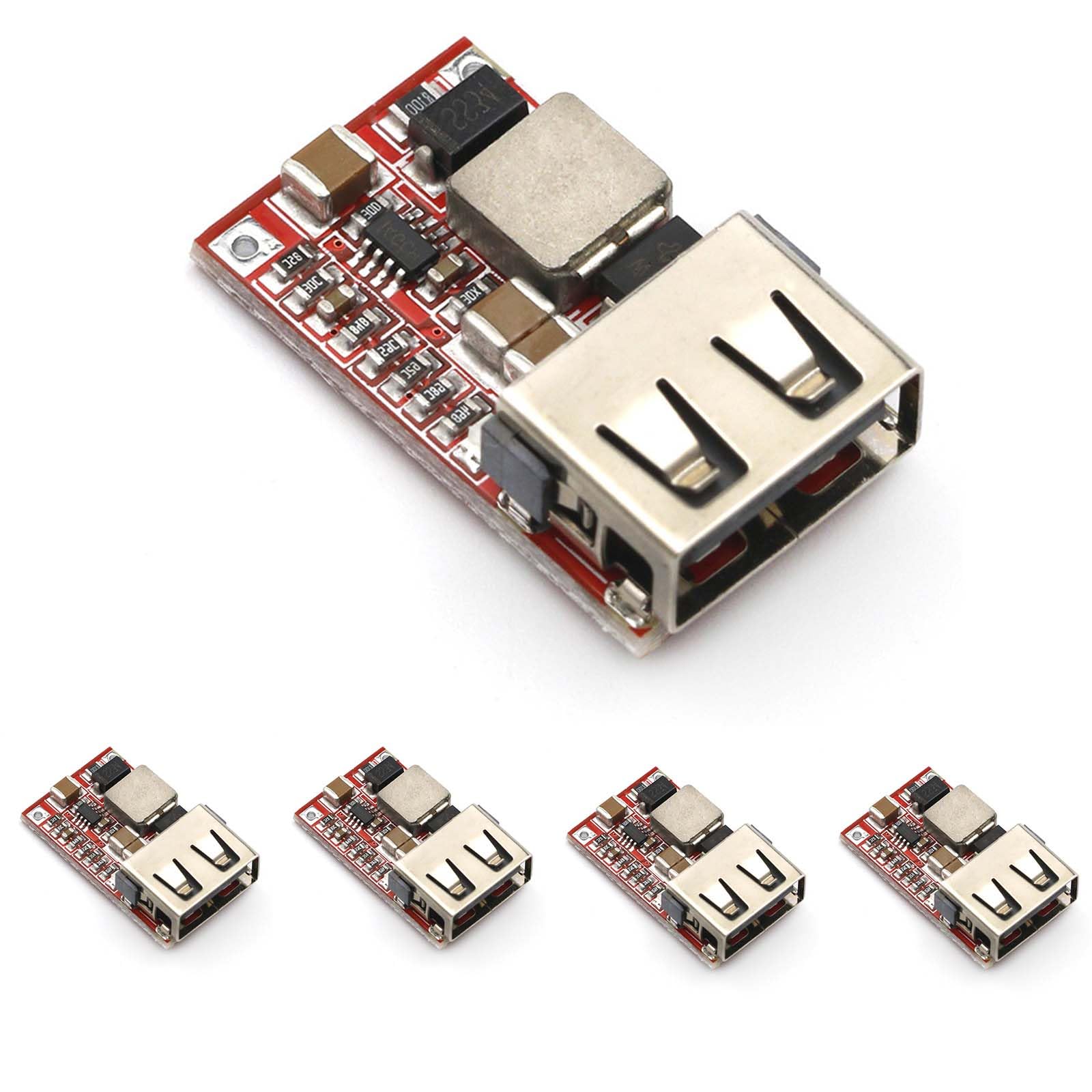

High-Quality USB Port: It features a high-quality USB port with a small red output voltage indicator. The module size is 26.4 (length) * 15 (width) * 7.4 (height) mm. It is equipped with a reverse polarity protection diode, ensuring that it won't be damaged when the input connection is incorrect.
Ultra-Low Quiescent Current: With an ultra-low quiescent current of only 0.85 mA, there is no need to add a switch when connecting to a vehicle. It can be connected to a car cigarette lighter cable or an ACC power cord.
Module Parameters
Module Characteristics: Non-isolated buck module (BUCK) with synchronous rectification.
Input Voltage: DC 6 - 24V.
Output Voltage: 5.1 - 5.2V.
Output Current: The maximum output current is 3A.
Conversion Efficiency: It can be as high as 97.5% (from 6.5V to 5V with 0.7A) (after short reverse protection and fuse test values).
Switching Frequency: 500KHz.
Output Ripple: 10mV (from 12V to 5V with 3A) within a 20M bandwidth.
Output Indicator: The output voltage indicator is red.
Operating Temperature: Industrial grade (-40 °C to +85 °C). (The higher the ambient temperature, the lower the output power.)
Output Overvoltage Protection: There is a 1.5A fuse for the input, and a 300W TVS tube clamp for the output at 5V.
Protection:
Full Load Temperature: 30 °C.
Quiescent Current: 0.85 mA.
Load Regulation: ±1%.
Voltage Regulation: ±0.5%.
Dynamic Response Speed: 5% within 200uS.
Input Reverse Polarity Protection: Yes, equipped with a reverse polarity protection diode.
Connection Method: Soldering.
Input Mode: Soldering.
Output Mode: USB.
• Module Characteristics:Compatible with DC-DC Buck Module - Non-isolated synchronous rectification design for efficient power conversion.
• Input Voltage: 6V-24V DC
• Output Voltage: 5.1V-5.2V
• Max Current: 3A (enhanced heat dissipation required at full load).
• Efficiency: Up to 97.5% (tested at 6.5V→5V, 0.7A after reverse protection & fuse checks).
• Switching & Output Performance:Switching Frequency: 500KHz
• Output Ripple: <10mV (12V→5V, 3A, 20M bandwidth)
• LED Indicator: Red output voltage light.
• Durability & Protection:Operating Temp: -40°C to +85°C (output power decreases at high temps)
• Protection: 1.5A input fuse + 300W TVS clamp for 5V output.
Color: Red
Description
High-Quality USB Port: It features a high-quality USB port with a small red output voltage indicator. The module size is 26.4 (length) * 15 (width) * 7.4 (height) mm. It is equipped with a reverse polarity protection diode, ensuring that it won't be damaged when the input connection is incorrect.
Ultra-Low Quiescent Current: With an ultra-low quiescent current of only 0.85 mA, there is no need to add a switch when connecting to a vehicle. It can be connected to a car cigarette lighter cable or an ACC power cord.
Module Parameters
Module Characteristics: Non-isolated buck module (BUCK) with synchronous rectification.
Input Voltage: DC 6 - 24V.
Output Voltage: 5.1 - 5.2V.
Output Current: The maximum output current is 3A.
Conversion Efficiency: It can be as high as 97.5% (from 6.5V to 5V with 0.7A) (after short reverse protection and fuse test values).
Switching Frequency: 500KHz.
Output Ripple: 10mV (from 12V to 5V with 3A) within a 20M bandwidth.
Output Indicator: The output voltage indicator is red.
Operating Temperature: Industrial grade (-40 °C to +85 °C). (The higher the ambient temperature, the lower the output power.)
Output Overvoltage Protection: There is a 1.5A fuse for the input, and a 300W TVS tube clamp for the output at 5V.
Protection:
Full Load Temperature: 30 °C.
Quiescent Current: 0.85 mA.
Load Regulation: ±1%.
Voltage Regulation: ±0.5%.
Dynamic Response Speed: 5% within 200uS.
Input Reverse Polarity Protection: Yes, equipped with a reverse polarity protection diode.
Connection Method: Soldering.
Input Mode: Soldering.
Output Mode: USB.
• Module Characteristics:Compatible with DC-DC Buck Module - Non-isolated synchronous rectification design for efficient power conversion.
• Input Voltage: 6V-24V DC
• Output Voltage: 5.1V-5.2V
• Max Current: 3A (enhanced heat dissipation required at full load).
• Efficiency: Up to 97.5% (tested at 6.5V→5V, 0.7A after reverse protection & fuse checks).
• Switching & Output Performance:Switching Frequency: 500KHz
• Output Ripple: <10mV (12V→5V, 3A, 20M bandwidth)
• LED Indicator: Red output voltage light.
• Durability & Protection:Operating Temp: -40°C to +85°C (output power decreases at high temps)
• Protection: 1.5A input fuse + 300W TVS clamp for 5V output.
Color: Red
