Description
Brand: KEAcvise
Product Description
Condition: 100% brand new, high quality.
Product Type: HC--SR501 body sensor module.
Operating Voltage Range: DC 4.5-20V.

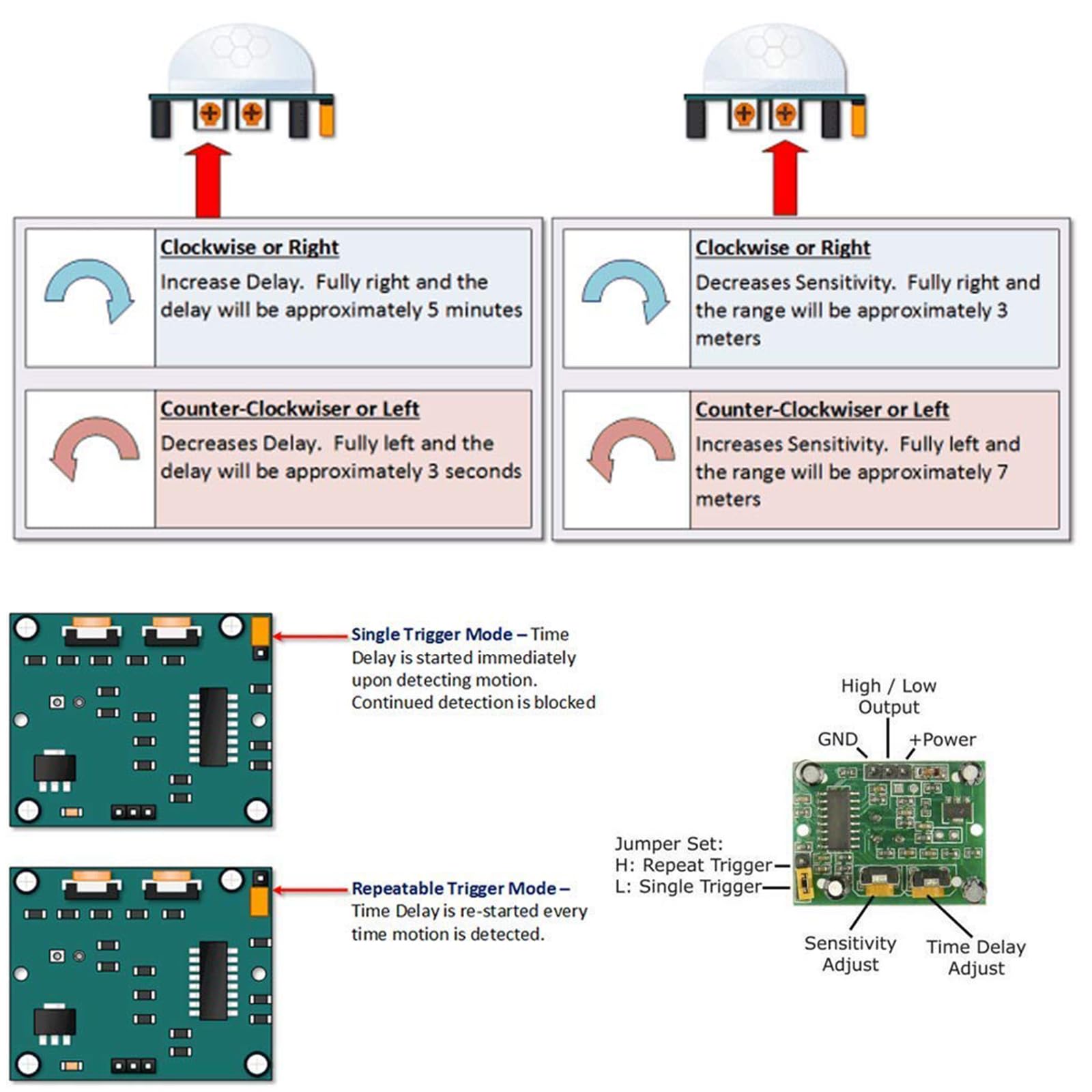

Quiescent Current: <50uA. Trigger: L for non-repeatable trigger, H for repeatable trigger (default is repeatable).
Delay Time: 5-18S (adjustable), range from 0.xx seconds to ten seconds.
Block Time: 2.5S (default), adjustable range from 0.xx to tens of seconds.
Board Size: 32mm * 24mm.
Angle Sensor: <100° cone angle, lens size.
Sensor Diameter: 23mm (default).
Applications
Security products.
Human body sensor toys.
Human body sensor lighting, industrial automation and control, etc.
Uses
It can automatically and quickly turn on various types of incandescent lamps, fluorescent lamps, buzzers, automatic doors, electric fans, automatic washing machines, dryers, and other devices. It is a high-tech product. Especially suitable for enterprises, hotels, shopping malls, warehouses, and home passages, corridors, and other sensitive areas, or for automatic lighting, lighting, and alarm systems in security areas.
• Power Requirements:Compatible with HC-SR501 PIR Sensor: Operates at 4.5-20V DC with ultra-low <50uA quiescent current.
• Trigger Modes:Flexible Detection: L (non-repeatable) or H (repeatable default) trigger mode selection.
• Adjustable Timing:Customizable Delay: 5-200S adjustable detection interval (0.xxs to 10s fine-tuning range).
• Compact Design:Board Dimensions: 32×24mm with 23mm detection lens diameter.
• Detection Range:Wide Sensing Angle: <100° conical detection field for reliable motion tracking.
Product Description
Condition: 100% brand new, high quality.
Product Type: HC--SR501 body sensor module.
Operating Voltage Range: DC 4.5-20V.
Quiescent Current: <50uA. Trigger: L for non-repeatable trigger, H for repeatable trigger (default is repeatable).
Delay Time: 5-18S (adjustable), range from 0.xx seconds to ten seconds.
Block Time: 2.5S (default), adjustable range from 0.xx to tens of seconds.
Board Size: 32mm * 24mm.
Angle Sensor: <100° cone angle, lens size.
Sensor Diameter: 23mm (default).
Applications
Security products.
Human body sensor toys.
Human body sensor lighting, industrial automation and control, etc.
Uses
It can automatically and quickly turn on various types of incandescent lamps, fluorescent lamps, buzzers, automatic doors, electric fans, automatic washing machines, dryers, and other devices. It is a high-tech product. Especially suitable for enterprises, hotels, shopping malls, warehouses, and home passages, corridors, and other sensitive areas, or for automatic lighting, lighting, and alarm systems in security areas.
• Power Requirements:Compatible with HC-SR501 PIR Sensor: Operates at 4.5-20V DC with ultra-low <50uA quiescent current.
• Trigger Modes:Flexible Detection: L (non-repeatable) or H (repeatable default) trigger mode selection.
• Adjustable Timing:Customizable Delay: 5-200S adjustable detection interval (0.xxs to 10s fine-tuning range).
• Compact Design:Board Dimensions: 32×24mm with 23mm detection lens diameter.
• Detection Range:Wide Sensing Angle: <100° conical detection field for reliable motion tracking.
