Description
Brand: KEAcvise
Model: 1bf892a9-13c1-4af3-8ac2-16ff09a34d2a
Specifications
Chip Model: NE555
Input Power Supply Voltage: 1.8V - 12V DC
Maximum Output Power: 30W
Maximum Continuous Output Current: 2A
Adjustable Duty Cycle: 0% - 100%
Dimensions: Approximately 32 x 32 x 14 mm
Precautions
Please connect this DC controller to a DC power supply. Do not directly connect it to a household 220V AC power supply, as it will cause damage. The power supply voltage should not exceed 15V; otherwise, damage will occur.
This is a speed regulator with a high current of 2A. However, it cannot drive a continuous current greater than 0.5A for continuous operation, such as for 775 motors . Please double-check before purchasing.

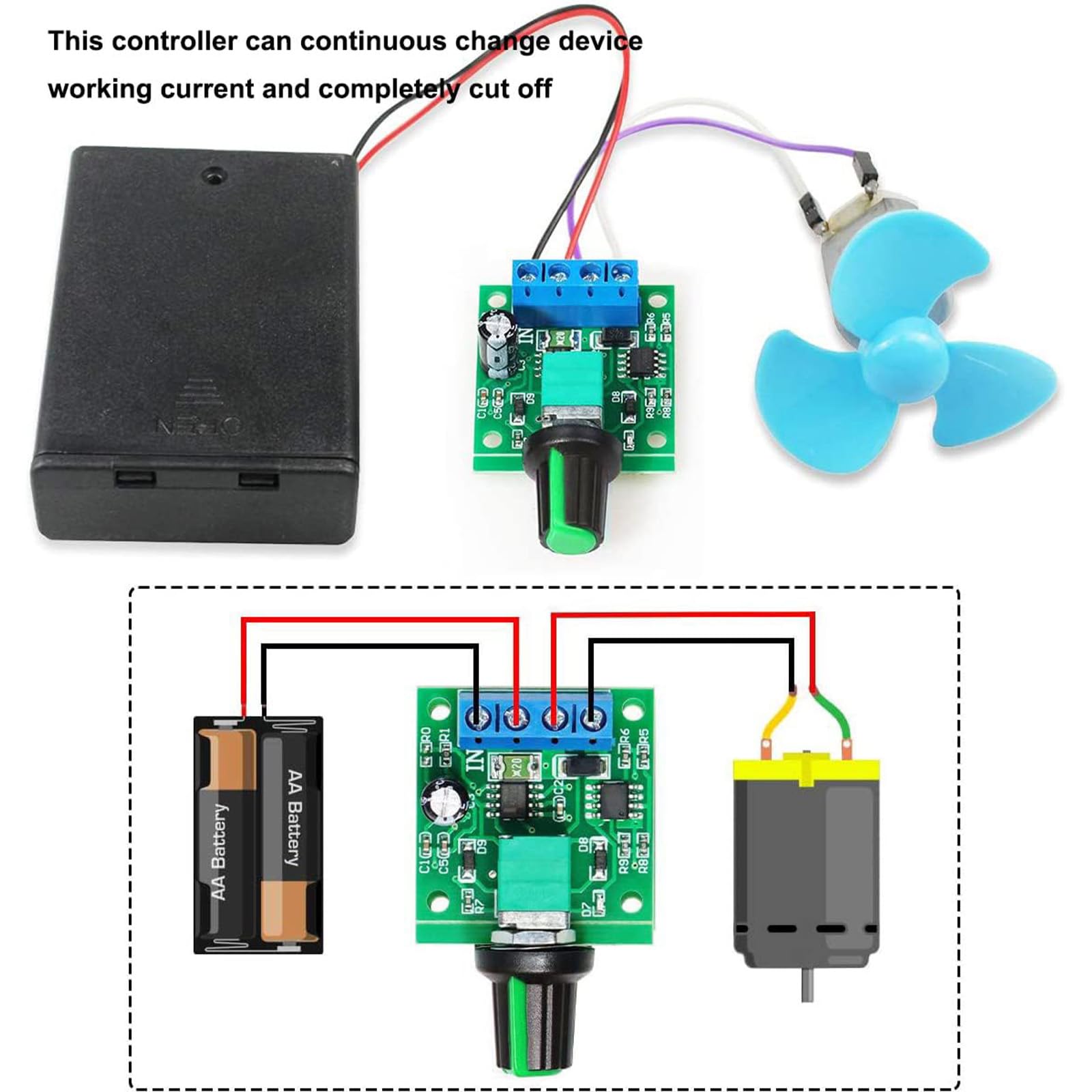

• Application This product is widely applicable to speed regulation of DC motors, fans, fish tank oxygen pump, and other DC 1.8V - 12V products.
• Motor Speed Controller It is an ultra - low - voltage DC motor speed controller with the chip model NE555, a potentiometer with switch function, and a 2A resettable fuse to protect the controller, along with a power - on indicator.
• High - performance The input power supply voltage is DC 1.8V - 12V. The maximum continuous output current is 2A, the maximum output power is 30W, and the duty cycle can be adjusted from 0% to 100%.
• Safety The speed controller is equipped with a self - restoring fuse. When the current is too high, the fuse will automatically disconnect. After cooling, the fuse will automatically restore.
• Precautions Please connect this DC controller to a DC power supply. Do not directly connect it to a household 220V AC power supply, otherwise it will be damaged. The power supply voltage should not be greater than 15V. This is a 2A high - current speed controller. It cannot drive a continuous current greater than 0.5A for continuous operation,such as for 775 motors. Please confirm again before purchasing.
Color: Green
Model: 1bf892a9-13c1-4af3-8ac2-16ff09a34d2a
Specifications
Chip Model: NE555
Input Power Supply Voltage: 1.8V - 12V DC
Maximum Output Power: 30W
Maximum Continuous Output Current: 2A
Adjustable Duty Cycle: 0% - 100%
Dimensions: Approximately 32 x 32 x 14 mm
Precautions
Please connect this DC controller to a DC power supply. Do not directly connect it to a household 220V AC power supply, as it will cause damage. The power supply voltage should not exceed 15V; otherwise, damage will occur.
This is a speed regulator with a high current of 2A. However, it cannot drive a continuous current greater than 0.5A for continuous operation, such as for 775 motors . Please double-check before purchasing.
• Application This product is widely applicable to speed regulation of DC motors, fans, fish tank oxygen pump, and other DC 1.8V - 12V products.
• Motor Speed Controller It is an ultra - low - voltage DC motor speed controller with the chip model NE555, a potentiometer with switch function, and a 2A resettable fuse to protect the controller, along with a power - on indicator.
• High - performance The input power supply voltage is DC 1.8V - 12V. The maximum continuous output current is 2A, the maximum output power is 30W, and the duty cycle can be adjusted from 0% to 100%.
• Safety The speed controller is equipped with a self - restoring fuse. When the current is too high, the fuse will automatically disconnect. After cooling, the fuse will automatically restore.
• Precautions Please connect this DC controller to a DC power supply. Do not directly connect it to a household 220V AC power supply, otherwise it will be damaged. The power supply voltage should not be greater than 15V. This is a 2A high - current speed controller. It cannot drive a continuous current greater than 0.5A for continuous operation,such as for 775 motors. Please confirm again before purchasing.
Color: Green
