Description
Brand: KB ELECTRONICS
Model: 9429

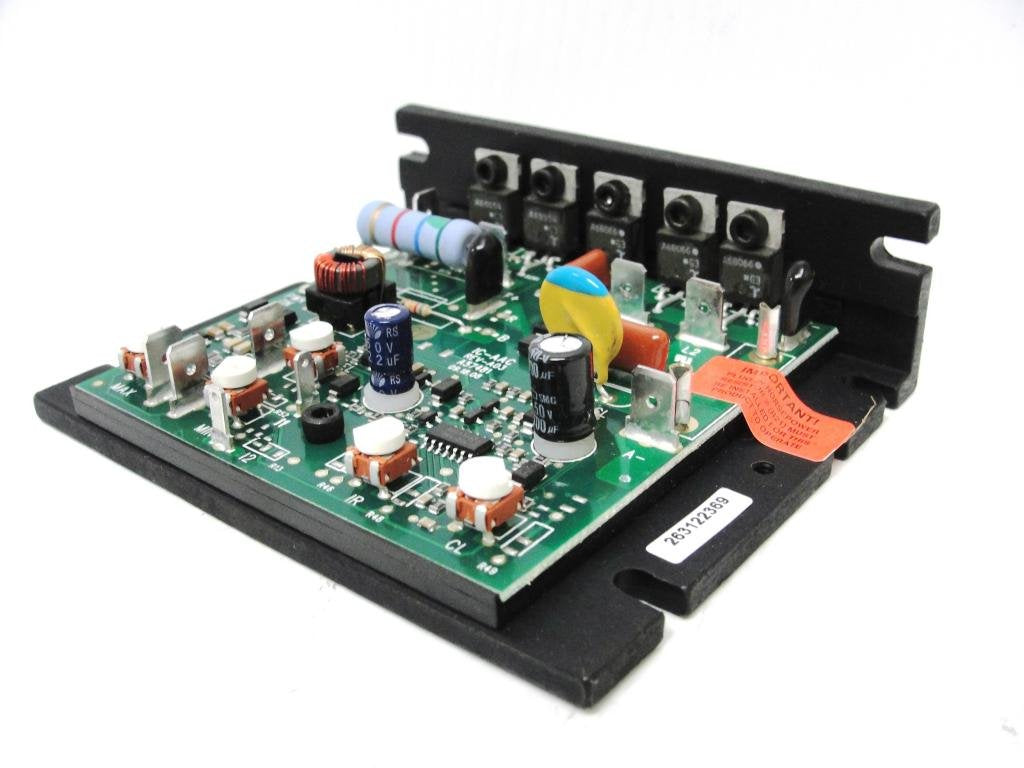

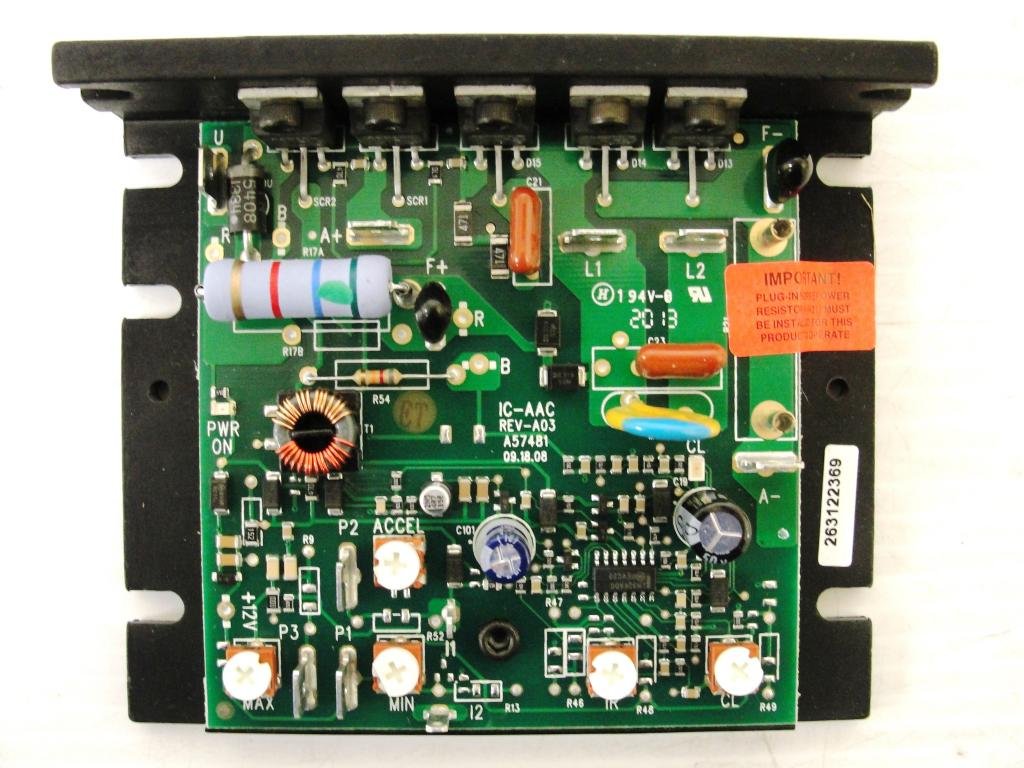

THIS DRIVE WILL NOT OPERATE UNLESS A PLUG-IN HORSEPOWER RESISTOR THAT MATCHES YOUR MOTOR'S HORSEPOWER AND VOLTAGE IS INSTALLED. Horsepower resistors are sold separately. The KBIC-120 chassis-mounted DC drive is a 115 VAC rated 9 Amps RMS @ 45C. The control is designed for 90 VDC PM, Shunt and AC/DC motors. It will control motors between 1/100-1/2 HP (1.0 HP w/aux. Heat sink) by inserting the proper Plug-in Horsepower Resistor. Speed range is 50:1 with load regulation of 1%. Features include Auto Inhibit, Voltage Following, MOV transient protection, 5K speed pot and trimpot adjustments for Min, Max, Accel, IR and CL. Options include Auxiliary heat sink, AC Line and Armature Fuse Kit, Barrier Terminal Board, RFI/EMI filters and Signal Isolation (model SI-5). This control is available worldwide from stocking KB distributors. UL, CSA, CE. Patented.
• KBIC-120 KB Electronics 115 VAC, thru 0
• 5 HP, 90 VDC ARM (9429) Plug-in Horsepower Resistor Required The control must have a Plug-in Horsepower Resistor installed
• purchased separately Plug-in Line Fuse Optional Optional fuse mounting kit
• Plug-in Armature Fuses purchased separately The KB Electronics KBIC Controls PM, Shunt and AC/DC motors over a range of 1/100 - 3 HP with only a few models
• All models can be used on a wide range of motor horsepower by inserting KBs exclusive Plug-In Horsepower Resistor
• Speed range is 50:1 with load regulation of 1%
Color: Multicolor
Model: 9429
THIS DRIVE WILL NOT OPERATE UNLESS A PLUG-IN HORSEPOWER RESISTOR THAT MATCHES YOUR MOTOR'S HORSEPOWER AND VOLTAGE IS INSTALLED. Horsepower resistors are sold separately. The KBIC-120 chassis-mounted DC drive is a 115 VAC rated 9 Amps RMS @ 45C. The control is designed for 90 VDC PM, Shunt and AC/DC motors. It will control motors between 1/100-1/2 HP (1.0 HP w/aux. Heat sink) by inserting the proper Plug-in Horsepower Resistor. Speed range is 50:1 with load regulation of 1%. Features include Auto Inhibit, Voltage Following, MOV transient protection, 5K speed pot and trimpot adjustments for Min, Max, Accel, IR and CL. Options include Auxiliary heat sink, AC Line and Armature Fuse Kit, Barrier Terminal Board, RFI/EMI filters and Signal Isolation (model SI-5). This control is available worldwide from stocking KB distributors. UL, CSA, CE. Patented.
• KBIC-120 KB Electronics 115 VAC, thru 0
• 5 HP, 90 VDC ARM (9429) Plug-in Horsepower Resistor Required The control must have a Plug-in Horsepower Resistor installed
• purchased separately Plug-in Line Fuse Optional Optional fuse mounting kit
• Plug-in Armature Fuses purchased separately The KB Electronics KBIC Controls PM, Shunt and AC/DC motors over a range of 1/100 - 3 HP with only a few models
• All models can be used on a wide range of motor horsepower by inserting KBs exclusive Plug-In Horsepower Resistor
• Speed range is 50:1 with load regulation of 1%
Color: Multicolor
