Brand: toncont

Features:

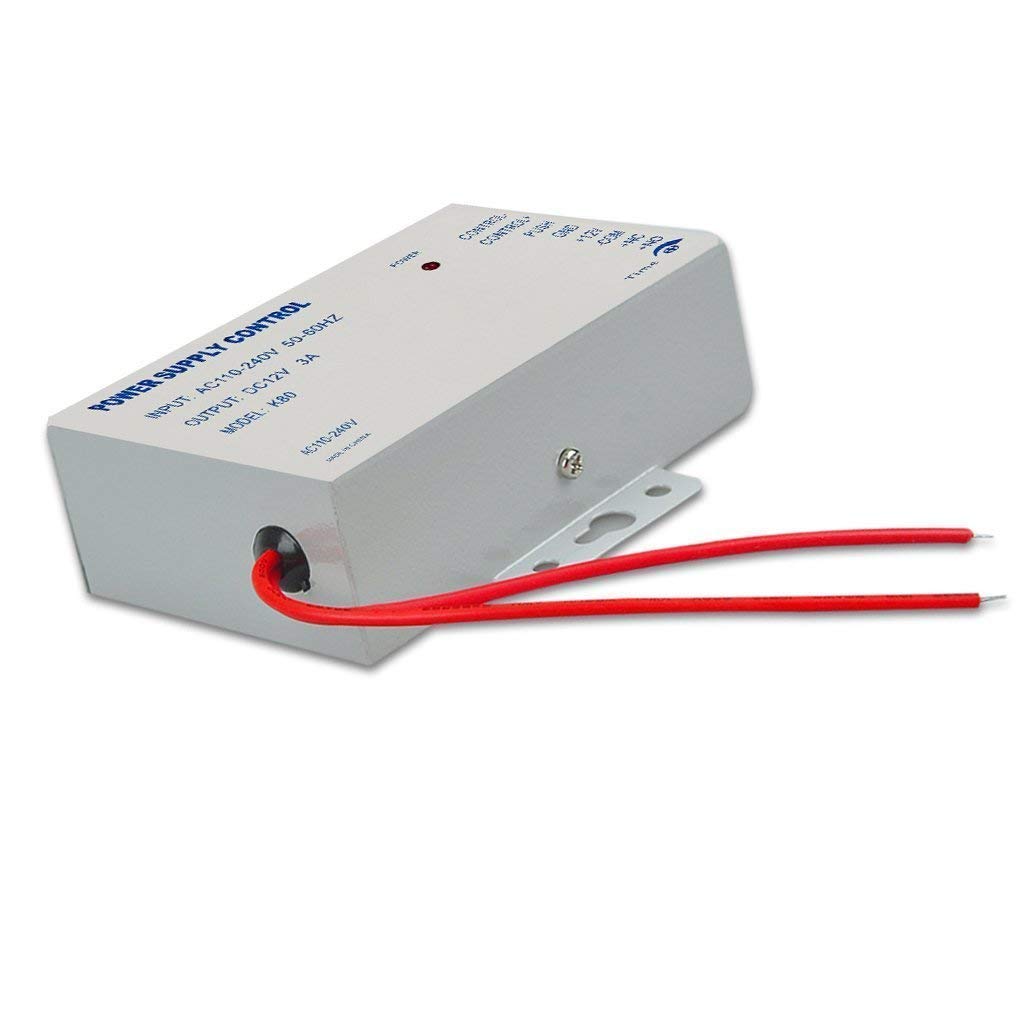

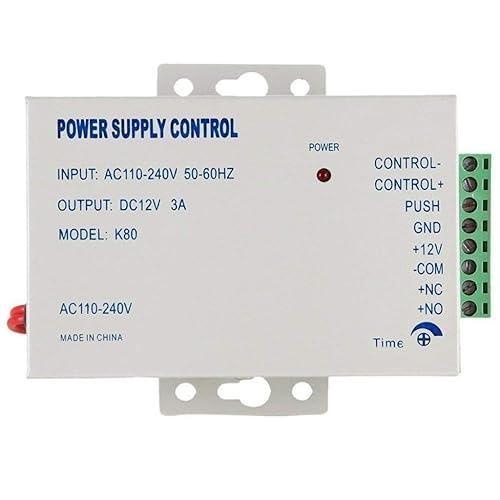

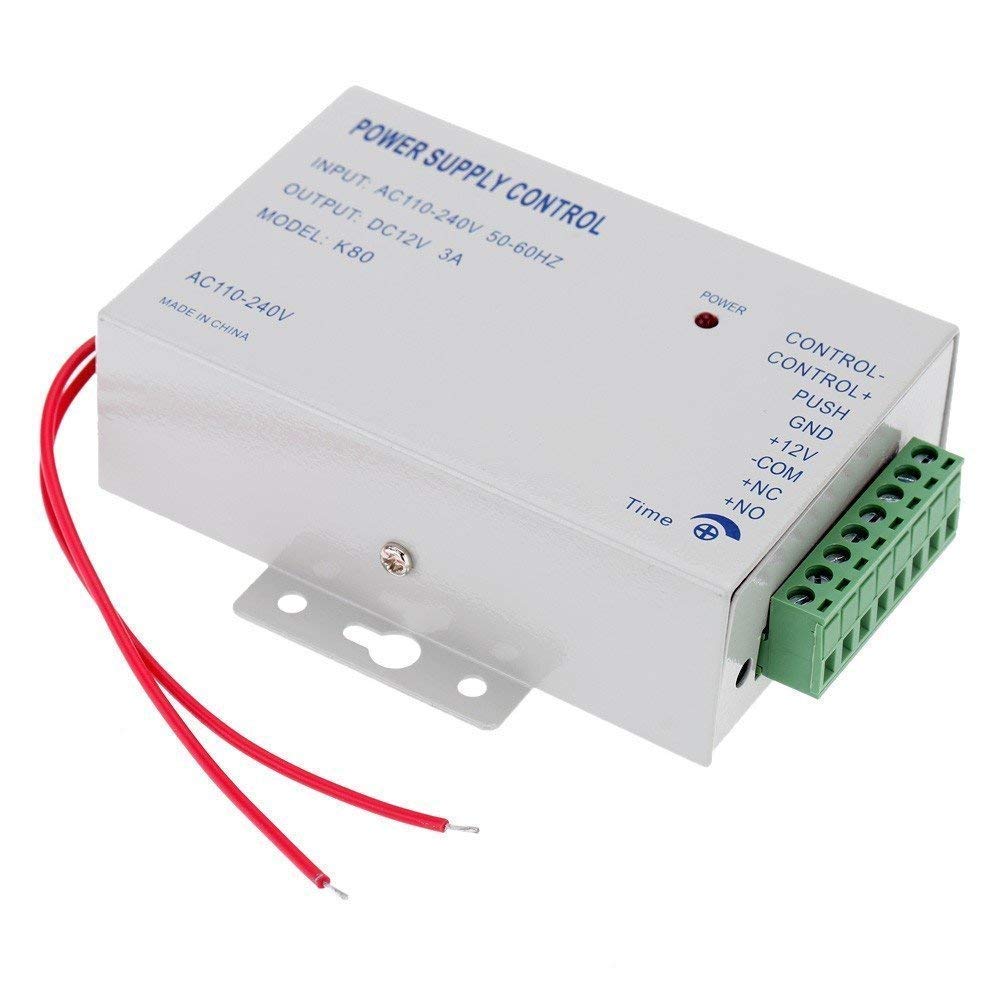

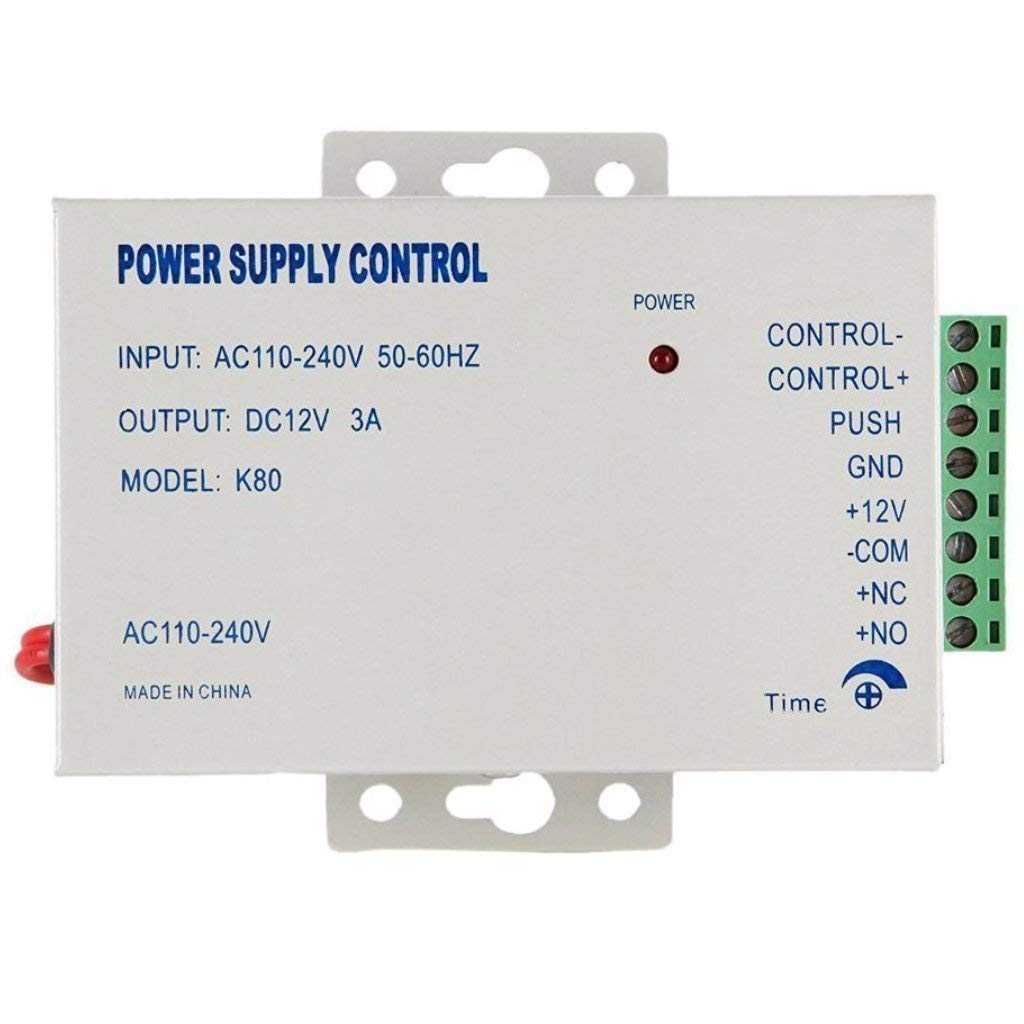

It is a door access control power supply
Compatible with world voltage, light weight, convenient transportation, small disturbance
NC / NO outputs, can control various types of electric locks
Reduce the load of access controller, save wiring to reduce the hidden trouble
Wide input voltage range, steady and precise,Automatic protection function:overload/ over voltage/ short circuit
It can set time lapse control circuit and unlocking time can be in 0-15 seconds(it is arbitrarily adjustable)
Provide very stable and reliable output in a various applications such as lock control/ controller control/ exit button/ RFID reader etc.

Specification:
1.Voltage range input regularly from AC 110V - 240V 50~60Hz
2.DC output: Stabilizator DC12V/ 3A
3.Controls electric lock directly
4.Power: 36W
5.Output Stability: 0.5% Typical
6.Operating Temperature: -20C~65C
7.Adjustable Locking Delay: 0~15sec
8.Material: Metal
9.Outside iron shell dimension:120mm*95 mm*38mm
10.Net Weight: 315g

Package included:
1 x Power Supply
1 x User manual
Note: Opening time must set to 0 second when connecting with electric controlled lock. Otherwise electric bolt lock would be Burned Down.


• This power supply is small, easy to install and easy to use: the voltage range from 100V-240V to normal use, suitable for all countries of the world.
• Power supply controller is a transformer which provides stable output voltage for access controller, lock, and exit button.
• Set NC / NO outputs, can control various types of electric locks,Based delay control circuit, lock time can be in 0-15 seconds.

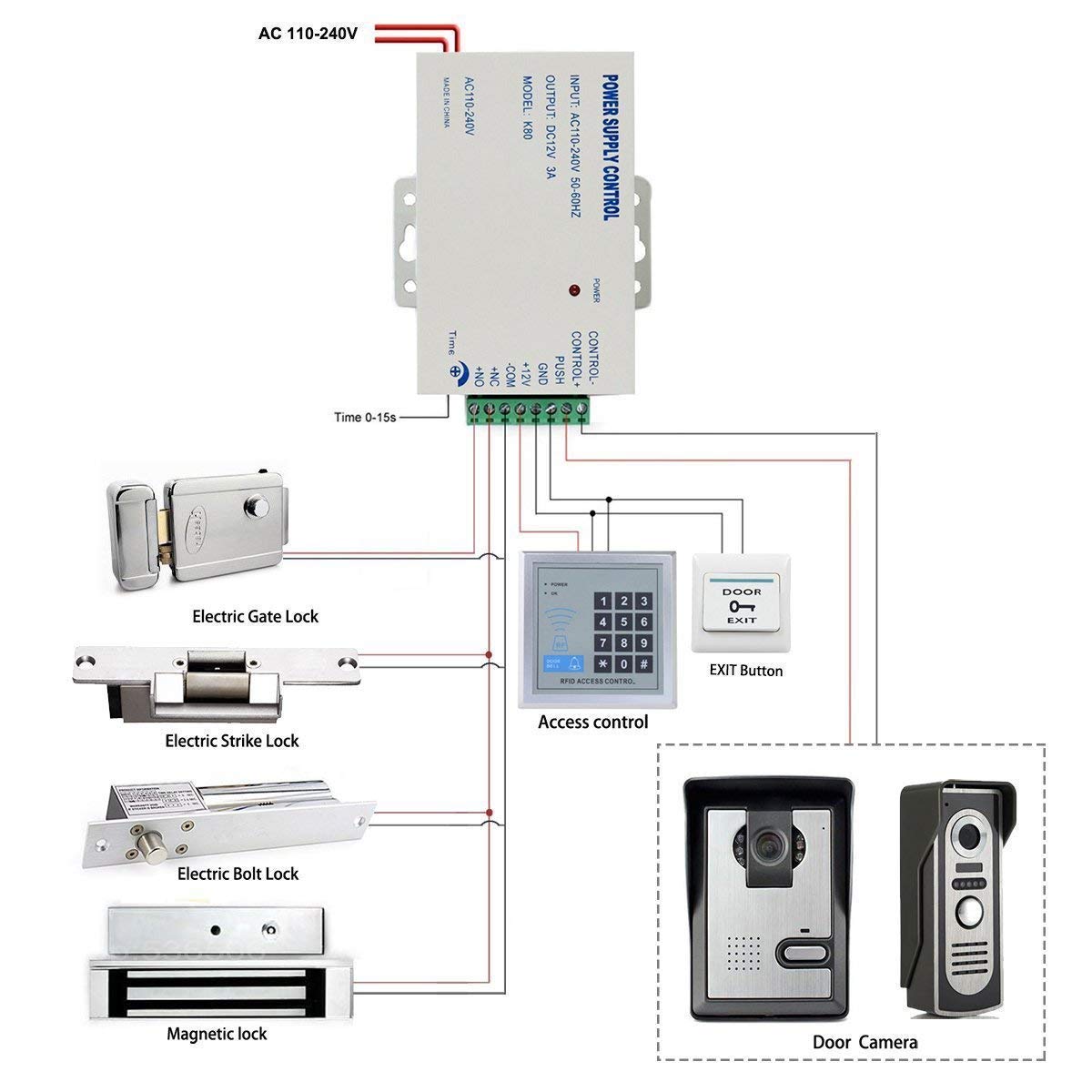

• Compact design and light weight,Short-circuit and overload protection for safety use,Can control various types of electic gate lock,electric strike lock, electic bolt lock, magnetic lock.
• The scope of application of the power applied to a variety of building intercom, villa doorbell, aparment doorphone, home video door phone controller, access a variety of import and export controls.
