Description
Brand: JUZITAO
Model: JU-3D0078
• Adjustable Voltage Regulator Input: DC 3 V to 40 V (input voltage must be 1.5 V higher than the output voltage, no boost)
• LM2596 dc-dc buck converter Output: DC 1.5 V to 35 V voltage is continuously adjustable, maximum output current is 3 A

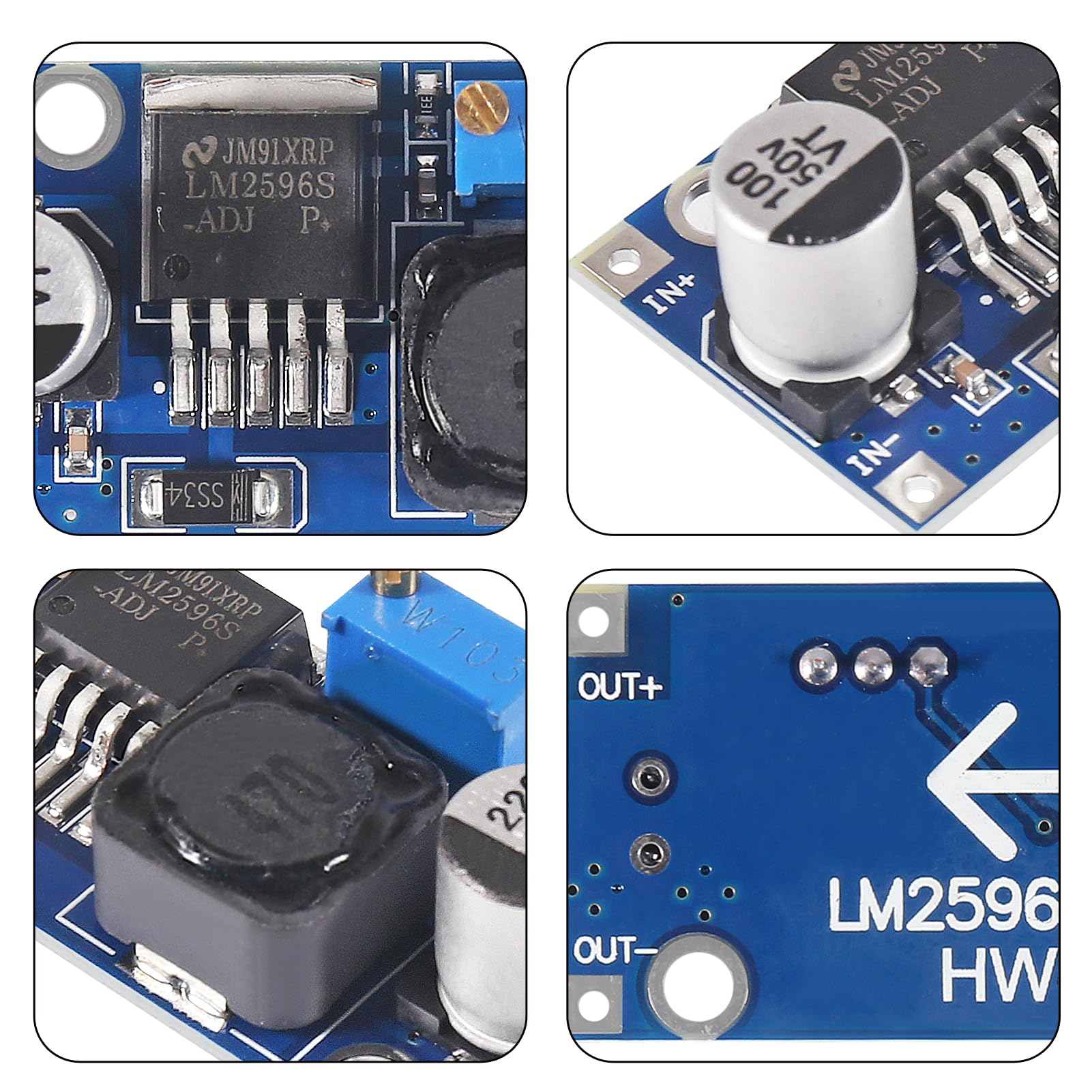

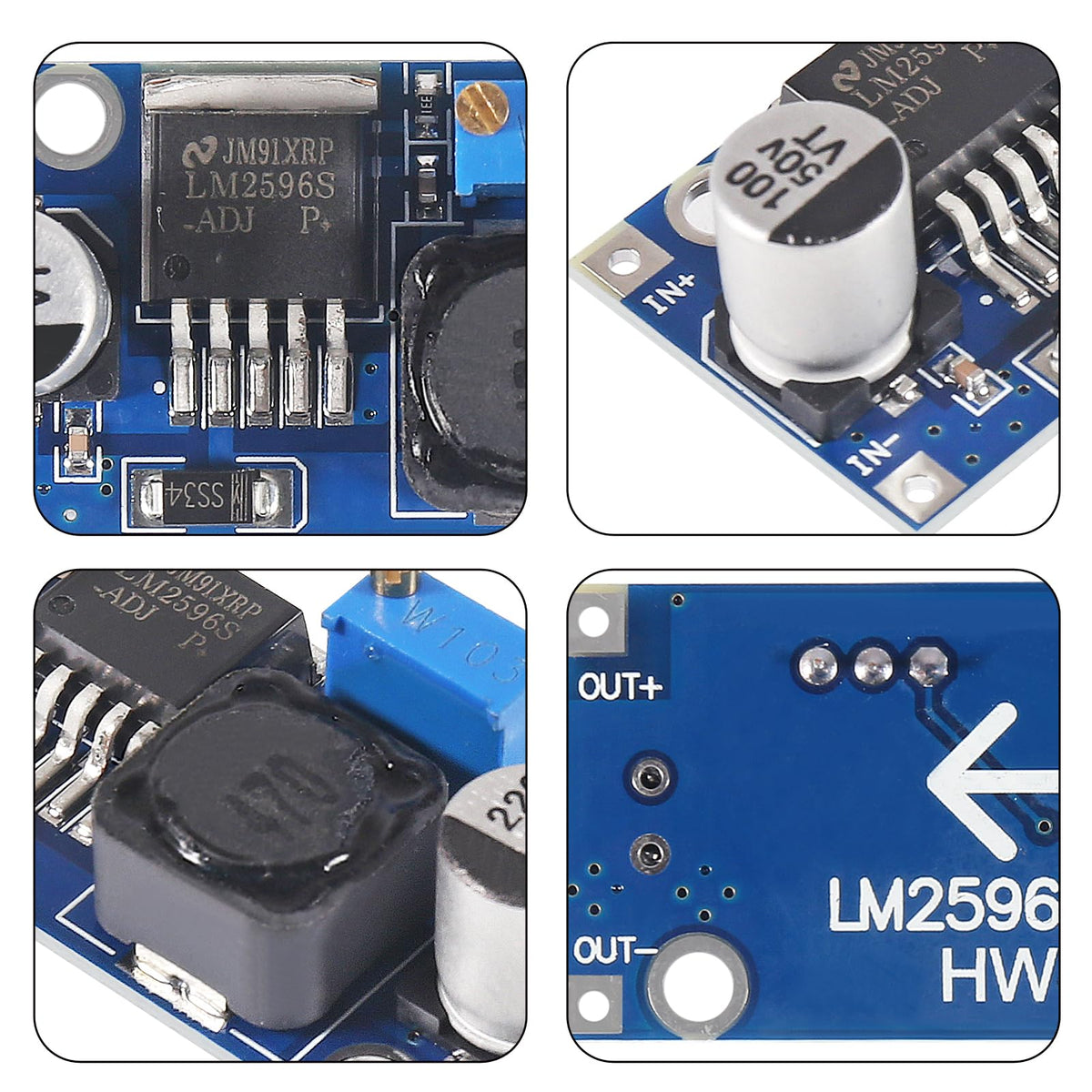

• Features: The LM2596 buck converter consists of 36u thickened circuit boards, high-Q inductance with output LED indicator, and superior solid-state capacitors that can effectively filter out high frequency noise.

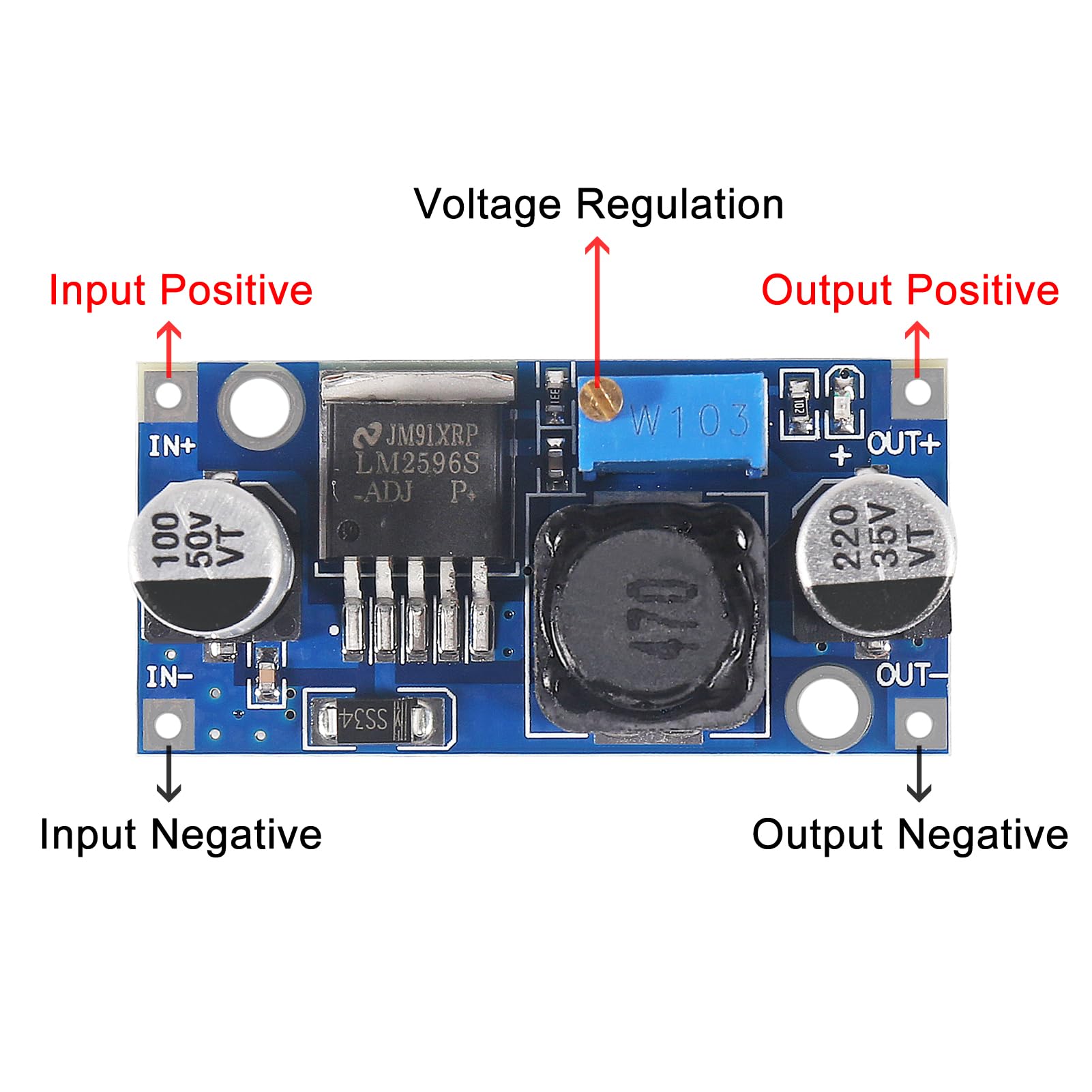

• Steps: connect to power source, adjust the swirl button on the blue potentiometer and monitor voltage with multimeter to get the needed voltage (The factory have tested these at max voltage so they are very high by default, takes about 15-20 turns CCW before the voltage starts ramping down)
• Application: Perfect for DIY power bank projects, powering monitors, communication devices, and a wide range of other electronic equipment.
Model: JU-3D0078
Specifications:

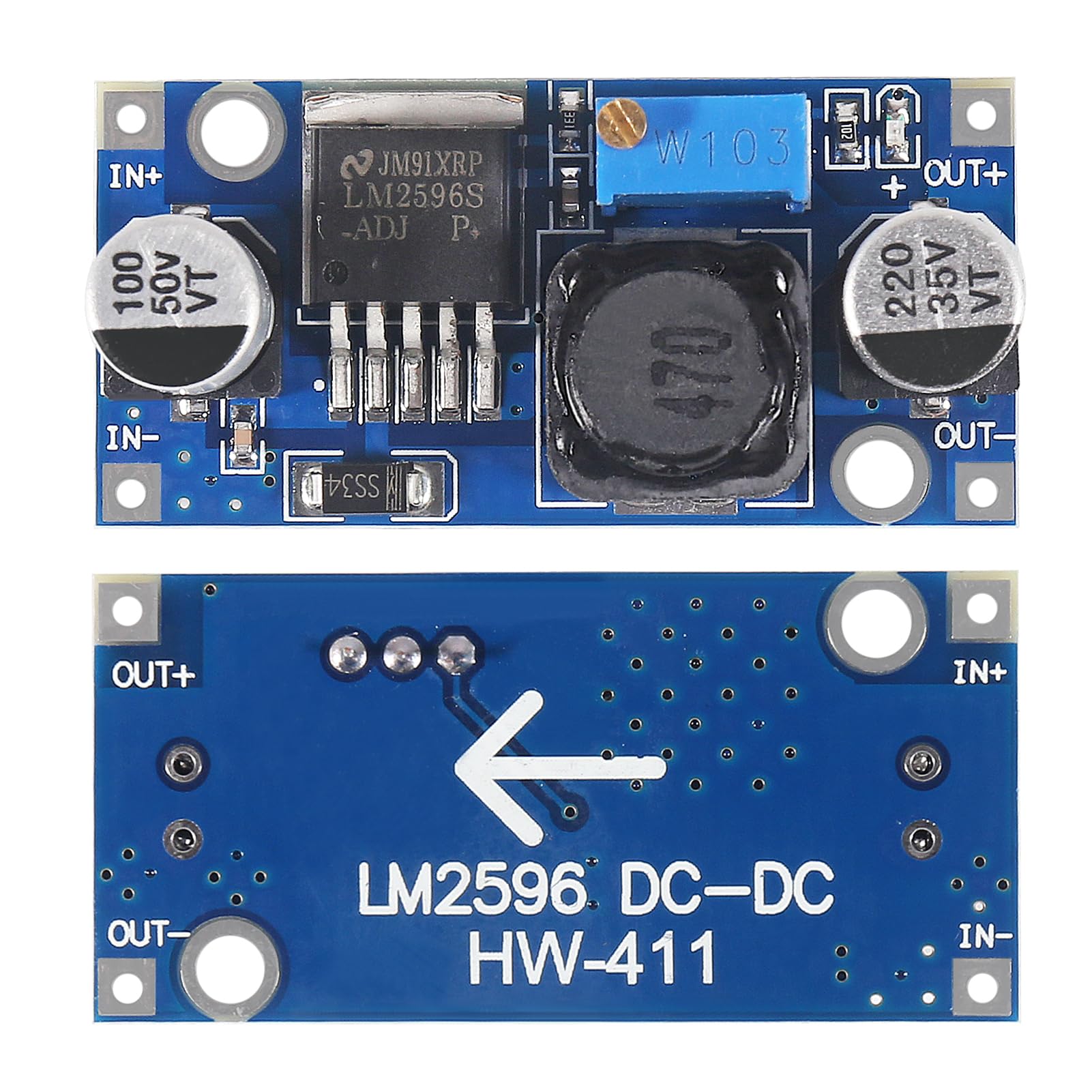

- Model: LM2596
- Input voltage: DC 3V - 40V
- Output Voltage: DC 1.5V - 35V (adjustable)
- Output Current: 3A (max)
- Conversion Efficiency: 92% (max)
- Switching Frequency : 65KHz
- Rectification: non-synchronous rectification
- Module property: non-isolated buck module
- Operating Temperature: -45℃ to +85℃
- Load Regulation: ± 0.5%
- Voltage Regulation: ± 2.5%
Kindly Note:
- Input voltage must be 1.5 V higher than the output voltage, no boost
- Do not reverse the input and output interface
- Keep output under 2.5A (or 10W) and use a heat sink when for a long time working
- The factory settings stay a high voltage, you may need to contrarotate the screw on blue potentiometer about 7-15 circles before the output voltage changes
Package List:

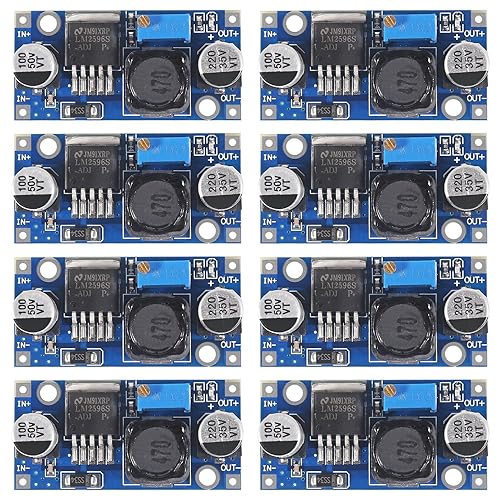

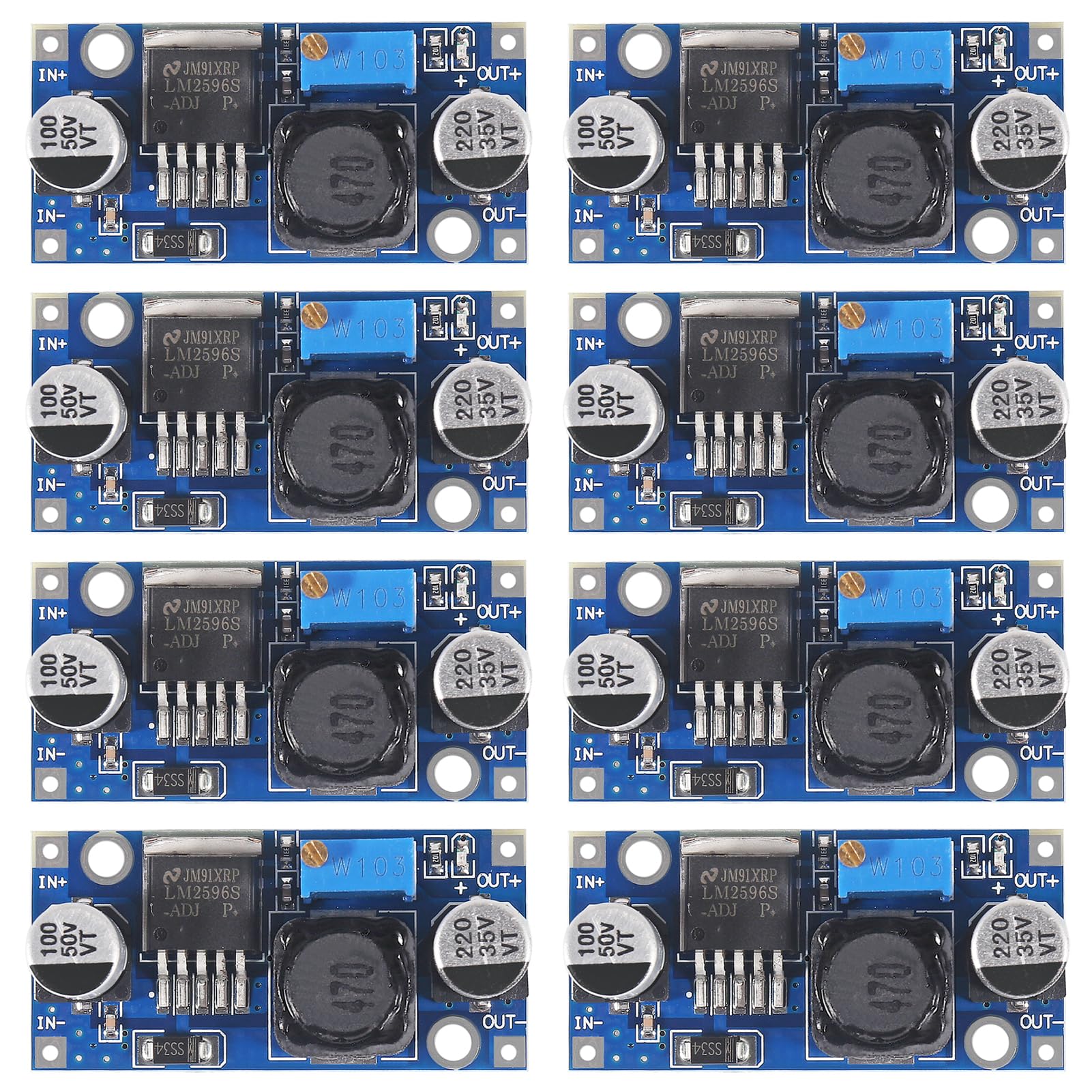

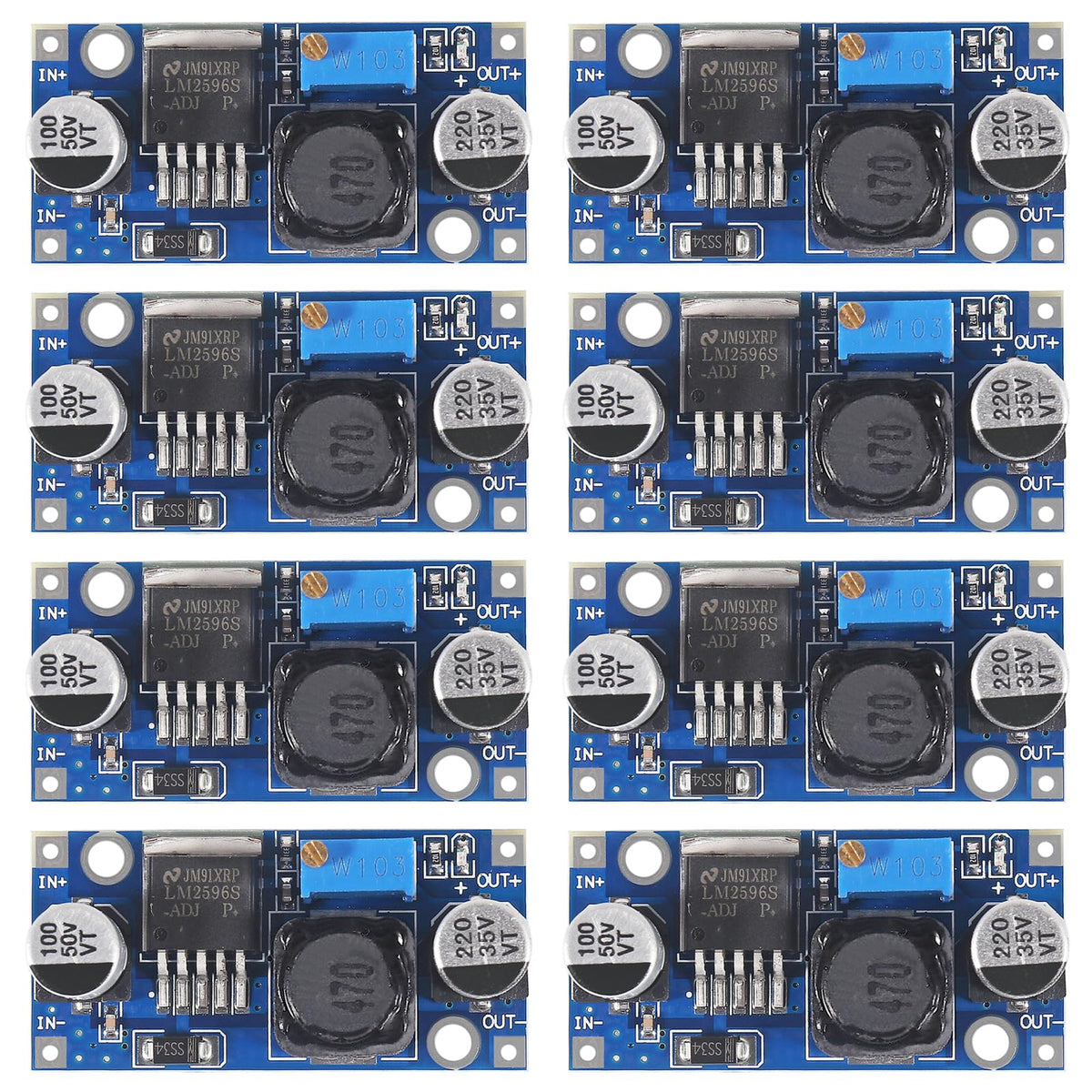

- 8 x LM2596 DC-DC Buck Converter Module High Efficiency Voltage Regulator
• Adjustable Voltage Regulator Input: DC 3 V to 40 V (input voltage must be 1.5 V higher than the output voltage, no boost)
• LM2596 dc-dc buck converter Output: DC 1.5 V to 35 V voltage is continuously adjustable, maximum output current is 3 A
• Features: The LM2596 buck converter consists of 36u thickened circuit boards, high-Q inductance with output LED indicator, and superior solid-state capacitors that can effectively filter out high frequency noise.
• Steps: connect to power source, adjust the swirl button on the blue potentiometer and monitor voltage with multimeter to get the needed voltage (The factory have tested these at max voltage so they are very high by default, takes about 15-20 turns CCW before the voltage starts ramping down)
• Application: Perfect for DIY power bank projects, powering monitors, communication devices, and a wide range of other electronic equipment.
