Description
Brand: JUZITAO
Model: JU-1893_1-2P

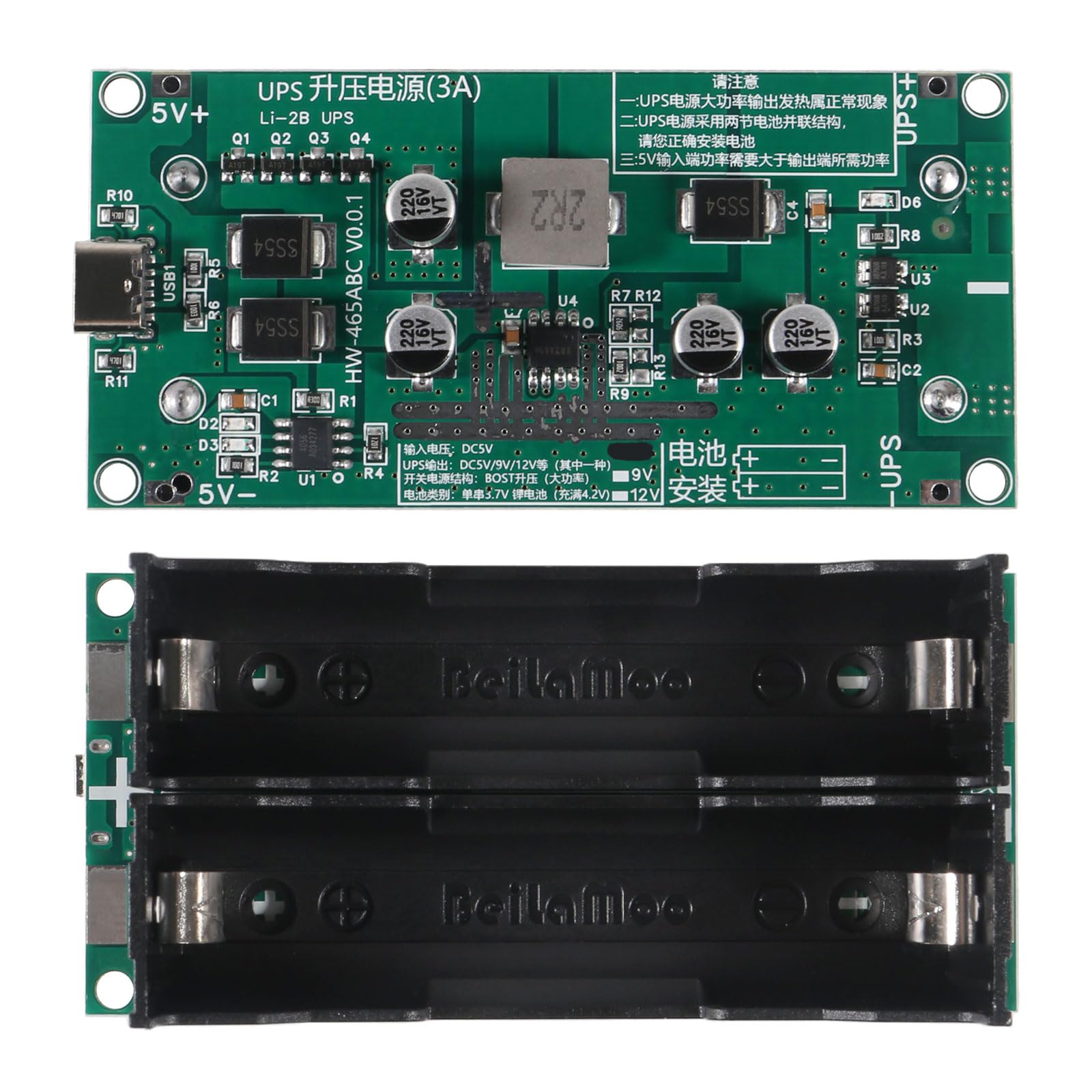

• The UPS Power Supply Converter module integrates four practical functions of lithium battery charging, lithium battery protection, boost output, and UPS switching.
• UPS function: When the power supply is powered on, the power supply directly supplies power to the load via the booster circuit, and simultaneously charges the lithium battery. Once the power is cut off, the battery path is automatically activated to supply power to the load via the boost circuit.
• Power Switching: Booster converter module can realize the seamless switching of external power supply and battery dual power supply (no delay), suitable for uninterrupted power supply schemes such as low-power DC equipment and meters, and self-start after power failure and self-charge when power is received.
• LED Indicator: The Fast Charge module features a dual-color LED indicator, with the green light remaining continuously lit when the battery is fully charged, and the charging process automatically ceases.
• Lithium battery protection: Over-charge, over-discharge, over-temperature, over-current protection (if it enters the protection state and does not output after a short-circuit by mistake, it will automatically activate and restore output when connected to 5V charging).
Color: 5V
Model: JU-1893_1-2P
Features:
1.This product is suitable for the application of power failure equipment without power failure. When power is available, external power supply is used. When power failure occurs, it will automatically and seamlessly switch to battery power supply.
2. The Type-c interface provides power. Compared with the microUSB interface, the current that can be passed is much larger, and the maximum current can be 5A.
3. It is suitable for routers, cameras, development boards and other equipment. It can switch the battery power supply seamlessly when the power is off, and the power supply is continuous
4.Seamless switching of external power supply and battery two-way power supply (without delay). Uninterrupted power supply, self-starting after power failure, self-charging after power call.
5. Output voltage 5V/9V/12V can be selected,
6. Lithium battery charging, lithium battery protection, boost output and UPS switching.
7. The two-color LED indicates the charging status, and the green light is always on when it is full, and the charging will stop automatically.
Product Parameters:
Output voltage: 5V
Current: 5A (maximum)
Interface: Type-c interface
Peak power: up to 20W
Rated power: up to 15W

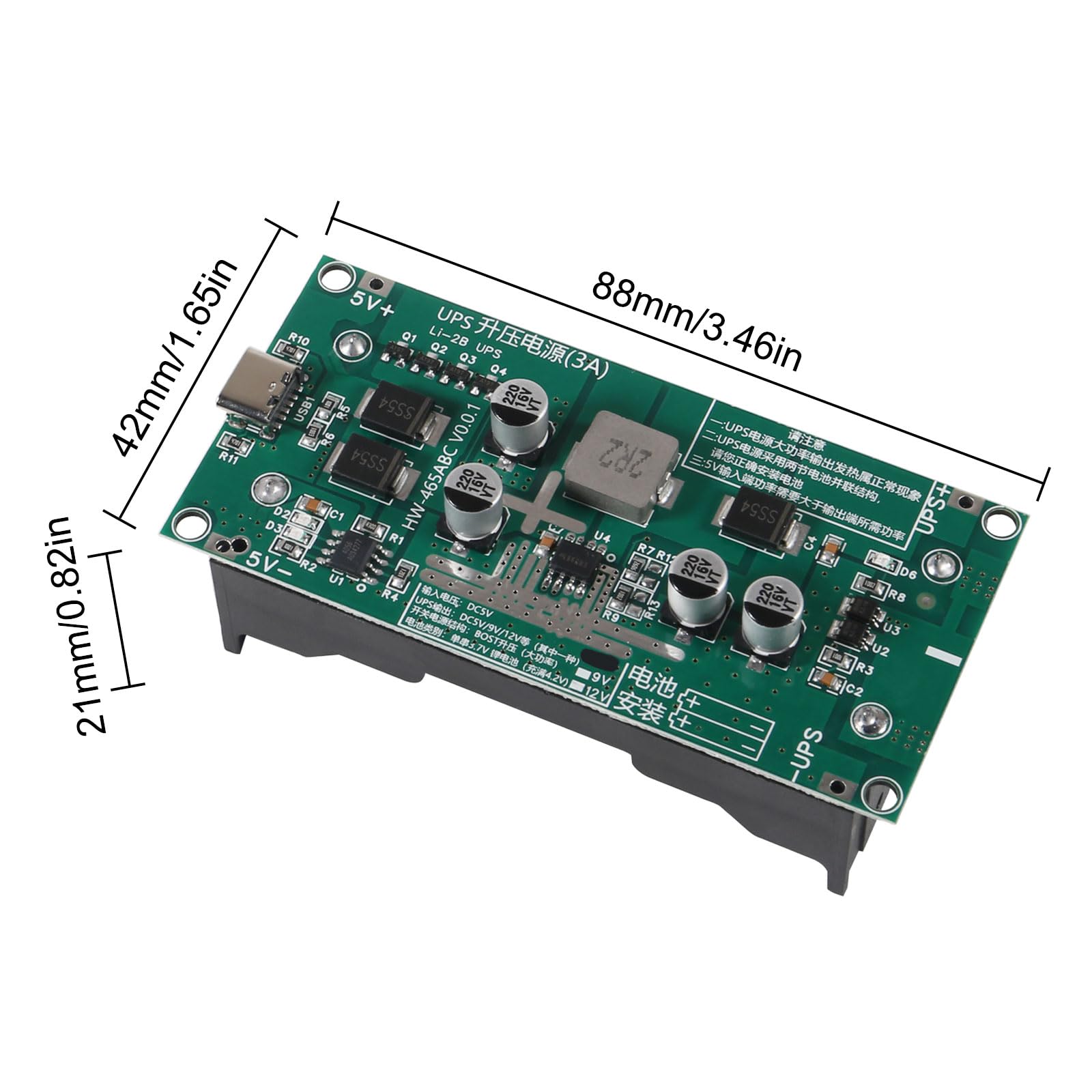

Module size: 88 * 41 * 22mm length, width and height (back patch box)
Package included:

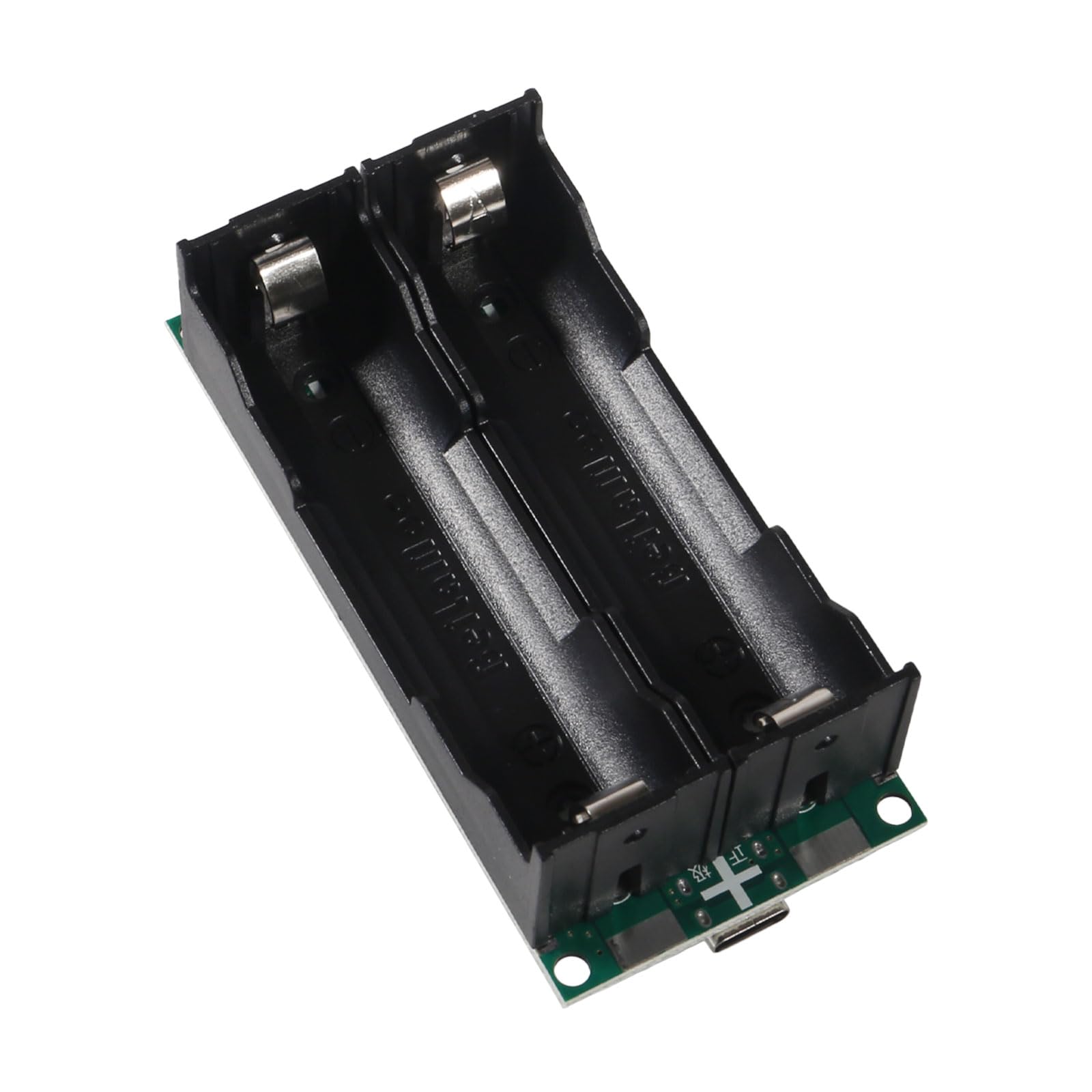

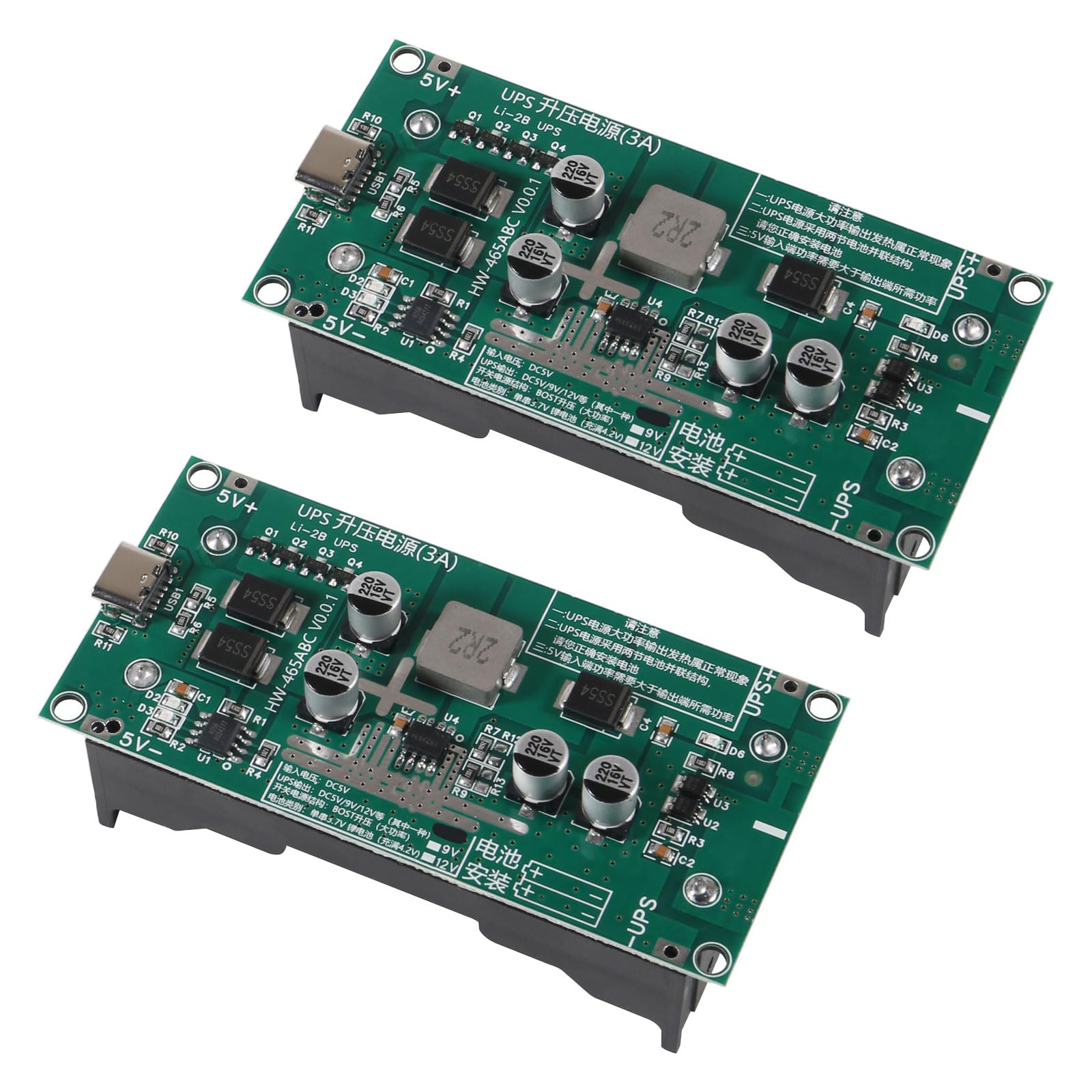

2PCS 15W 3A 5V Type-C 18650 Lithium Battery Charger Module UPS Power Supply Converter
• The UPS Power Supply Converter module integrates four practical functions of lithium battery charging, lithium battery protection, boost output, and UPS switching.
• UPS function: When the power supply is powered on, the power supply directly supplies power to the load via the booster circuit, and simultaneously charges the lithium battery. Once the power is cut off, the battery path is automatically activated to supply power to the load via the boost circuit.
• Power Switching: Booster converter module can realize the seamless switching of external power supply and battery dual power supply (no delay), suitable for uninterrupted power supply schemes such as low-power DC equipment and meters, and self-start after power failure and self-charge when power is received.
• LED Indicator: The Fast Charge module features a dual-color LED indicator, with the green light remaining continuously lit when the battery is fully charged, and the charging process automatically ceases.
• Lithium battery protection: Over-charge, over-discharge, over-temperature, over-current protection (if it enters the protection state and does not output after a short-circuit by mistake, it will automatically activate and restore output when connected to 5V charging).
Color: 5V
