Brand: Juried Engineering

The TLC2274 are quadruple operational amplifiers from Texas Instruments. The TLC2274 devices exhibit rail-to-rail output performance for increased dynamic range in single- or split-supply applications. The TLC227x family offers 2 MHz of bandwidth and 3 V/µs of slew rate for higher-speed applications. These devices offer comparable AC performance while having better noise, input offset voltage, and power dissipation than existing CMOS operational amplifiers. The TLC227x has a noise voltage of 9 nV/?Hz, two times lower than competitive solutions.<br><br> The TLC227x family of devices, exhibiting high input impedance and low noise, is excellent for small-signal conditioning for high-impedance sources such as piezoelectric transducers. Because of the micropower dissipation levels, these devices work well in hand-held monitoring and remote-sensing applications. In addition, the rail-to-rail output feature, with single- or split-supplies, makes this family a great choice when interfacing with analog-to-digital converters (ADCs). For precision applications, the TLC227xA family is available with a maximum input offset voltage of 950 µV. This family is fully characterized at 5 V and ±5 V.

• The TLC2274 are quadruple operational amplifiers from Texas Instruments. The TLC2274 devices exhibit rail-to-rail output performance for increased dynamic range in single- or split-supply applications.
• Output Swing Includes Both Supply Rails, Low-Input Bias Current: 1-pA Typical
• Low Noise: 9 nV/?Hz Typical at f = 1 kHz, Fully-Specified for Both Single-Supply and Split- Supply Operation
• Common-Mode Input Voltage Range Includes Negative Rail, High-Gain Bandwidth: 2.2-MHz Typical
• High Slew Rate: 3.6-V/µs Typical, Low Input Offset Voltage: 950 µV Maximum at TA = 25°C

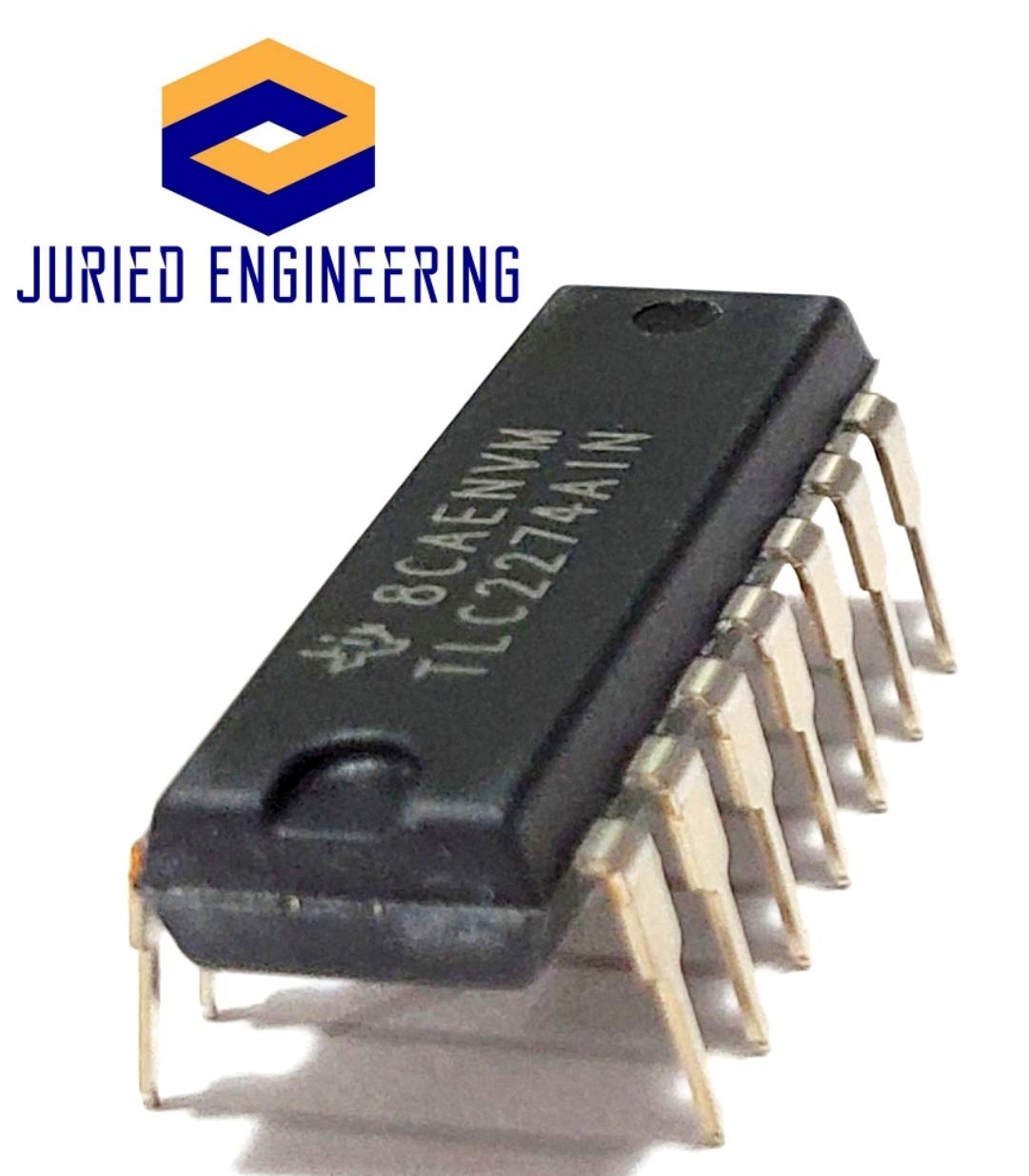

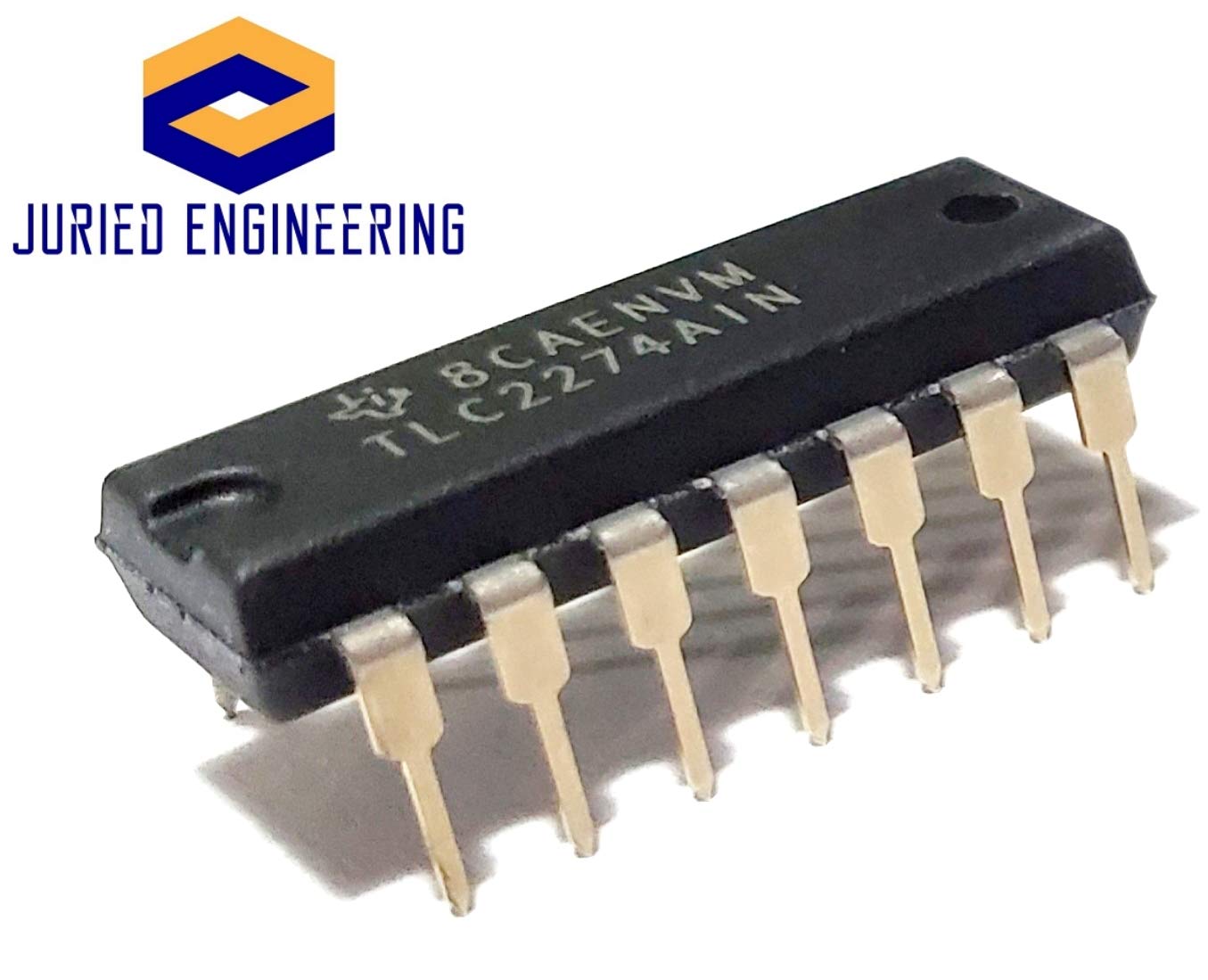

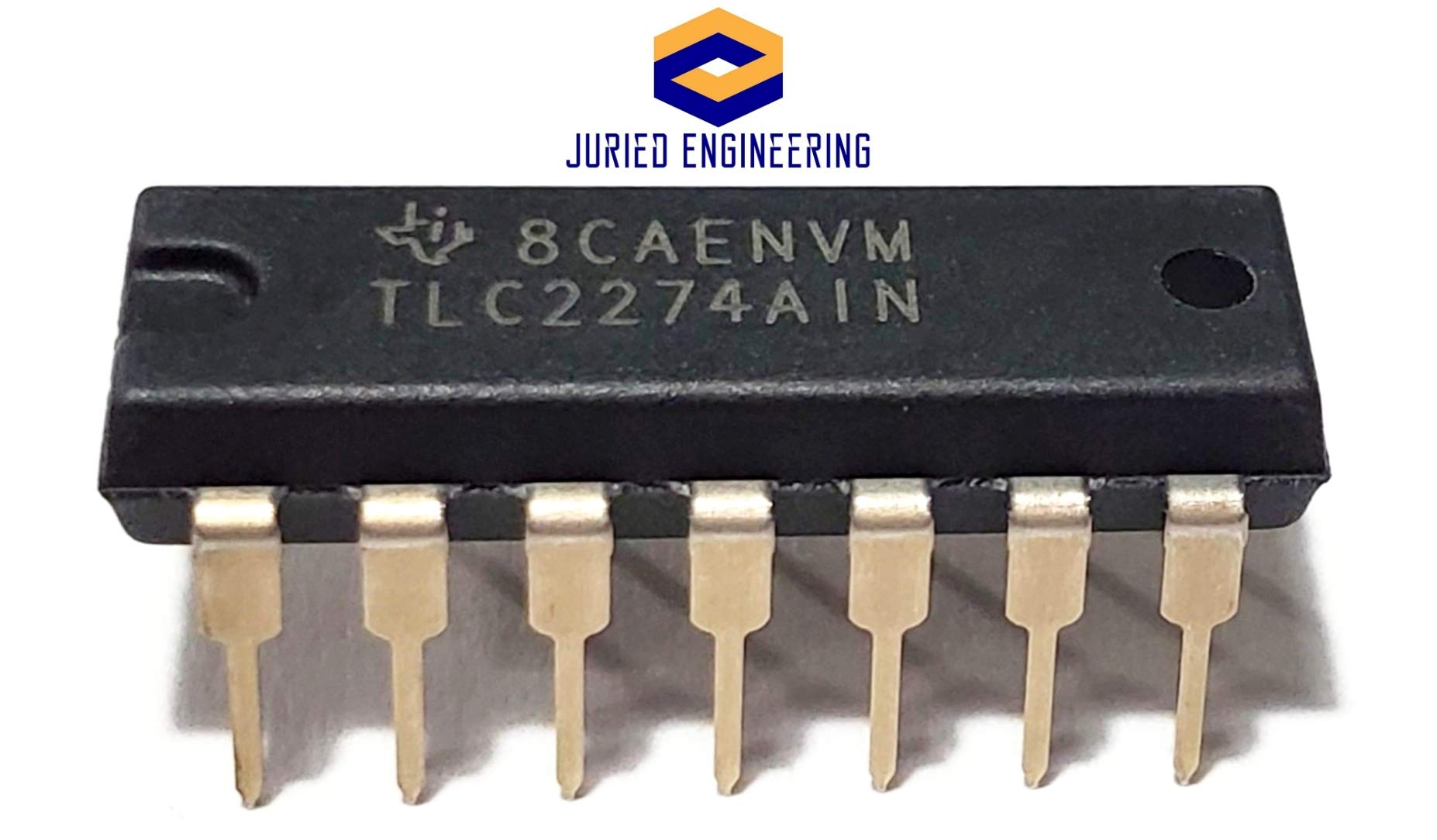

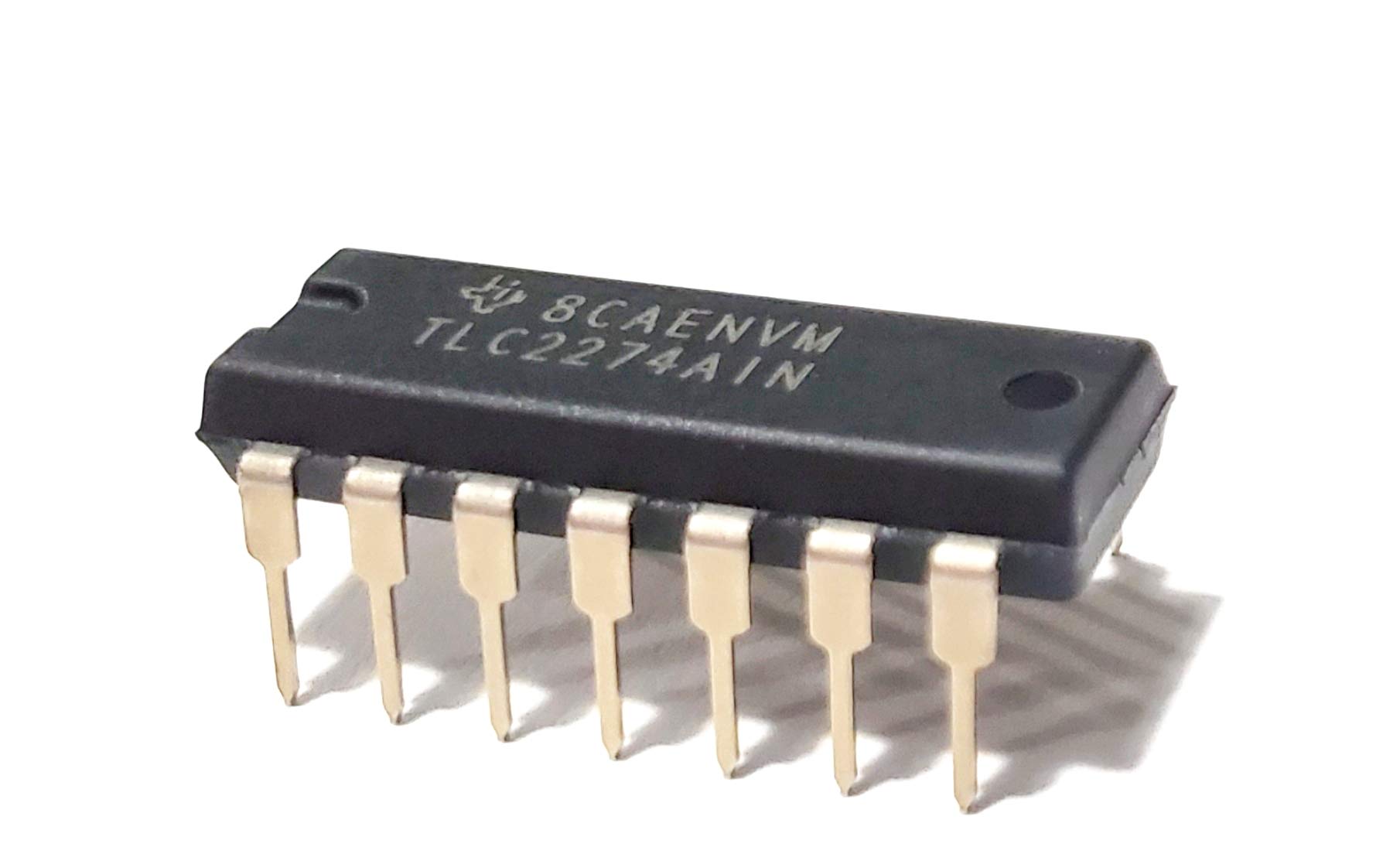

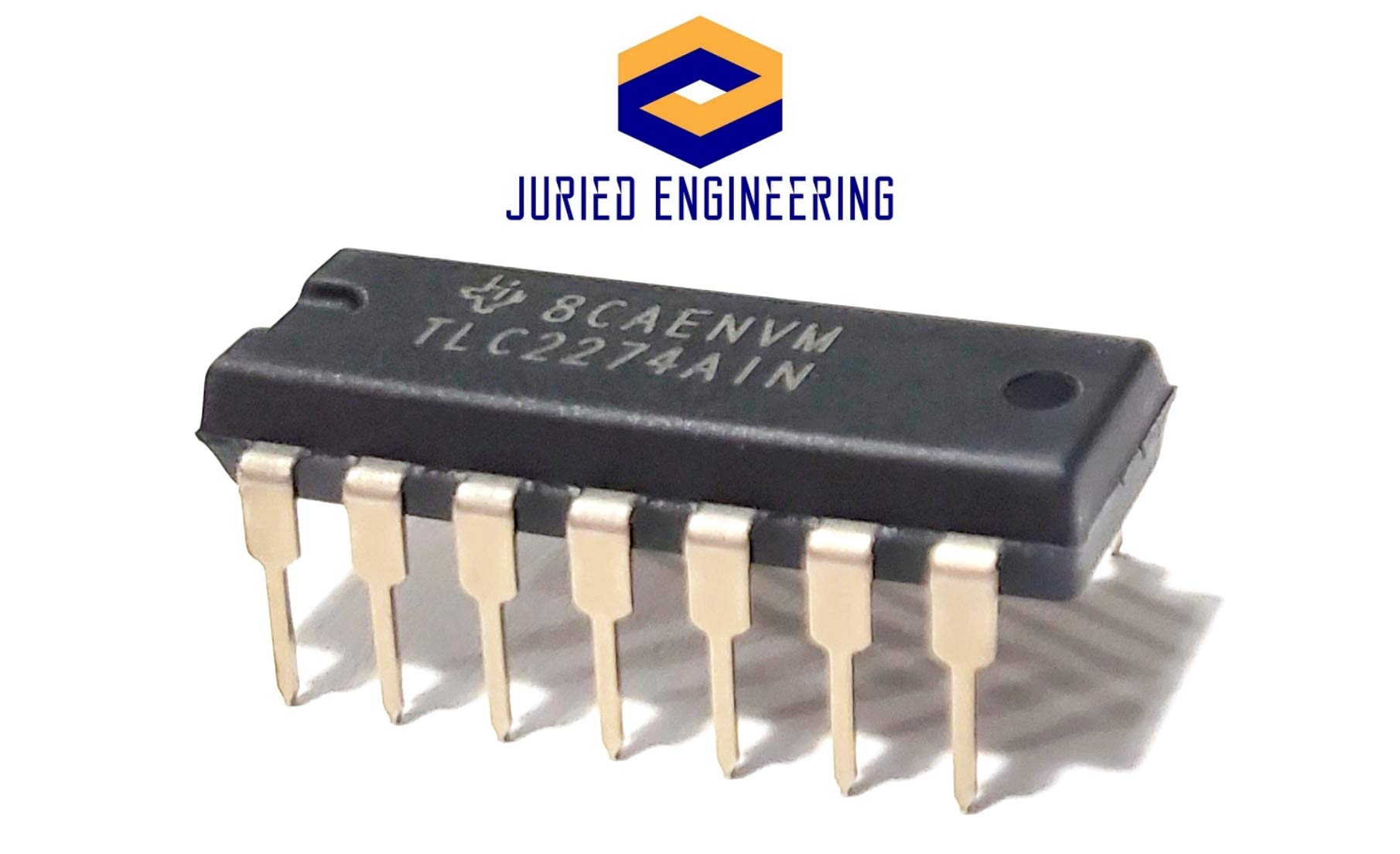

Model: TLC2274AIN
