Description
Brand: Juried Engineering
The TL071 JFET-input operational amplifiers incorporate well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit. The devices feature high slew rates, low-input bias and offset currents, and low offset-voltage temperature coefficient. The low harmonic distortion and low noise make the TL071 series ideally suited for high-fidelity and audio pre-amplifier applications. The TL071 device has offset pins to support external input offset correction.
• The TL071 JFET-input operational amplifiers incorporate well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit
• Low Power Consumption, Wide Common-Mode and Differential Voltage Ranges, Low Input Bias and Offset Currents, Offset pins to support external input offset correction
• Output Short-Circuit Protection, Low Total Harmonic Distortion: 0.003% (Typical), Low Noise Vn = 18 nV/?Hz (Typical) at f = 1 kHz
• High-Input Impedance: JFET Input Stage, Internal Frequency Compensation, Latch-Up-Free Operation
• High Slew Rate: 13 V/µs (Typical), Common-Mode Input Voltage Range Includes VCC+, Example Applications: Motor Integrated Systems: UPS, Drives and Control Solutions: AC Inverter and VF Drives, Renewables: Solar Inverters, Pro Audio Mixers, DLP Front Projection System, Oscilloscopes

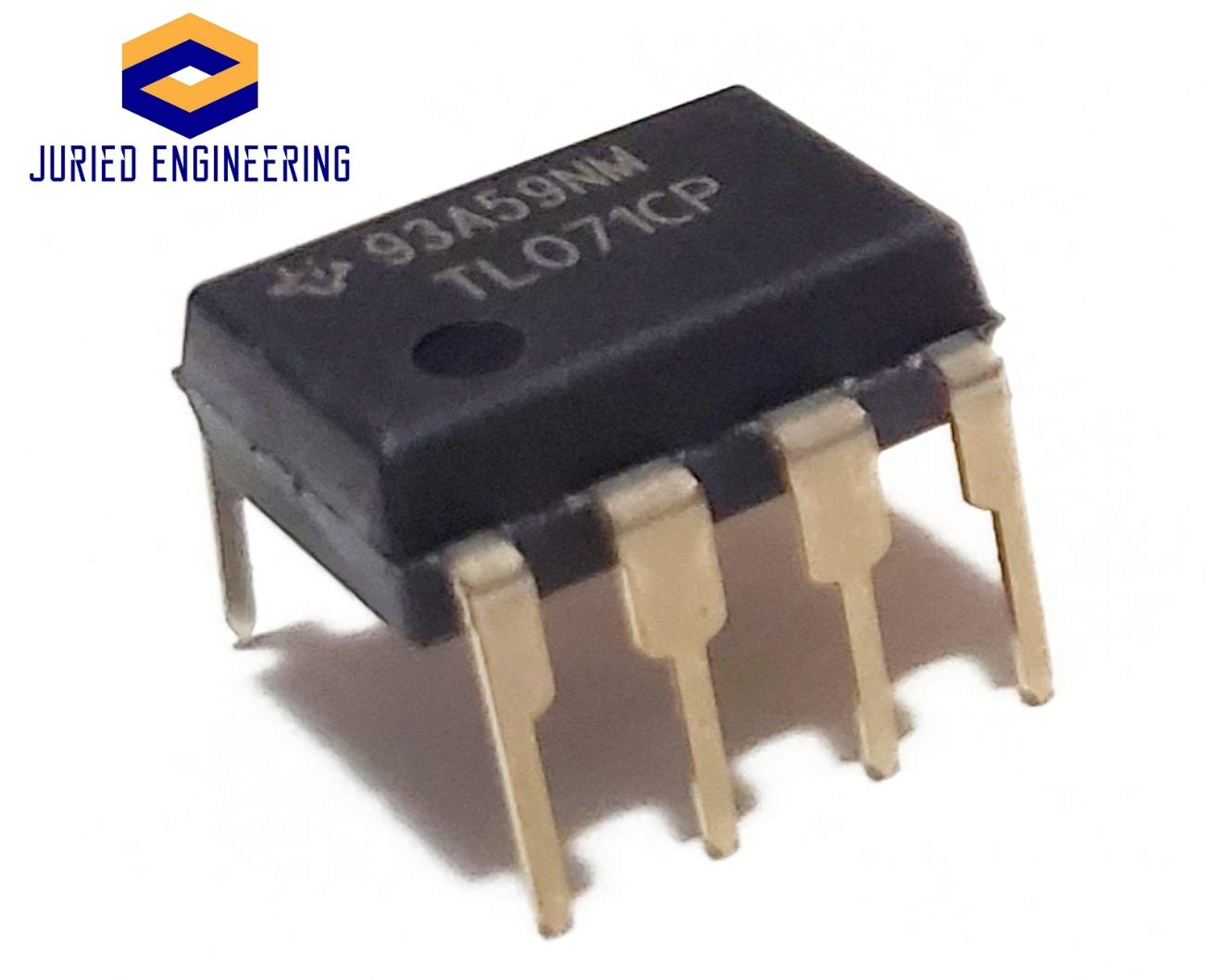

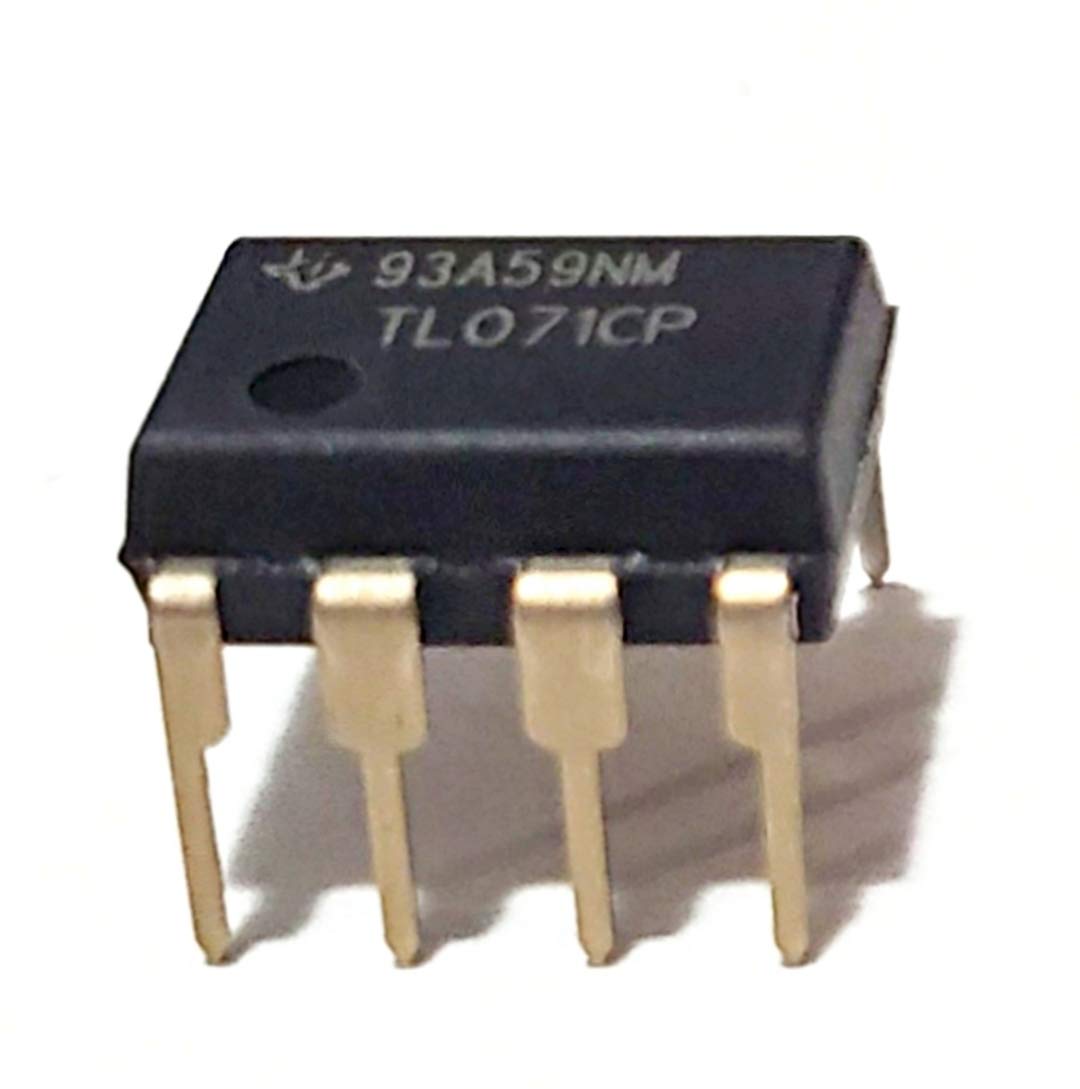

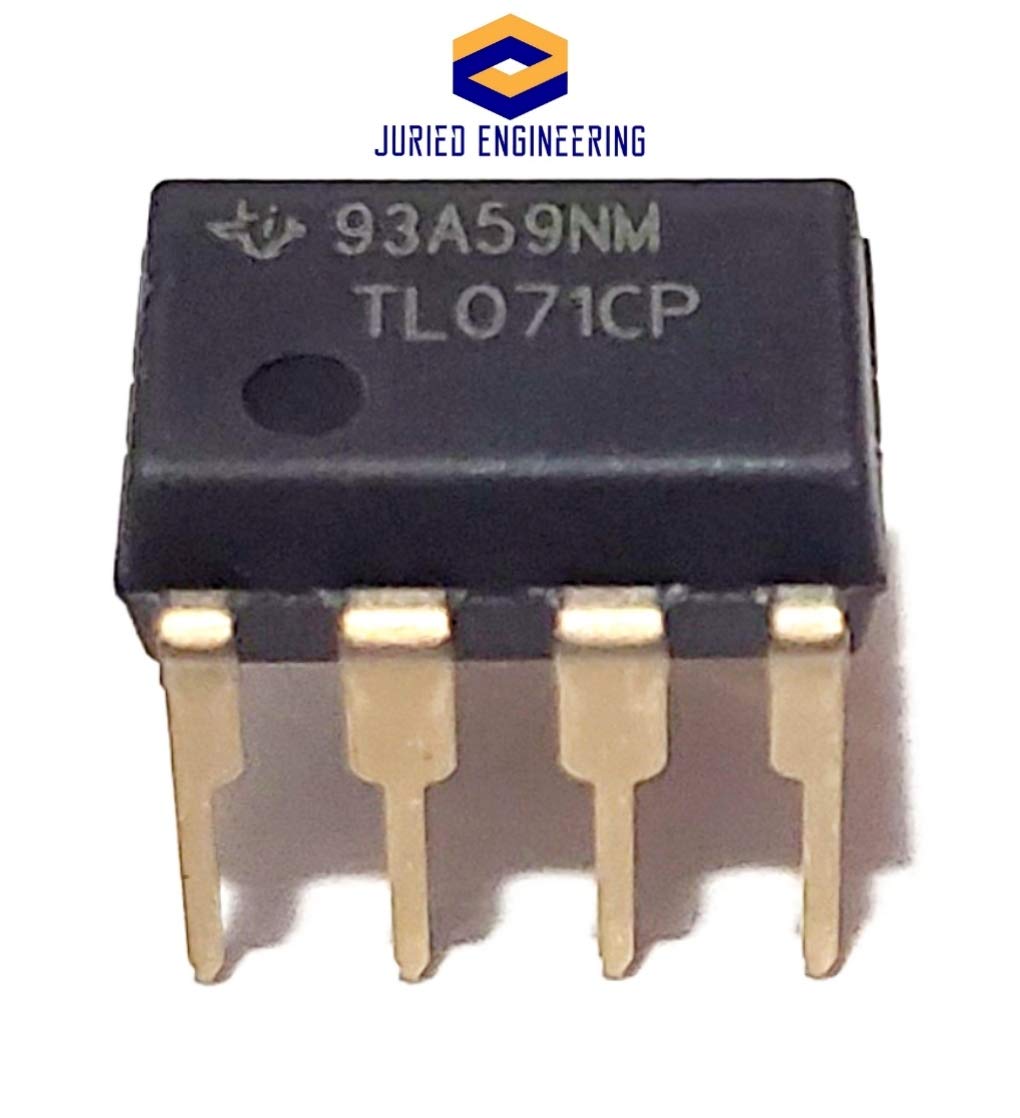

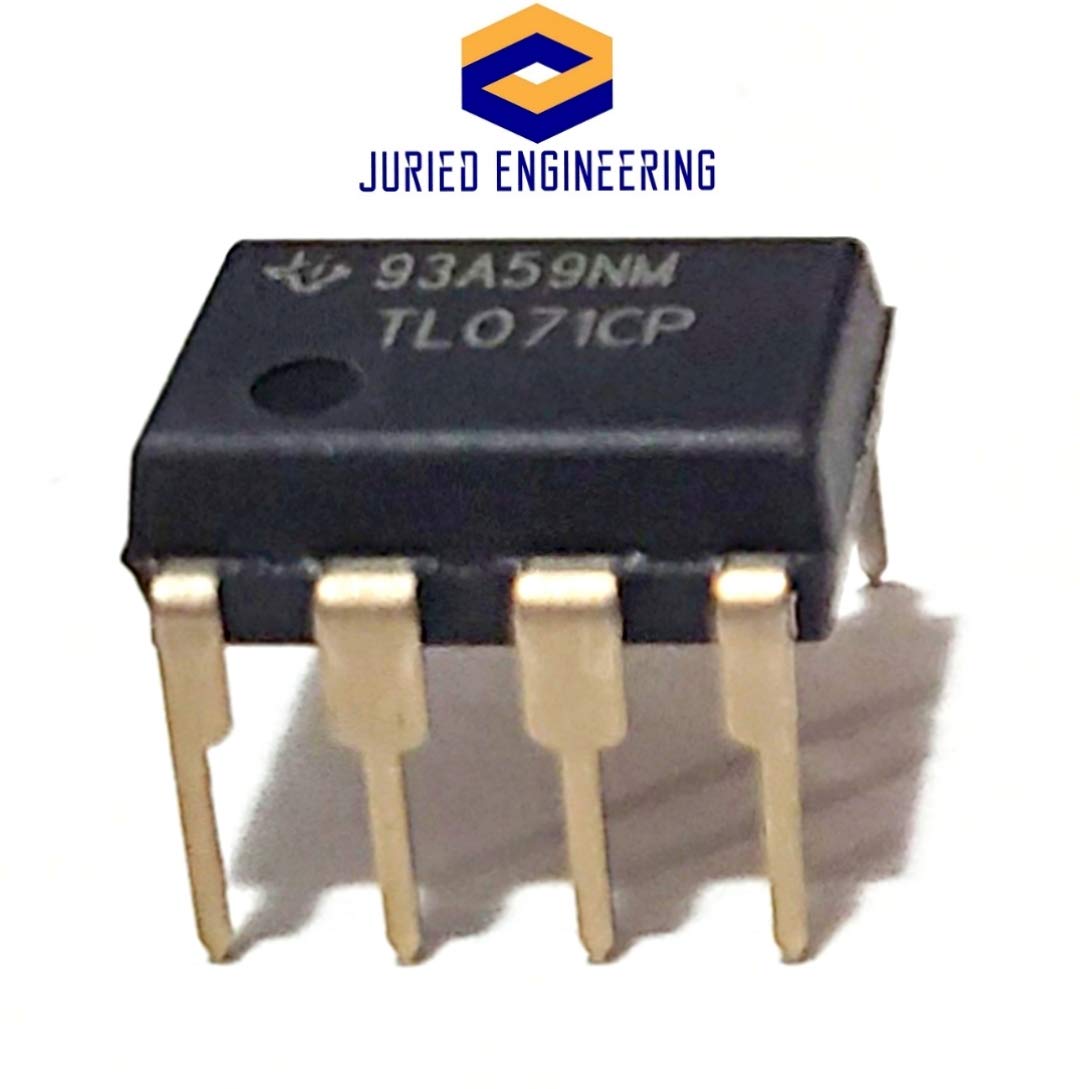

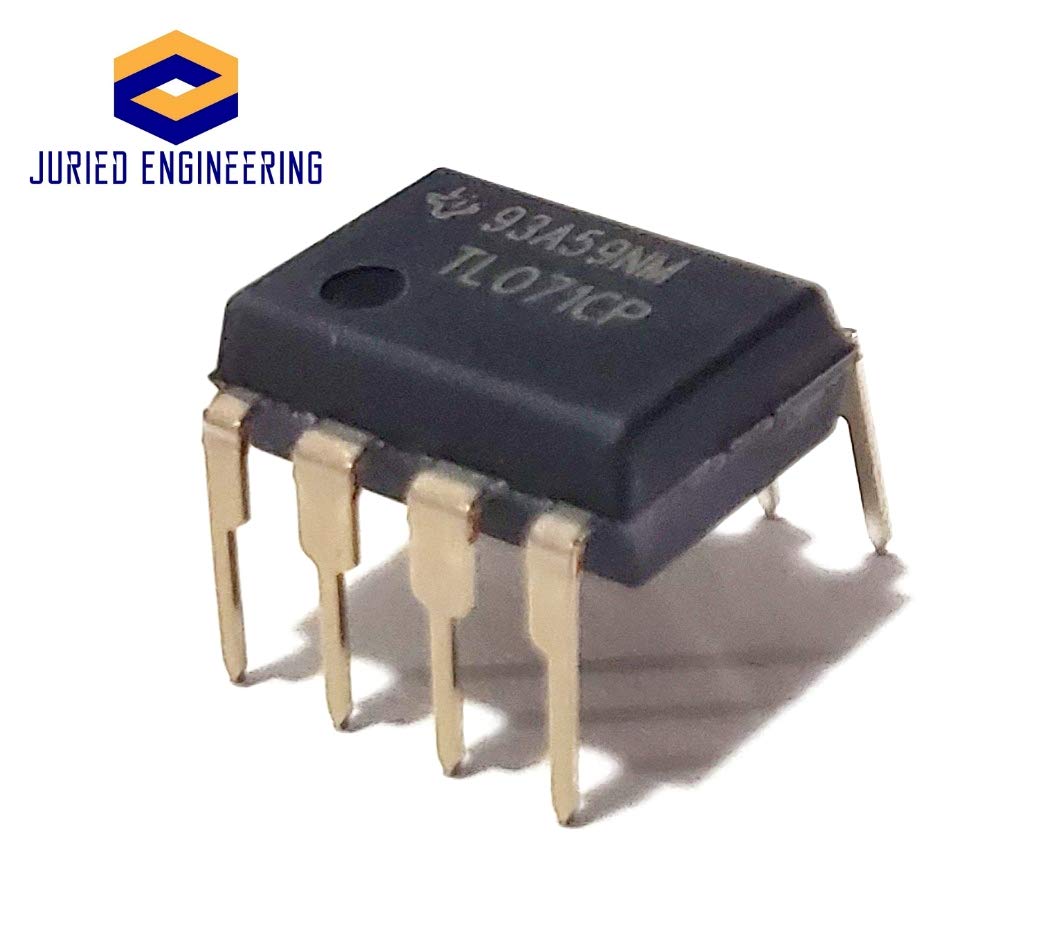

Model: TL071CP
The TL071 JFET-input operational amplifiers incorporate well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit. The devices feature high slew rates, low-input bias and offset currents, and low offset-voltage temperature coefficient. The low harmonic distortion and low noise make the TL071 series ideally suited for high-fidelity and audio pre-amplifier applications. The TL071 device has offset pins to support external input offset correction.
• The TL071 JFET-input operational amplifiers incorporate well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit
• Low Power Consumption, Wide Common-Mode and Differential Voltage Ranges, Low Input Bias and Offset Currents, Offset pins to support external input offset correction
• Output Short-Circuit Protection, Low Total Harmonic Distortion: 0.003% (Typical), Low Noise Vn = 18 nV/?Hz (Typical) at f = 1 kHz
• High-Input Impedance: JFET Input Stage, Internal Frequency Compensation, Latch-Up-Free Operation
• High Slew Rate: 13 V/µs (Typical), Common-Mode Input Voltage Range Includes VCC+, Example Applications: Motor Integrated Systems: UPS, Drives and Control Solutions: AC Inverter and VF Drives, Renewables: Solar Inverters, Pro Audio Mixers, DLP Front Projection System, Oscilloscopes
Model: TL071CP
