Description
Brand: Juried Engineering

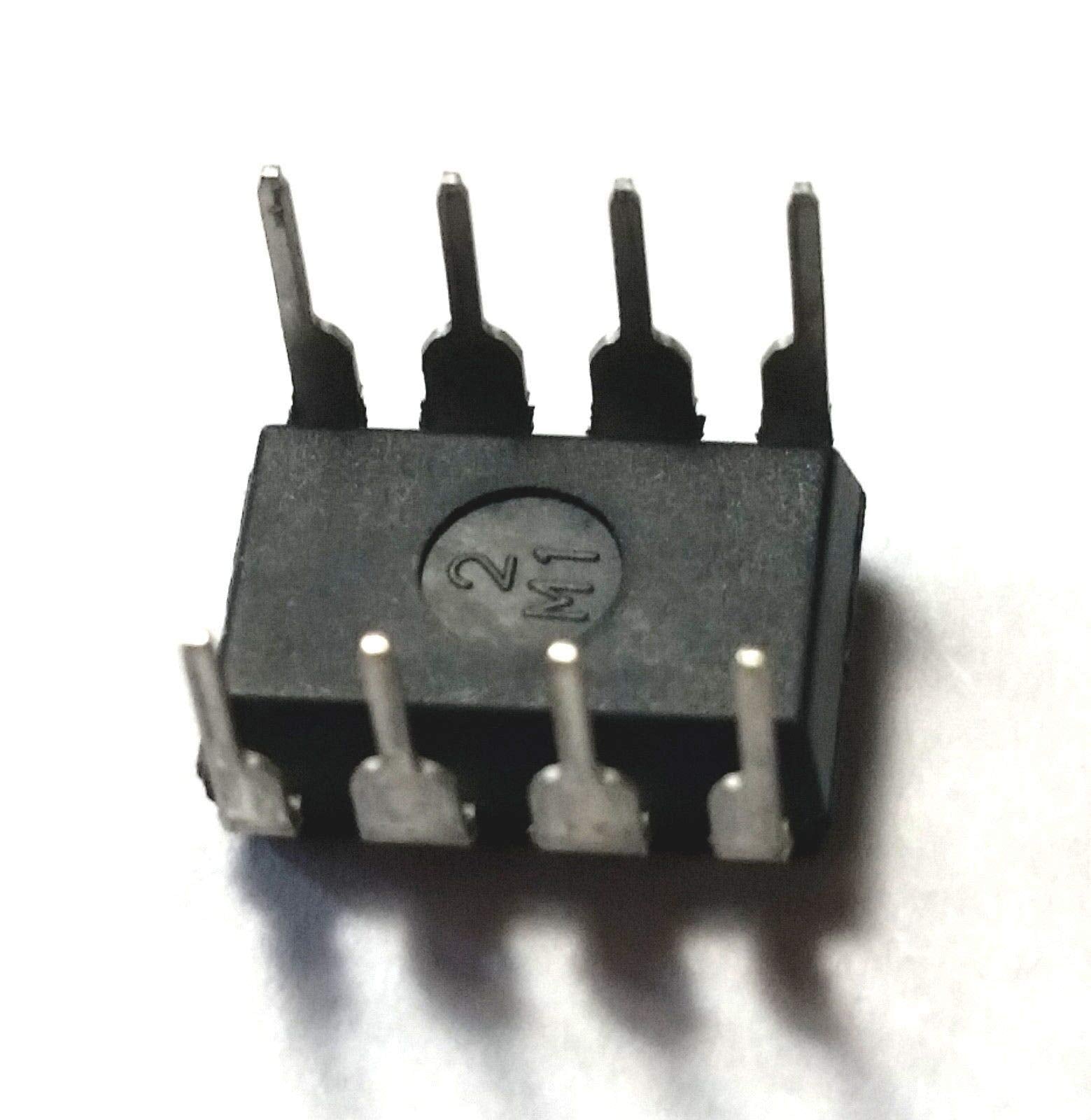

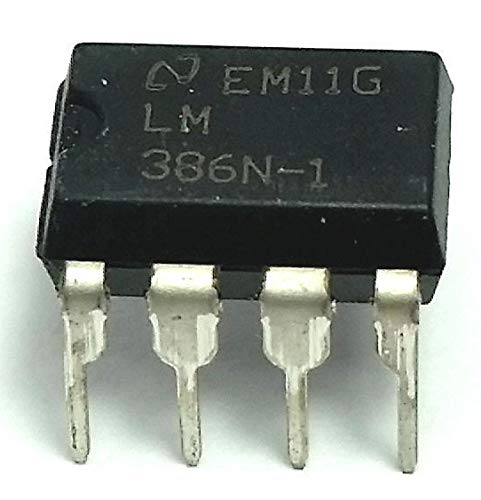

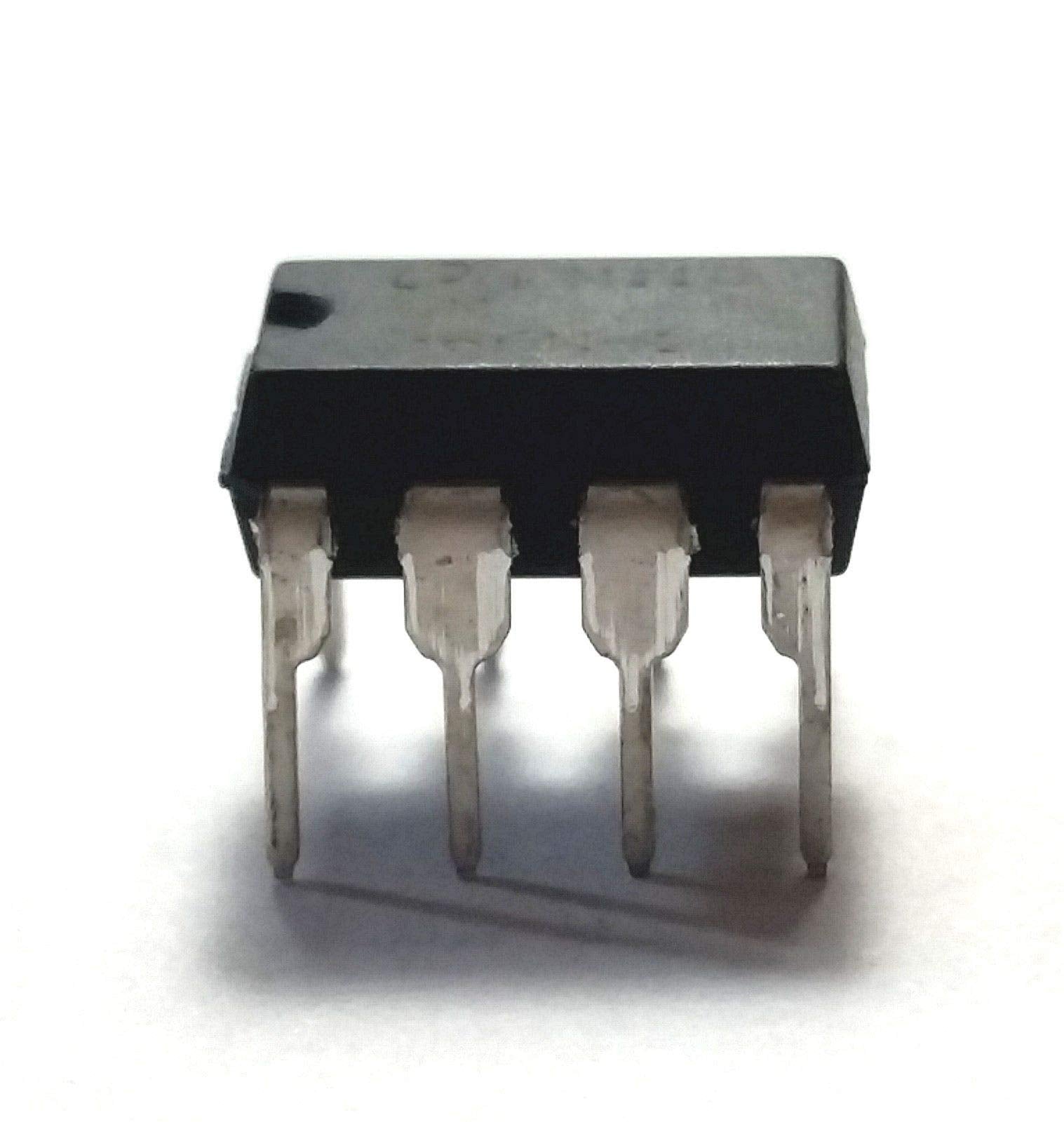

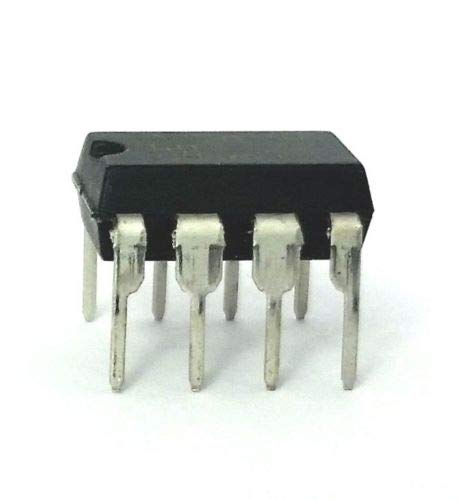

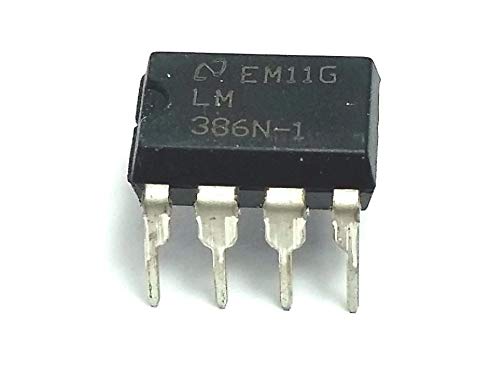

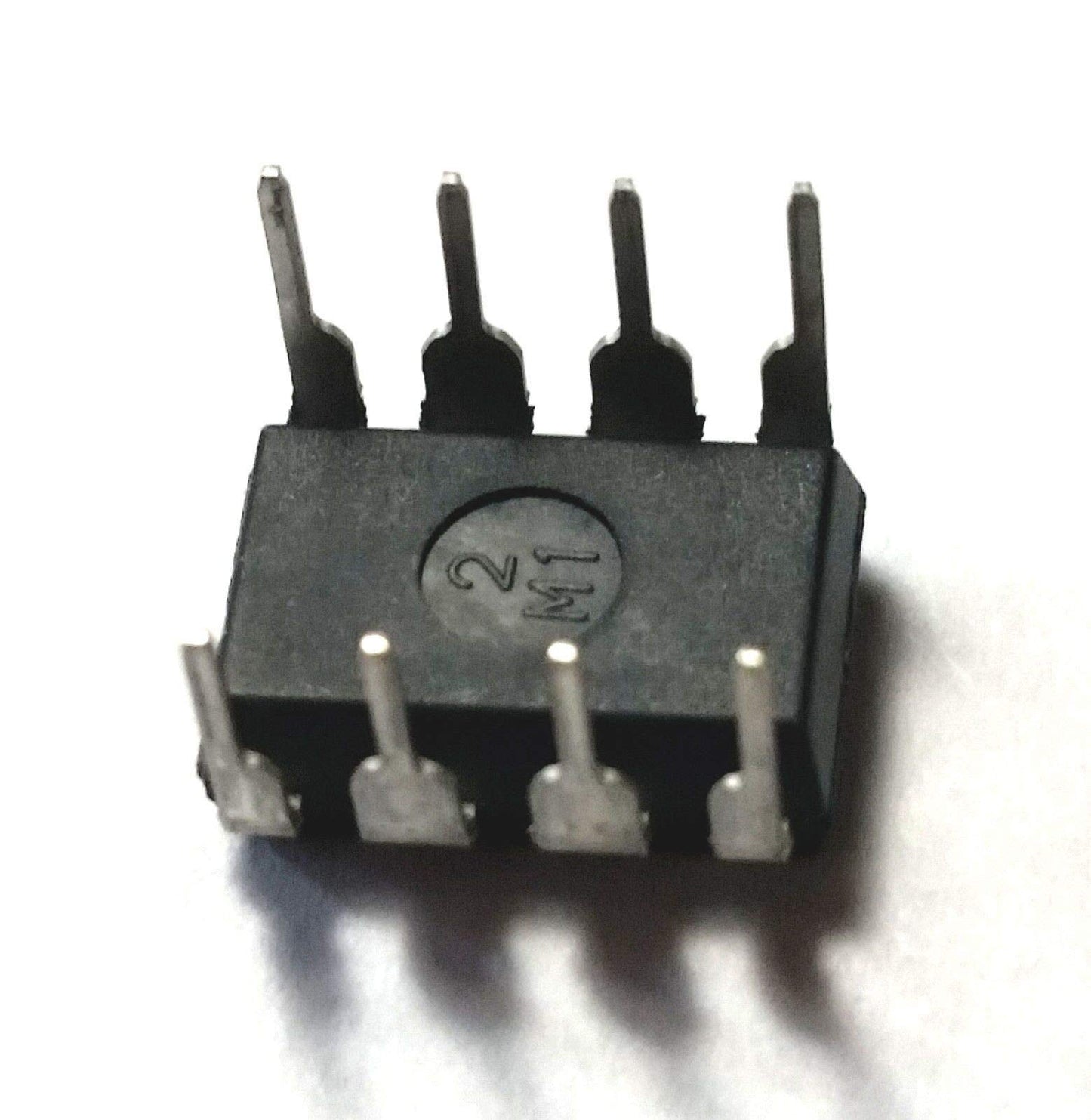

The LM386N-1 are power amplifiers designed for use in low voltage consumer applications. The gain is internally set to 20 to keep external part count low, but the addition of an external resistor and capacitor between pins 1 and 8 will increase the gain to any value from 20 to 200. The inputs are ground referenced while the output automatically biases to one-half the supply voltage. The quiescent power drain is only 24 mW when operating from a 6-V supply, making the LM386N-1 ideal for battery operation. A few Applications are: AM-FM Radio Amplifiers, Portable Tape Player Amplifiers, Intercoms, TV Sound, Systems, Line Drivers, Ultrasonic Drivers, Small Servo Drivers and Power Converters.
• Battery Operation
• Minimum External Parts
• Wide Supply Voltage Range: 4 V-12 V or 5 V-18 V
• Low Quiescent Current Drain: 4 mA
• Voltage Gains from 20 to 200
Model: LM386N-1
The LM386N-1 are power amplifiers designed for use in low voltage consumer applications. The gain is internally set to 20 to keep external part count low, but the addition of an external resistor and capacitor between pins 1 and 8 will increase the gain to any value from 20 to 200. The inputs are ground referenced while the output automatically biases to one-half the supply voltage. The quiescent power drain is only 24 mW when operating from a 6-V supply, making the LM386N-1 ideal for battery operation. A few Applications are: AM-FM Radio Amplifiers, Portable Tape Player Amplifiers, Intercoms, TV Sound, Systems, Line Drivers, Ultrasonic Drivers, Small Servo Drivers and Power Converters.
• Battery Operation
• Minimum External Parts
• Wide Supply Voltage Range: 4 V-12 V or 5 V-18 V
• Low Quiescent Current Drain: 4 mA
• Voltage Gains from 20 to 200
Model: LM386N-1
