Description
Brand: Juried Engineering

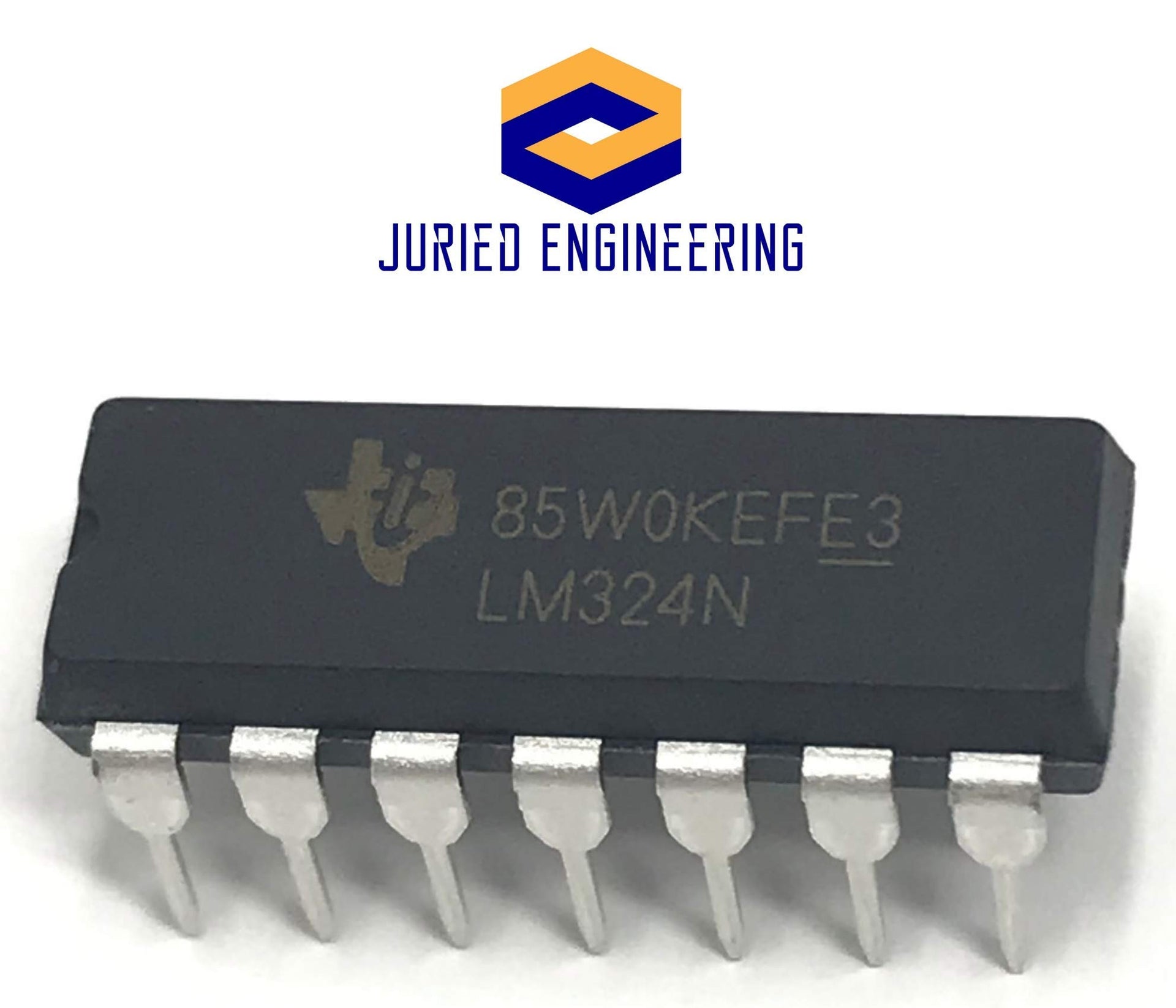

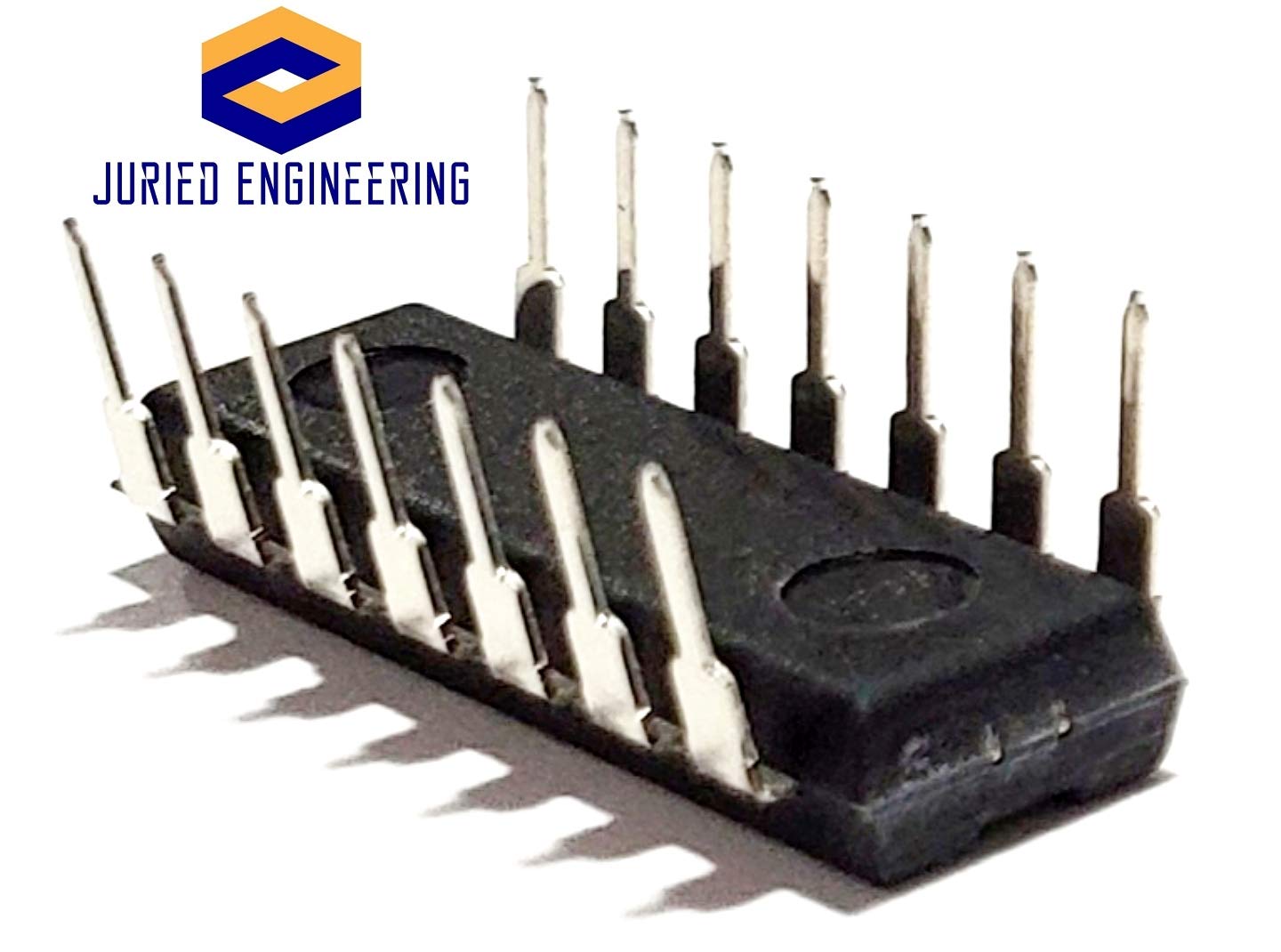

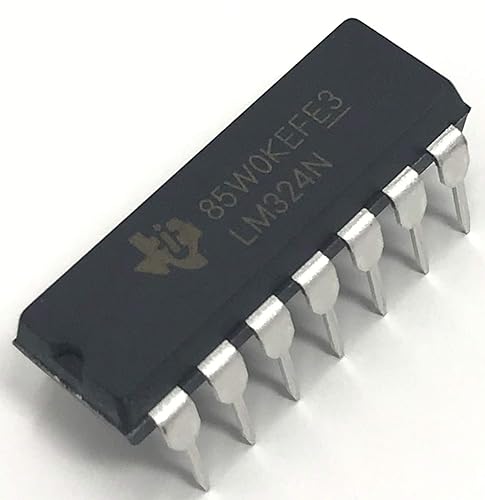

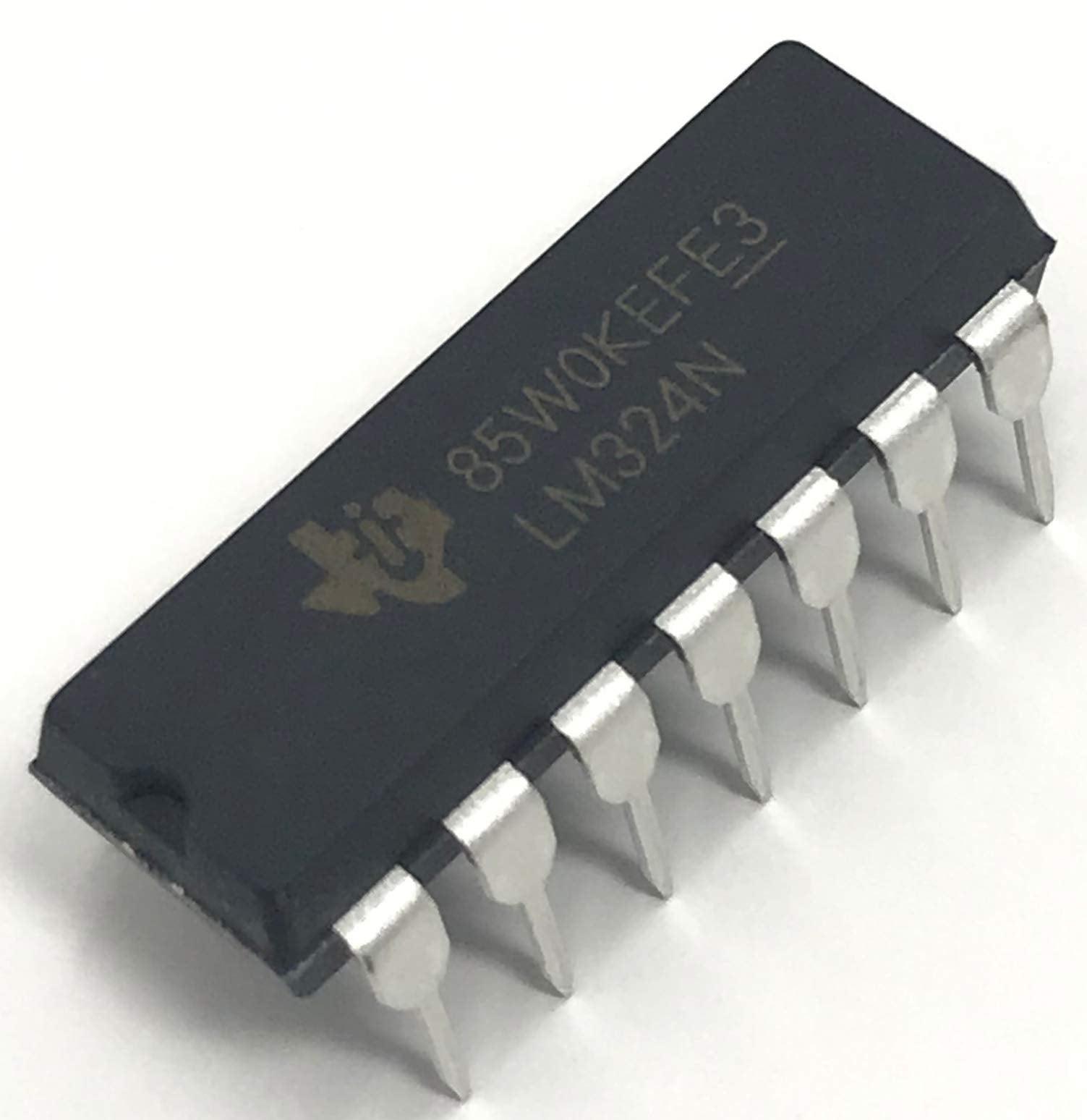

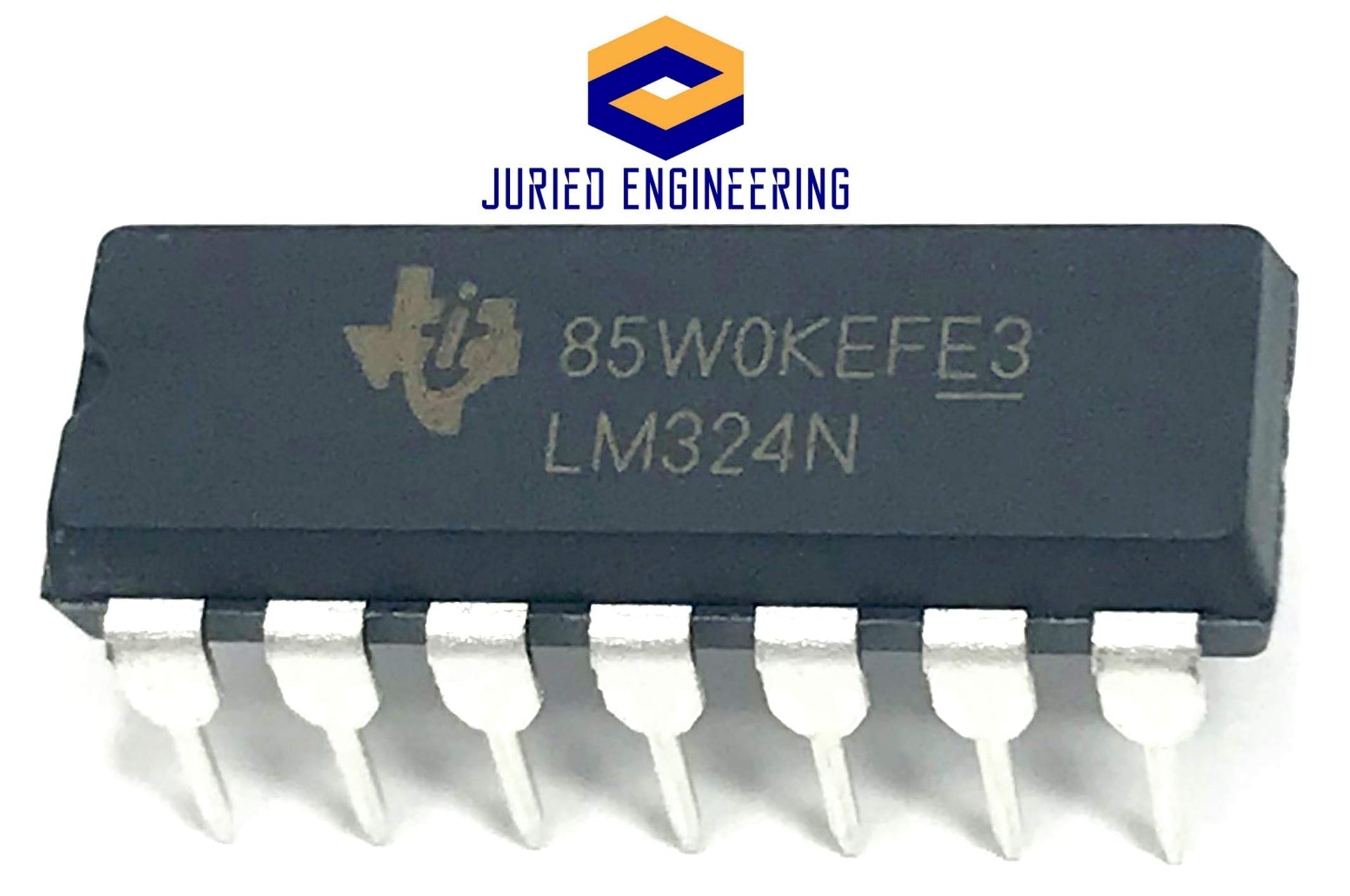

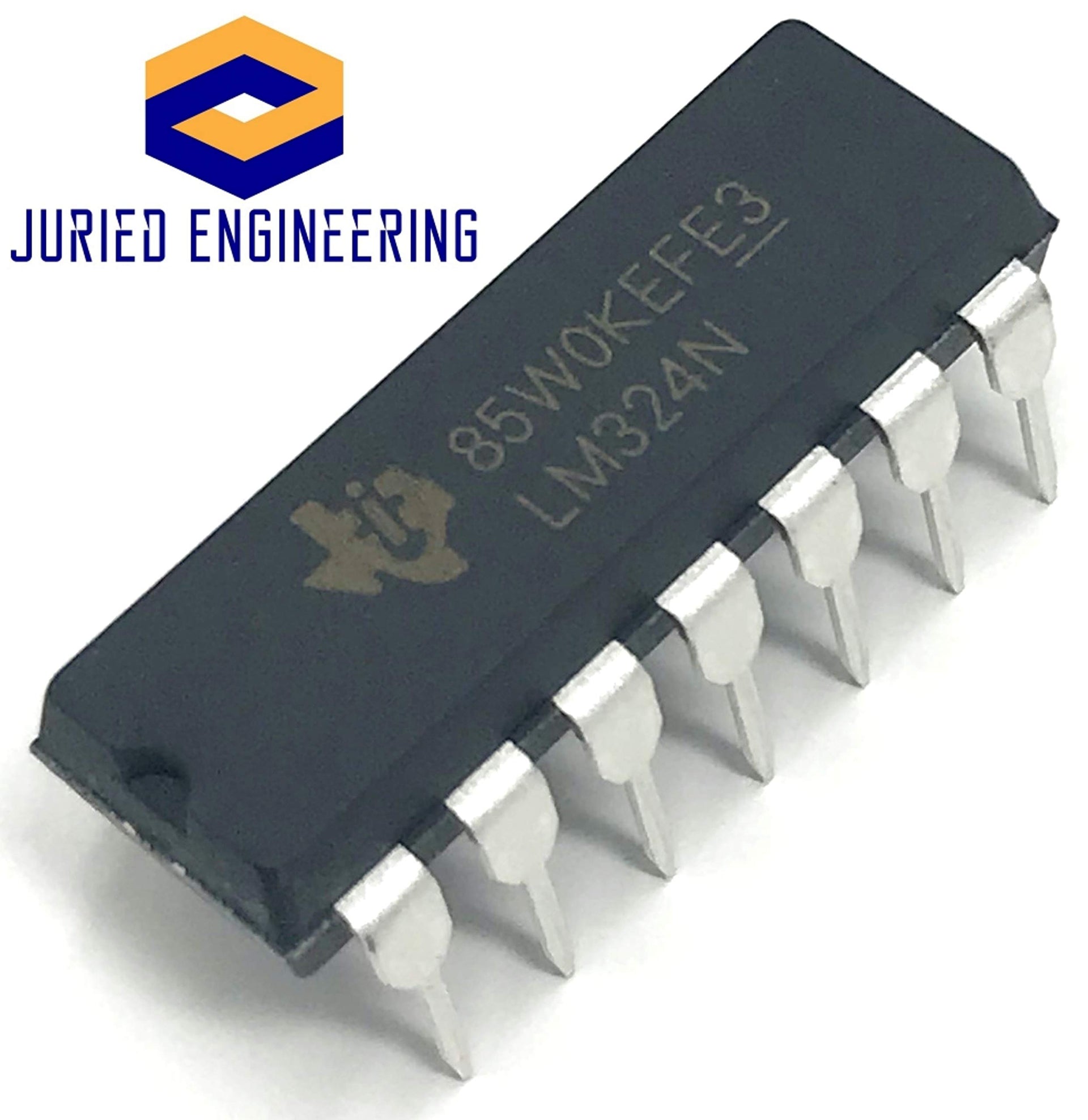

The LM324 consist of four independent high-gain frequency-compensated operational amplifiers that are designed specifically to operate from a single supply or split supply over a wide range of voltages.<br><br> The input stage uses a Darlington PNP configuration with dedicated internal current sources on all of the transistor emitters. <br><br>The op amp can provide a low output voltage near the negative rail, provided that the load and load termination voltage are aiding the Constant-Current-Sink driver.
• The LM324 consist of four independent high-gain frequency-compensated operational amplifiers that are designed specifically to operate from a single supply or split supply over a wide range of voltages.
• Low Supply-Current Drain Independent of Supply Voltage: 0.8 mA Typical, Wide Supply Ranges:</b> Single Supply: 3 V to 32 V Dual Supplies: ±1.5 V to ±16 V
• Low Input Bias and Offset Parameters - Input Offset Voltage: 3 mV Typical - Input Offset Current: 2 nA Typical - Input Bias Current: 20 nA Typical
• Common-Mode Input Voltage Range Includes Ground, Allowing Direct Sensing Near Ground
• Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage: 32 V
Model: LM324N
The LM324 consist of four independent high-gain frequency-compensated operational amplifiers that are designed specifically to operate from a single supply or split supply over a wide range of voltages.<br><br> The input stage uses a Darlington PNP configuration with dedicated internal current sources on all of the transistor emitters. <br><br>The op amp can provide a low output voltage near the negative rail, provided that the load and load termination voltage are aiding the Constant-Current-Sink driver.
• The LM324 consist of four independent high-gain frequency-compensated operational amplifiers that are designed specifically to operate from a single supply or split supply over a wide range of voltages.
• Low Supply-Current Drain Independent of Supply Voltage: 0.8 mA Typical, Wide Supply Ranges:</b> Single Supply: 3 V to 32 V Dual Supplies: ±1.5 V to ±16 V
• Low Input Bias and Offset Parameters - Input Offset Voltage: 3 mV Typical - Input Offset Current: 2 nA Typical - Input Bias Current: 20 nA Typical
• Common-Mode Input Voltage Range Includes Ground, Allowing Direct Sensing Near Ground
• Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage: 32 V
Model: LM324N
