Brand: JING

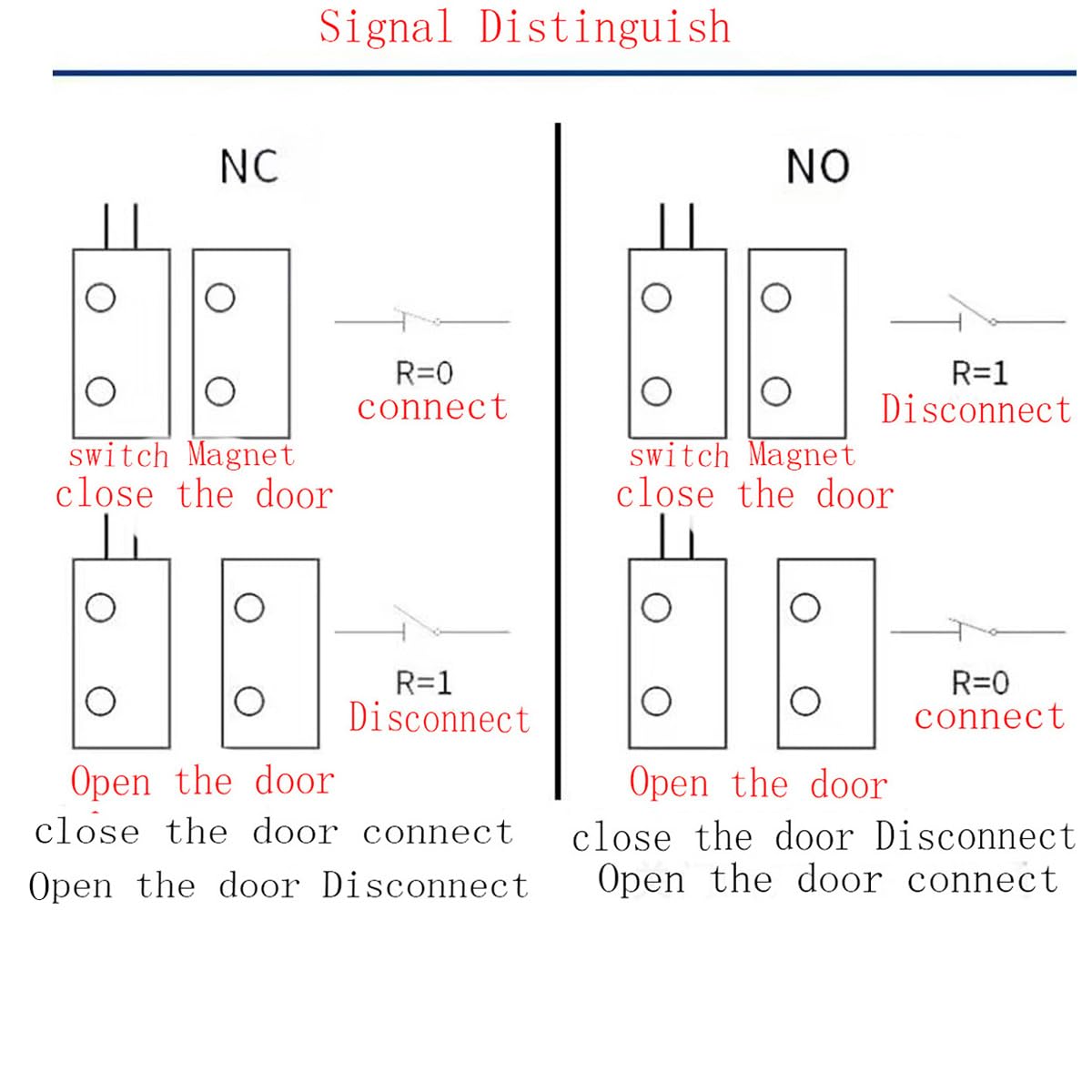

Size: RC-33 Feature: Widely Used-This Recessed Door Contact Sensor works with any access control or burglar alarm system available. Switch Type: NO(normal open type), NO means Normally Open: when the magnet separate, the circuit is not conductive( light on ); When the magnet together, the circuit is conductive (light ooff ), NC means Normally Closed; NO means Normally Open. Specification Model: RC-33 Material: ABS Rated power: 10W Rated current: 500(mA) Rated voltage: (VDC) 100 Size(Approx.): 16.7 x 10.7mm / 0.66 x 0.42inch (H*D) Cable Length(Each): 250mm / 9.8inch Wire Type: 24AWG Mounting Type: Recessed Anti-fire ABS shield Connecting mode: NC Operating distance: more than 15mm, less than 25mm Note: the Magnetic Door Switch must be installed according to the sensing distance. It can only provide a switch signal to the transmitter. It cannot directly load the power, nor directly connect the lamp! Package Includes: 2 Sets x RC-33 Magnetic Door Window Contact Sensor ?Hassle-Free Warranty? guarantee high quality and good service. Here with our 90-day money back risk-free purchase guarantee, Refund or Replacement for any quality problem.

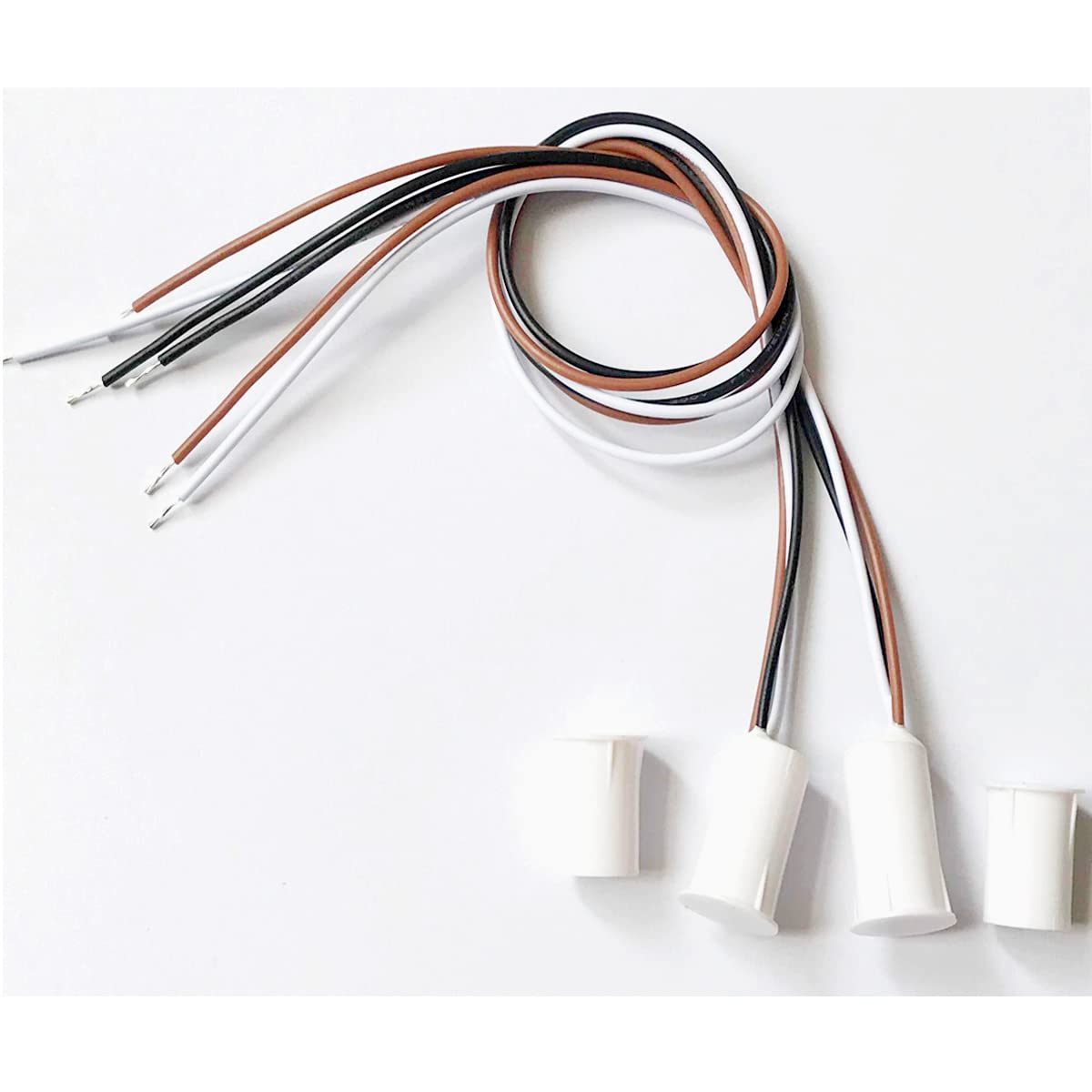

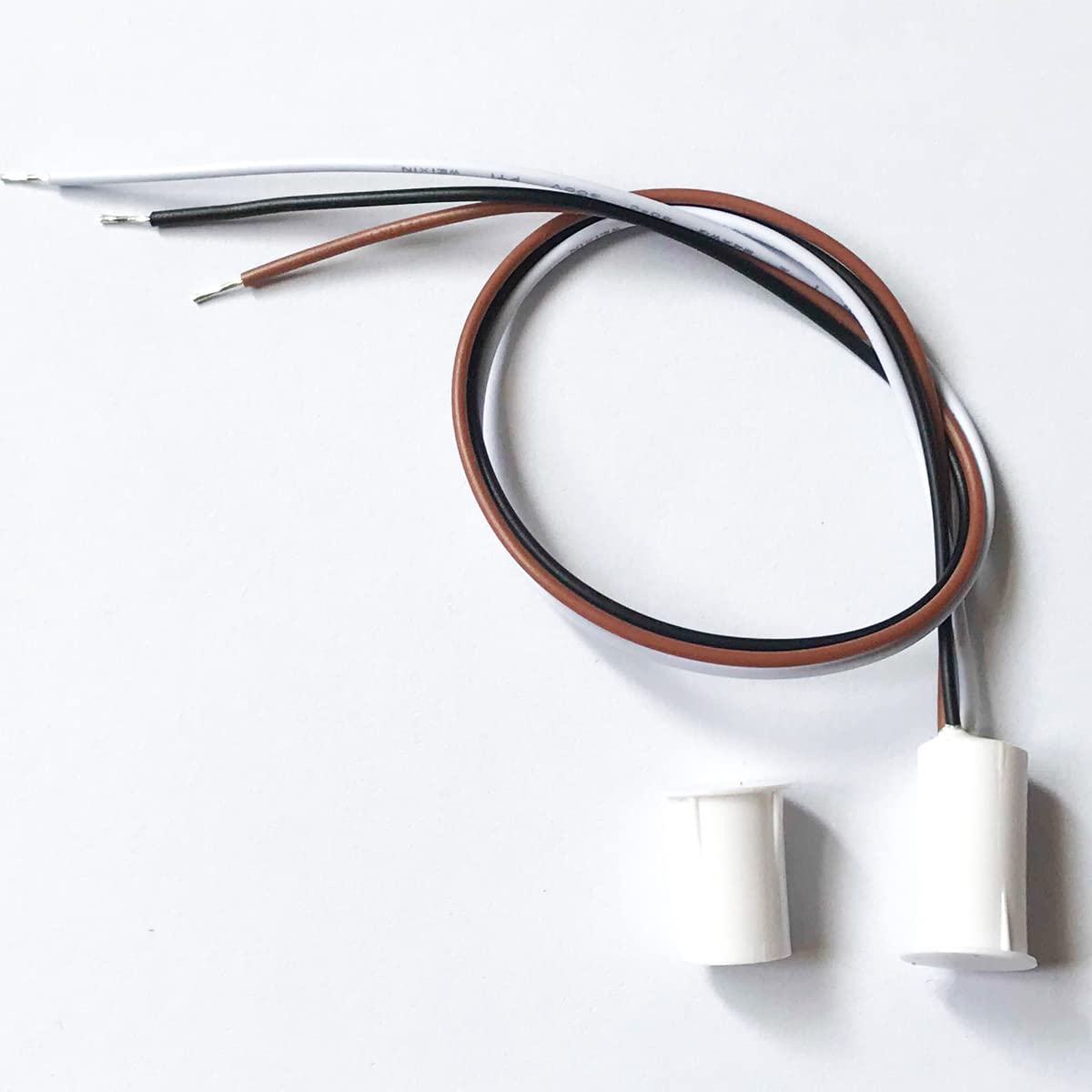

• ?Product Name?:RC-33 NC/NO Magnetic Door Swith

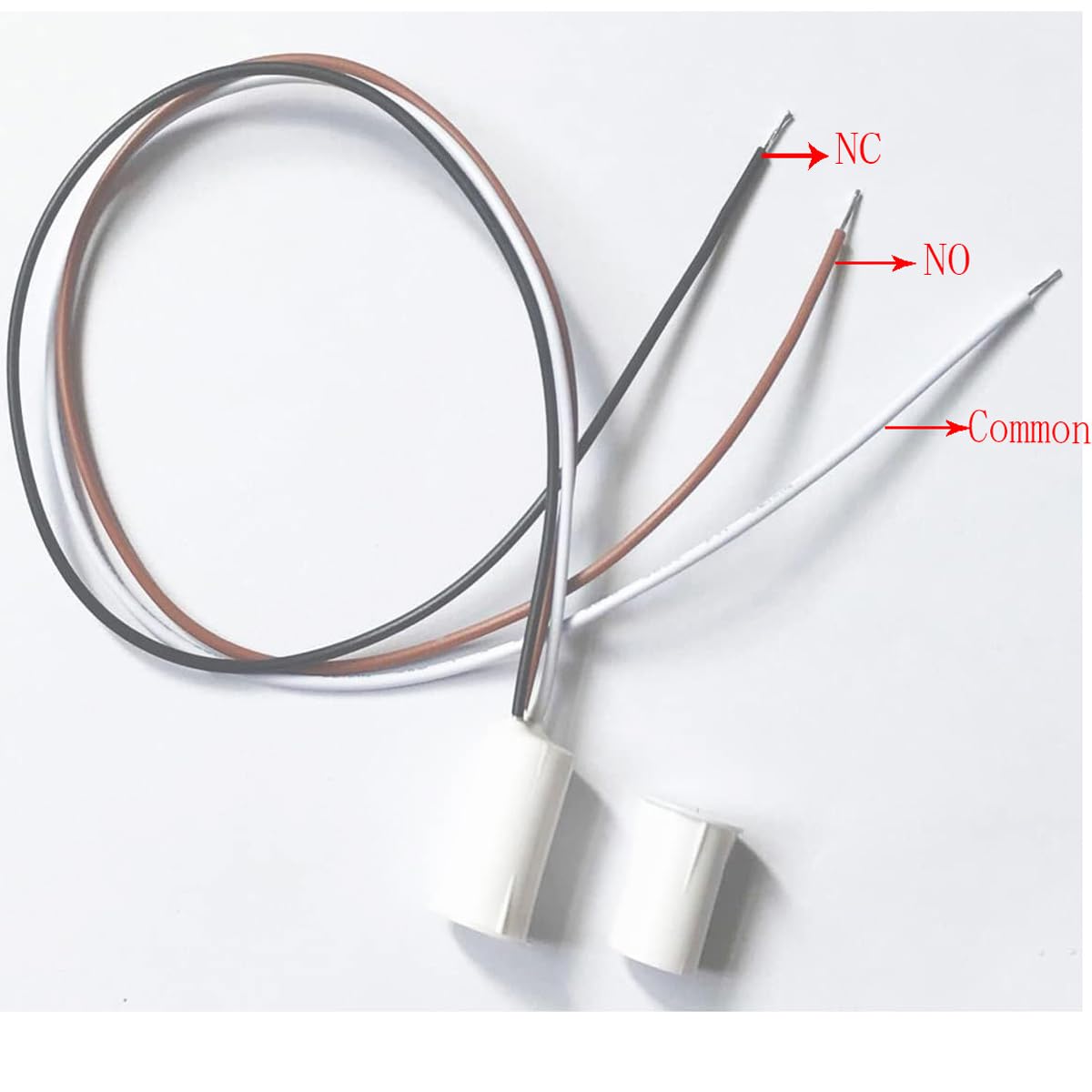

• ?Normally Open Normally Closed?: Use Normally Open or Normally Closed freely, Cable definition: Black for NC, Brown for NO, White for common . Cable Length : 25cm/9.8", Overall Size(Approx.) : 16.7 x 10.7mm / 0.66 x 0.42inch (H*D).
• ?Parameter?: Rated Voltage: 100V;Contact Capacity: 500(mA) (Maximum Switch Current), Rated Power: 10W(Maximum Switch Power); Contact Type: NC/NO/COM,Trigger Range: 15-25mm.
• ?Application?: Magnetic door contact reed switch great for door alarm sensor, alarm, LED Switch, Relay, GPS low voltage devices...etc., Effective for Theft Deterrence. Yes ideal wooden door or window use.
• ?Package Included?: 2 Sets x RC-33 Door Contact Sensors; Have our worry-free 90-daywarranty and friendly customer service. › See more product details.
