Description
Brand: Jienk

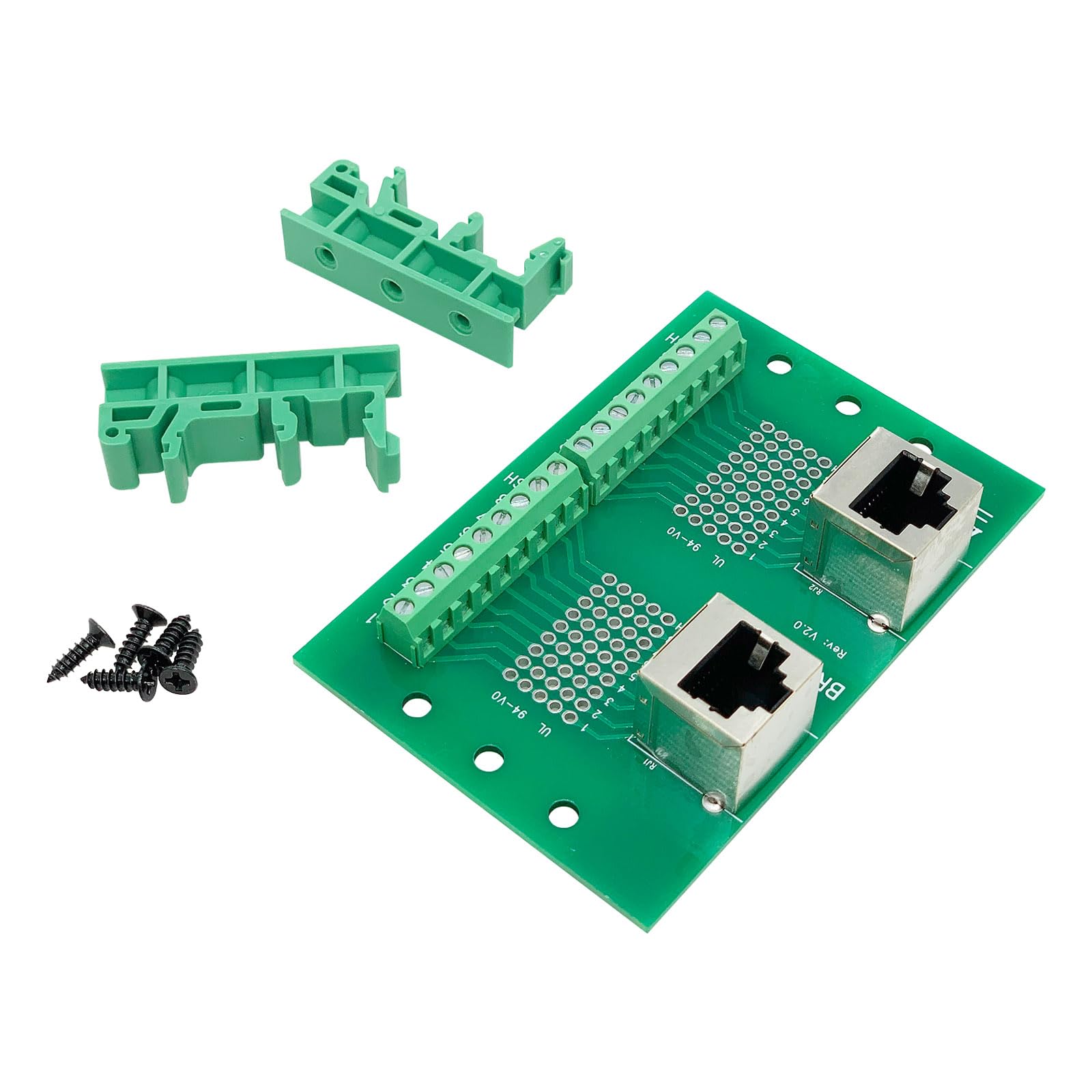

<b>Specifications:</b><br> This board features a prototyping area to enable in-circuit modifications as well as easy probing/diagnostics. The prototyping grid has a standard 0.1" pattern to enable compatibility with a variety of components. The DIN clips on this model allow it to be easily used with a 35mm DIN rail system, making this board perfect for industrial applications.<br> Name: RJ45 2-Way Screw Terminal Breakout Board.<br> Pitch 3.81mm/0.15" screw terminal block.<br> FR-4 fiber glass PCB, dual copper layers.<br> PCB dimensions: 89.7 x 60.4mm.<br> Rated voltage: 100V.<br> Rated current: 0.5A / per pin.<br> Operating Temperature: -20ºC to 50ºC<br> <b>Terminal block specifications:</b><br> Wire range: 26 ~ 16AWG.<br> Screws: M2, steel, Cr3+ Zn plated.<br> Pin header and Cage: Brass.<br> <b>Package Content:</b><br> 1PCS RJ45 Ethernet Connector Breakout Board
• ?Easy to Use?This RJ45 breakout board provides a convenient method of accessing all the contacts of an 8P8C connector. Each of the 9 connections are brought out to a screw terminal for fast and secure termination to wires.
• ?Compact Design?Prototyping area for in-circuit modifications. This compact board will fit in tight spaces and has mounting holes to allow it to be securely fastened ensuring a solid connection.

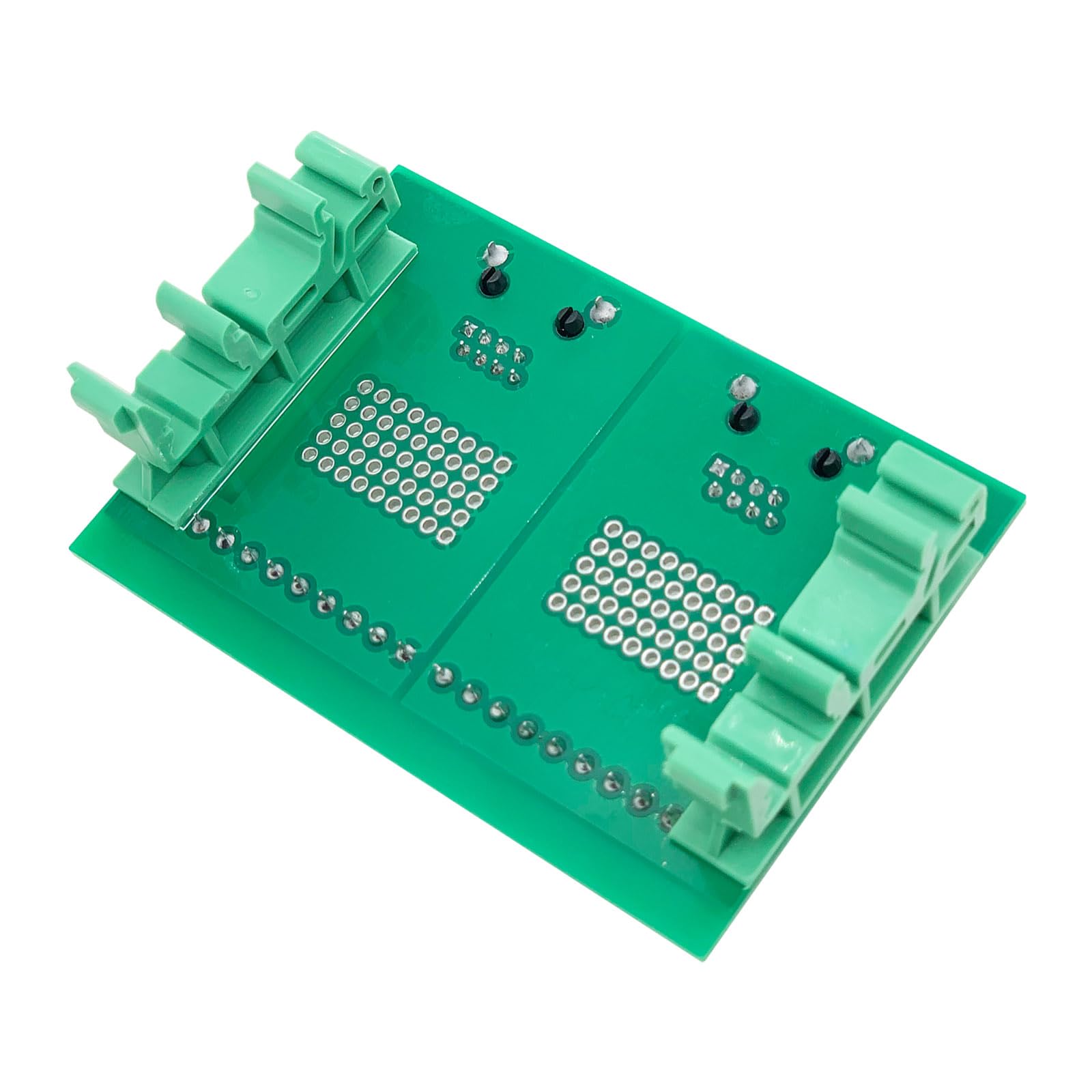

• Easy access for probing and debugging. C45 DIN rail mounting (width 35mm), 15mm din rail compatible.
• Pitch 3.81mm/0.15" screw terminal block.

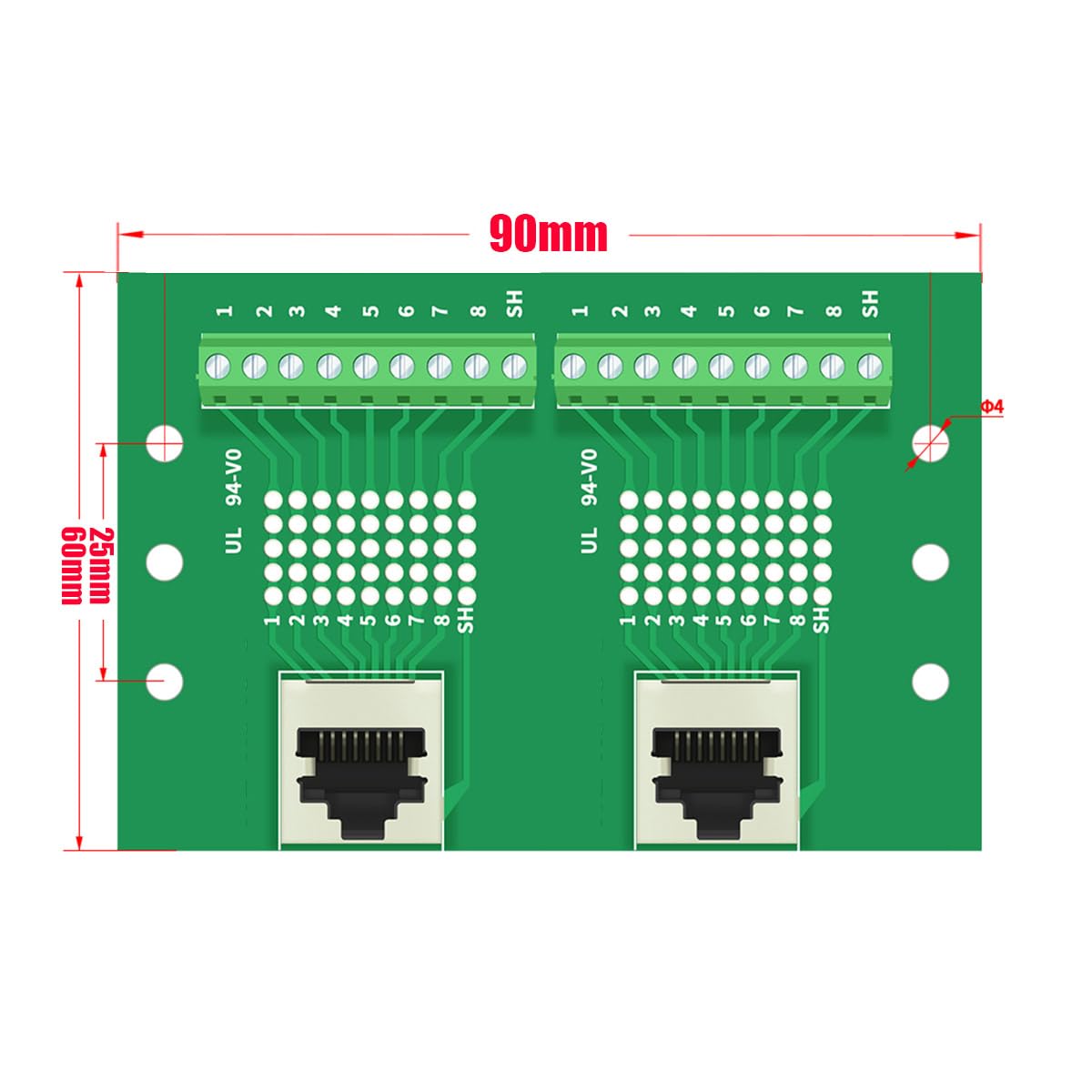

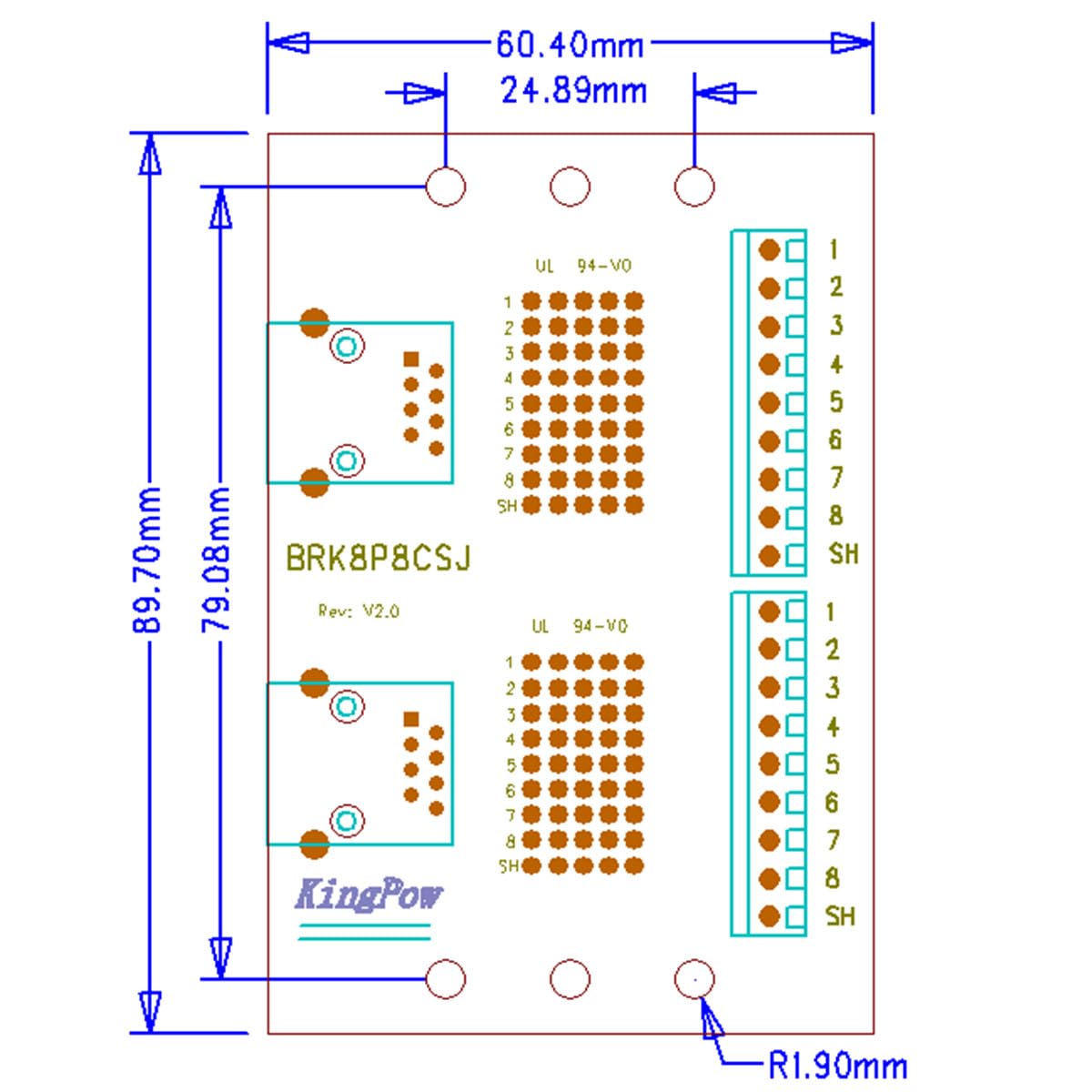

• FR-4 fiber glass PCB, dual copper layers. PCB dimensions: 89.7 x 60.4mm (W x L).

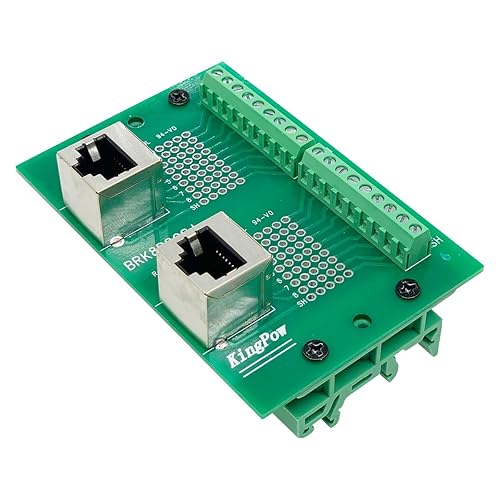

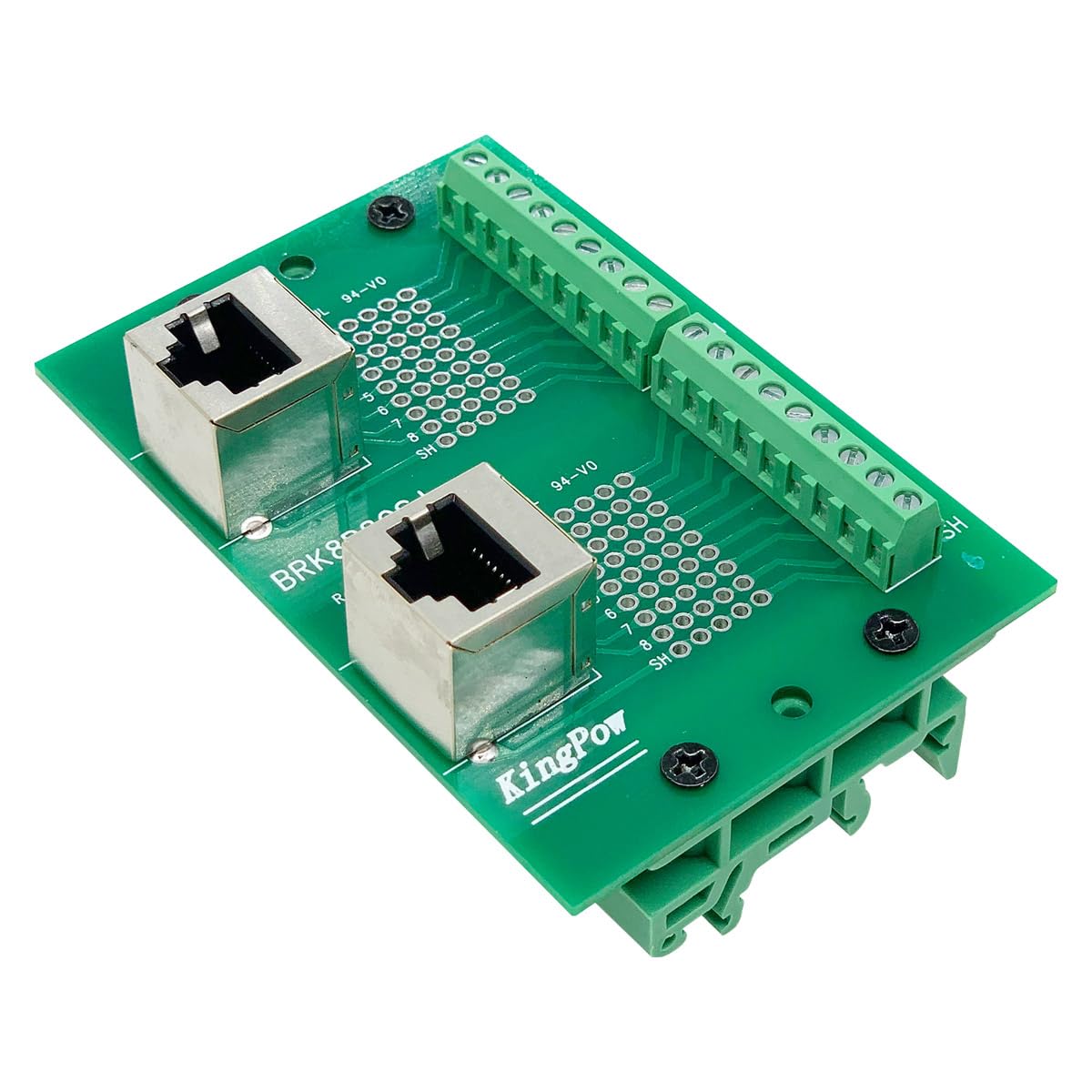

Model: RJ45 2-Way Screw Terminal Breakout Board
<b>Specifications:</b><br> This board features a prototyping area to enable in-circuit modifications as well as easy probing/diagnostics. The prototyping grid has a standard 0.1" pattern to enable compatibility with a variety of components. The DIN clips on this model allow it to be easily used with a 35mm DIN rail system, making this board perfect for industrial applications.<br> Name: RJ45 2-Way Screw Terminal Breakout Board.<br> Pitch 3.81mm/0.15" screw terminal block.<br> FR-4 fiber glass PCB, dual copper layers.<br> PCB dimensions: 89.7 x 60.4mm.<br> Rated voltage: 100V.<br> Rated current: 0.5A / per pin.<br> Operating Temperature: -20ºC to 50ºC<br> <b>Terminal block specifications:</b><br> Wire range: 26 ~ 16AWG.<br> Screws: M2, steel, Cr3+ Zn plated.<br> Pin header and Cage: Brass.<br> <b>Package Content:</b><br> 1PCS RJ45 Ethernet Connector Breakout Board
• ?Easy to Use?This RJ45 breakout board provides a convenient method of accessing all the contacts of an 8P8C connector. Each of the 9 connections are brought out to a screw terminal for fast and secure termination to wires.
• ?Compact Design?Prototyping area for in-circuit modifications. This compact board will fit in tight spaces and has mounting holes to allow it to be securely fastened ensuring a solid connection.
• Easy access for probing and debugging. C45 DIN rail mounting (width 35mm), 15mm din rail compatible.
• Pitch 3.81mm/0.15" screw terminal block.
• FR-4 fiber glass PCB, dual copper layers. PCB dimensions: 89.7 x 60.4mm (W x L).
Model: RJ45 2-Way Screw Terminal Breakout Board
