Description
Brand: Jienk

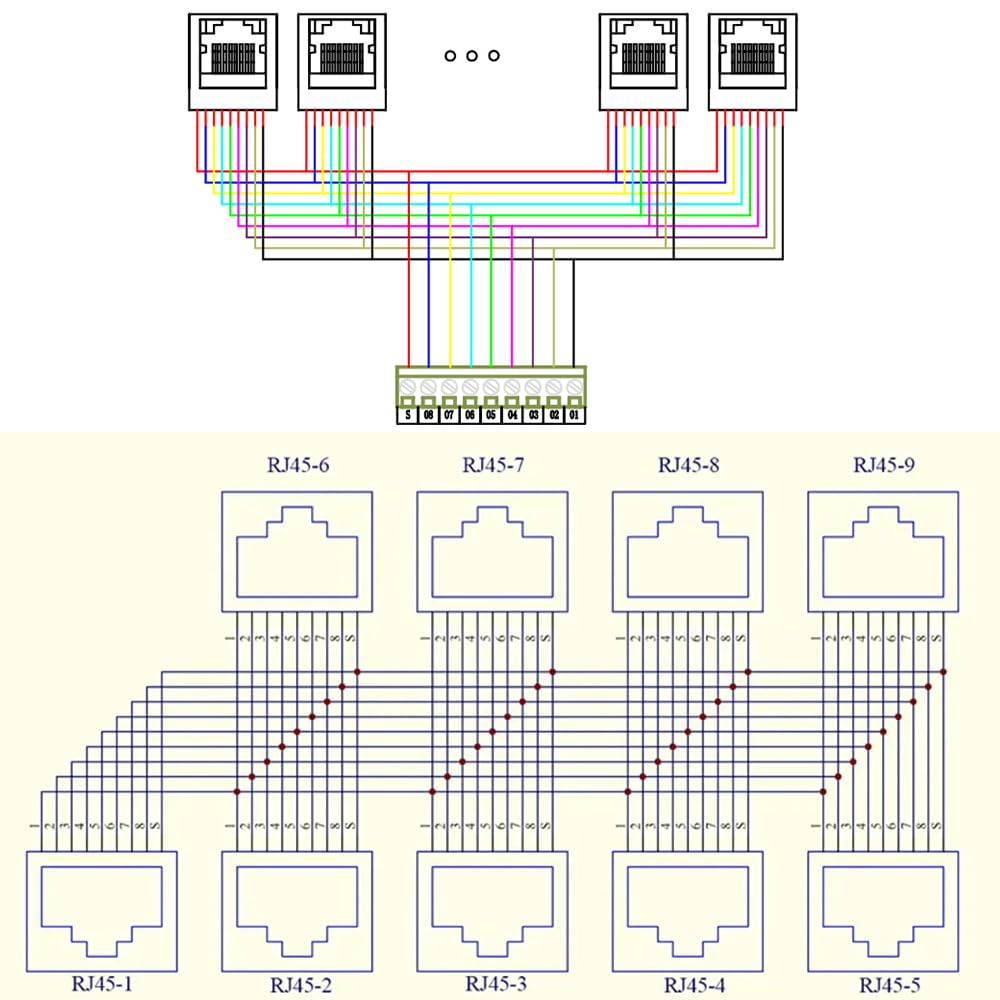

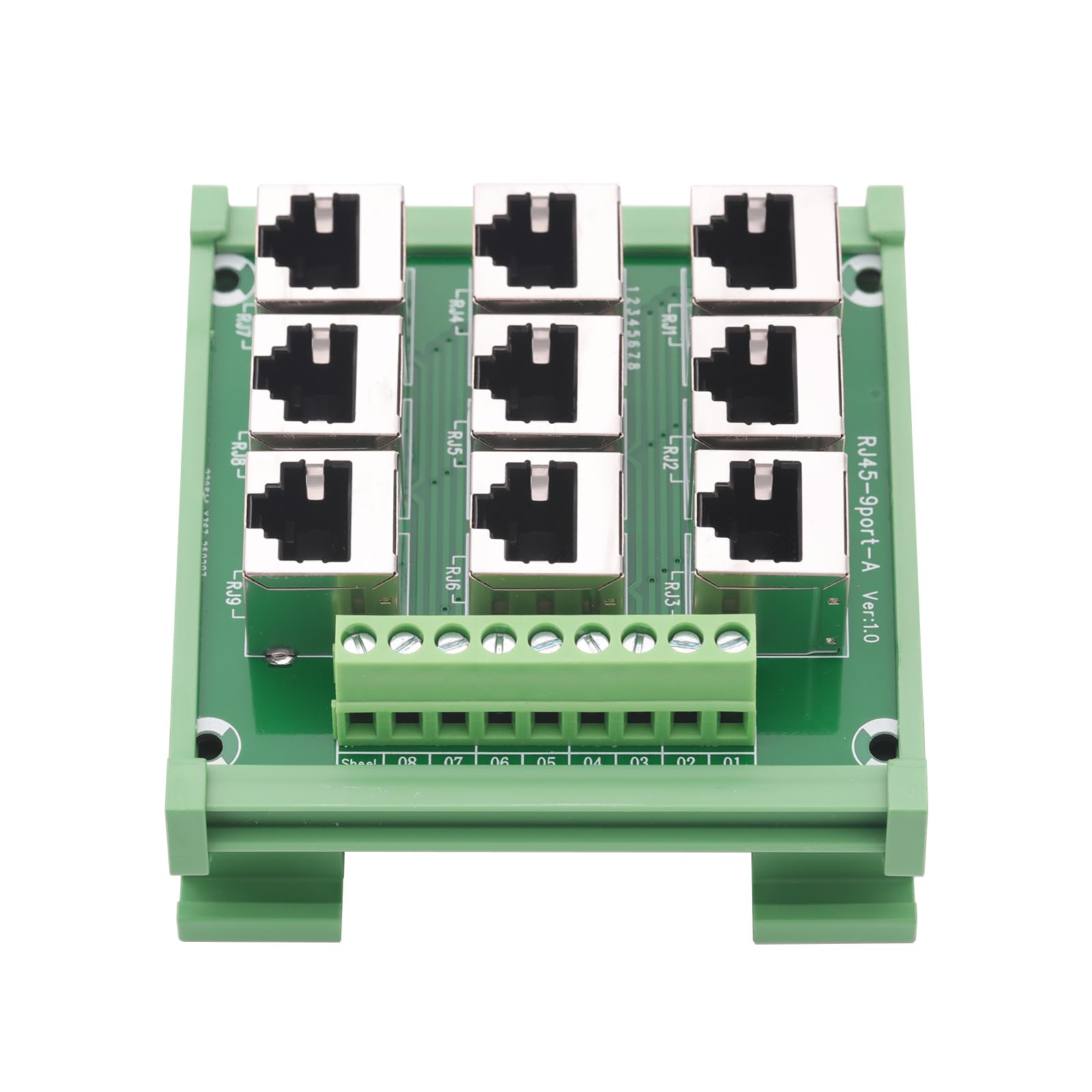

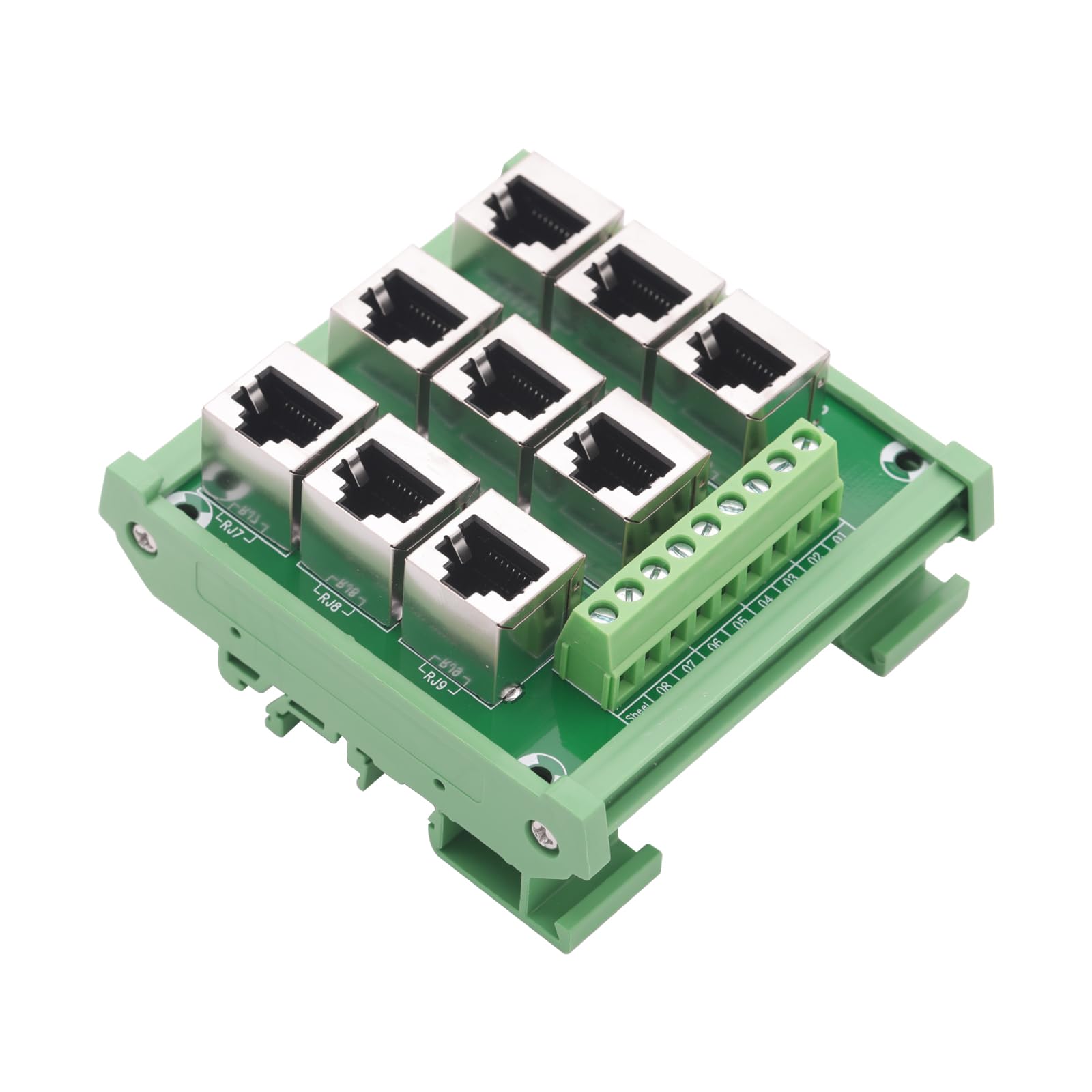

<b>Specifications:</b><br> This RJ45 breakout board provides a convenient method of accessing all the contacts of an 8P8C connector, including the shield. Each of the 9 connections are brought out to a screw terminal for fast and secure termination to wires. The plastic enclosure on this model protects the board, and increases the overall durability. The enclosure also enables directly mounting the board via the mounting wings. This board is perfect for industrial applications.<br> Name: RJ45 9-Way Screw Terminal Breakout Board.<br> Pitch 3.5mm screw terminal block.<br> FR-4 fiber glass PCB, dual copper layers.<br> PCB dimensions: 81mm*87mm<br> Rated voltage: 100V.<br> Rated current: 0.5A / per pin.<br> Operating Temperature: -20ºC to 50ºC<br> <b>Terminal block specifications:</b><br> Wire range: 26 ~ 16AWG.<br> Screws: M2, steel, Cr3+ Zn plated.<br> Pin header and Cage: Brass.<br> <b>Package Content:</b><br> 1PCS 9 Way RJ45 Multiple Select Data Connector
• ?Easy to Use?This RJ45 breakout board provides a convenient method of accessing all the contacts of an 8P8C connector. Each of the 9 connections are brought out to a screw terminal for fast and secure termination to wires. Allowing multiple devices to be connected at the same time and increasing the efficiency of use.
• ?Compact Design?This compact board will fit in tight spaces and has mounting holes to allow it to be securely fastened ensuring a solid connection. Support multiple line connections at the same time, greatly enhancing the efficiency and flexibility of data transmission. It is designed for multipurpose applications like industrial production, experimentation, and prototype work.
• This RJ45 to screw terminal distribution is for Ethernet/DMX512/RS485/RS422/RS232. 9 port design is very practical for scenarios that need to deal with complex network layouts or multiple device connections.

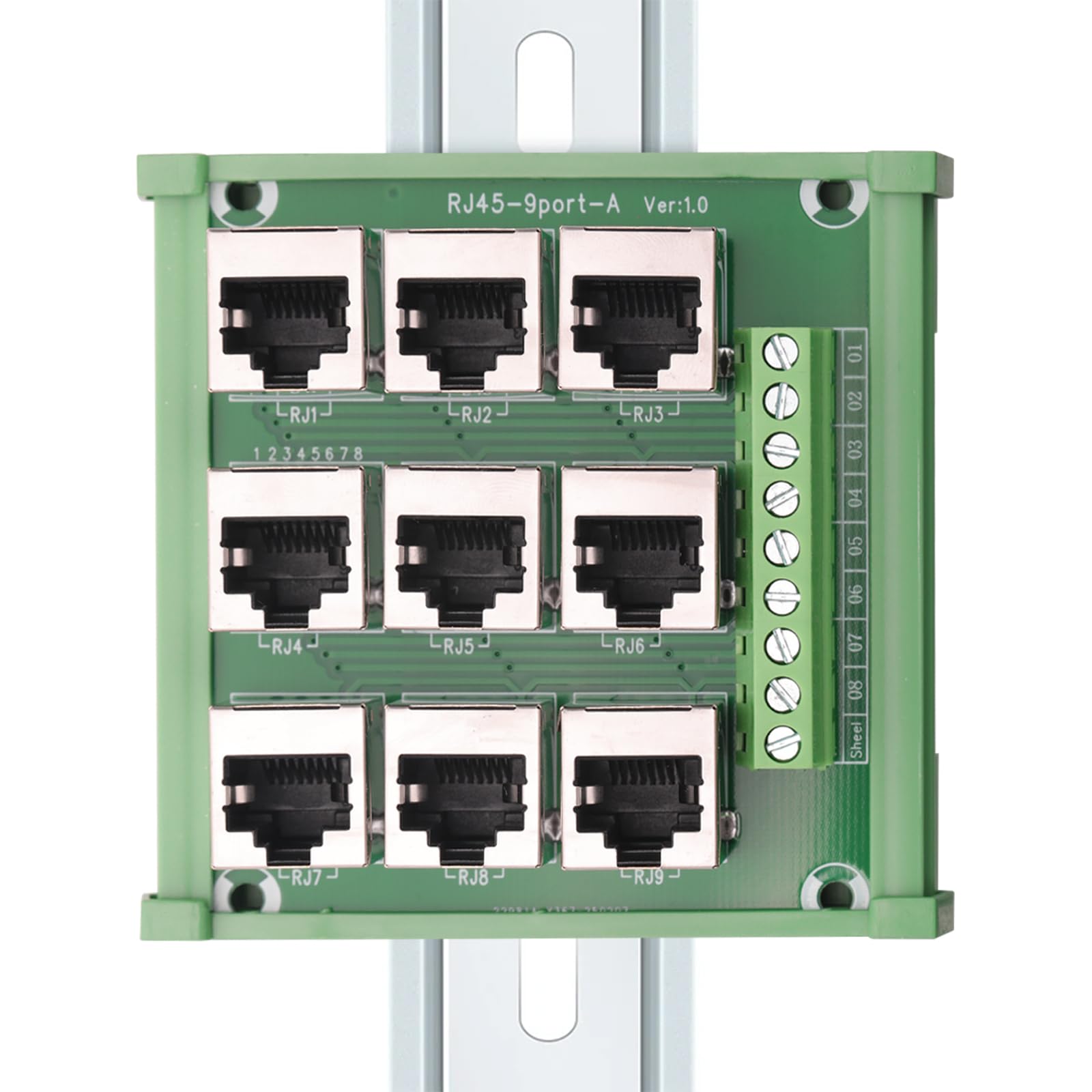

• C45 DIN rail mounting (width 35mm), 15mm din rail compatible. The plastic enclosure on this model protects the board, and increases the overall durability. DIN rail mount help for easy installation into control panels and industrial equipment.

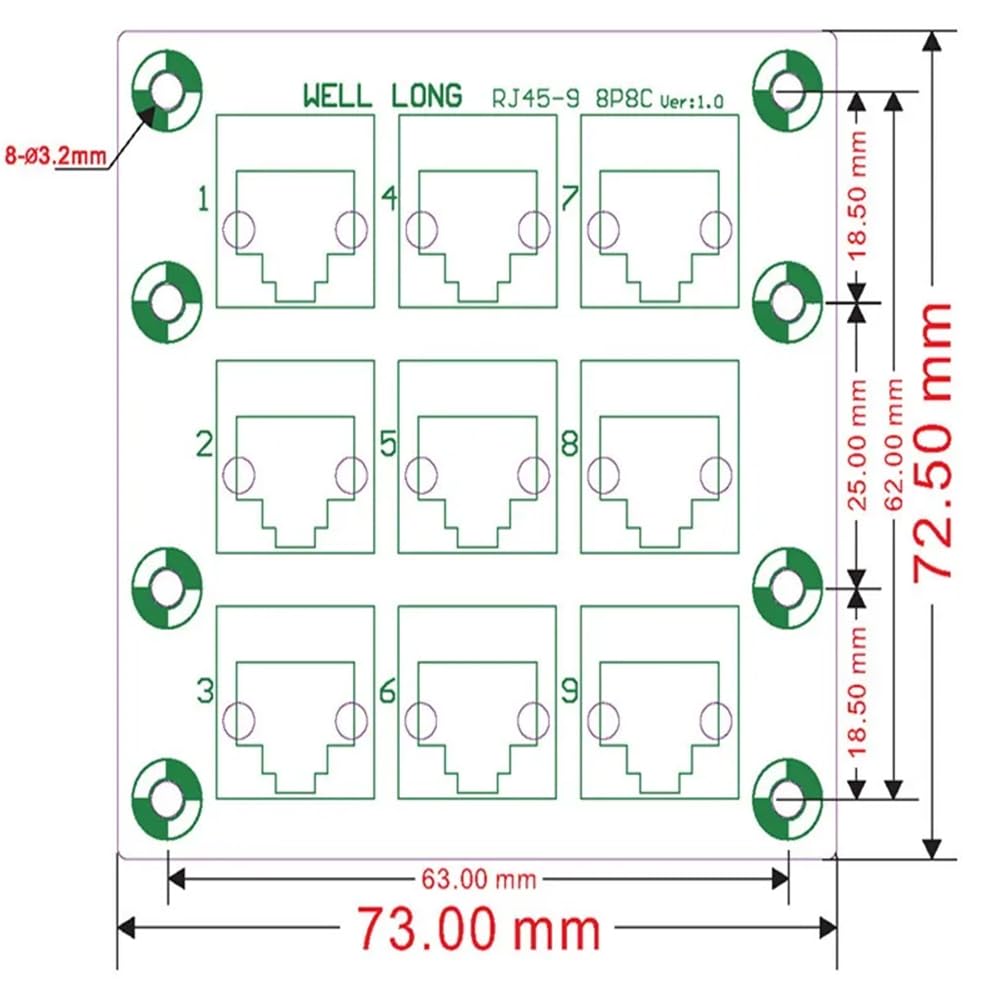

• Terminal pitch: 3.5mm. PCB dimensions: 81 x 87mm (W x L).
Model: RJ45 9-Way
<b>Specifications:</b><br> This RJ45 breakout board provides a convenient method of accessing all the contacts of an 8P8C connector, including the shield. Each of the 9 connections are brought out to a screw terminal for fast and secure termination to wires. The plastic enclosure on this model protects the board, and increases the overall durability. The enclosure also enables directly mounting the board via the mounting wings. This board is perfect for industrial applications.<br> Name: RJ45 9-Way Screw Terminal Breakout Board.<br> Pitch 3.5mm screw terminal block.<br> FR-4 fiber glass PCB, dual copper layers.<br> PCB dimensions: 81mm*87mm<br> Rated voltage: 100V.<br> Rated current: 0.5A / per pin.<br> Operating Temperature: -20ºC to 50ºC<br> <b>Terminal block specifications:</b><br> Wire range: 26 ~ 16AWG.<br> Screws: M2, steel, Cr3+ Zn plated.<br> Pin header and Cage: Brass.<br> <b>Package Content:</b><br> 1PCS 9 Way RJ45 Multiple Select Data Connector
• ?Easy to Use?This RJ45 breakout board provides a convenient method of accessing all the contacts of an 8P8C connector. Each of the 9 connections are brought out to a screw terminal for fast and secure termination to wires. Allowing multiple devices to be connected at the same time and increasing the efficiency of use.
• ?Compact Design?This compact board will fit in tight spaces and has mounting holes to allow it to be securely fastened ensuring a solid connection. Support multiple line connections at the same time, greatly enhancing the efficiency and flexibility of data transmission. It is designed for multipurpose applications like industrial production, experimentation, and prototype work.
• This RJ45 to screw terminal distribution is for Ethernet/DMX512/RS485/RS422/RS232. 9 port design is very practical for scenarios that need to deal with complex network layouts or multiple device connections.
• C45 DIN rail mounting (width 35mm), 15mm din rail compatible. The plastic enclosure on this model protects the board, and increases the overall durability. DIN rail mount help for easy installation into control panels and industrial equipment.
• Terminal pitch: 3.5mm. PCB dimensions: 81 x 87mm (W x L).
Model: RJ45 9-Way
