Description
Brand: Jienk
Strictly, Registered Jack refers to both the female physical connector (modular connector) and specific wiring patterns, but the term is often used loosely to refer to modular connectors regardless of wiring, gender, or use, commonly for telephone line connections, but also for Ethernet over twisted pair, resulting in confusion over the various connection standards and applications. For example, the six-position physical connector, plug and jack, is identically dimensioned and inter-connectable, whether it is wired for one, two, or three lines.
RJ11, RJ14, and RJ25 all use the same six-position modular connector, thus are physically identical except for the different number of contacts (two, four and six respectively) allowing connections for one, two, or three telephone lines respectively.
Specifications:
Material: Plastic & Metal

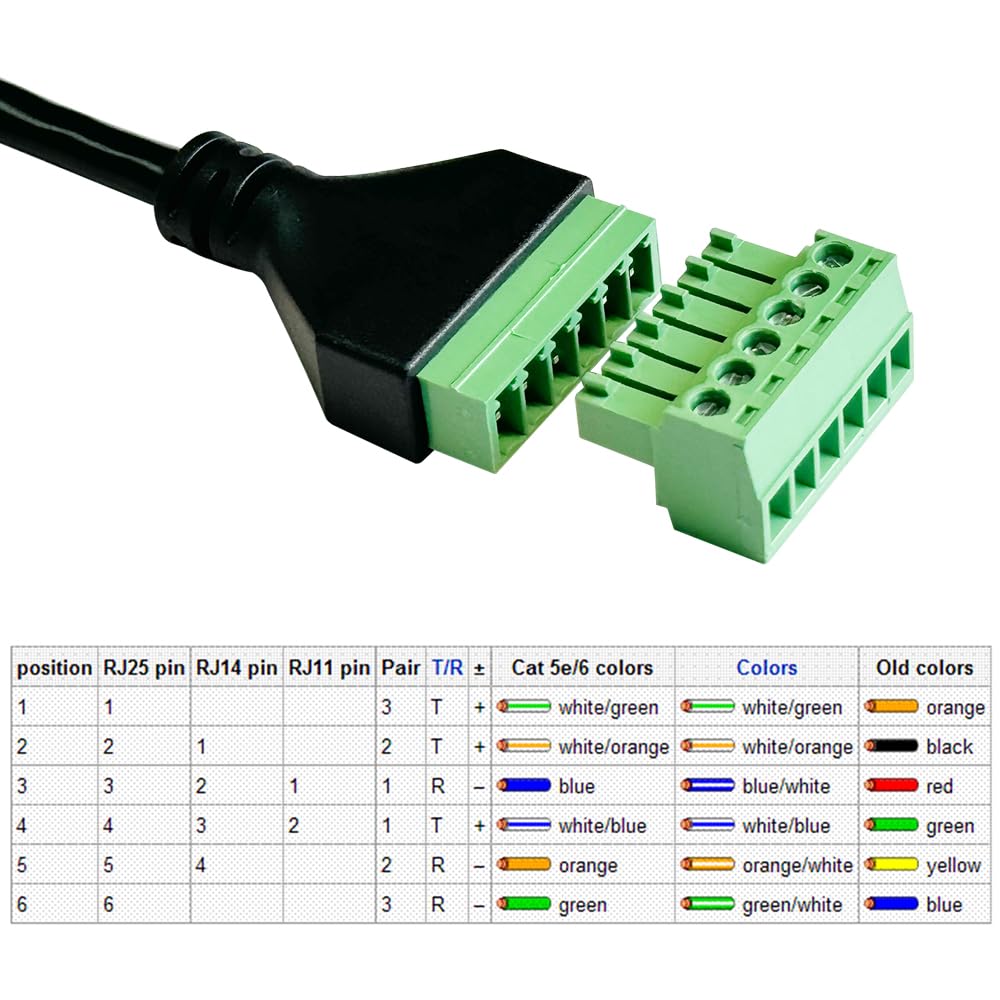

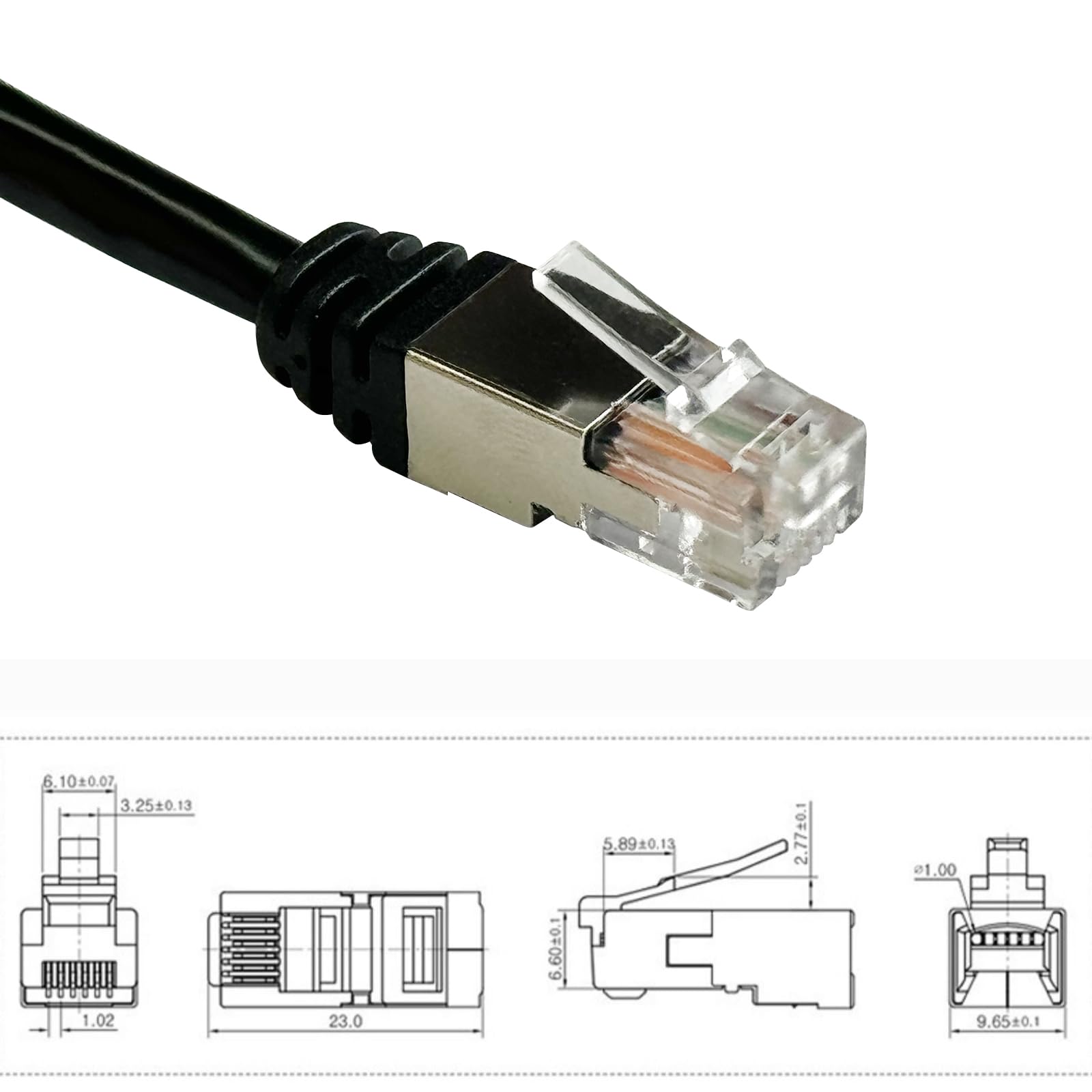

Connectors 1: RJ11 6P6C Male Plug
Connectors 2: 6Pin Screw Terminals
Wire range: AWG26~18
Pin: 6way/pin
Size: 25mm*28mm*12mm

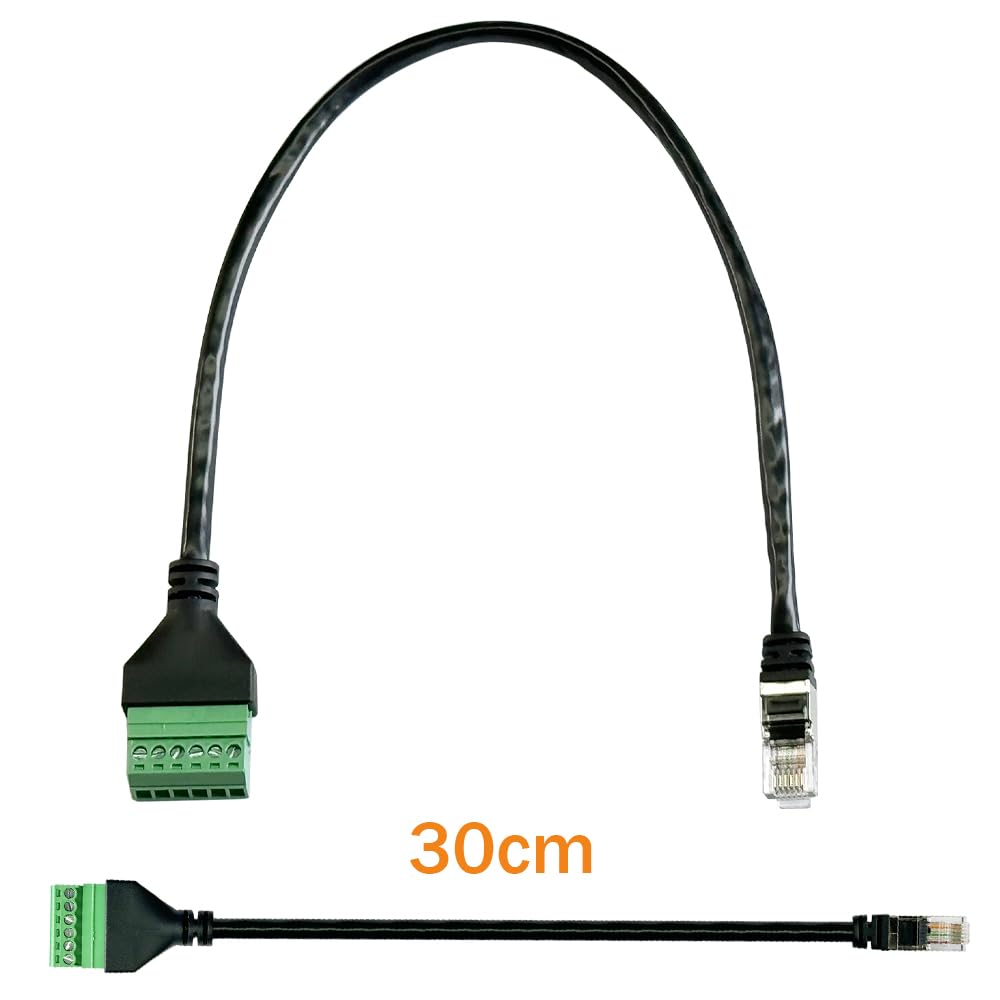

Length: 30cm/1FT
Color: Black+Green
Rated voltage: 100V.
Rated current: 0.5A / per pin.
Operating Temperature: -20ºC to 50ºC
Terminal block specifications:
Pitch:2.54mm
Wire range: 26 ~ 18AWG.
Strip length: 5mm.
Screws: M2, steel, Cr3+ Zn plated.
Pin header and Cage: Brass.
Package Includes:

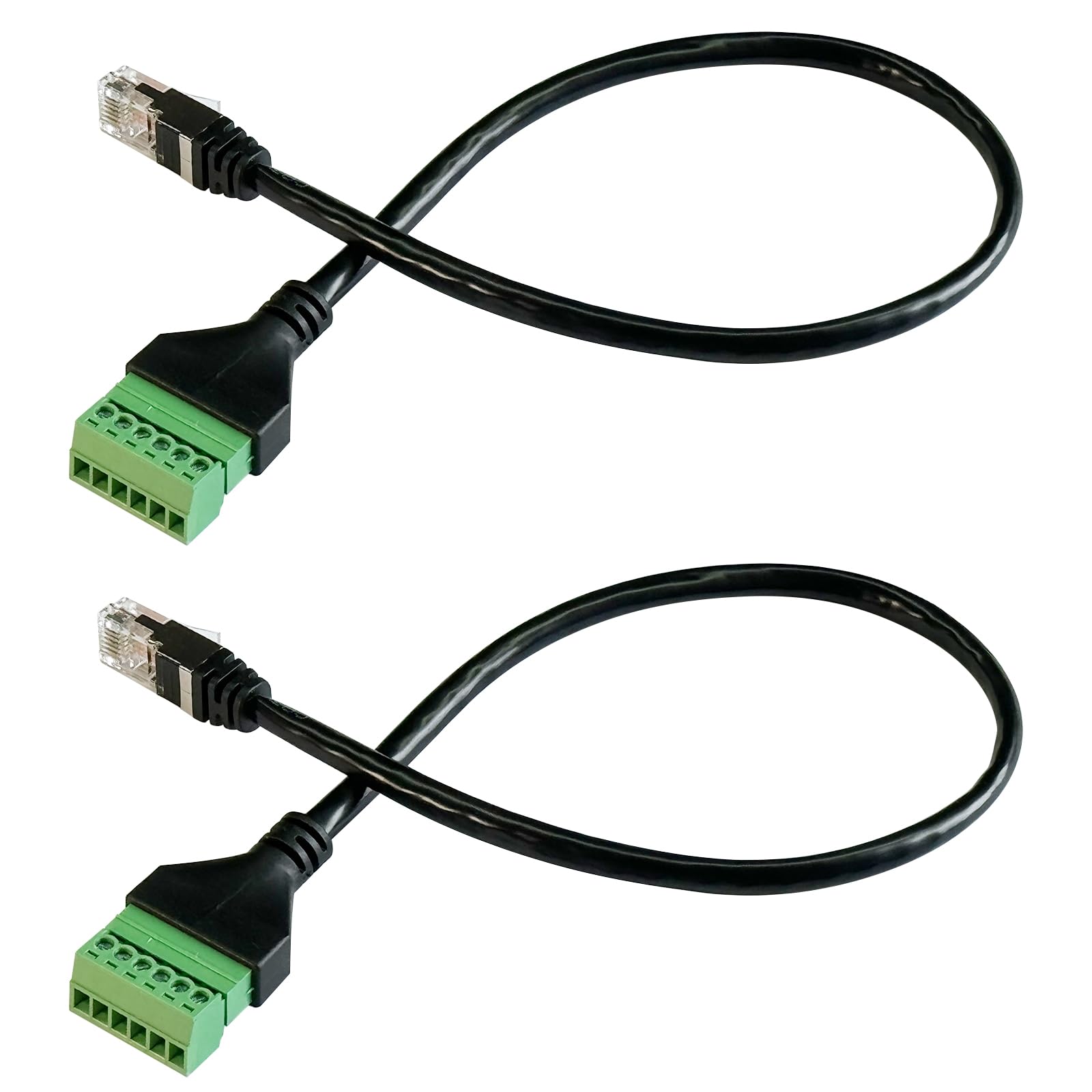

2 x RJ11 6P6C to 6Pins Terminal Extension Cable
• Connectors 1:RJ11 6P6C Male plug , Connectors 2: 6 Pin/Way Female Bolt Screw Shield terminals Pluggable Type jack. Cable Length:30cm/1ft.
• Stability: Reliable connection, made of pure copper wire, strong signal stability and reliability. Establishes a bridged connection for one telephone line with key telephone system control ahead of line circuit.

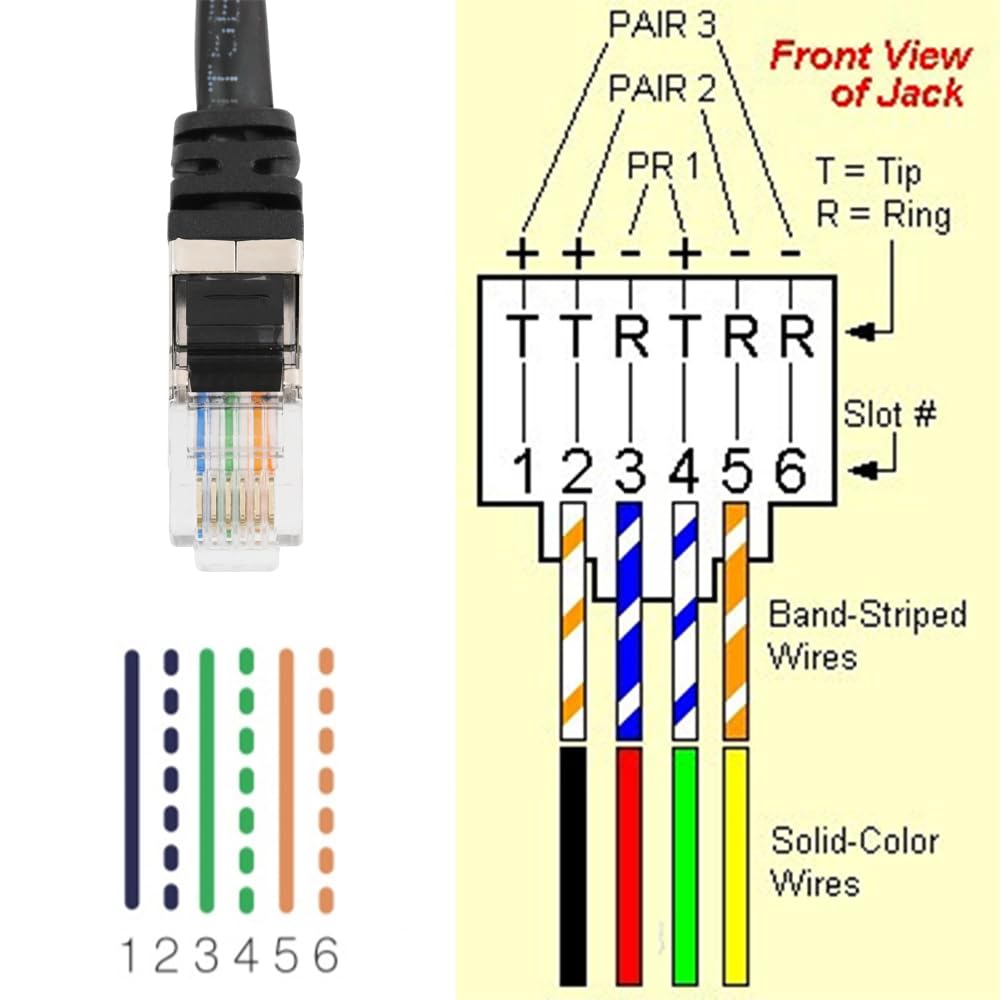

• This is a 6P6C connector (six-position six-conductor), most typically installed on telephone handsets and their cordage. 6P indicates a six-position modular plug or jack. A six-position modular plug with conductors in only the middle two positions is designated 6P2C
• 6P4C has four conductors in the middle positions, and 6P6C has all six equipped.
• RJ11 is generally used as a generic term for this 9.5mm series, using RJ11-6P2C, RJ11-6P4C and RJ11-6P6C respectively to distinguish the number of contacts.
• Easy to use: No soldering required. Just use a small screwdriver to open up the terminal blocks, slide in your stranded or solid-core wire, and re-tighten.
Color: Black
Strictly, Registered Jack refers to both the female physical connector (modular connector) and specific wiring patterns, but the term is often used loosely to refer to modular connectors regardless of wiring, gender, or use, commonly for telephone line connections, but also for Ethernet over twisted pair, resulting in confusion over the various connection standards and applications. For example, the six-position physical connector, plug and jack, is identically dimensioned and inter-connectable, whether it is wired for one, two, or three lines.
RJ11, RJ14, and RJ25 all use the same six-position modular connector, thus are physically identical except for the different number of contacts (two, four and six respectively) allowing connections for one, two, or three telephone lines respectively.
Specifications:
Material: Plastic & Metal
Connectors 1: RJ11 6P6C Male Plug
Connectors 2: 6Pin Screw Terminals
Wire range: AWG26~18
Pin: 6way/pin
Size: 25mm*28mm*12mm
Length: 30cm/1FT
Color: Black+Green
Rated voltage: 100V.
Rated current: 0.5A / per pin.
Operating Temperature: -20ºC to 50ºC
Terminal block specifications:
Pitch:2.54mm
Wire range: 26 ~ 18AWG.
Strip length: 5mm.
Screws: M2, steel, Cr3+ Zn plated.
Pin header and Cage: Brass.
Package Includes:
2 x RJ11 6P6C to 6Pins Terminal Extension Cable
• Connectors 1:RJ11 6P6C Male plug , Connectors 2: 6 Pin/Way Female Bolt Screw Shield terminals Pluggable Type jack. Cable Length:30cm/1ft.
• Stability: Reliable connection, made of pure copper wire, strong signal stability and reliability. Establishes a bridged connection for one telephone line with key telephone system control ahead of line circuit.
• This is a 6P6C connector (six-position six-conductor), most typically installed on telephone handsets and their cordage. 6P indicates a six-position modular plug or jack. A six-position modular plug with conductors in only the middle two positions is designated 6P2C
• 6P4C has four conductors in the middle positions, and 6P6C has all six equipped.
• RJ11 is generally used as a generic term for this 9.5mm series, using RJ11-6P2C, RJ11-6P4C and RJ11-6P6C respectively to distinguish the number of contacts.
• Easy to use: No soldering required. Just use a small screwdriver to open up the terminal blocks, slide in your stranded or solid-core wire, and re-tighten.
Color: Black
