Description
Brand: JCHENG SECURITY
Gently Reminder:
The 850nm infrared light of illuminator, after power it on if you look straightly at the lens of Infrared illuminator, you could see the dark red glow on each ring of lens, but YOU could NOT SEE any light emitting from it
To protect the sensor, please install the senor head down to avoid direct sun exposure
Camera and Illuminator should be installed to the same horizontal and vertical direction
For after service and technical support, please mail us support@jcheng-security.com. We are ready to help you
JCHENG IR Illuminator, when the view angle of lens of illuminator is wider, the IR distance will be shorter. Moreover, the practical IR distance and view angle would be finally influenced by the focal length of lens of your camera. Please carefully check with our specification chart before buy
Technical Data:
1.Infrared Leds: build in 20 pieces of high power IR Array LEDs
2.Field View: 90°
3.Power Consumption: 20W(Take DOT MATRIX TECHINOLOGY (constant current & constant voltage output for energy-saving purpose)
4.Infrared Distance: max to 210ft
5. Type of Infrared Light:850 nm wavelength
6.Housing Color: Grey
7.Dimensions: in Mm (L / W/ H): 179*139*131

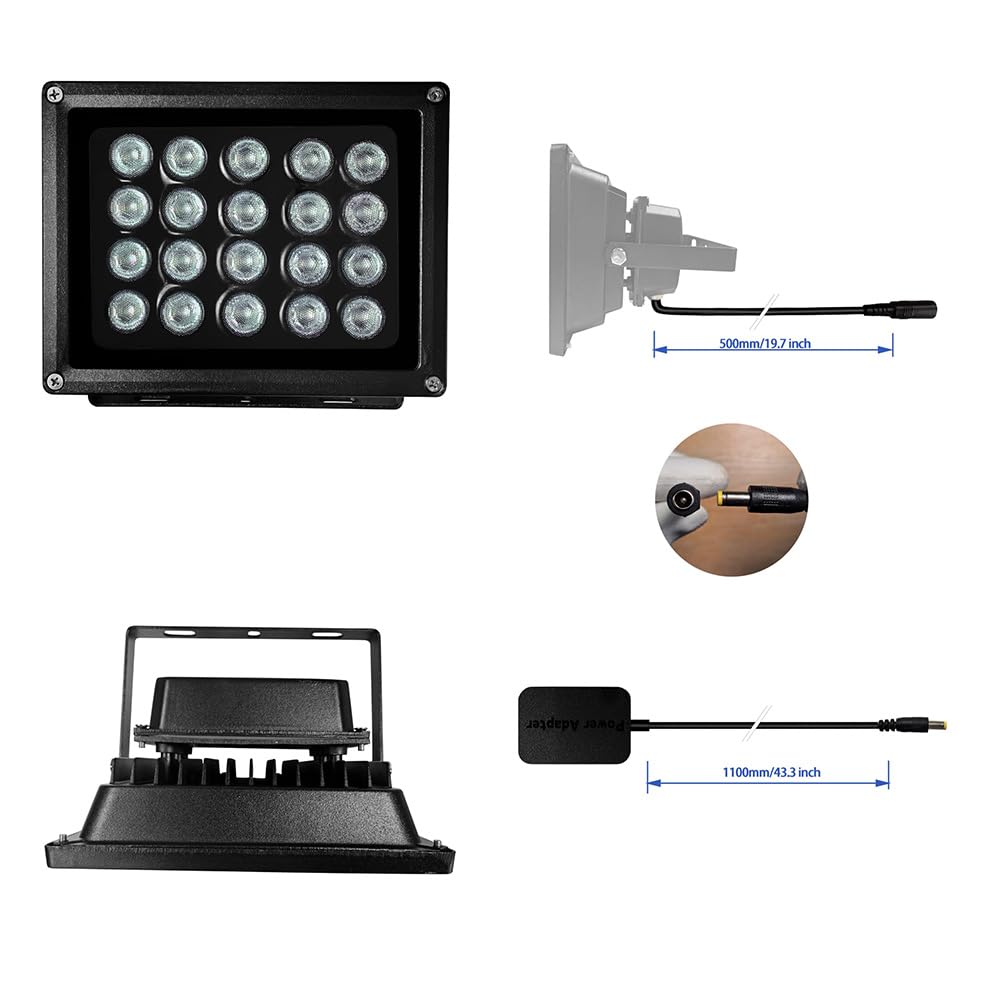

8.Main Cable Length: 13.4inches/34cm
9.Working Type of Photocell Sensor: Auto (turn on automatically when the light is lower than 10lux)
10.Protection Class (waterproof and dust proof): IP66
11.Gross Weight: 995g; Net Weight:1000g
12.Working temperature: - 20 degrees c to + 50 degrees c
13.Housing Material: fine aluminum and reinforced glass
14.Adapter / Transformer: input ac 100 - 240v, 50 / 60hz; outcome: dc12V, 2A; the power supply plug size: 5.5 x 2.1 mm, Positive Jack (adapter / transformer is included)
15.Package Content:

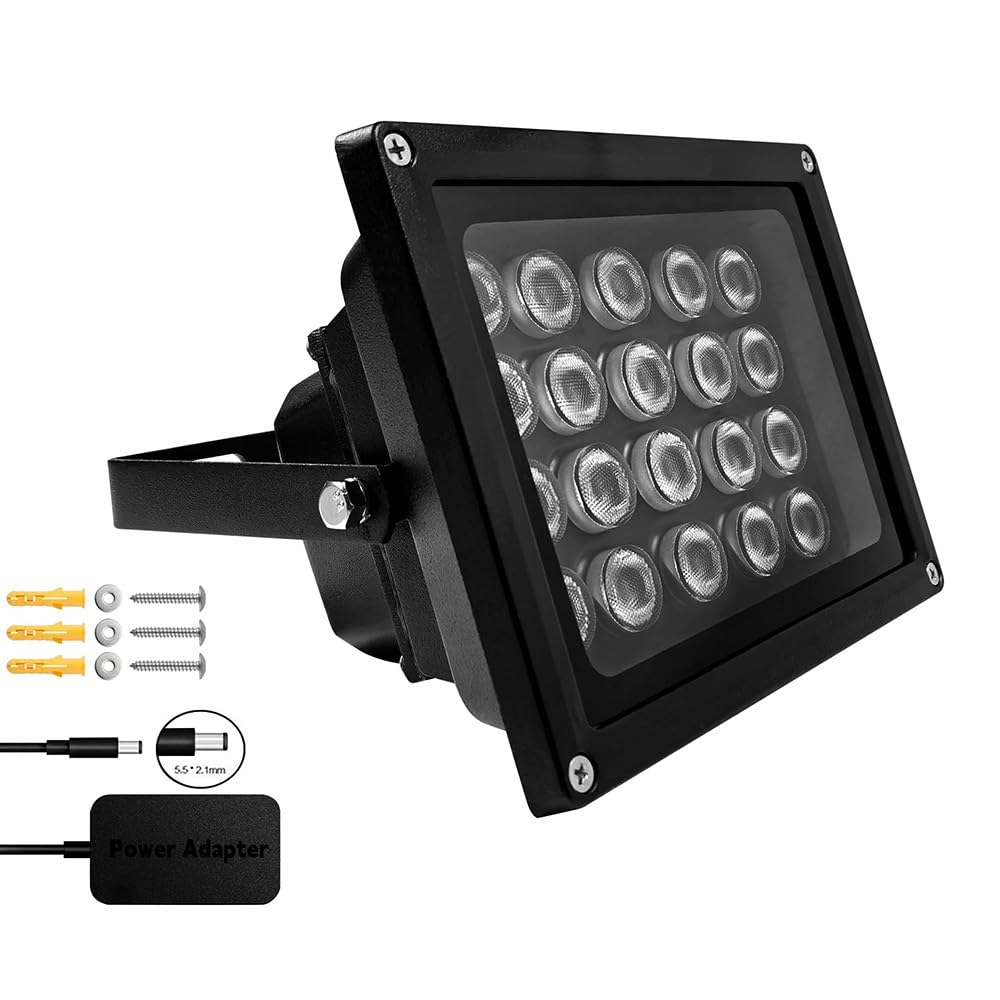

1 x 20-Led IR Emitter
1 x DC 12V/2A power adapter
• Buy 1 get 1pcs of high-quality power adapter for free, just plug and play. Kindly reminder It is the infrared supporting LAMP for 850nm infrared surveillance camera, NOT CAMERA.
• Build in 20 pieces of high-power IR Array LEDs; Long distance of up to 210Ft.Taking DOT MATRIX TECHINOLOGY (constant current & constant voltage output for energy-saving purpose)
• Angle view of Infrared Illuminators:90°; Protection Class (waterproof and dust proof): IP66
• Working Type of Photocell Sensor: Auto (turn on automatically when the light is lower than 10Lux)
Gently Reminder:
The 850nm infrared light of illuminator, after power it on if you look straightly at the lens of Infrared illuminator, you could see the dark red glow on each ring of lens, but YOU could NOT SEE any light emitting from it
To protect the sensor, please install the senor head down to avoid direct sun exposure
Camera and Illuminator should be installed to the same horizontal and vertical direction
For after service and technical support, please mail us support@jcheng-security.com. We are ready to help you
JCHENG IR Illuminator, when the view angle of lens of illuminator is wider, the IR distance will be shorter. Moreover, the practical IR distance and view angle would be finally influenced by the focal length of lens of your camera. Please carefully check with our specification chart before buy
Technical Data:
1.Infrared Leds: build in 20 pieces of high power IR Array LEDs
2.Field View: 90°
3.Power Consumption: 20W(Take DOT MATRIX TECHINOLOGY (constant current & constant voltage output for energy-saving purpose)
4.Infrared Distance: max to 210ft
5. Type of Infrared Light:850 nm wavelength
6.Housing Color: Grey
7.Dimensions: in Mm (L / W/ H): 179*139*131
8.Main Cable Length: 13.4inches/34cm
9.Working Type of Photocell Sensor: Auto (turn on automatically when the light is lower than 10lux)
10.Protection Class (waterproof and dust proof): IP66
11.Gross Weight: 995g; Net Weight:1000g
12.Working temperature: - 20 degrees c to + 50 degrees c
13.Housing Material: fine aluminum and reinforced glass
14.Adapter / Transformer: input ac 100 - 240v, 50 / 60hz; outcome: dc12V, 2A; the power supply plug size: 5.5 x 2.1 mm, Positive Jack (adapter / transformer is included)
15.Package Content:
1 x 20-Led IR Emitter
1 x DC 12V/2A power adapter
• Buy 1 get 1pcs of high-quality power adapter for free, just plug and play. Kindly reminder It is the infrared supporting LAMP for 850nm infrared surveillance camera, NOT CAMERA.
• Build in 20 pieces of high-power IR Array LEDs; Long distance of up to 210Ft.Taking DOT MATRIX TECHINOLOGY (constant current & constant voltage output for energy-saving purpose)
• Angle view of Infrared Illuminators:90°; Protection Class (waterproof and dust proof): IP66
• Working Type of Photocell Sensor: Auto (turn on automatically when the light is lower than 10Lux)
