Brand: TO BE SECOND

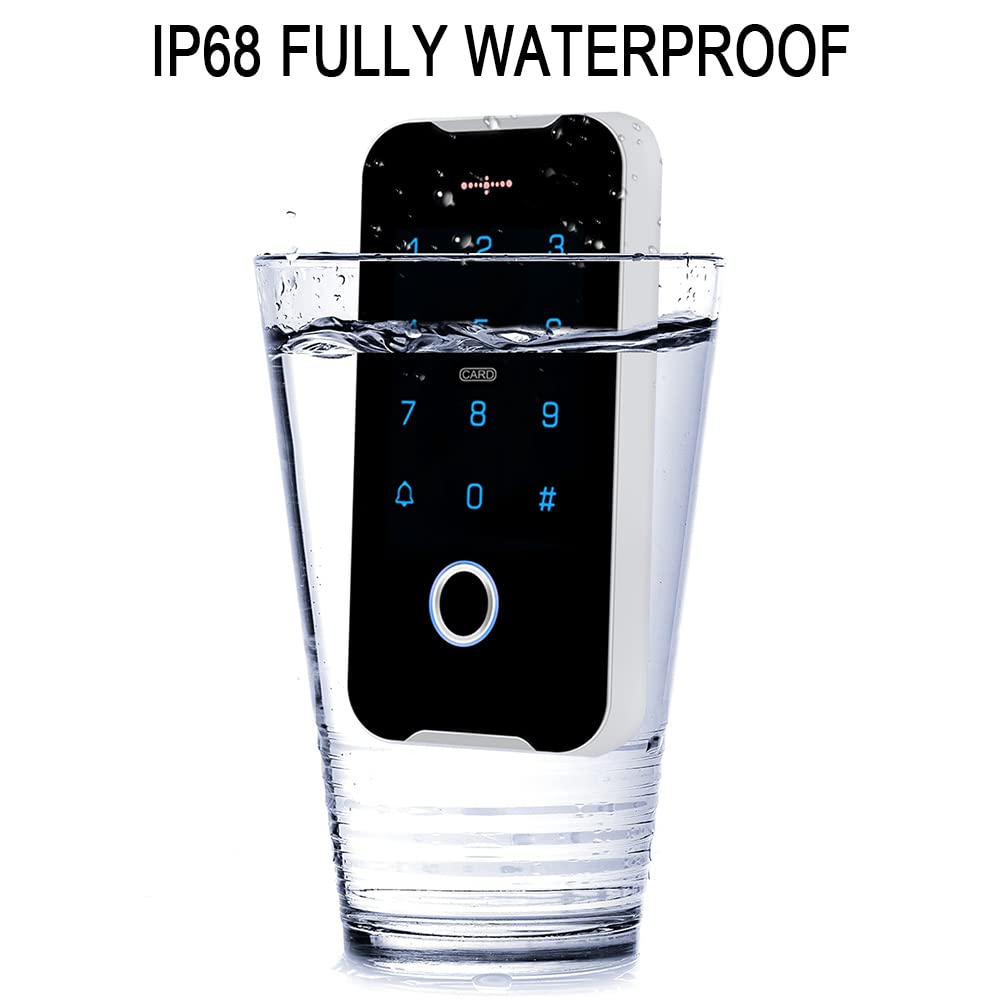

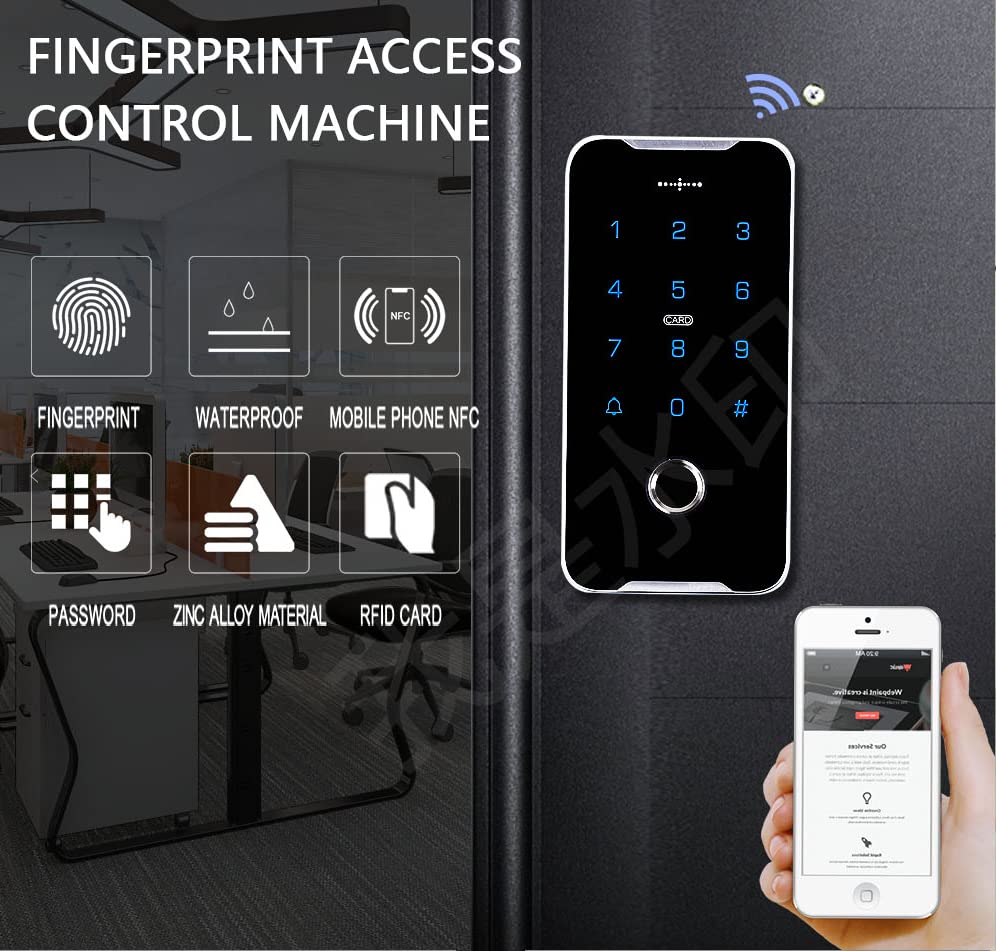

Waterproof Fingerprint Access Control Keypad?4 methods to control your lock: Fingerprint, RFID Card, Password, and NFC Mobile phone. Support 120 fingerprints, 120 cards, 120 passwords, 1 public password. ?Support NFC Mobile Phone to unlock the door (Please make sure that your mobile phone must has NFC function). ?The internal circuit board is fully glued and waterproof, dust-proof, can be used normally in storm or heavy rain.?With blue backlight and working indicator, can work normally in the dark.?Has a door bell button, can install a wired door bell.?Working voltage is DC 12V, it can not be connected with your home circuit directly.Material: zinc alloy material with acrylic touch panel Keyboard: acrylic touch panel with touch keys Working Frequency: 13.56MHz Card Reading Type: support MF 1K cards or MF 1K compatible cardsCard reading distance: 0-5CMWaterproof Level: IP68 fully waterproof Wiegand Signal: WG26 input/output Can Set Management Card: yes Working Voltage: DC 12V, Working Current: ?30mA Door Opening Time Delay: 0-99 seconds Working Temperature: -30?~ 70? / -22?~ 158? Working Humidity: 20% ~ 90% Size: 139*69*18mm / 5.5*2.7*0.7 inch Power Supply 1. AC Input: standard AC90V-260V 50-60HZ 2. DC Output: DC12V / 3A 3. Remote Control Function: Yes 4. Time Delay Function: Yes 5. Size: 138X67X37mm (L / W / H) 180KG Electric Magnetic Door Lock This item is a magnetic lock consisting of an electromagnet and armor plate used for access control door locks. High quality and stable performance. Holding Force: 180kg / 380lbs Material: stainless steel Working Voltage: DC12V Anti-residue magnesium designed Performance Test: 1000000 times the aging test Safety Function: Integrated Surge Suppressor Suitable For: wooden door, metal door, fireproof door, glass door, etc.
• 1. Zinc alloy keypad access controller with card swiping, digital password, fingerprint recognition and NFC unlocking methods. With weigand 26 bit signal input / output function. Tamper alarm function supported. IP68 fully waterproof, you can install it outdoor directly.

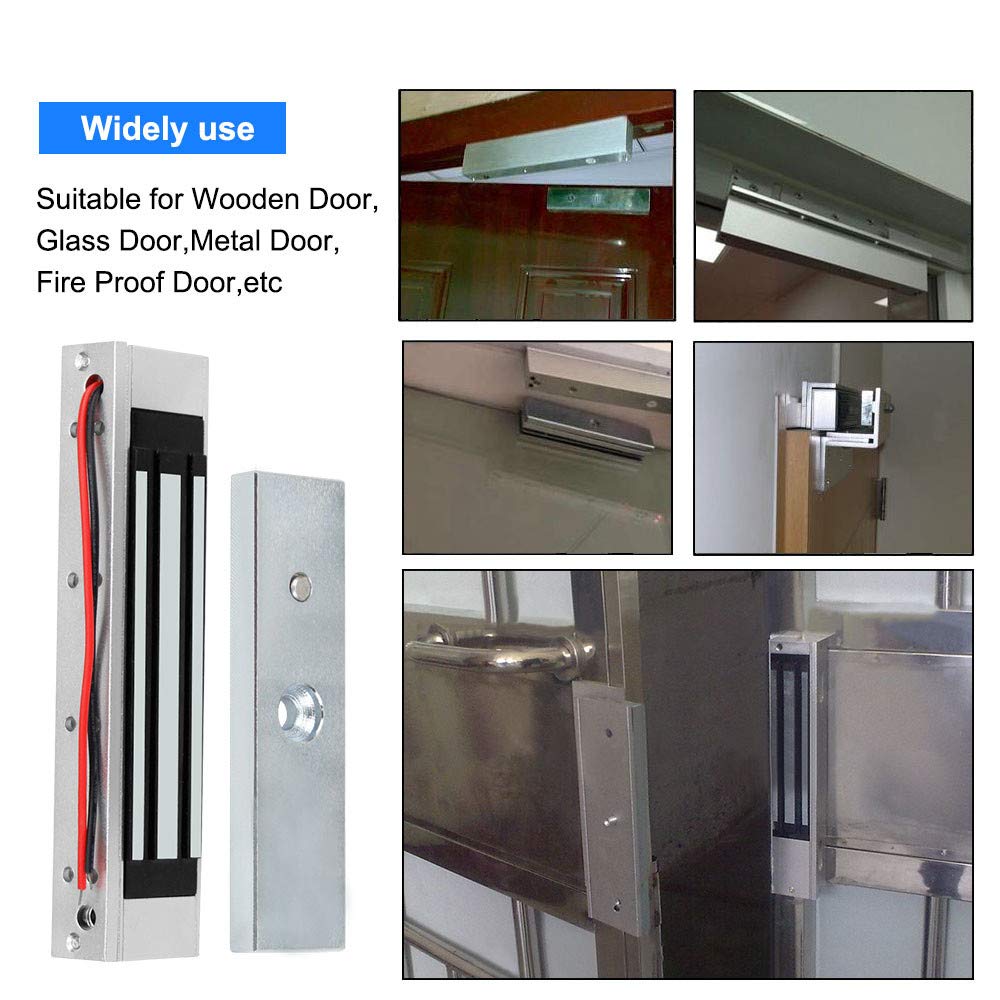

• 2. 180KG(380lbs) large holding force magnetic door lock, no one can break in. With L bracket, can suitable for most types of doors.

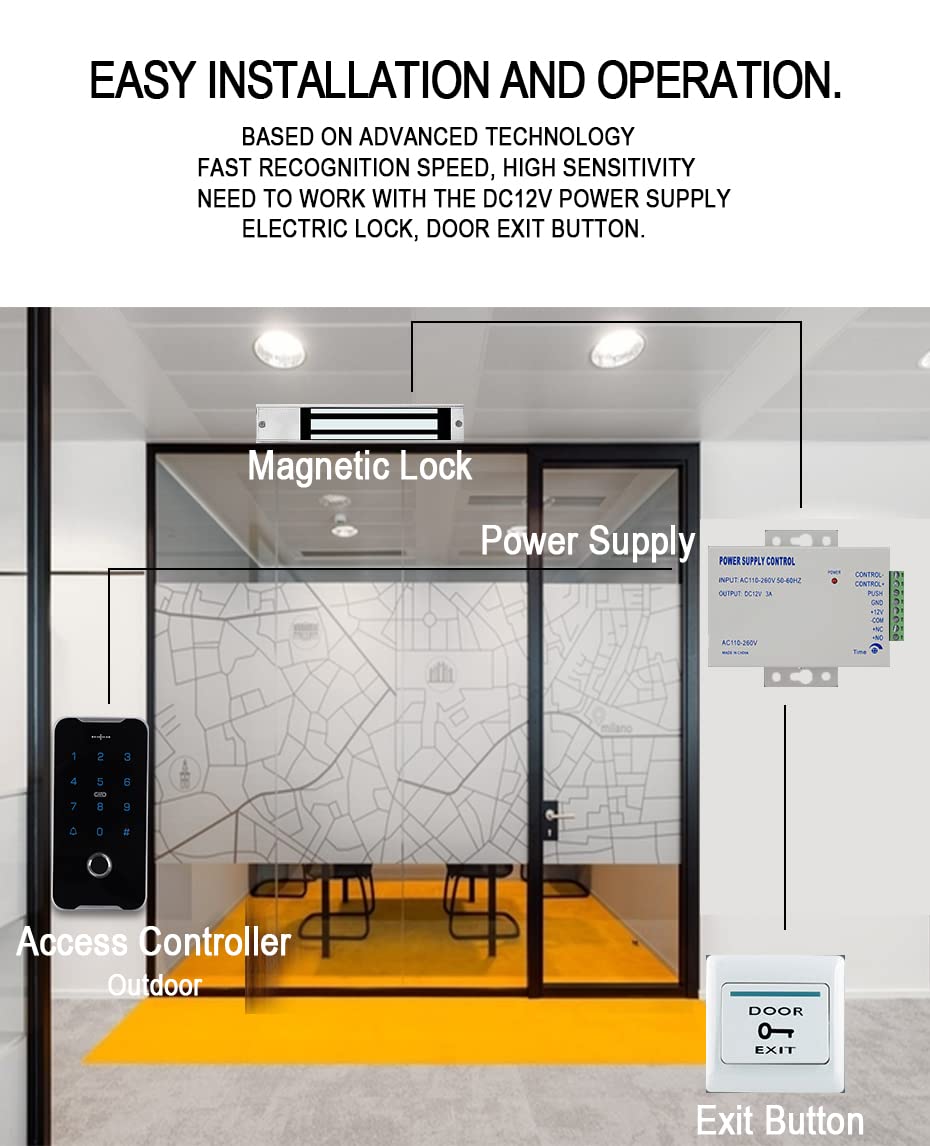

• 3. Easy to install and operate. Simple wiring installation work and adding users or setting up the administrator's operations, everyone can follow our instructions to complete these jobs.
• 4. Suitable for wooden door, metal door, glass door, fireproof door, garden gate, etc. One year warranty and lifetime technical support.

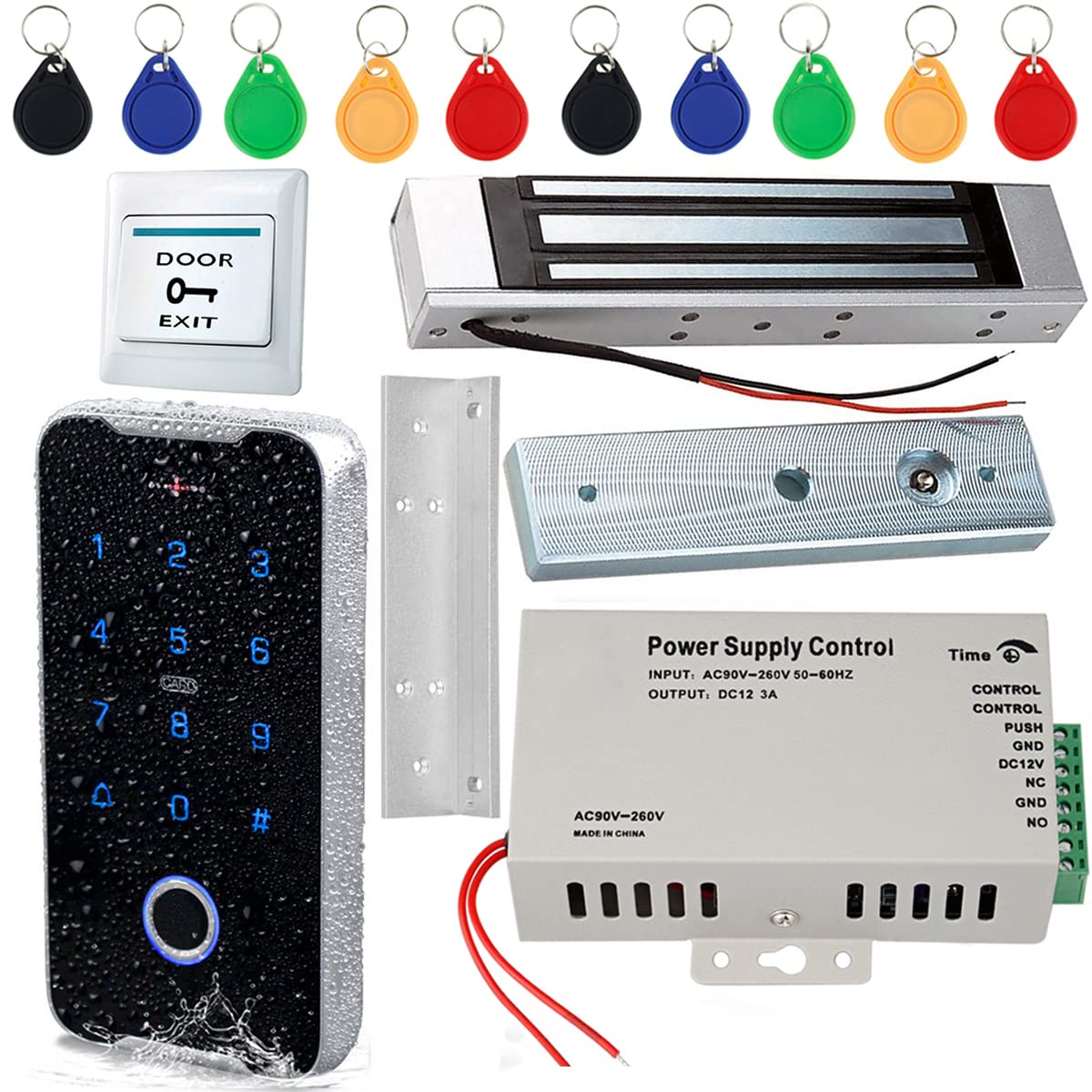

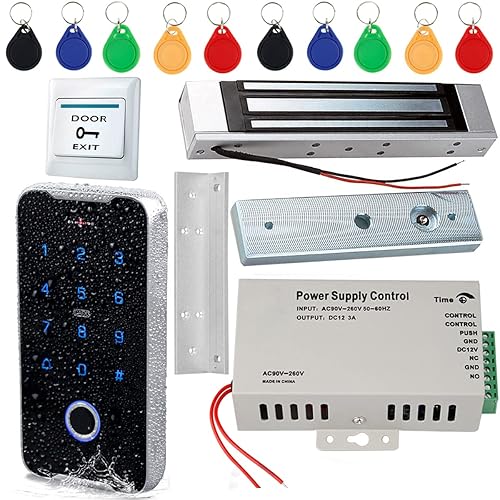

• 5. Package including: Metal shell fingerprint RFID keypad controller + DC 12V power supply + 180kg(380lbs) magnetic lock and L bracket + door release switch + 10pcs smart key fobs.
Waterproof Fingerprint Access Control Keypad?4 methods to control your lock: Fingerprint, RFID Card, Password, and NFC Mobile phone. Support 120 fingerprints, 120 cards, 120 passwords, 1 public password. ?Support NFC Mobile Phone to unlock the door (Please make sure that your mobile phone must has NFC function). ?The internal circuit board is fully glued and waterproof, dust-proof, can be used normally in storm or heavy rain.?With blue backlight and working indicator, can work normally in the dark.?Has a door bell button, can install a wired door bell.?Working voltage is DC 12V, it can not be connected with your home circuit directly.Material: zinc alloy material with acrylic touch panel Keyboard: acrylic touch panel with touch keys Working Frequency: 13.56MHz Card Reading Type: support MF 1K cards or MF 1K compatible cardsCard reading distance: 0-5CMWaterproof Level: IP68 fully waterproof Wiegand Signal: WG26 input/output Can Set Management Card: yes Working Voltage: DC 12V, Working Current: ?30mA Door Opening Time Delay: 0-99 seconds Working Temperature: -30?~ 70? / -22?~ 158? Working Humidity: 20% ~ 90% Size: 139*69*18mm / 5.5*2.7*0.7 inch Power Supply 1. AC Input: standard AC90V-260V 50-60HZ 2. DC Output: DC12V / 3A 3. Remote Control Function: Yes 4. Time Delay Function: Yes 5. Size: 138X67X37mm (L / W / H) 180KG Electric Magnetic Door Lock This item is a magnetic lock consisting of an electromagnet and armor plate used for access control door locks. High quality and stable performance. Holding Force: 180kg / 380lbs Material: stainless steel Working Voltage: DC12V Anti-residue magnesium designed Performance Test: 1000000 times the aging test Safety Function: Integrated Surge Suppressor Suitable For: wooden door, metal door, fireproof door, glass door, etc.
• 1. Zinc alloy keypad access controller with card swiping, digital password, fingerprint recognition and NFC unlocking methods. With weigand 26 bit signal input / output function. Tamper alarm function supported. IP68 fully waterproof, you can install it outdoor directly.
• 2. 180KG(380lbs) large holding force magnetic door lock, no one can break in. With L bracket, can suitable for most types of doors.
• 3. Easy to install and operate. Simple wiring installation work and adding users or setting up the administrator's operations, everyone can follow our instructions to complete these jobs.
• 4. Suitable for wooden door, metal door, glass door, fireproof door, garden gate, etc. One year warranty and lifetime technical support.
• 5. Package including: Metal shell fingerprint RFID keypad controller + DC 12V power supply + 180kg(380lbs) magnetic lock and L bracket + door release switch + 10pcs smart key fobs.
