Brand: iShoot

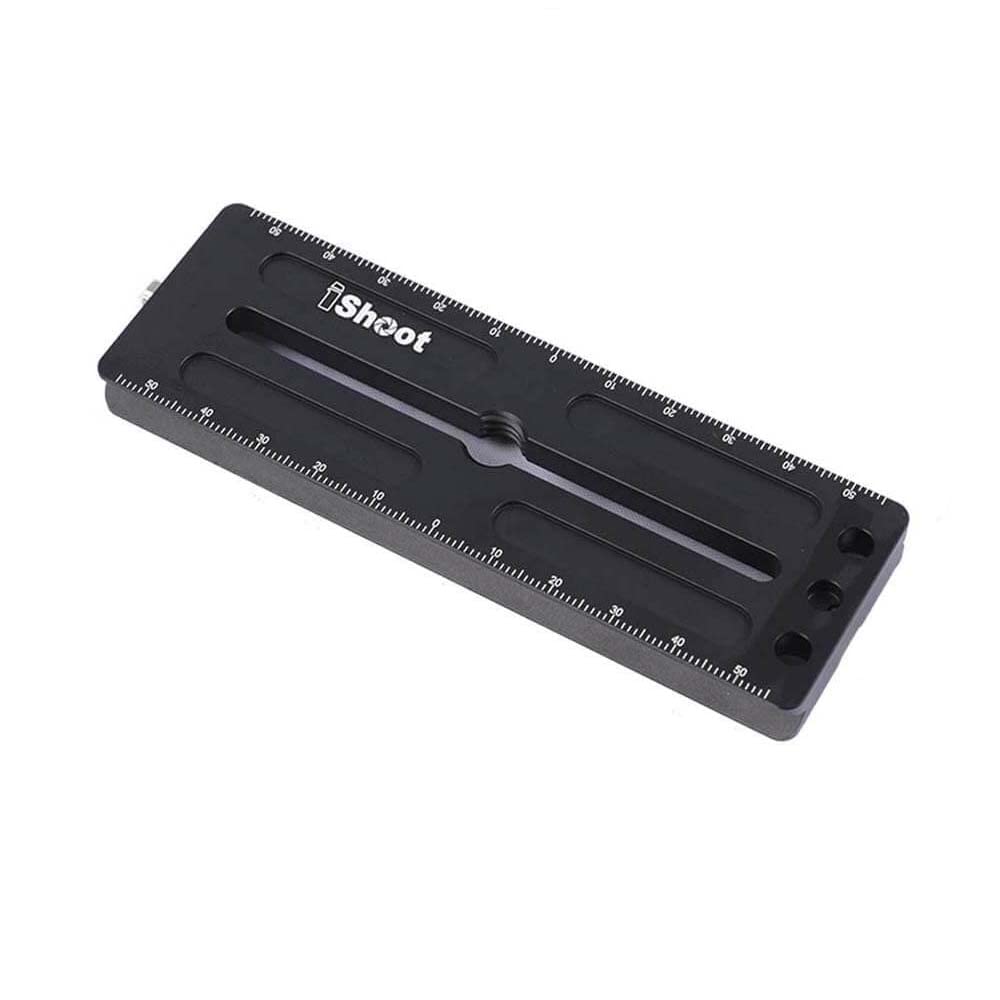

iShoot Multipurpose Metal Camera Quick Release Plate QS-120 --- 120mm long
2 pcs in Combination Can be Used as L-Shaped Vertical Quick Release Plate
--- Compatible with 39mm RRS / ARCA-SWISS Fit Tripod Head Clamp
Can be combine with iShoot long-focus lens support IS-TB01 or IS-TB02 (Sold Separately) to use with more cameras and long lenses.

Note When Used with IS-TB01:

1. The distance between the screw hole of the lens tripod mount ring and the screw hole of the camera bottom must be over 8cm to install this combination;

2. This combination don't support cameras with battery grip, only support cameras without battery grip.

QS-120 + IS-TB02 (Sold Separately) Compatible with Lenses:

Select cameras which the bottom of the camera body to be flush with or close to the bottom of the lens mount ring to fit the installation when testing. The large lens corresponds to the large camera body, the small lens corresponds to the small camera body, does not include the teleconverter. (The following ranges are for reference only)

Compatible with Canon Lens:
EF 200-400/4L IS USM series
EF 300/2.8L IS USM series
EF 400/2.8L IS USM series
EF 400/4 DO IS USM series
EF 500/4L IS USM series
EF 600/4L IS USM series

Compatible with Nikon Lens:
180-400/4E TC1.4 FL ED VR
300/2.8G ED VR series
400/2.8E FL ED VR
400/2.8G ED VR series
500/4E FL ED VR
500/4G ED VR series
600/4E FL ED VR
600/4G ED VR series

Compatible with Sony Lens:
a 300/2.8 G
a 300/2.8 G SSM series
FE 400/2.8 GM OSS
a 500/4 G SSM

Package Includes:

1 x iShoot Metal Camera Quick Release Plate QS-120
(The other items in the photos not listed here are for illustrating only, not included)

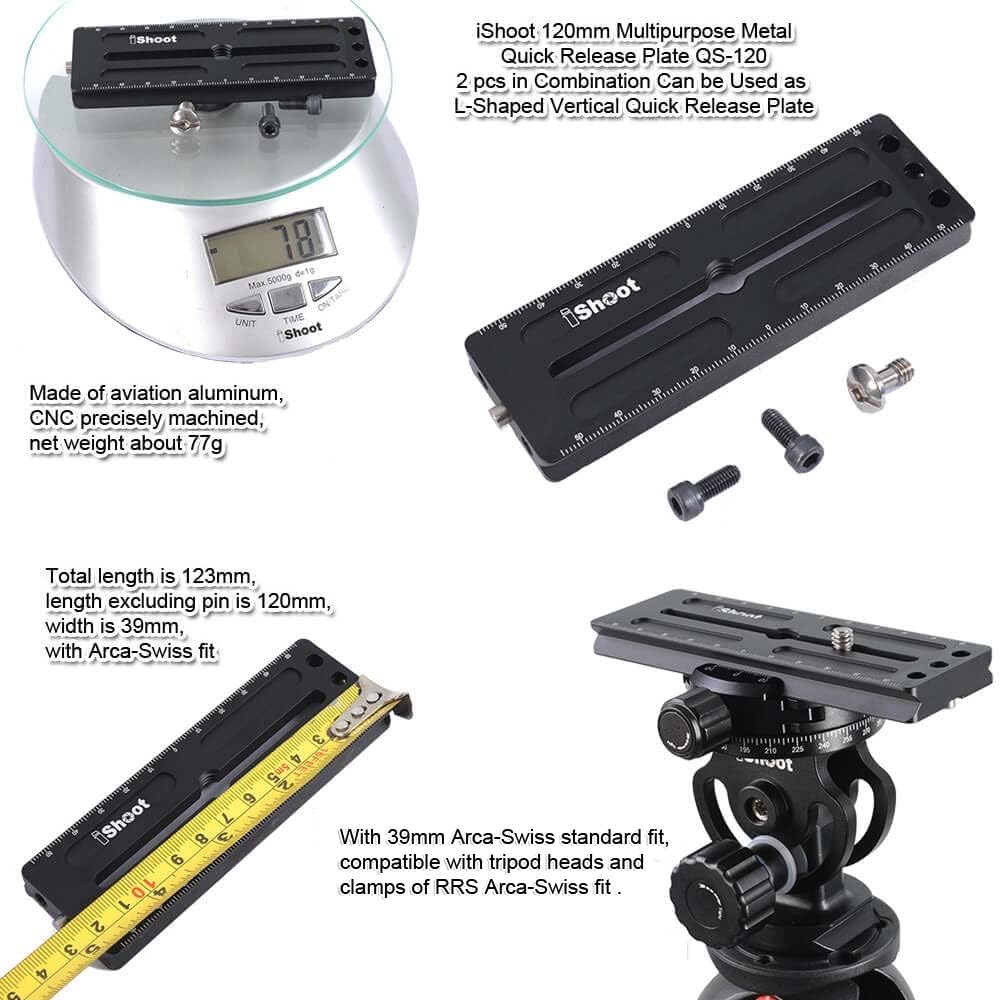

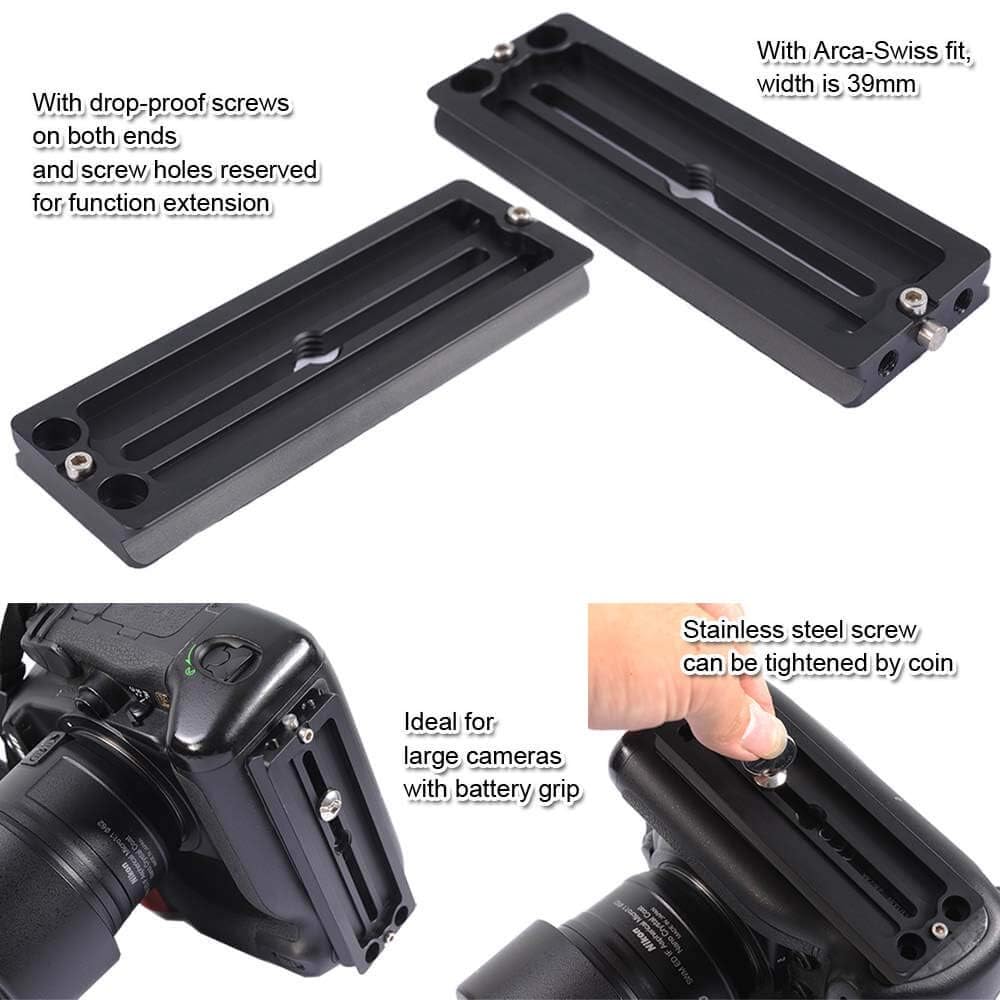

• 1.The quick release plate is made of aviation aluminum, CNC precisely machined, surface oxidation treatment, precision scale, net weight about 77g; total length is 123mm, length excluding pin is 120mm, width is 39mm, slide length is 95mm;

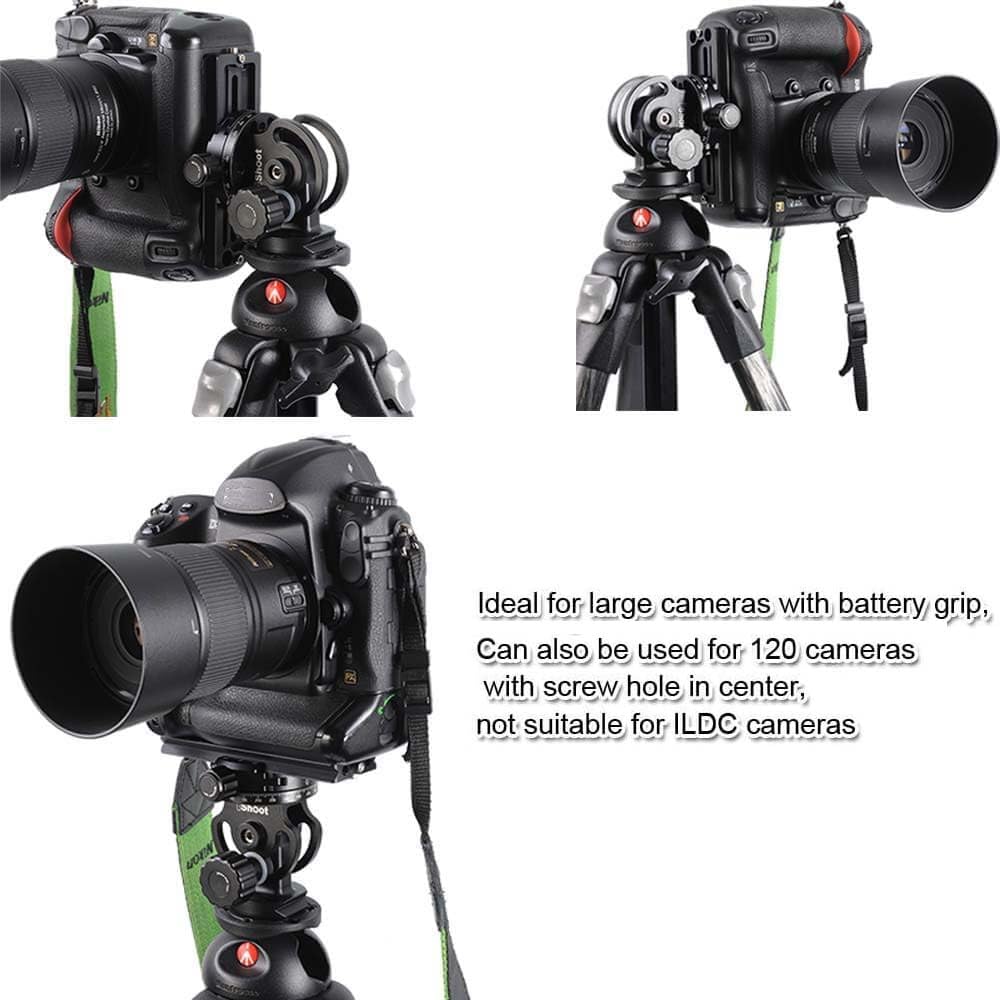

• 2.The plate is ideal for large cameras with battery grip, can also be used for 120 cameras with screw hole in center, not suitable for ILDC cameras;
• 3. With 39mm Arca-Swiss standard fit, compatible with tripod heads and clamps of RRS / Arca-Swiss standard interface.

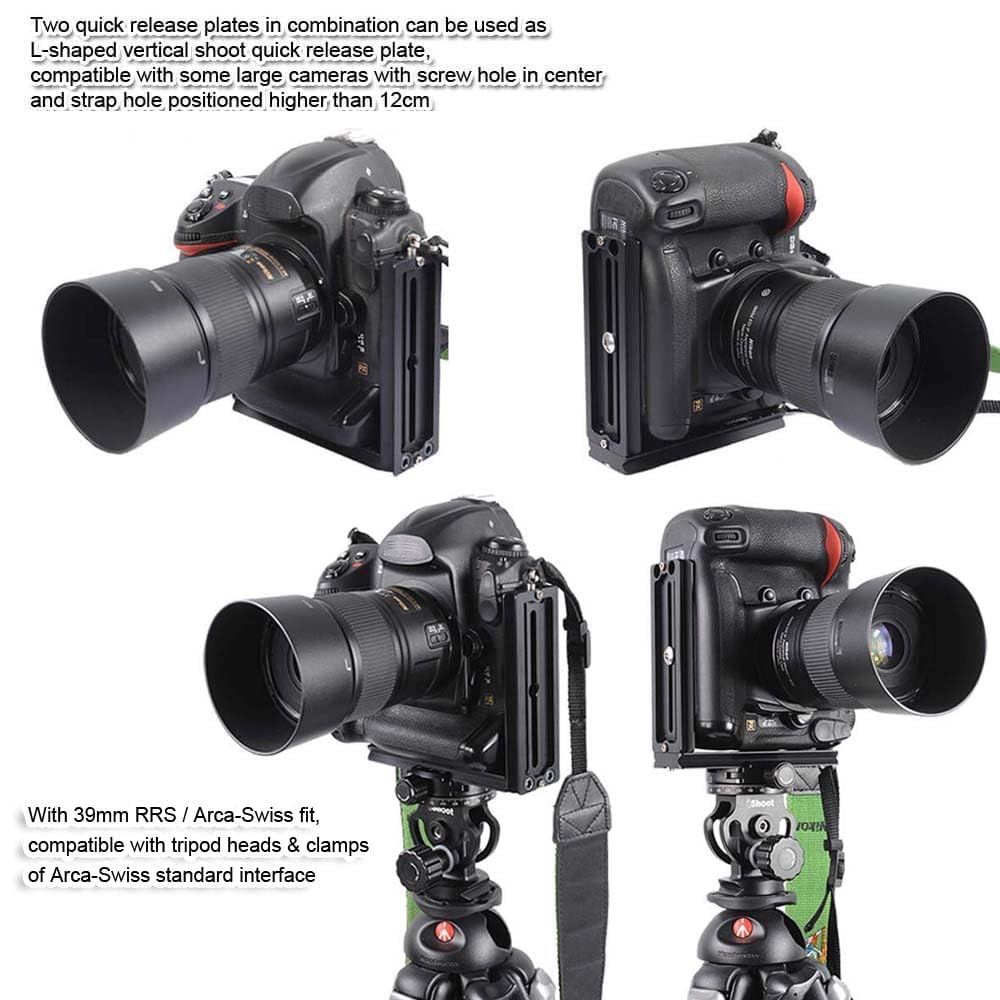

• 4. If two QS-120 quick release plates are used in combination, they can be used as L-shaped vertical shoot quick release plate, compatible with some large cameras with screw hole in center and strap hole positioned higher than 12cm;
• 5. Can be combine with iShoot long-focus lens support IS-TB01 or IS-TB02 (Sold Separately) to use with more cameras and long lenses, which is installed between long-focus lens and camera body, sharing the weight of the camera bayonet, to protect long-focus lens and camera bayonet from damage, but also increase stability.

Color: Black
