Brand: IO CREST

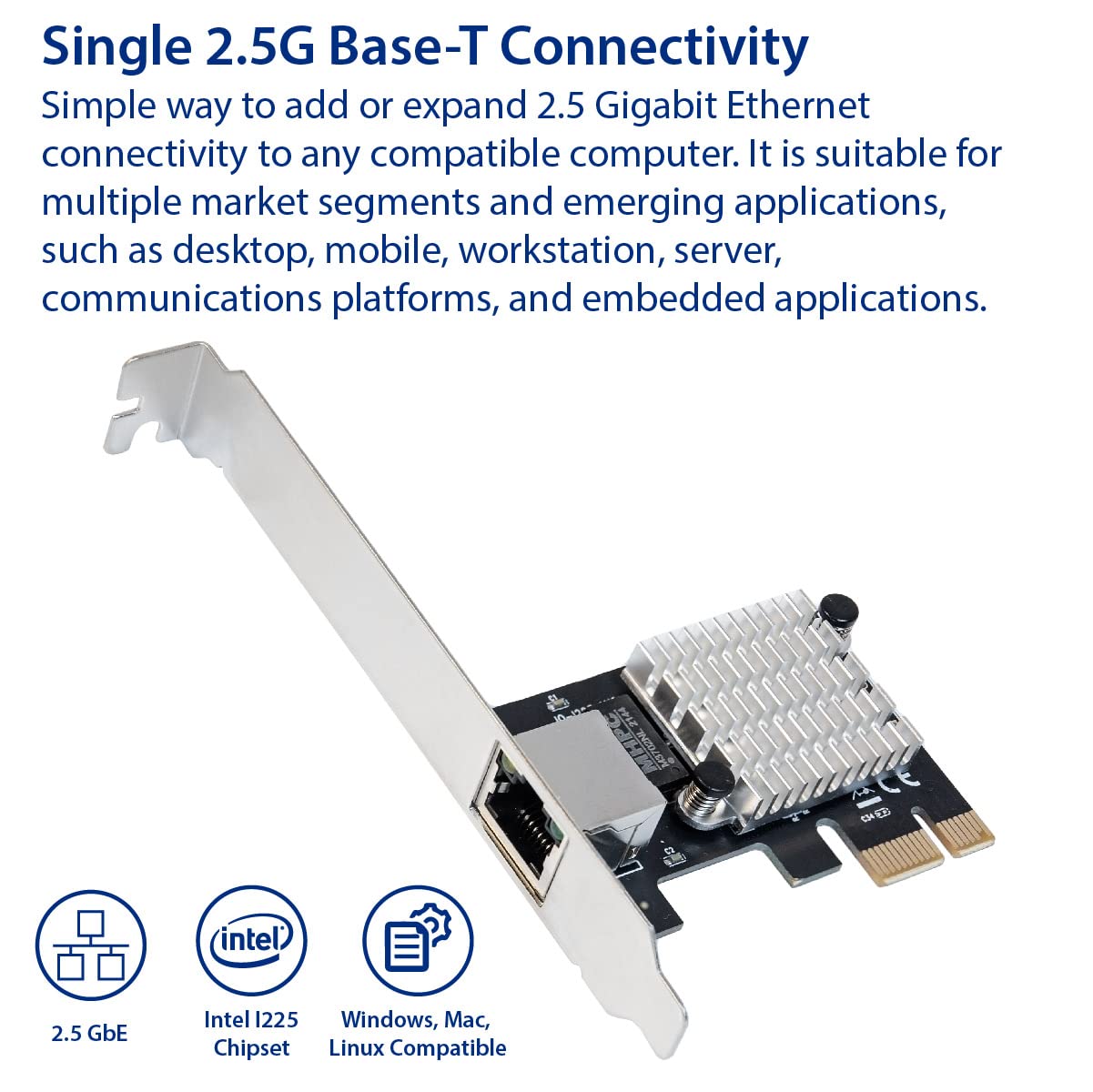

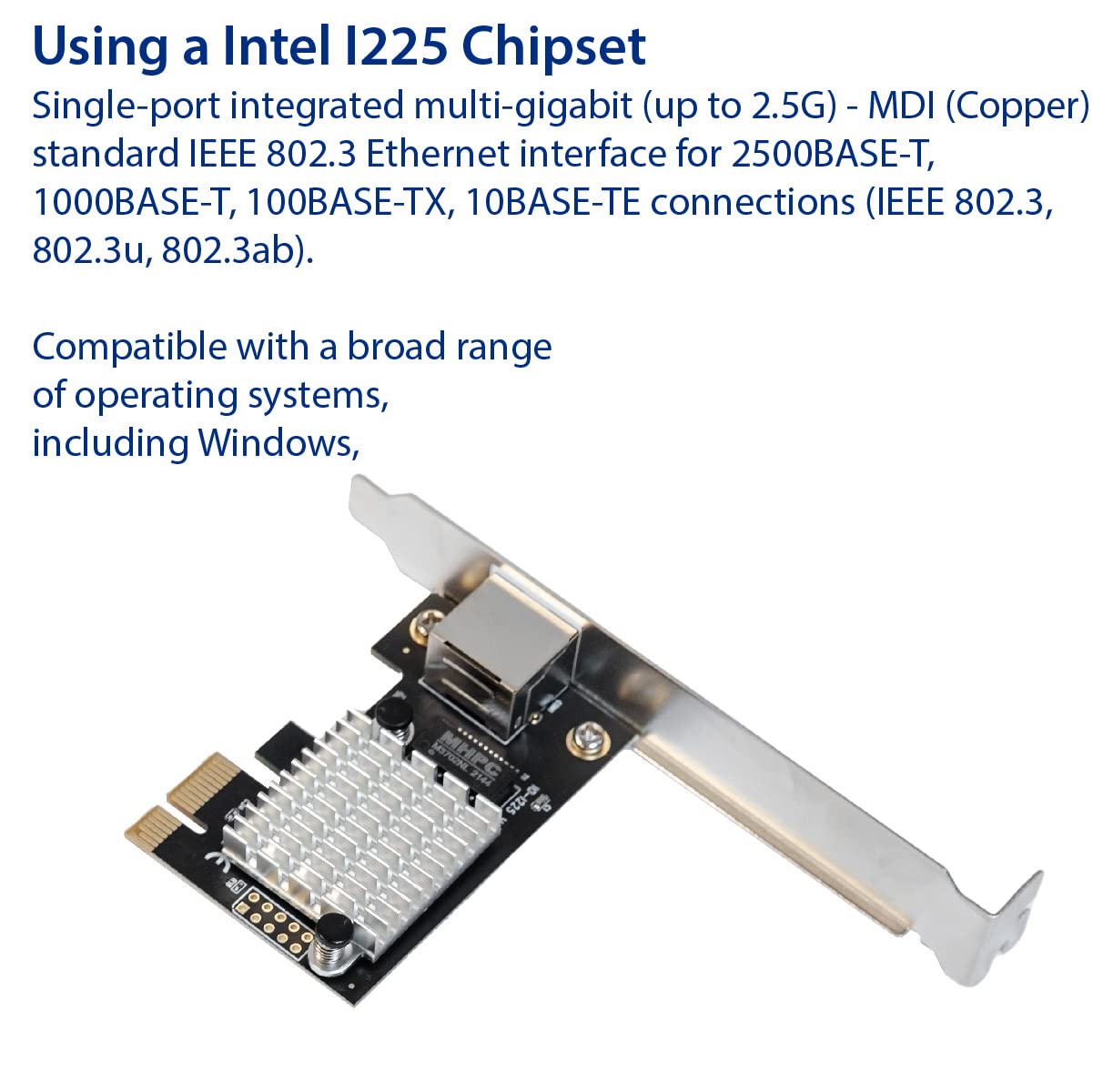

This PCI Express controller with Base-T copper networking interface, provides compact, single-port integrated multi-gigabit (up to 2.5G) - MDI (Copper) standard IEEE 802.3 Ethernet interface for 2500BASE-T, 1000BASE-T, 100BASE-TX, 10BASE-TE connections (IEEE 802.3, 802.3u, 802.3ab). The Intel Ethernet Controller I225 is designed for use on any mobile, desktop, workstation, value-server, or industrial designs that have critical space constraints. Also supports the latest time sensitive networking (TSN) features, along with best in class power management and Operating System Support

Features:

• The Intel Ethernet Connection I225 includes advanced interrupt-handling features to reduce CPU overhead. Other performance-enhancing features include offloading TCP/UDP (for both IPv4 and IPv6) checksum calculations and performing TCP segmentation. Other performance-enhancing features include offloading TCP/UDP (for both IPv4 and IPv6) checksum calculations and performing TCP segmentation.
• Advanced features such as Jumbo Frame support for extra-large packets and Receive Side Scaling (RSS) are also supported. Additionally, I225 builds on prior controller solutions to add Time Sensitive Networking (TSN) features including IEEE 802.1Qbu, 802.3br, 802.1Qbv, 802.1AS-REV, 802.1p/Q, and 802.1Qav on select operating systems. These features support advanced time critical, and synchronized applications prevalent in audio/video, embedded, and industrial applications.
• Advanced interrupt-handling features manage multiple interrupts simultaneously. Combining interrupt-handling features with intelligent filtering, ordering, and directing packets to specific queues and cores, enables load-balancing network traffic flows to improve throughput in multi-core platforms.
• Other performance-enhancing features include IPv4 and IPv6 checksum offload, TCP/UDP checksum offload, extended Tx descriptors for more offload capabilities, up to 256 KB TCP segmentation (TSO v2), 40 KB packet buffer size, and 9.5 KB Jumbo Frame support.

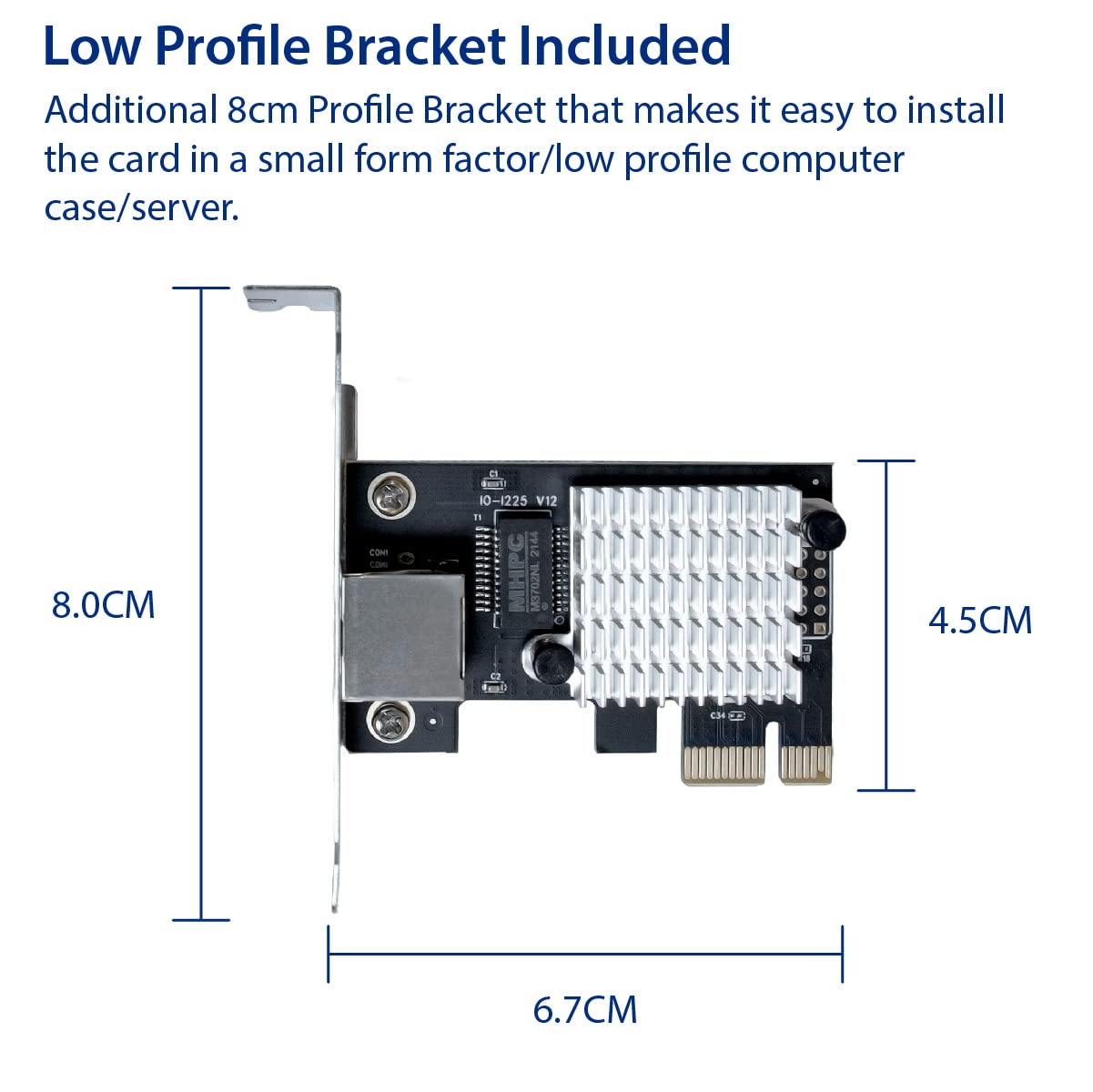

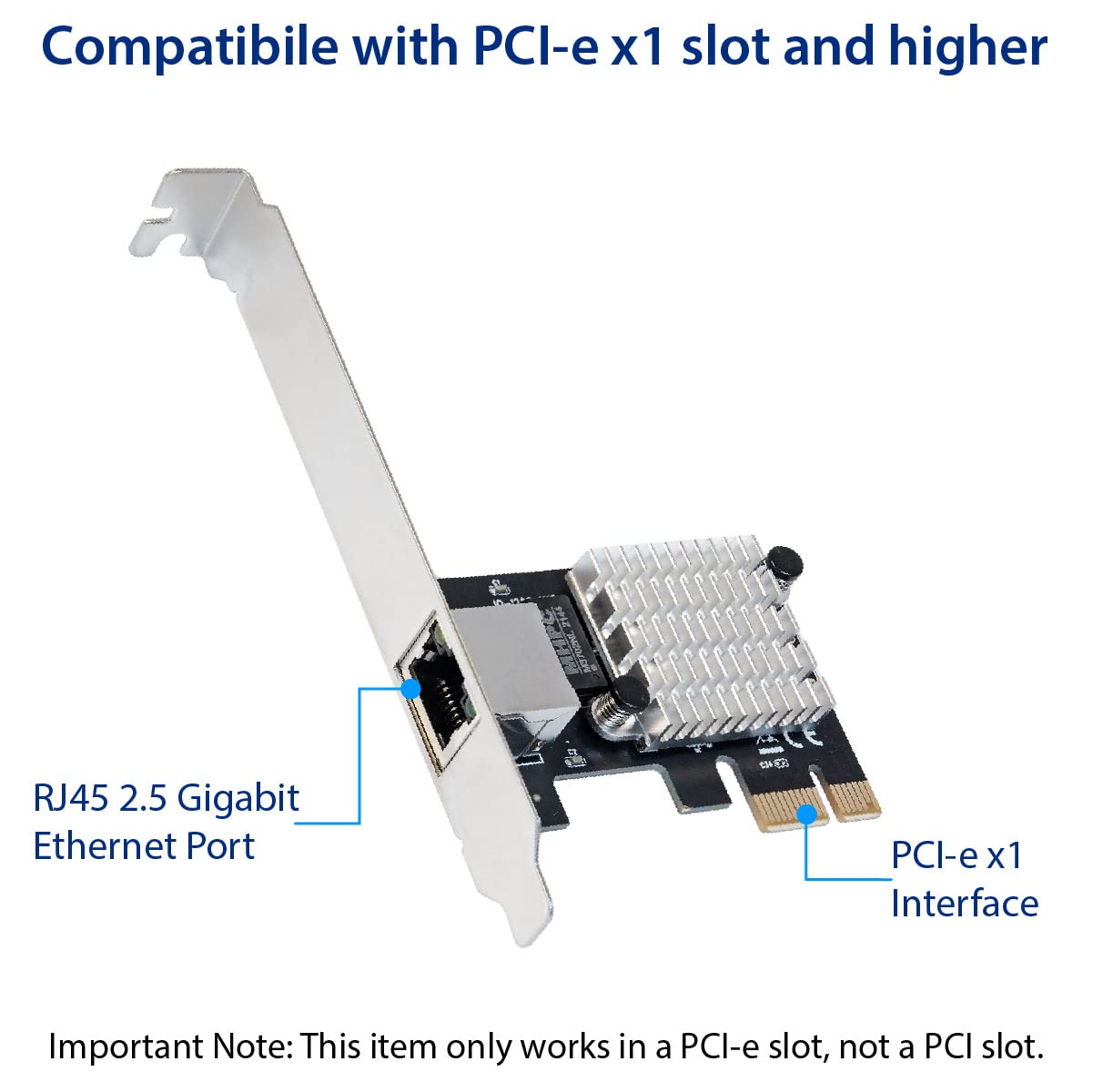

• What You Get: IO Crest 2.5 Gigabit PCI-E Network Card x1, Driver Disk x1, 8cm Low-profile Bracket x1. Backed by Syba 3 Year Hassle-free Warranty and Lifetime Customer Service. Important Note: Only work with PCI-E slot, Not for PCI Slot.

Product Details:

• Color: 2.5G
• Size: 1-Port 2.5G SY
• Model: SY-PEX24076
• Package Quantity: 1
