Brand: INTELLINET NETWORK SOLUTIONS

Add high-power PoE to a non-PoE network connection with this 1-port outdoor industrial Gigabit PoE++ injector. It delivers up to 60 W over Ethernet and supports IEEE 802.3bt, 802.3at and 802.3af powered devices, making it suitable for network cameras, wireless access points, VoIP phones and other compatible equipment. Gigabit 10/100/1000 Mbps performance and support for cable runs up to 328 ft. let you extend both data and power over existing network cabling. Built for demanding installations, the metal housing is rated IP67 for dustproof and waterproof protection and IK10 for vandal resistance. It is designed to operate in temperatures from -40 to 167°F and is also rated for shock, freefall and vibration to IEC 60068-2-27, IEC 60068-2-32 and IEC 60068-2-6. Auto-sensing PoE helps ensure power is sent only to IEEE-compliant PoE devices, while non-PoE devices receive data only. The injector features one RJ45 Gigabit data input, one RJ45 PoE plus Gigabit data output, and a 2-pin terminal block power input. It supports Cat5e, Cat6 and Cat6a UTP or STP cabling with RJ45 connections. Electrical protection includes short-circuit, overload and high-voltage protection, a grounding point for external surge protection, port surge protection up to 6 kV, and ESD protection up to 8 kV air and 6 kV contact. Plug-and-play operation requires no configuration. Mounting holes support wall installation, and the package includes an earthing kit, three IP67-rated cable glands, a wall-mounting kit and instructions. Unit size is 5.9 x 2.87 x 1.73 inches and weight is 16.76 oz.

Features:

• Add PoE power and Gigabit data to a non-PoE switch port with this 1-port injector, delivering up to 60 W over one Ethernet cable to compatible devices up to 328 ft. away while supporting 10/100/1000 Mbps network speeds.
• Built for exposed installations, the metal housing is rated IP67 for dustproof and waterproof protection and IK10 for vandal resistance, with operating temperatures from -40 to 167°F for dependable use in demanding outdoor environments.
• Works with IEEE 802.3bt, 802.3at and 802.3af powered devices including network cameras, wireless access points and VoIP phones, making it a practical way to connect higher-power PoE equipment where only a standard LAN port is available.
• Plug-and-play design requires no software or configuration, and auto-sensing PoE detects compliant devices before sending power so non-PoE equipment receives data only, helping simplify mixed-network deployments and reducing setup complexity.
• Protective features include short-circuit, overload and high-voltage protection, plus a grounding point for external electrical surges, port surge protection up to 6 kV, and ESD protection up to 8 kV air and 6 kV contact.

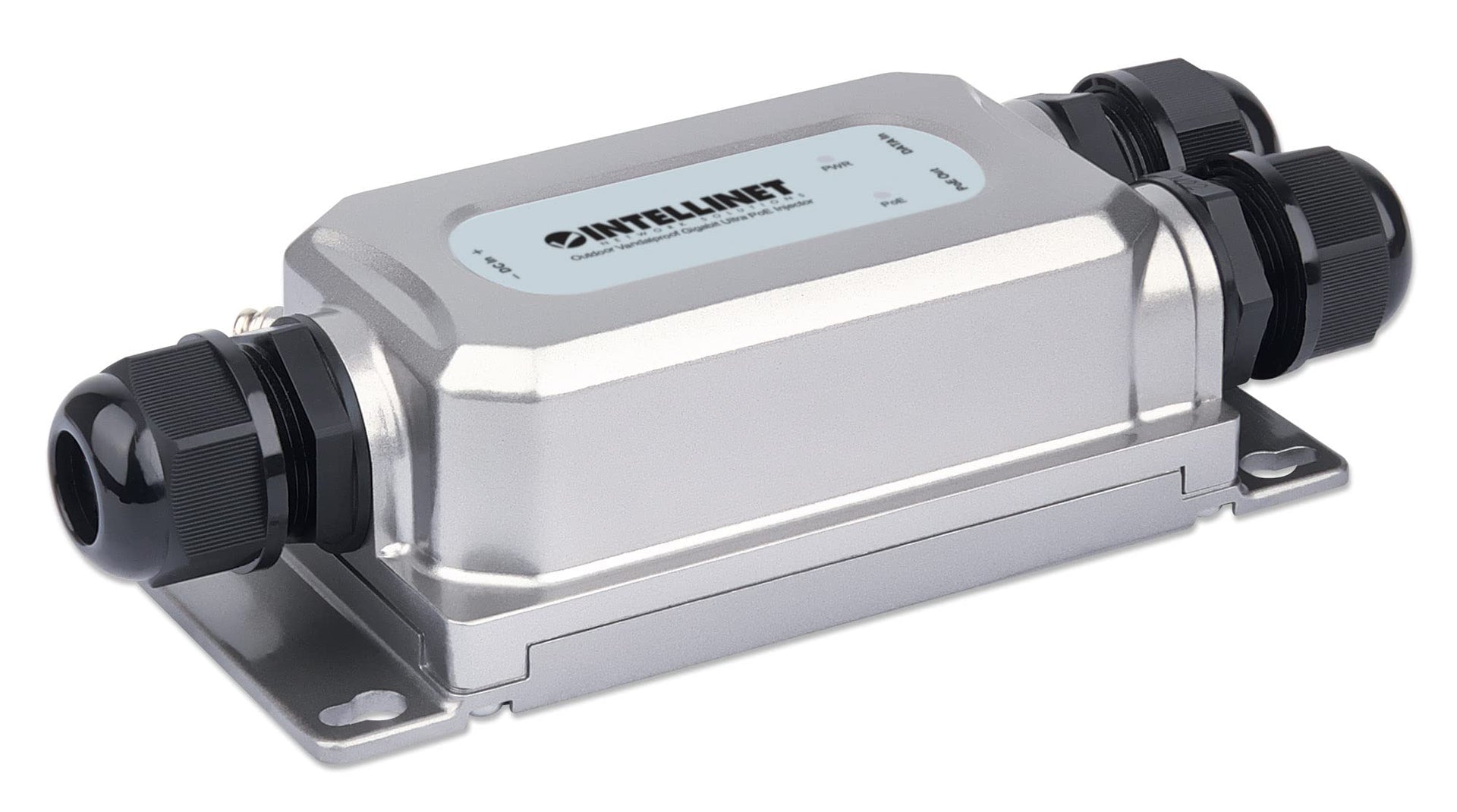

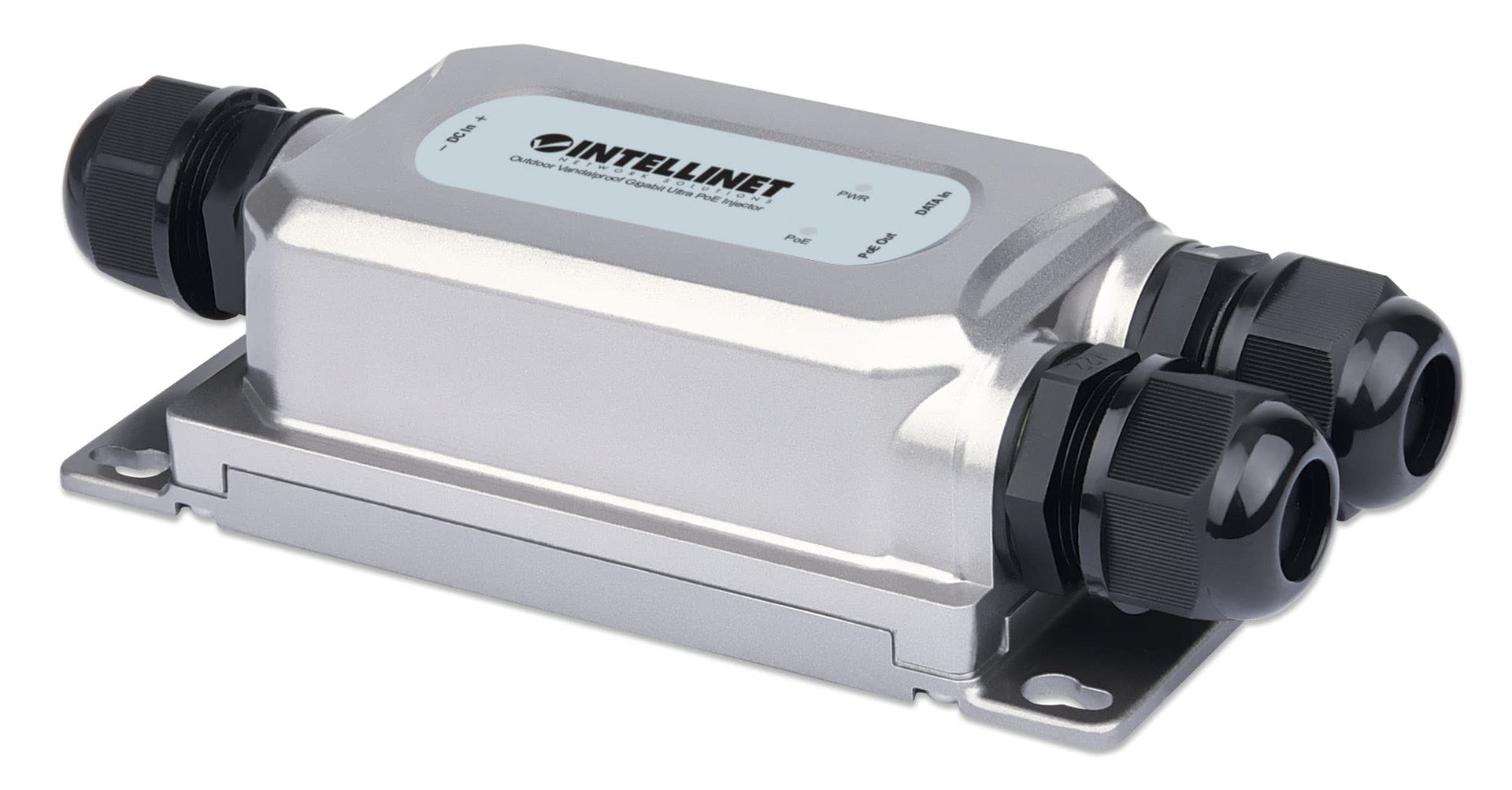

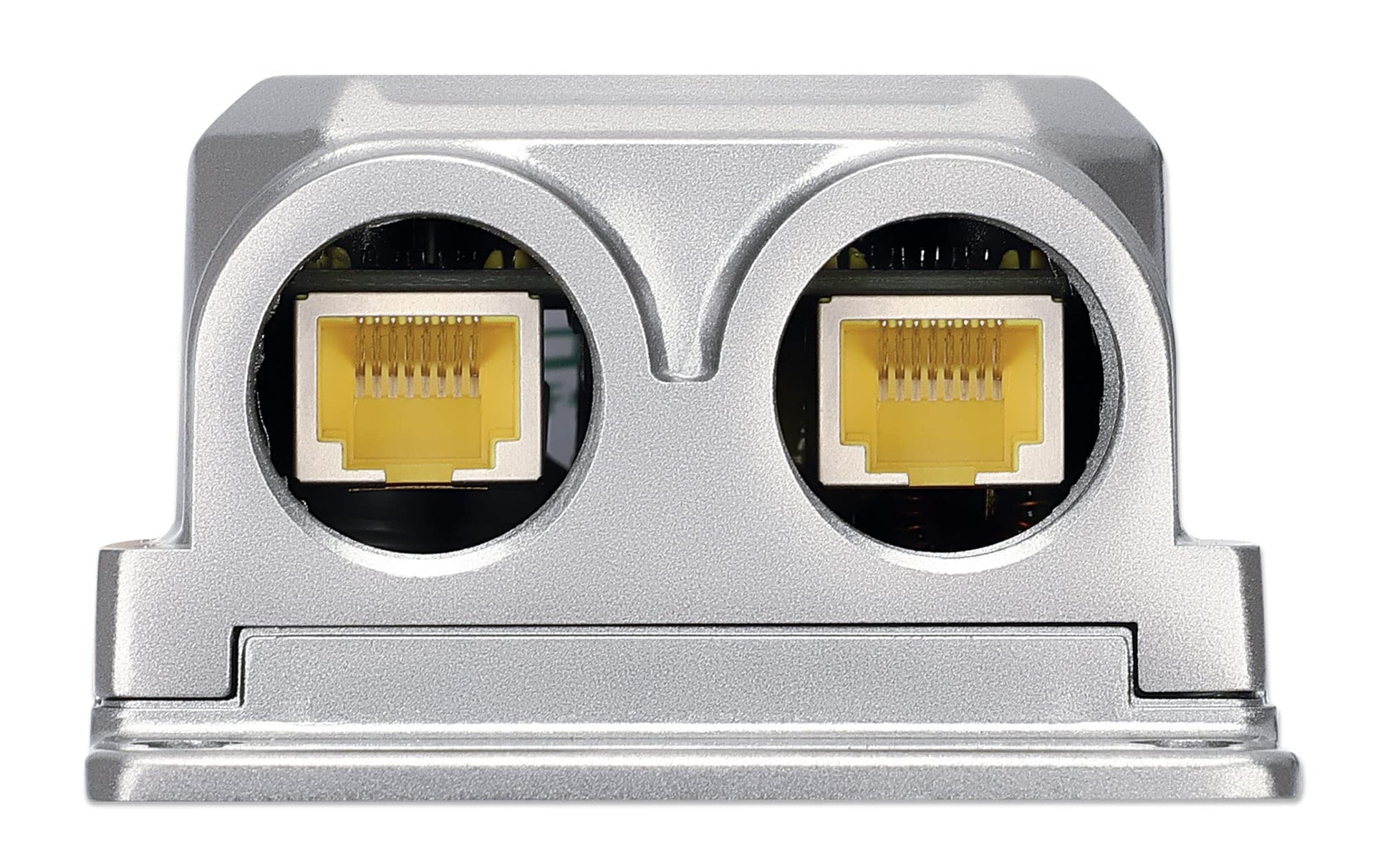

• Designed for industrial and outdoor mounting, it includes wall-mounting holes, a mounting kit, an earthing kit and three IP67-rated cable glands, helping create a sealed installation around the 1 RJ45 data input and 1 RJ45 PoE output ports.

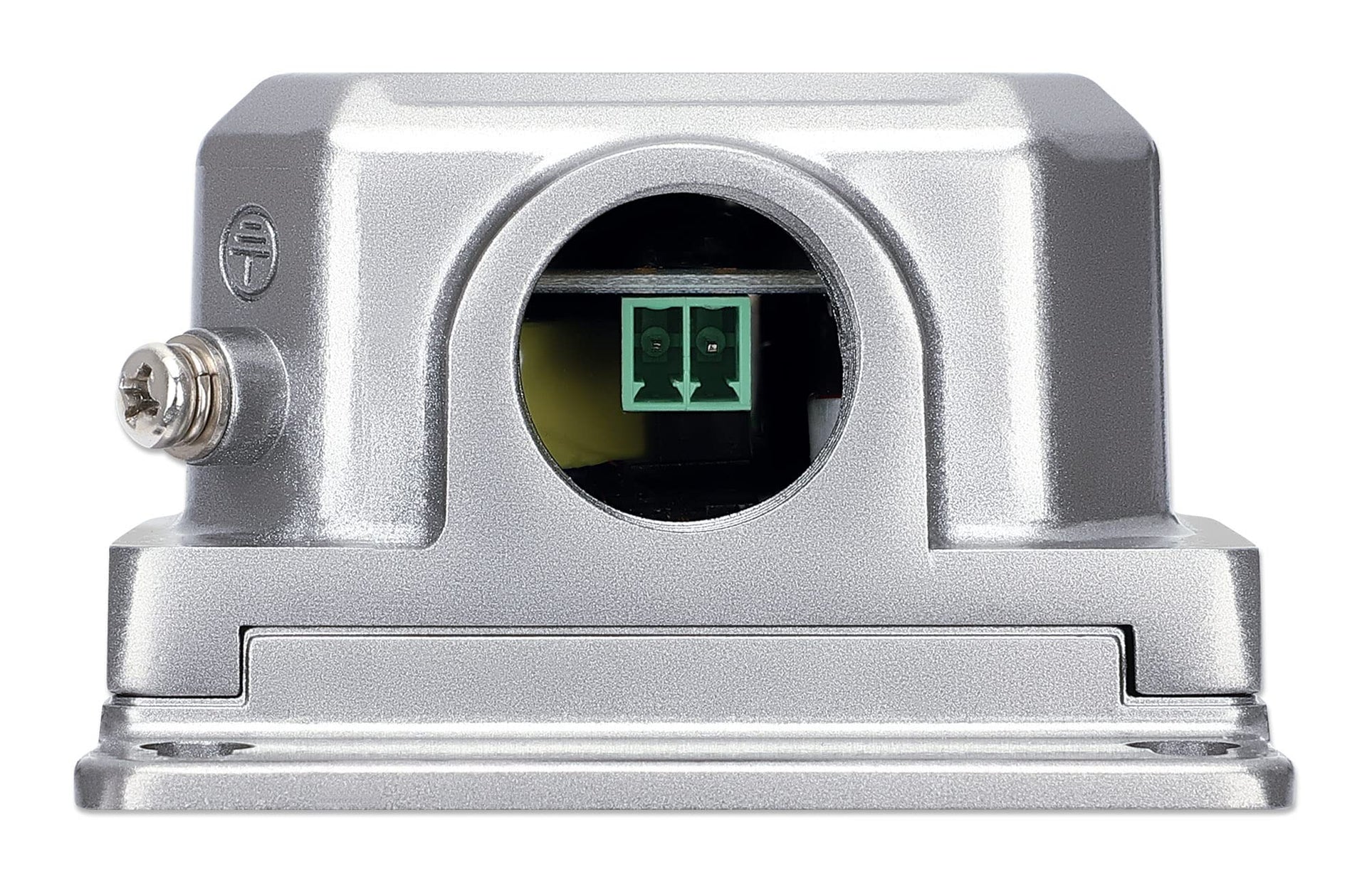

• This 4PPoE injector uses an RJ45 PoE output and a 2-pin terminal block power input, with a compact 5.9 x 2.9 x 1.73 in. body and ratings for shock, freefall and vibration under IEC 60068 test methods for added installation confidence.

Product Details:

• Size: 5.9 x 2.9 x 1.73 inches
• Model: Injector PoE++ / 1-Port / IP67 / IK10
• Package Quantity: 1
