Brand: INTELLINET NETWORK SOLUTIONS

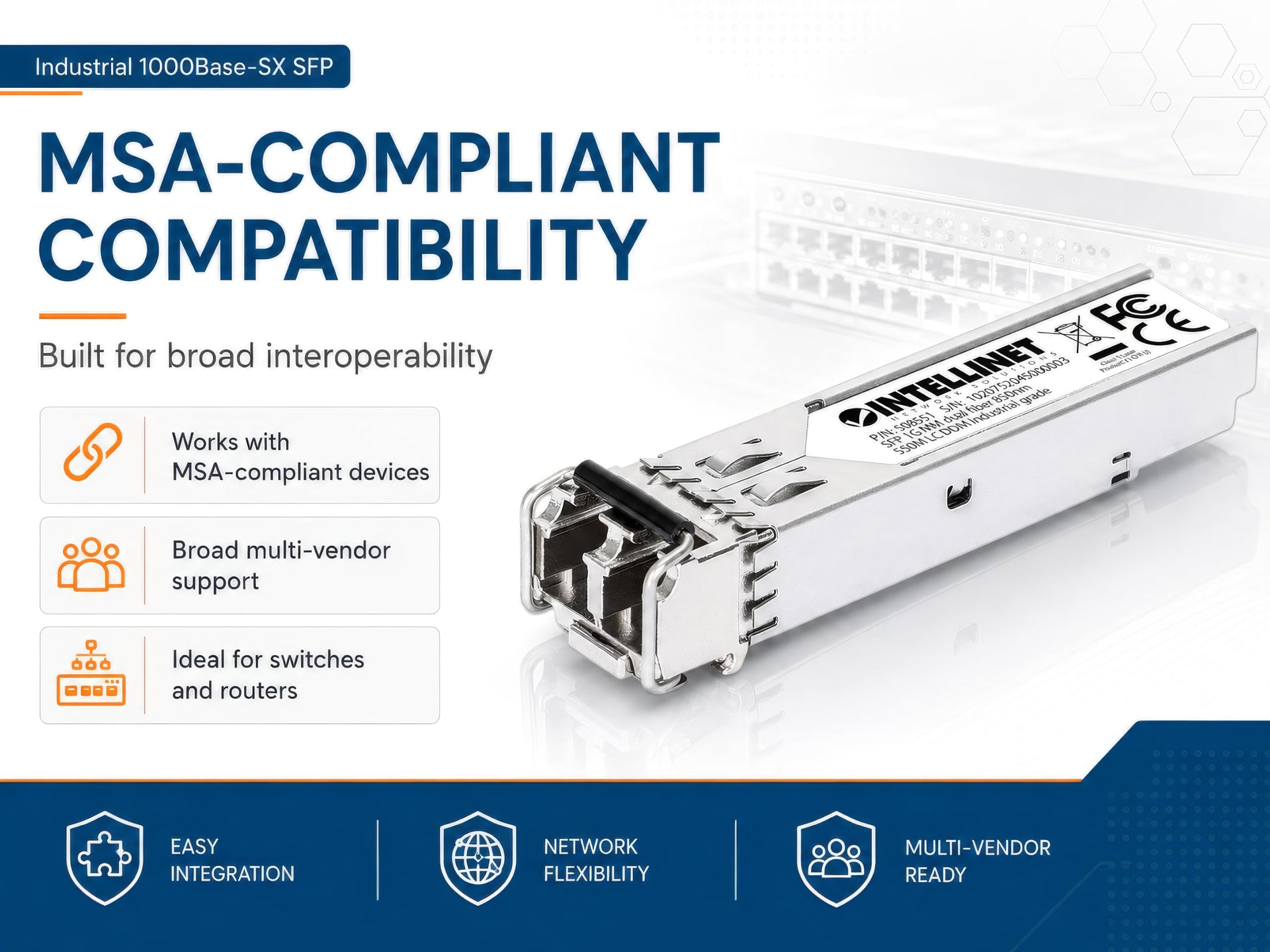

Designed for Gigabit Ethernet fiber links in industrial and commercial networks, this Intellinet 1000Base-SX SFP transceiver delivers 1000 Mbps over multimode fiber through an LC duplex port at 850 nm. It supports 50/125 µm and 62.5/125 µm multimode fiber with transmission distances up to 1800 ft. The standard SFP form factor is hot-pluggable, making it easy to add or replace in compatible equipment without powering down the host device. Built with a fully metallic housing to help reduce electromagnetic interference, it is suited for demanding environments with an operating temperature range of -40 to 185°F and storage range of -40 to 185°F. DDM/DOM support provides real-time monitoring data such as optical input and output power, temperature, laser bias current, and supply voltage. This module is MSA-compliant for broad compatibility with MSA-compliant switches and SFP-enabled equipment, and it follows IEEE 802.3z for Fiber Optic Gigabit Ethernet. Power requirement is 3.3 V with maximum power consumption of 1.0 watt. Module dimensions are 2.24 x 0.55 x 0.47 in. Package includes one transceiver module.

Features:

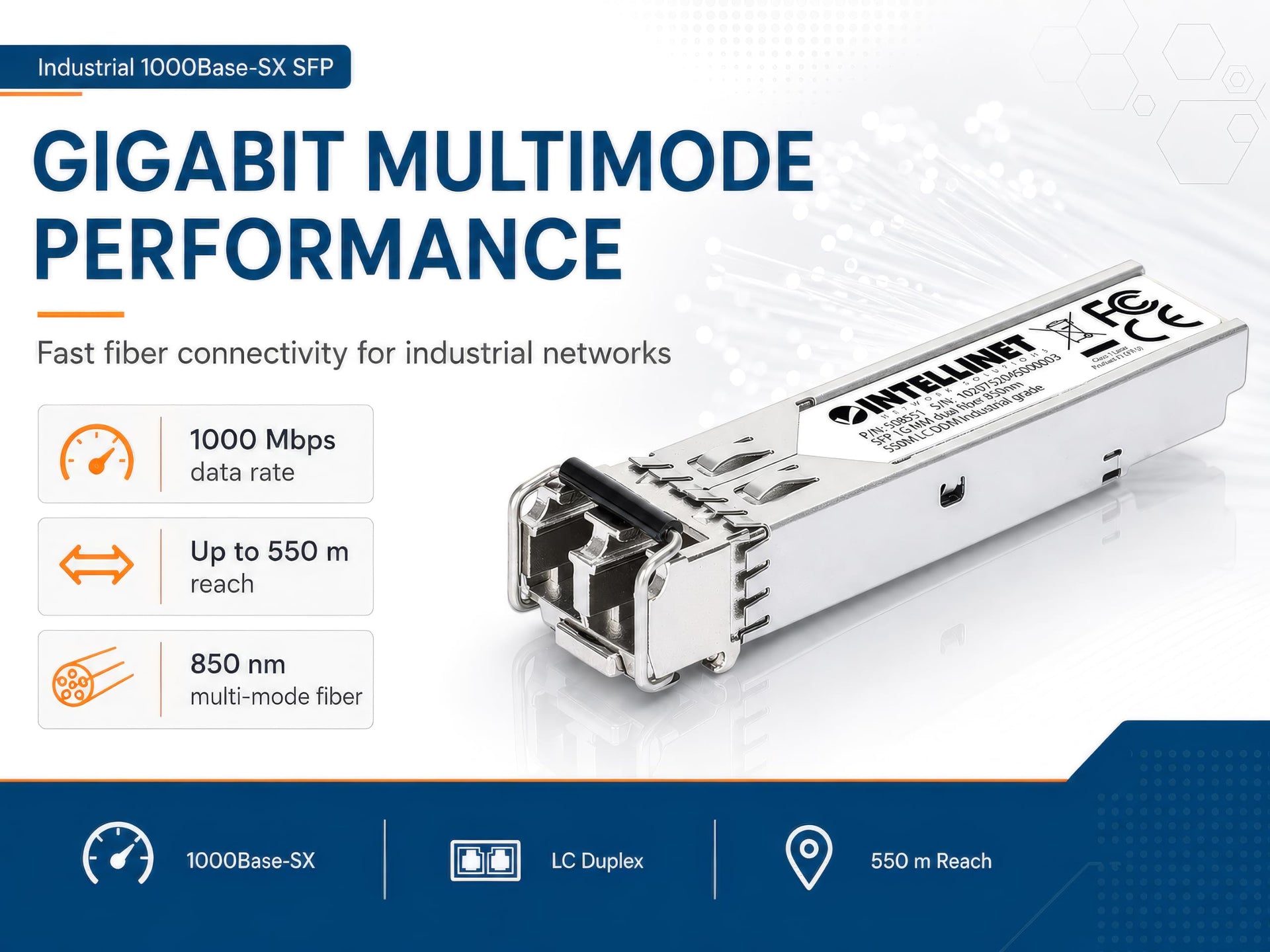

• 1000Base-SX SFP transceiver with LC duplex port supports Gigabit Ethernet over multimode fiber at 1000 Mbps using an 850 nm wavelength.
• Works with 50/125 µm and 62.5/125 µm multimode fiber and supports link distances up to 1800 ft. for short-range fiber runs.

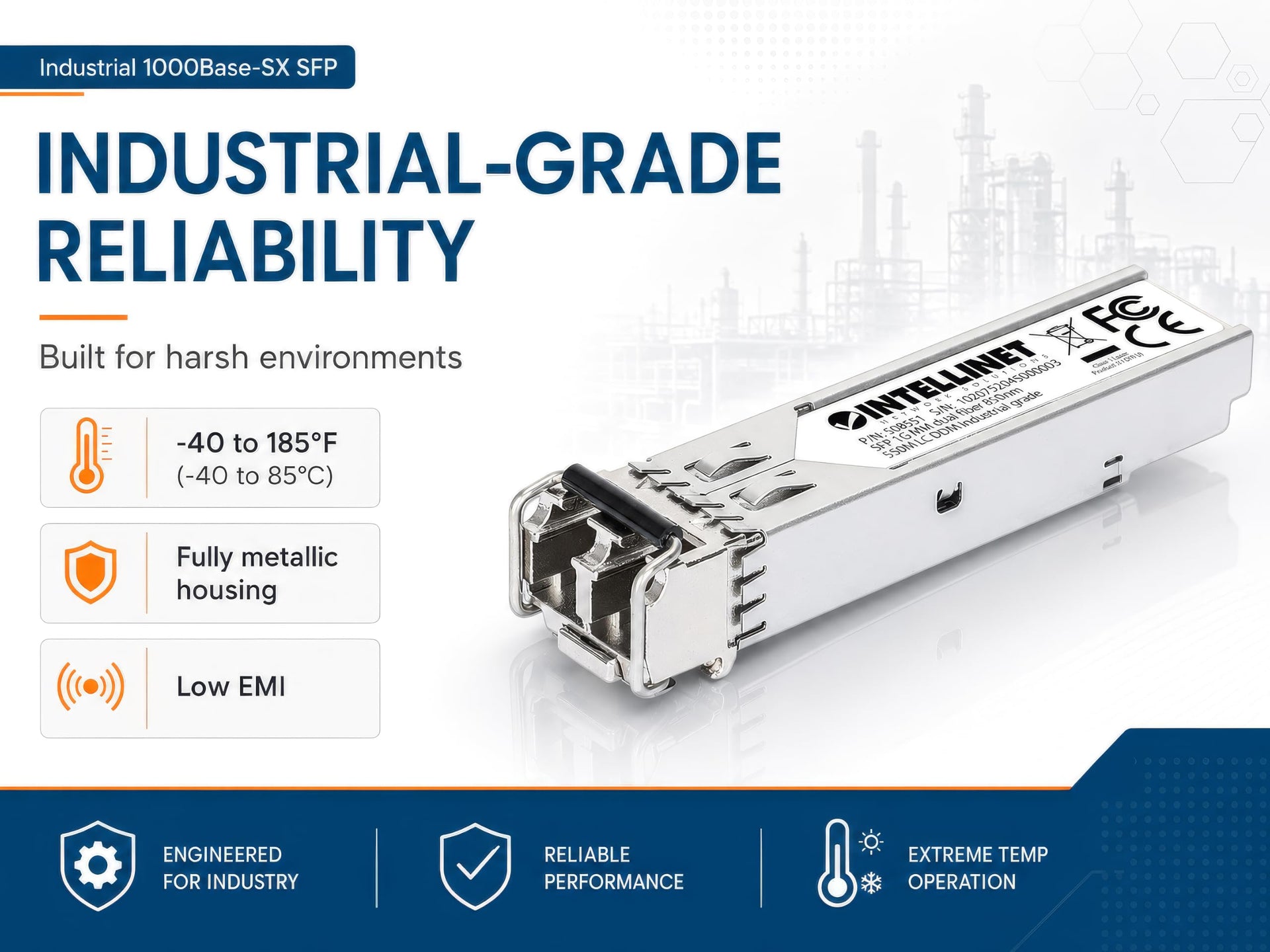

• Industrial temperature range of -40 to 185°F helps maintain network links in demanding environments such as factory floors and outdoor enclosures.

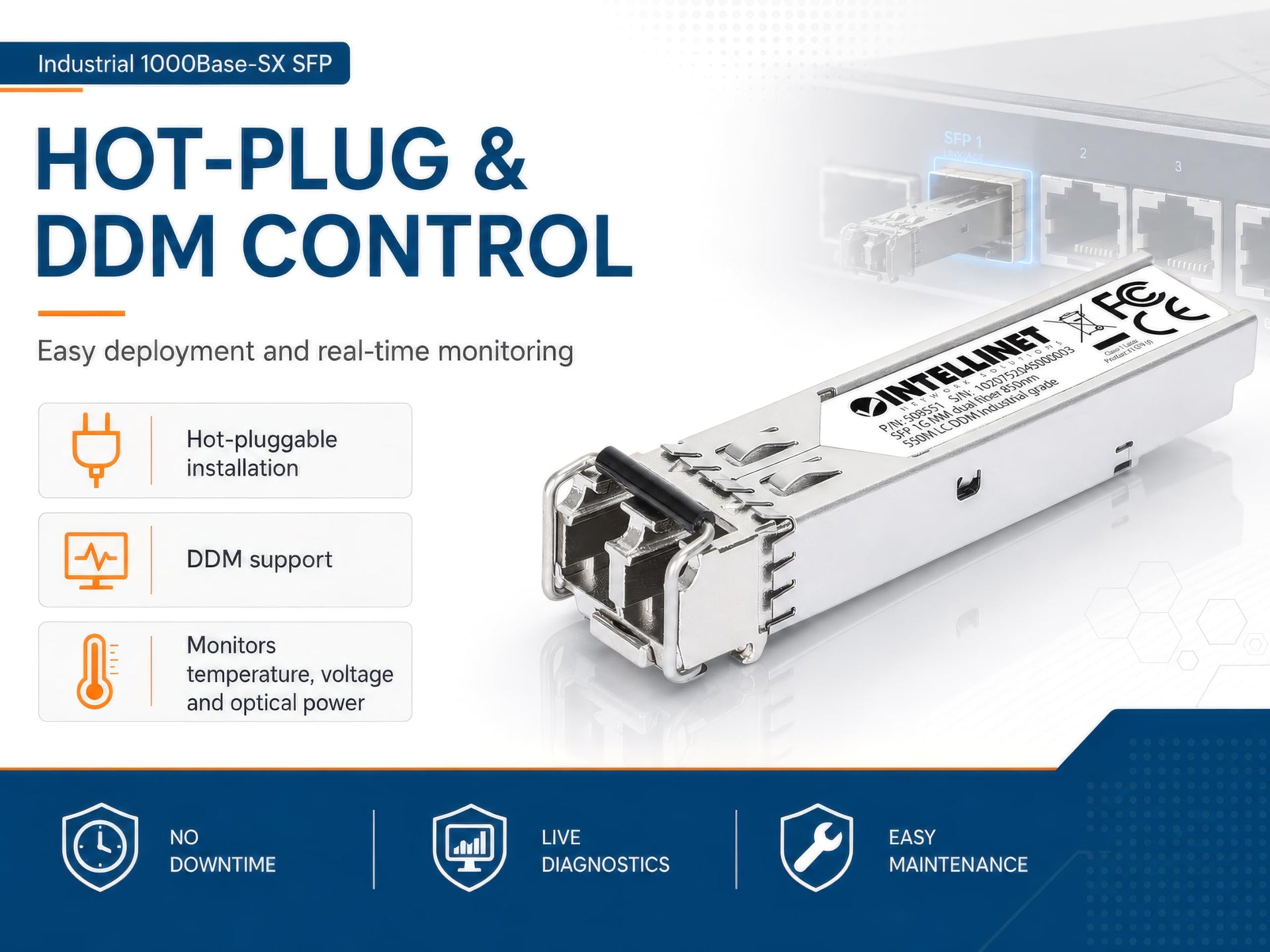

• Hot-pluggable SFP form factor lets you install or replace the module in compatible equipment without shutting down the connected device.
• DDM/DOM support reports real-time transceiver data including optical input and output power, temperature, laser bias current, and supply voltage.

Product Details:

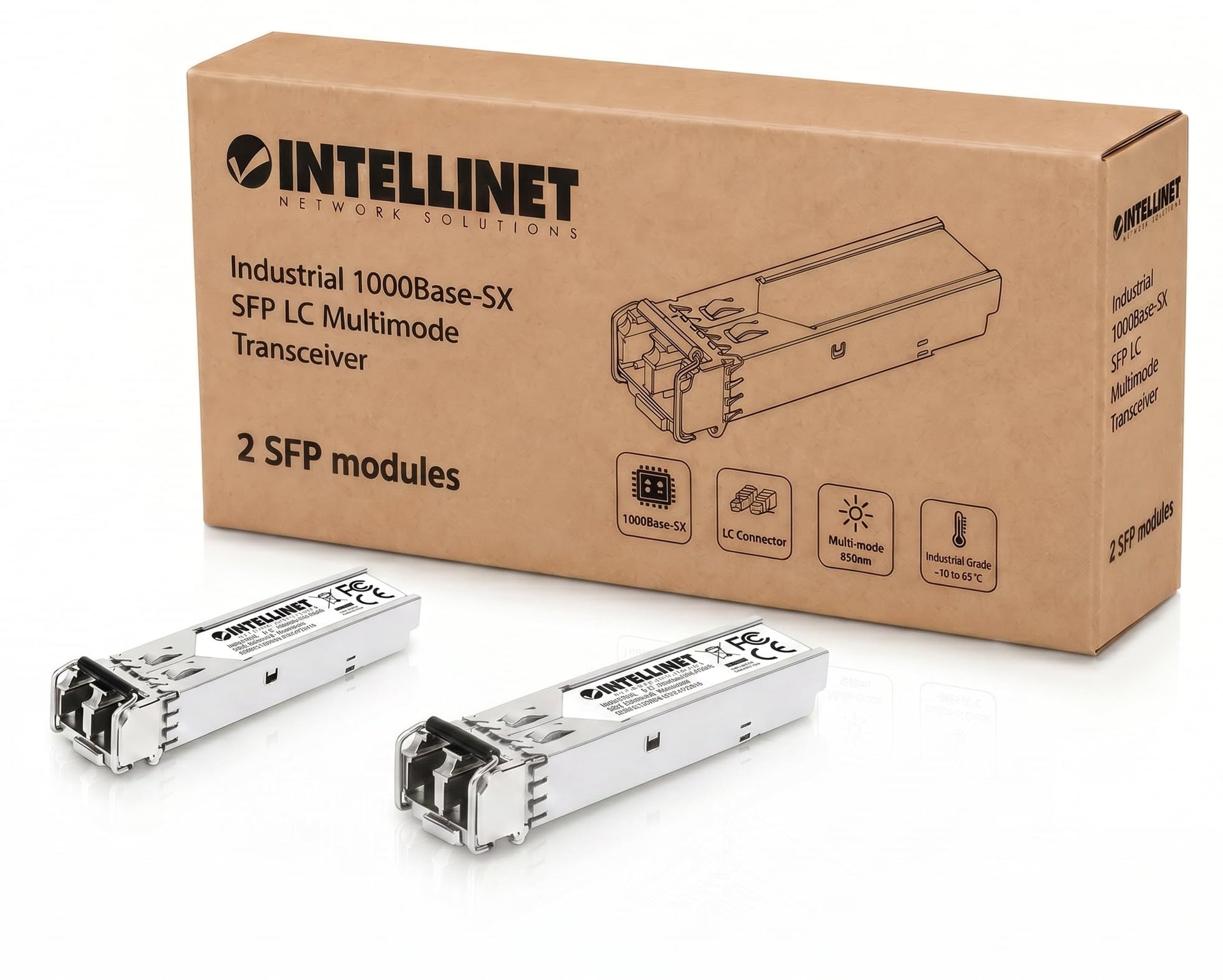

• Size: 2 pcs
• Package Quantity: 2
