Brand: INTELLINET NETWORK SOLUTIONS

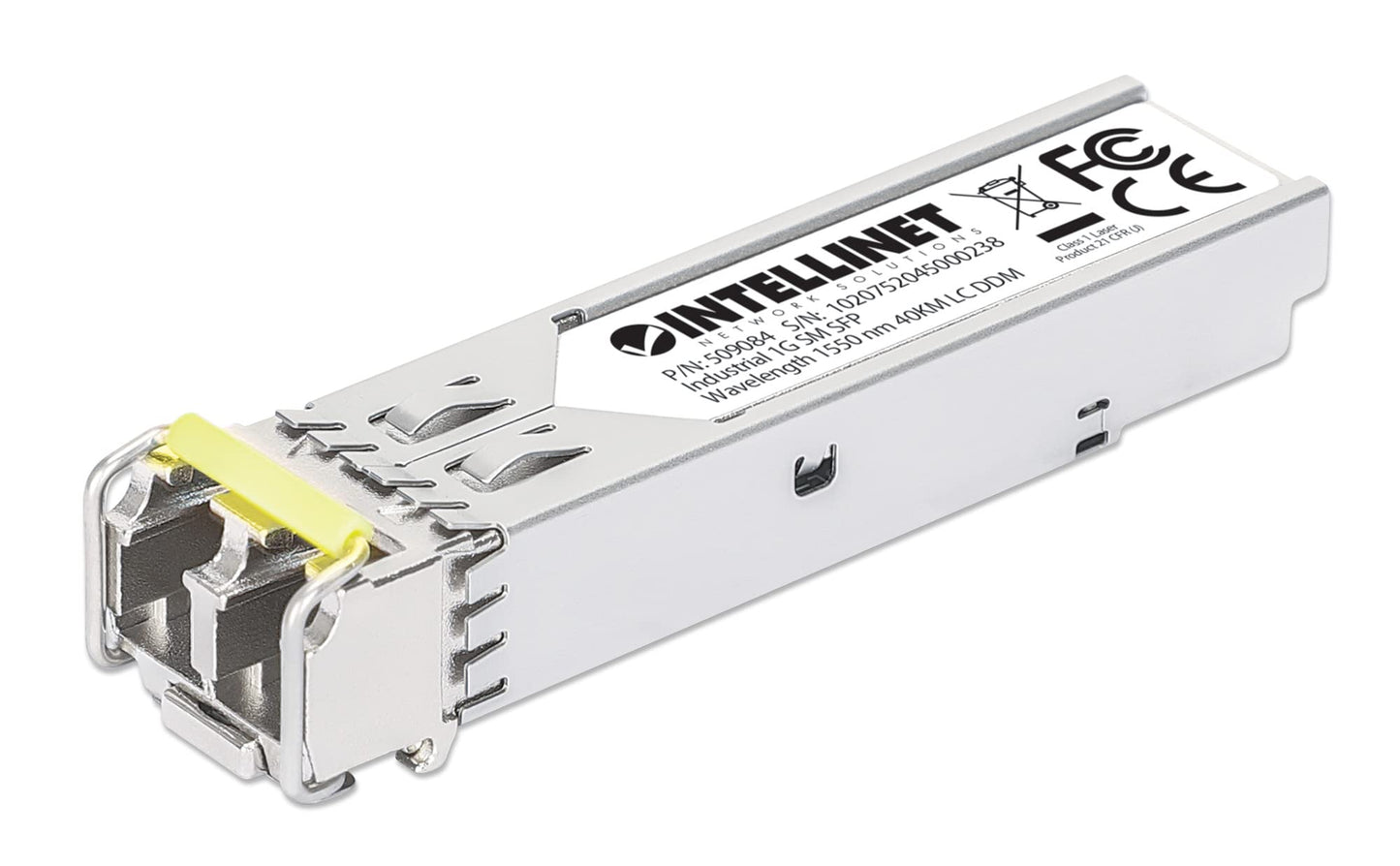

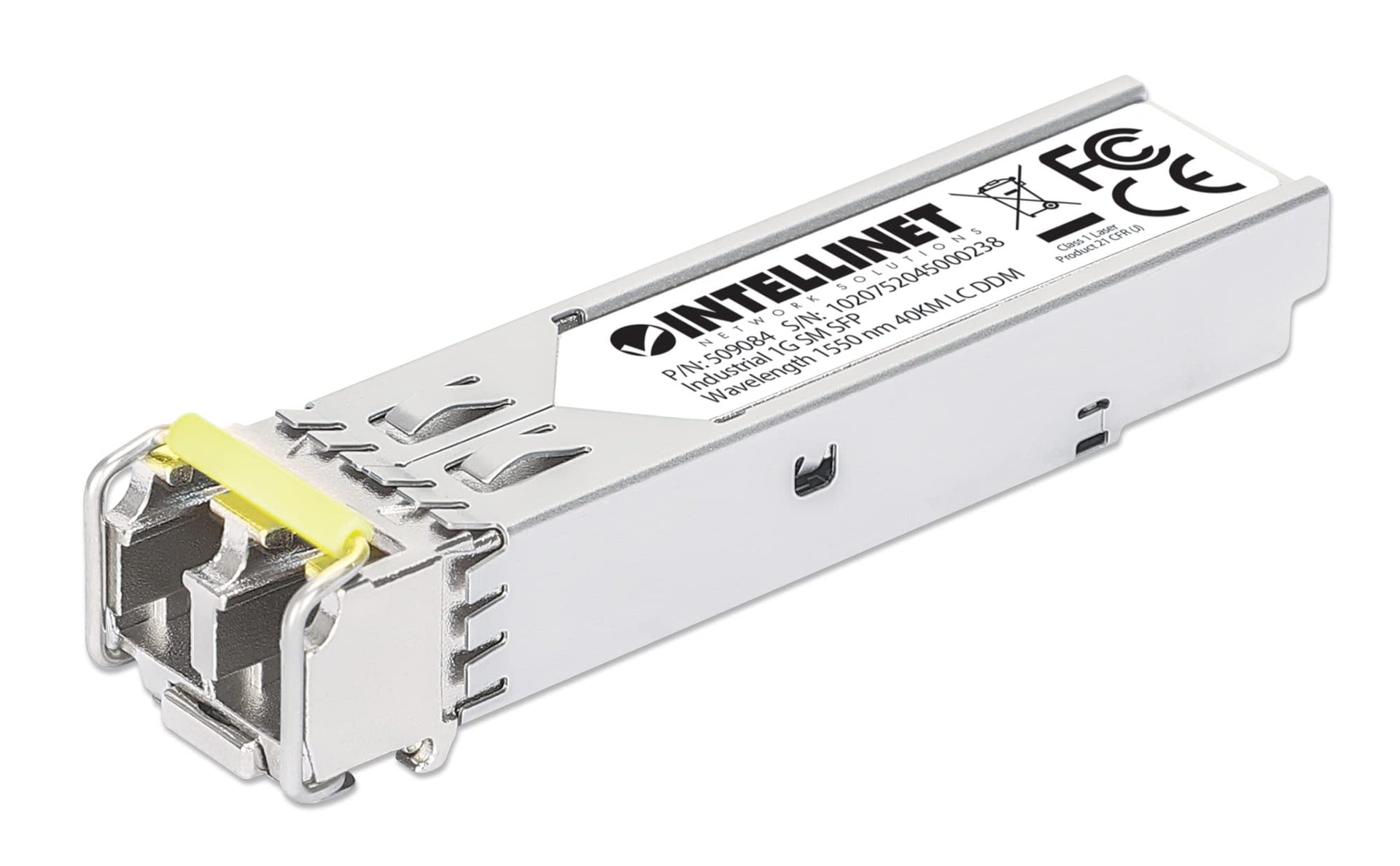

Built for Gigabit fiber links in industrial and commercial networks, this 1000Base-EX SFP transceiver delivers 1000 Mbps over single-mode 9/125 µm fiber through one LC duplex port. It operates at 1550 nm and supports link distances up to 40 km, or 25 miles, making it suitable for longer single-mode runs between compatible SFP-enabled switches and networking equipment. The standard hot-pluggable SFP form factor is MSA-compliant for straightforward installation in compatible hardware. SFF-8472 digital diagnostics monitoring support provides reporting for optical power, temperature, laser bias current, and supply voltage when used with compatible equipment. A fully metallic housing helps reduce electromagnetic interference, and the module is designed for demanding environments with an operating temperature range of -40 to 185°F and 5 to 95% non-condensing humidity. Additional specifications include 3.3 V power input, 1.0 W maximum power consumption, and a 19 dB power budget. Compact dimensions of 2.24 x 0.55 x 0.5 inches help it fit standard SFP applications where space is limited.

Features:

• Built for Gigabit fiber links, this 1000Base-EX SFP transceiver delivers 1000 Mbps over single-mode 9/125 µm fiber through one LC duplex port, giving compatible switches and networking equipment a compact uplink for optical connections.
• Designed for extended single-mode runs, it operates at 1550 nm and supports link distances up to 25 miles or 40 km, making it suitable for longer fiber connections where standard copper cabling cannot reach between network points.
• Industrial-ready construction supports operation from -40 to 185°F and uses a fully metallic housing to help reduce electromagnetic interference, making this module a practical choice for installations exposed to broad temperature swings.
• The standard hot-pluggable SFP form factor is MSA-compliant for use with compatible SFP-enabled switches and networking equipment, allowing installation or replacement without powering down the connected device or interrupting setup.
• Electrical specifications include 3.3 V power input, 1.0 W maximum power consumption, and a 19 dB power budget, providing clear planning details for network deployments that require defined optical and power characteristics.

Product Details:

• Size: 1 pc
• Package Quantity: 1
