Brand: INTELLINET NETWORK SOLUTIONS

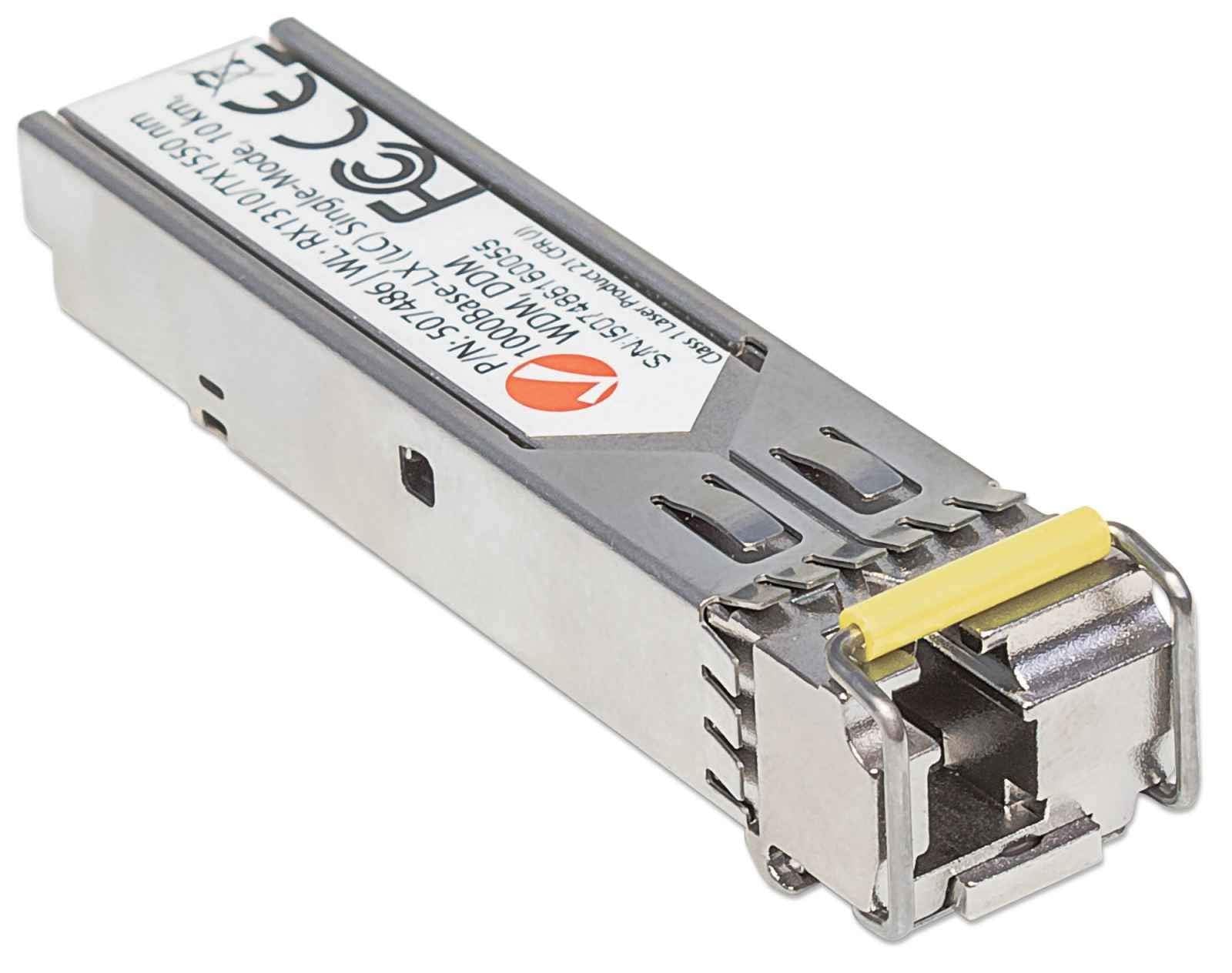

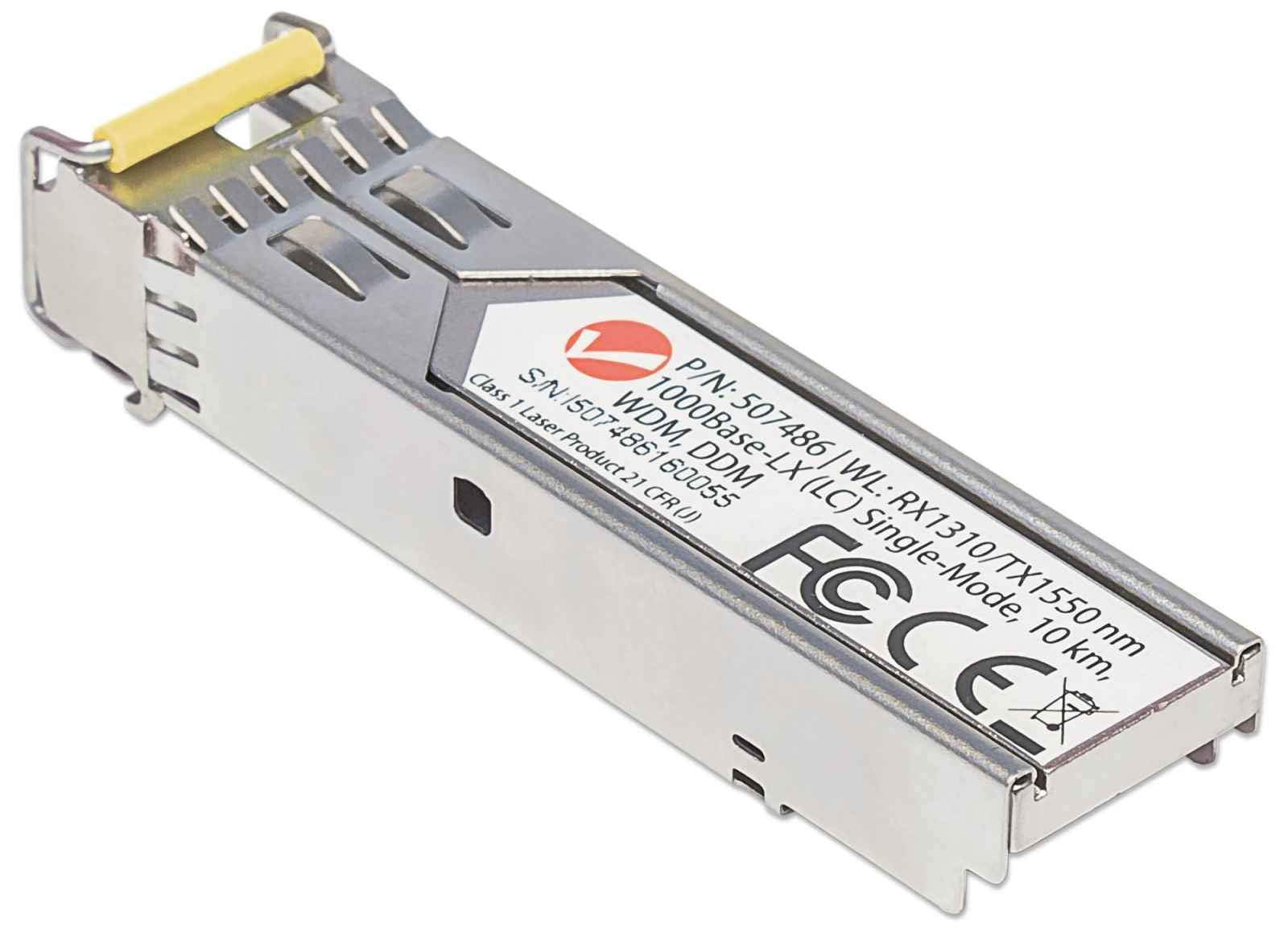

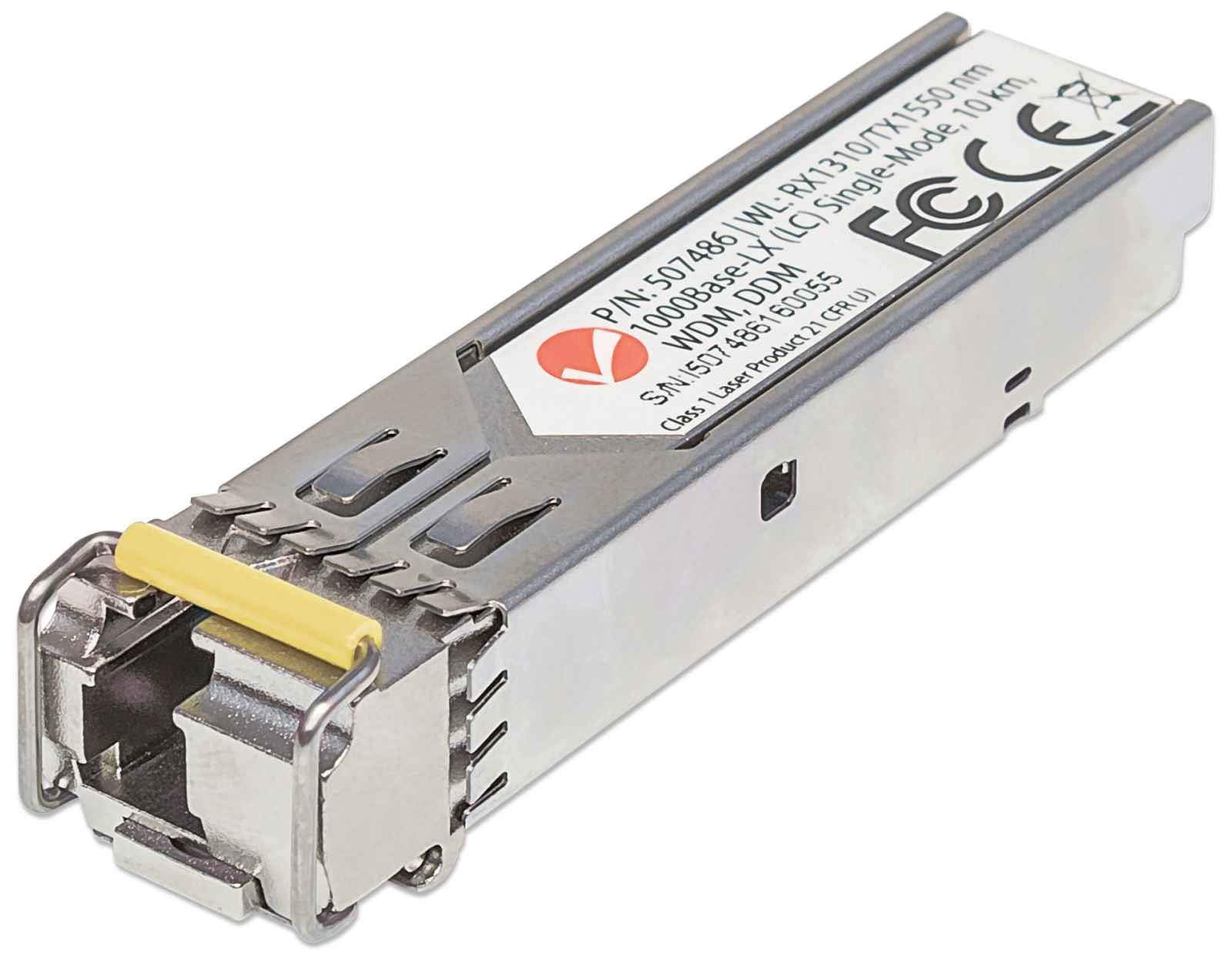

Title: Intellinet Gigabit WDM Bi-Directional SFP, 1310/1550nm, LC, DDM Product Description: This Intellinet Gigabit WDM bi-directional SFP transceiver module is designed for 1000Base-LX single-mode fiber links at 1000 Mbps and supports distances up to 10 km (6.2 miles). WDM technology allows transmit and receive signals to travel over a single strand of 9/125 µm single-mode fiber using separate wavelengths, with 1310 nm receive and 1550 nm transmit. It uses a standard SFP form factor for installation in compatible SFP slots and supports hot-plugging for replacement or deployment without shutting down the host device. The LC fiber interface, digital diagnostics monitoring, and fully metallic housing provide practical monitoring and low-EMI performance for managed network environments. Optical specifications include a 16 dB power budget, transmit output of -8 to -3 dBm, and receiver sensitivity down to -24 dBm. The module operates on 3.3 V with maximum power consumption of 1.0 watt and is sized at 2.24 x 0.55 x 0.5 inches, weighing 1.3 ounces. Operating temperature range is 32 to 158°F with 10 to 85% non-condensing humidity. This module must be used with the matching opposite-wavelength transceiver, Intellinet model 507509.

Features:

• Gigabit WDM bi-directional SFP transceiver supports 1000 Mbps data transfer and up to 1.25 Gbps communication for 1000Base-LX single-mode fiber links.
• Uses WDM technology to send and receive over one strand of single-mode fiber with 1310 nm receive and 1550 nm transmit wavelengths.
• Supports fiber runs up to 10 km or 6.2 miles on 1000Base-LX single-mode networks when paired with the required opposite-wavelength module.
• Must be used with the matching Intellinet 507509 transceiver module for proper WDM bi-directional operation.
• Standard SFP form factor fits Gigabit Ethernet switches and other devices with MSA-compliant or Cisco-compatible SFP ports.
• Hot-pluggable design allows installation or replacement without powering down the host device, helping simplify network maintenance.
• Digital diagnostics monitoring helps track module status, while the fully metallic housing helps reduce EMI in compact network setups.

Product Details:

• Size: 1310 RX/1550 TX nm
• Model: 507486
• Package Quantity: 1
