Brand: INTELLINET NETWORK SOLUTIONS

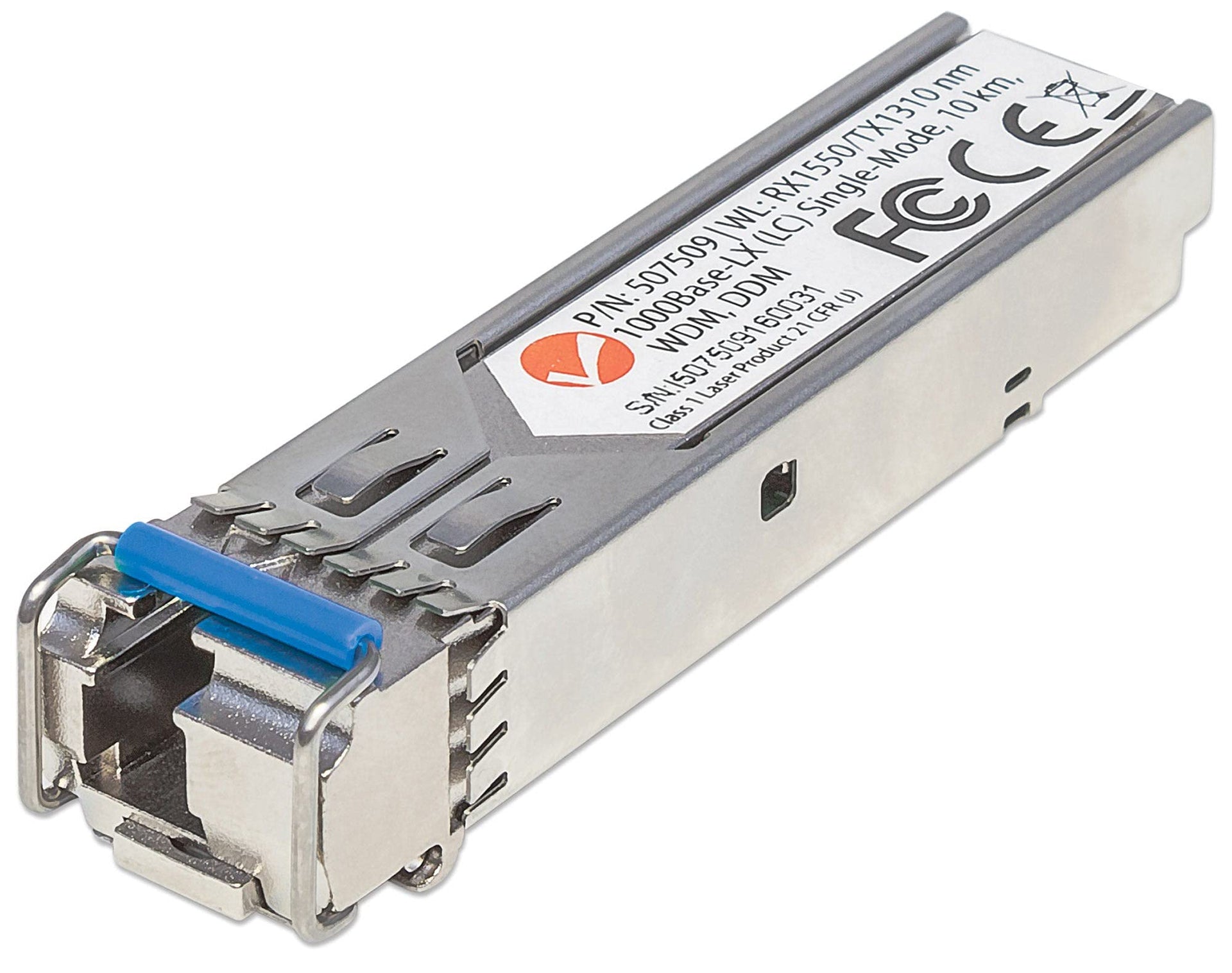

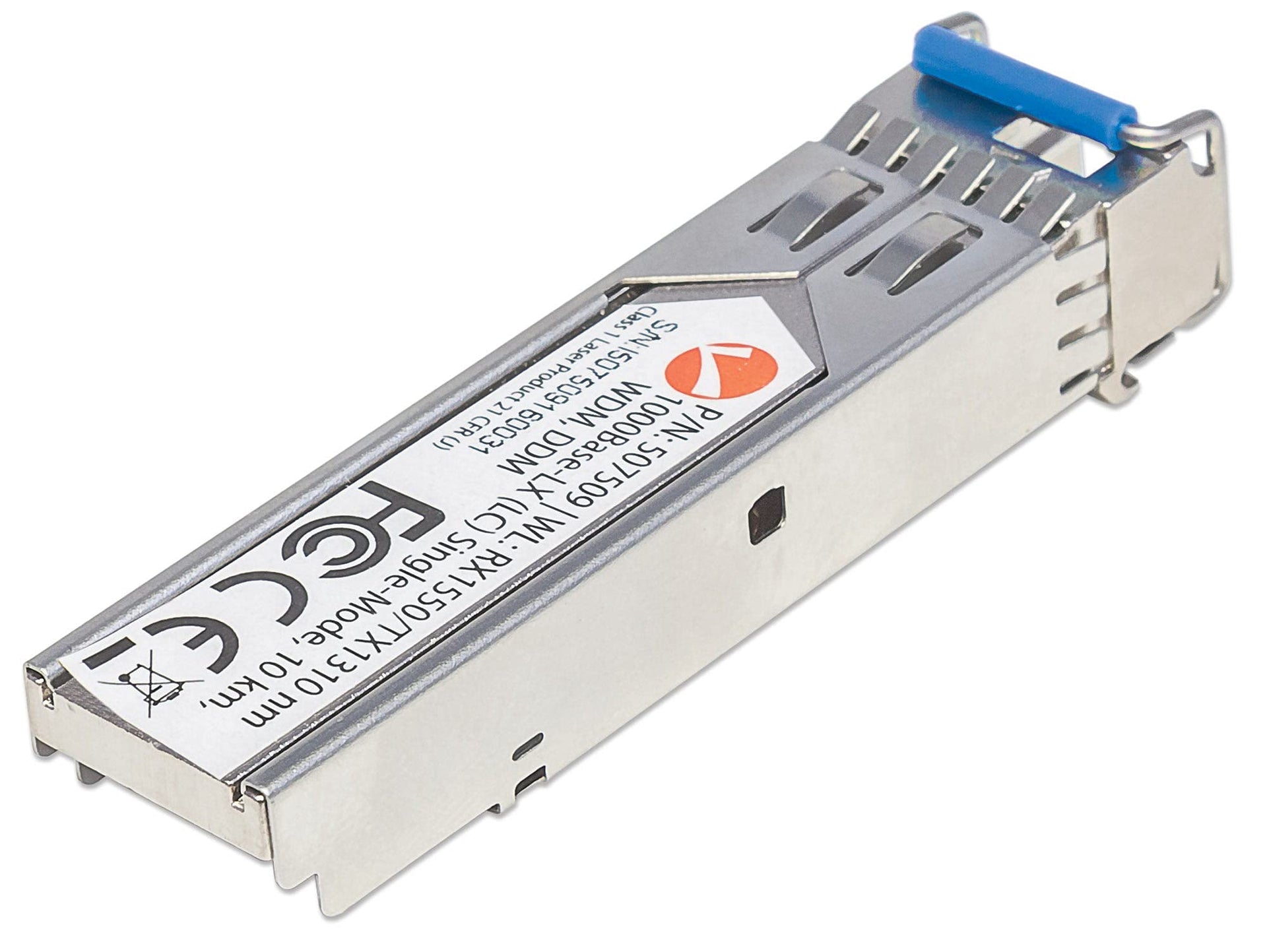

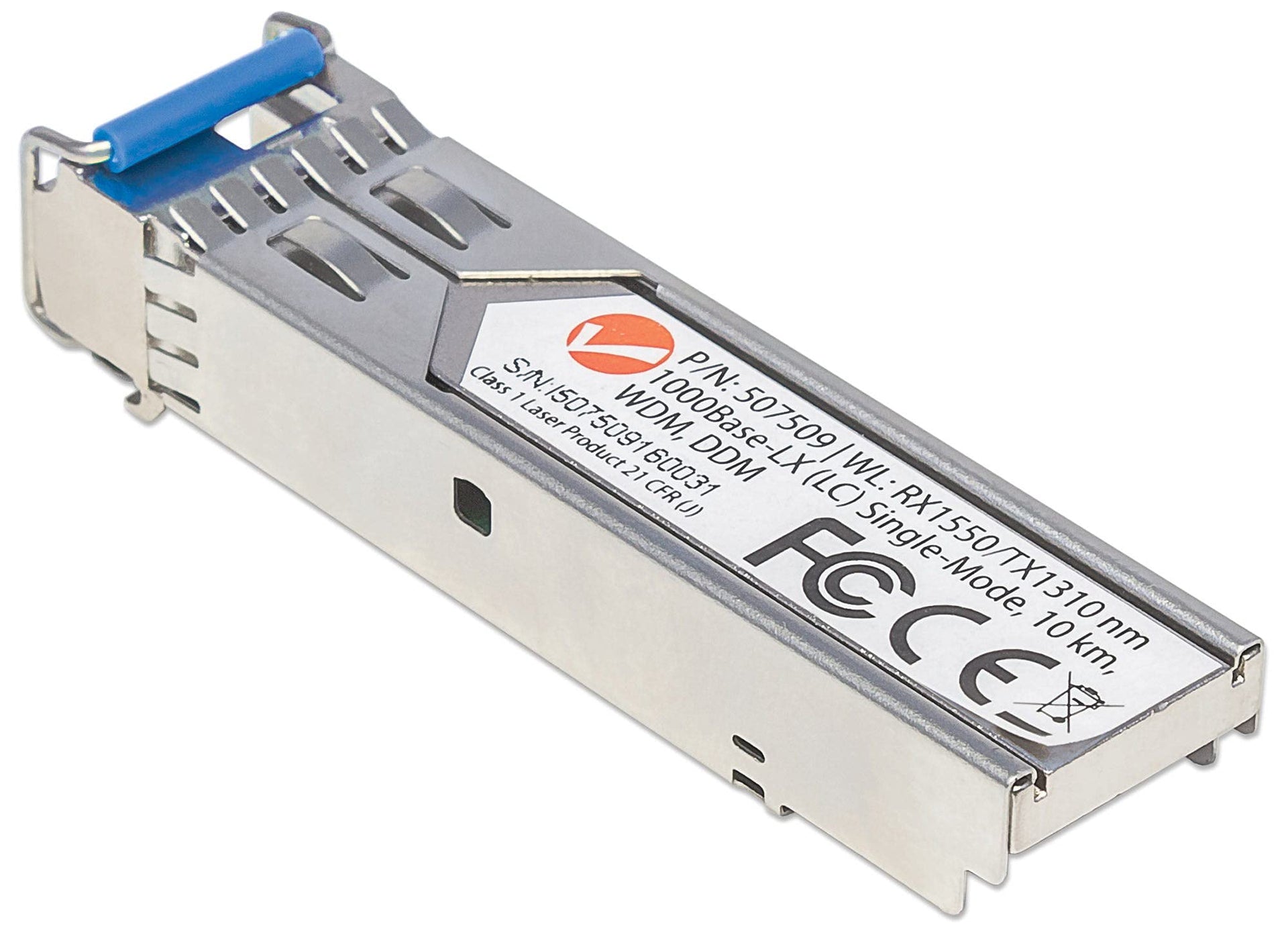

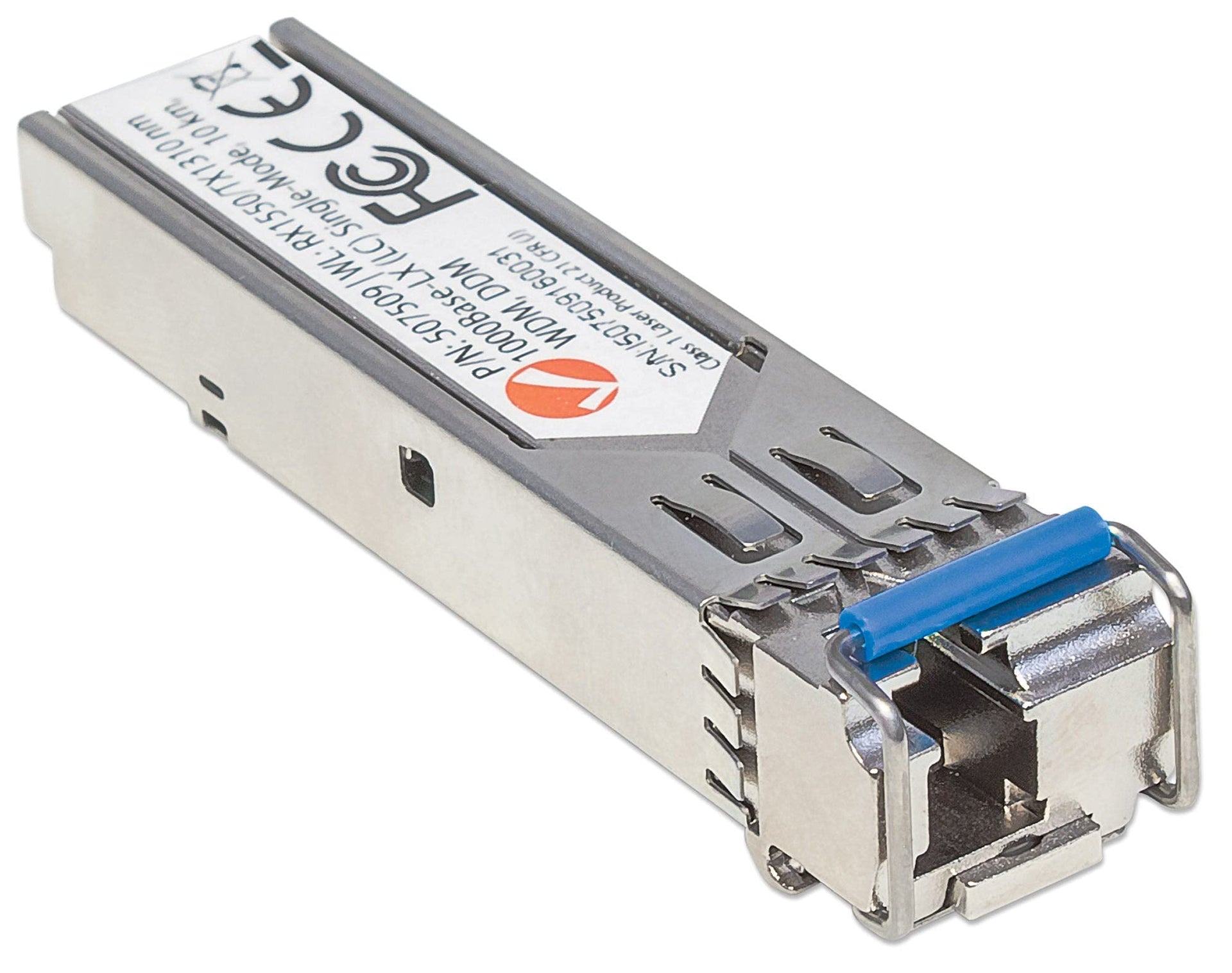

Title: Intellinet Gigabit WDM Bi-Directional SFP, 1550/1310 nm, DDM Product Description: This Gigabit WDM bi-directional SFP optical transceiver module is designed for 1000Base-LX single-mode 9/125 µm fiber connections over a single fiber strand. It transmits at 1310 nm and receives at 1550 nm, supporting data transfer up to 1000 Mbps with link distances up to 6.2 miles. The compact SFP form factor fits MSA-compliant SFP ports and supports hot-plugging for installation or replacement without shutting down connected equipment. Digital diagnostics monitoring provides access to operating data for status checks and troubleshooting, while the fully metallic housing helps reduce EMI. The module uses one LC port, draws up to 1.0 watt from a 3.3 V supply, and measures 2.24 x 0.55 x 0.5 inches. It operates from 32 to 158°F in 10 to 85% non-condensing humidity. For bi-directional operation, this module must be paired with the matching companion transceiver model 507486 or equivalent paired module.

Features:

• Gigabit WDM bi-directional SFP transceiver supports 1000 Mbps data transfer over a single strand of 9/125 µm single-mode fiber.
• Uses 1310 nm transmit and 1550 nm receive wavelengths through one 1000Base-LX LC port for single-fiber network links.
• Designed for link distances up to 10 km, or 6.2 miles, making it suitable for longer point-to-point fiber connections.
• Hot-swappable SFP form factor fits MSA-compliant SFP ports, allowing installation or replacement without shutting down connected equipment.
• Digital diagnostics monitoring provides operating data for status checks and troubleshooting during deployment and maintenance.
• Fully metallic housing helps reduce EMI, with maximum power draw of 1.0 watt from a 3.3 V supply.
• For bi-directional operation, pair this module with Intellinet model 507486, Cisco GLC-BX-D, or an equivalent matching transceiver.

Product Details:

• Color: Red
• Size: 1550 RX/1310 TX nm
• Model: 507509
• Package Quantity: 1
