Brand: INTELLINET NETWORK SOLUTIONS

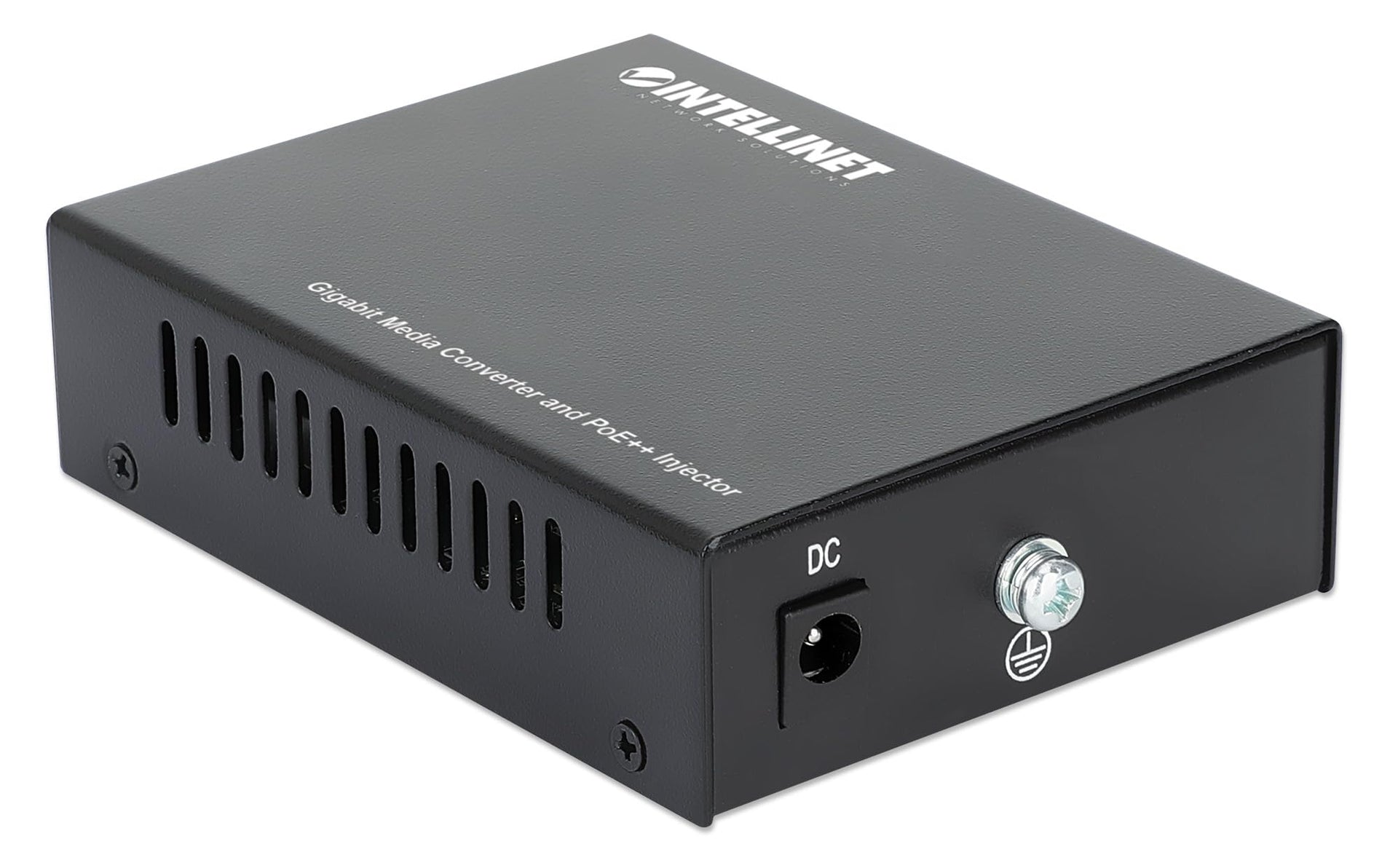

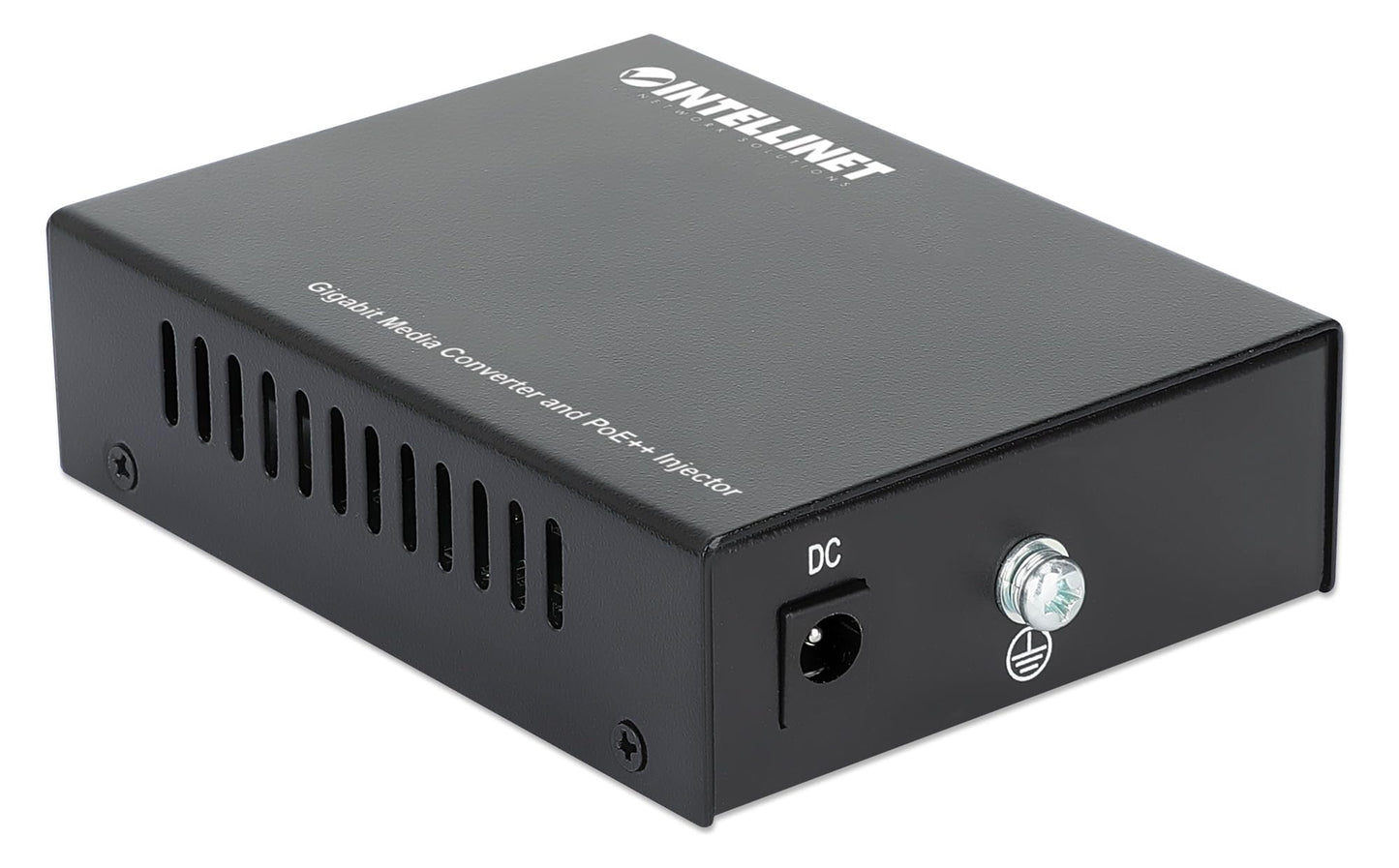

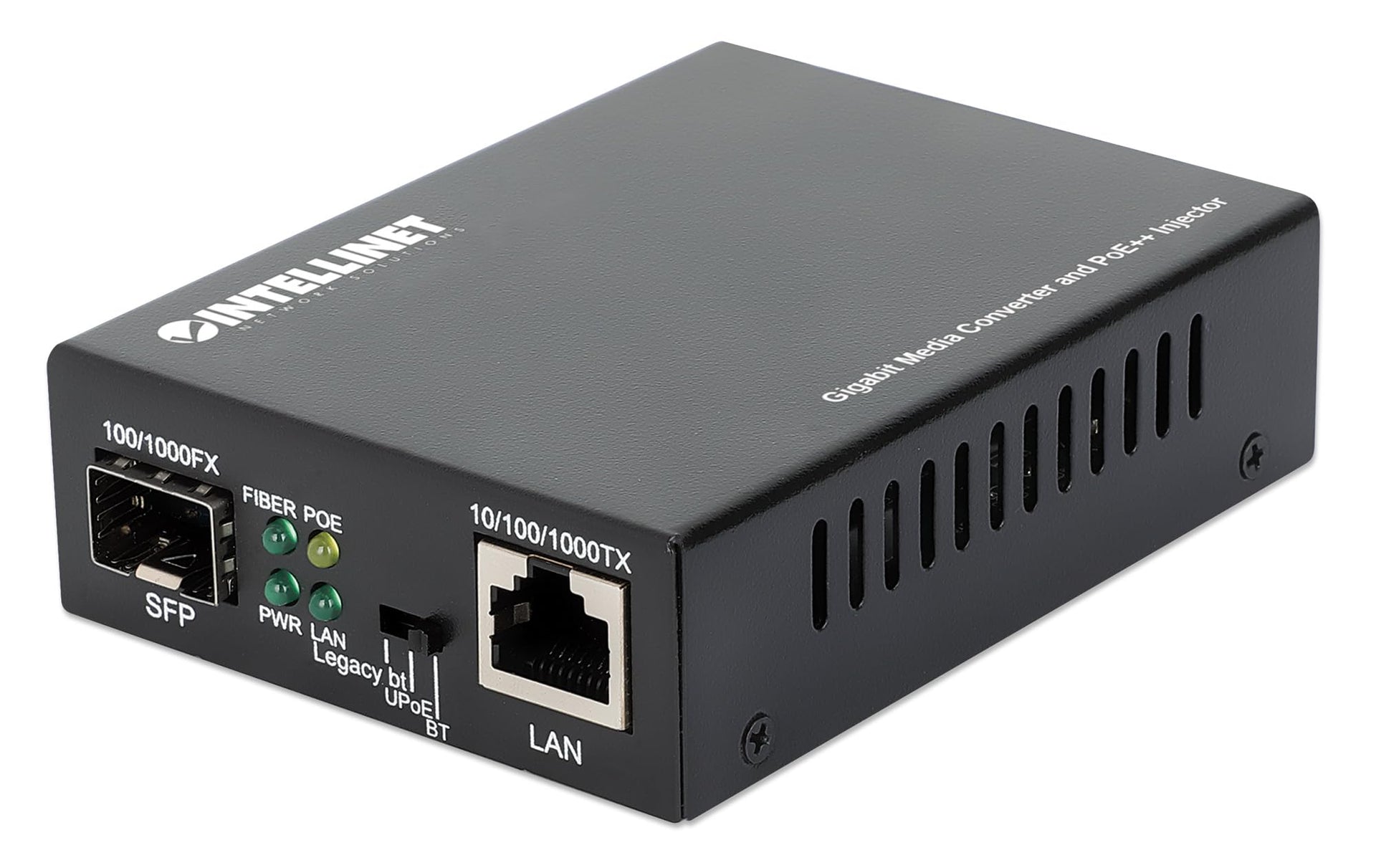

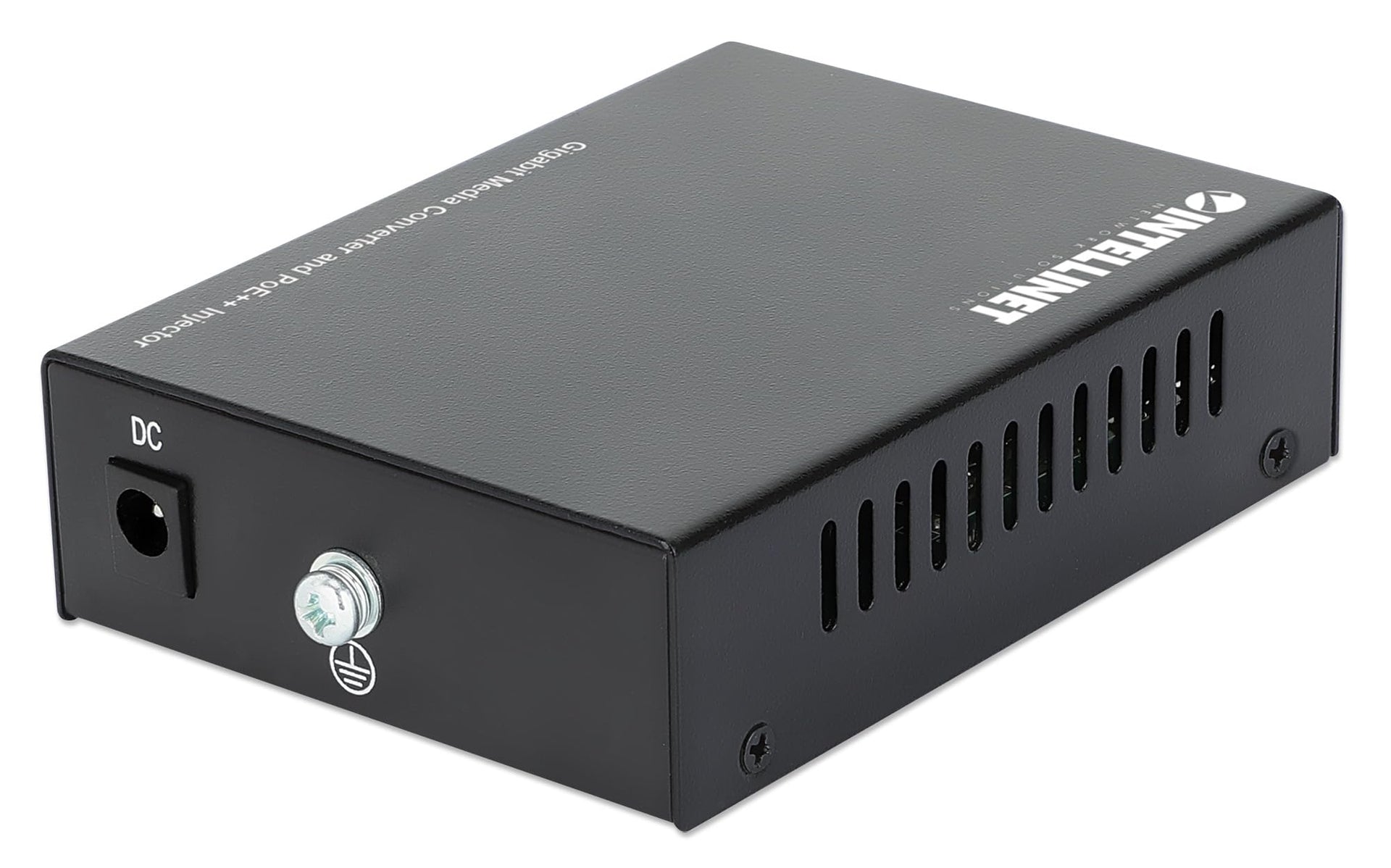

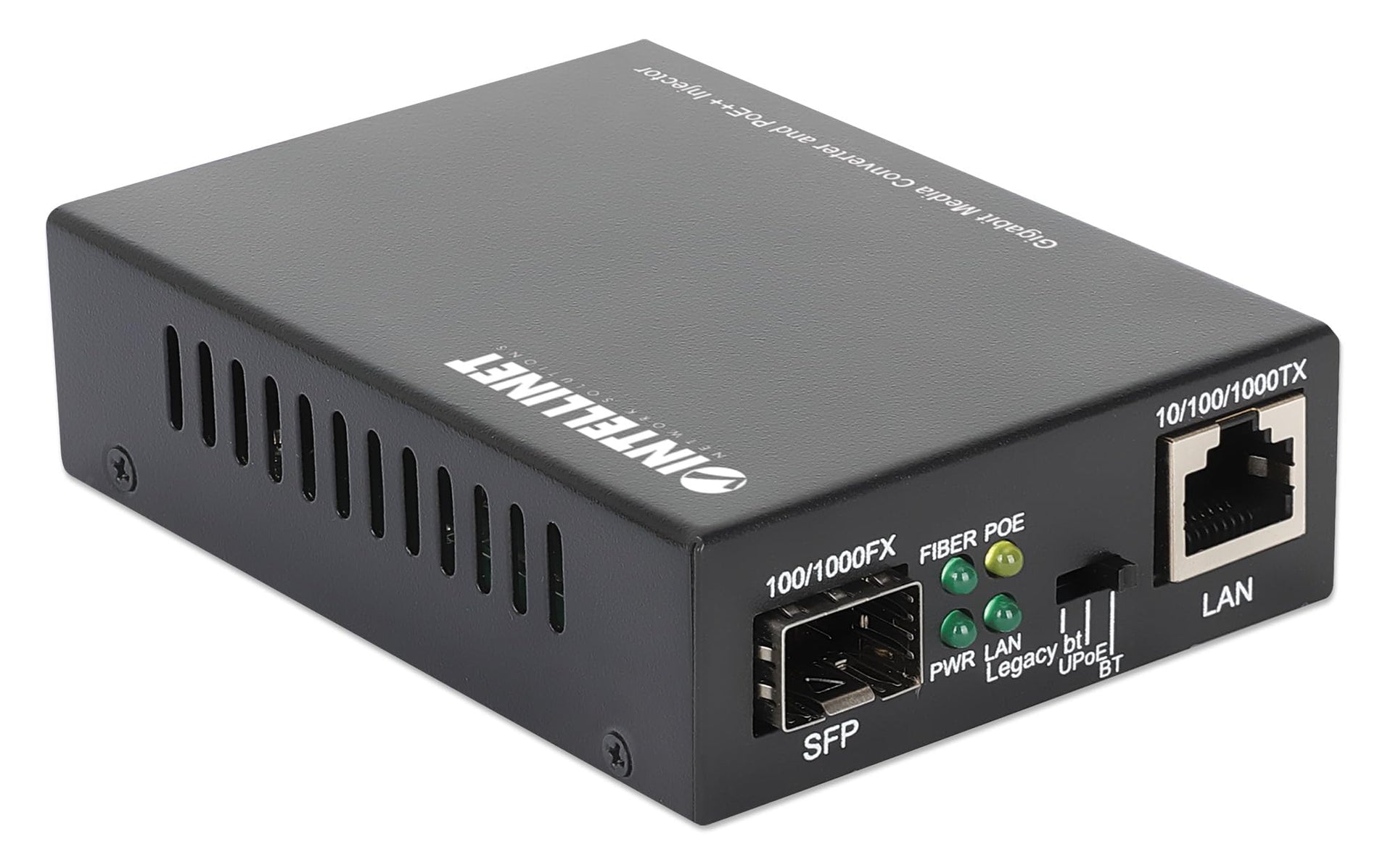

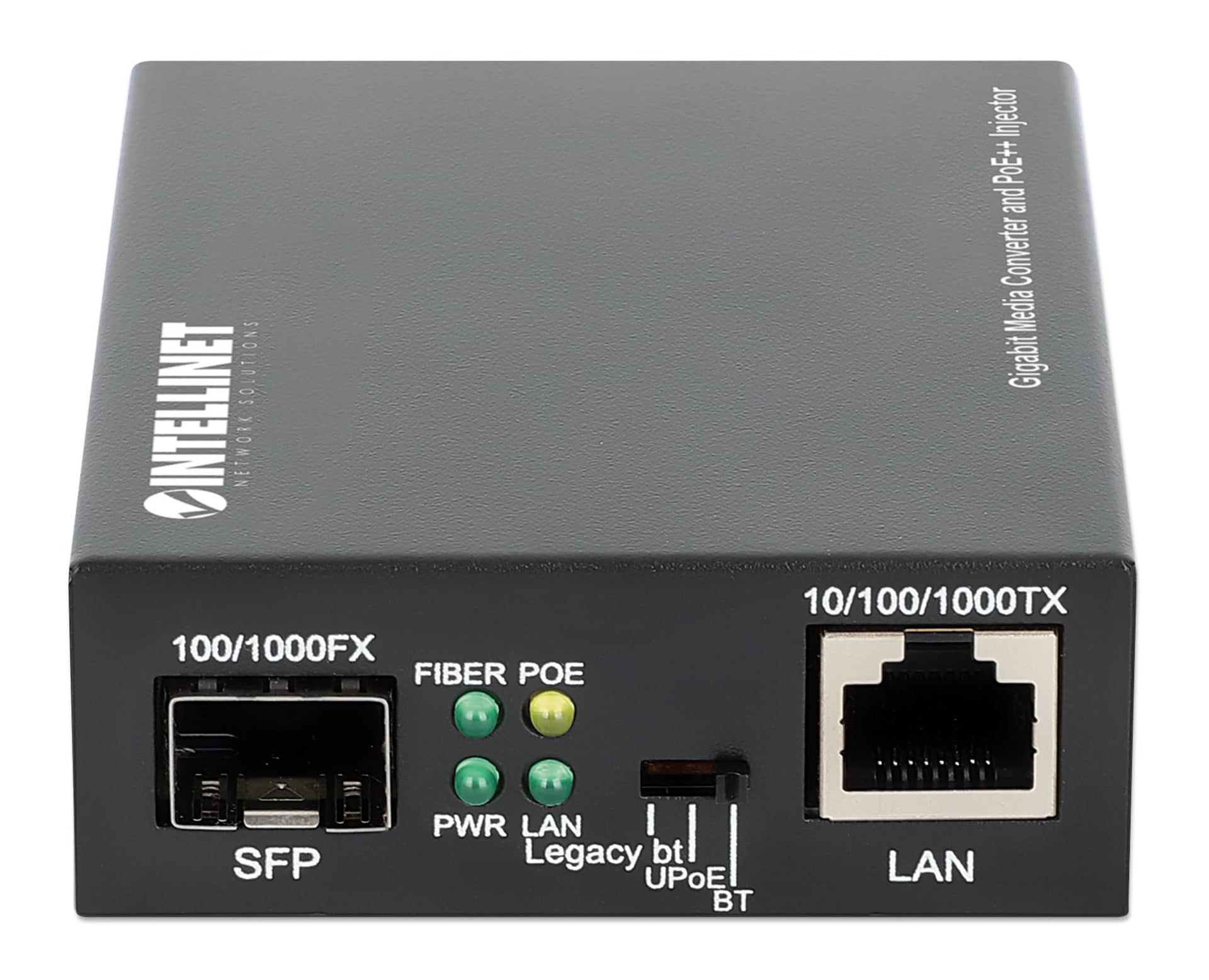

Intellinet Gigabit Media Converter PoE++ Injector 90W RJ45 to SFP This Intellinet gigabit media converter combines copper-to-fiber conversion with a built-in PoE++ injector in one compact unit. It features one 10/100/1000 RJ45 port with support for cable runs up to 328 ft. and one SFP slot for 1000Base-X optical transceiver modules, supporting links up to 75 miles depending on the module used. The integrated PoE injector delivers up to 90 watts to compatible powered devices, helping support demanding applications such as motorized IP cameras, thin clients, PoE lighting, door phones, POS systems, and digital signage. A DIP switch lets you select among three PoE++ modes: IEEE 802.3bt, UPoE, and Legacy. Auto-sensing PoE awareness sends power only to compliant IEEE 802.3bt/at/af devices, while non-PoE devices receive data only. The unit also supports full- and half-duplex operation with autonegotiation, IEEE 802.3x flow control, a 2K MAC address table with auto-learning and auto-aging, 2 Mbits of buffer memory, and jumbo frames up to 9 kBytes. Built for dependable operation, it includes short-circuit, overload, and high-voltage protection, plus a grounding point, port surge protection up to 4 kV, and ESD protection up to 8 kV air and 6 kV contact. A fanless metal housing supports silent operation. LEDs indicate fiber, PoE, power, and LAN status. The included power adapter accepts 100 to 240 VAC and provides 55 V DC at 2.3 A. The converter measures 3.7 x 2.76 x 1.02 in. and is TAA compliant.

Features:

• Converts copper Ethernet to fiber in one compact unit with a 10/100/1000 Mbps RJ45 port and one SFP slot for 1000Base-X modules, supporting up to 328 ft. on copper and up to 75 miles on fiber depending on the module used.
• Built-in PoE++ injector delivers up to 90 watts to connected devices, making it suitable for power-hungry installs such as motorized IP cameras, PoE lighting, thin clients and other IoT equipment.
• Choose the PoE mode that fits your device using the DIP switch: IEEE 802.3bt, UPoE or Legacy. Auto-sensing PoE awareness sends power only to compatible PoE devices, while non-PoE devices receive data only.
• Protection features help safeguard connected equipment with short-circuit, overload and high-voltage protection, plus a grounding point, up to 8 kV air and 6 kV contact ESD protection, and up to 4 kV port surge protection.
• Supports full-duplex and half-duplex operation with autonegotiation and IEEE 802.3x flow control. Store-and-forward switching, 2k MAC address entries, 2 Mbits buffer memory and jumbo frames up to 9 kBytes support steady traffic handling.
• Fanless design enables silent operation in deskside, office and equipment-room setups. The metal housing measures 3.7 x 2.76 x 1.02 in., helping it fit where space is limited.
• Package includes the Gigabit Media Converter and PoE++ Injector, external power adapter and instructions. LEDs for fiber, PoE, power and LAN provide quick at-a-glance status during setup and daily use.

Product Details:

• Package Quantity: 0
