Brand: INTELLINET NETWORK SOLUTIONS

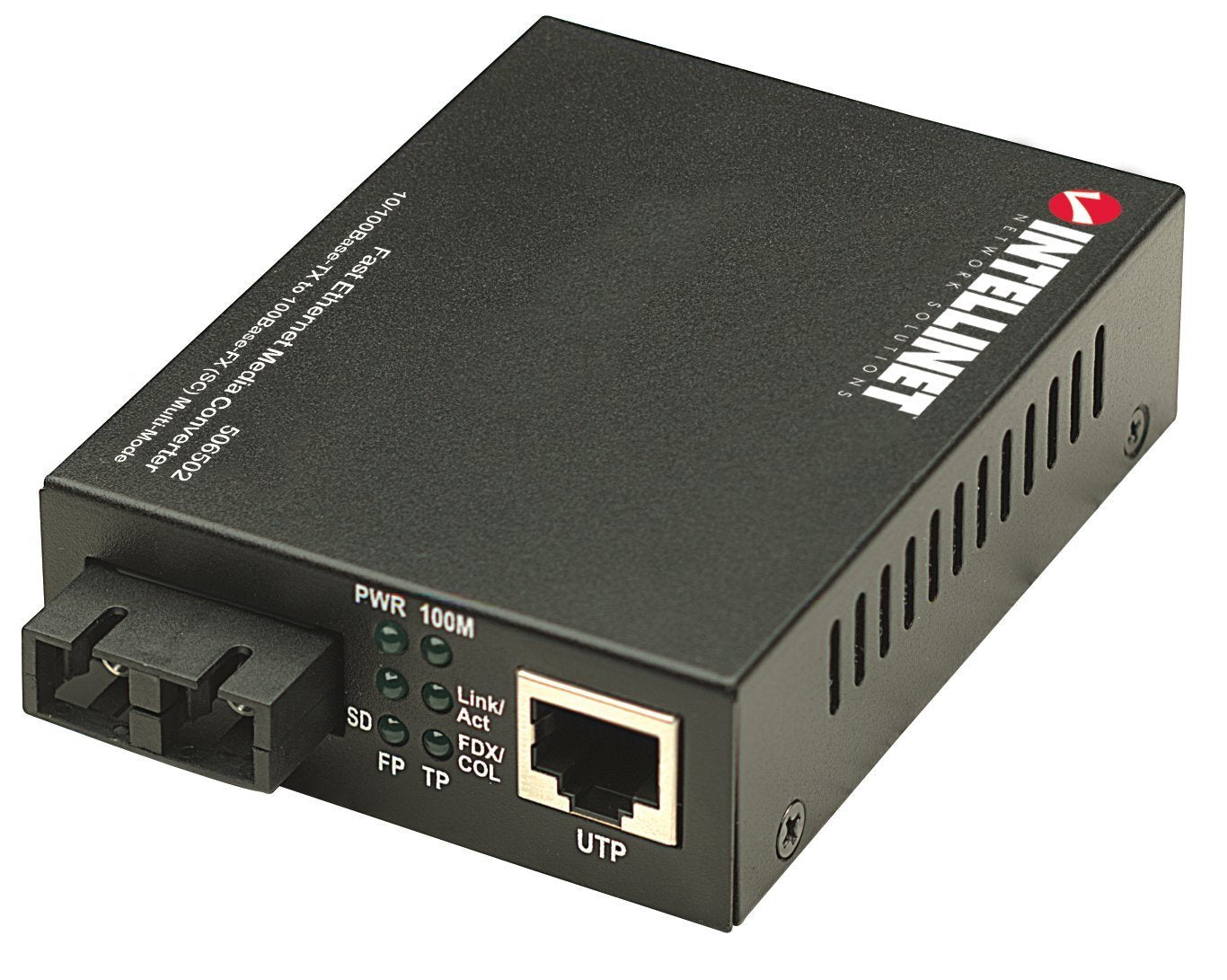

Title: Intellinet Fast Ethernet Media Converter, RJ45 to SC Multimode Fiber Product Description: Extend a Fast Ethernet connection over fiber with this media converter that bridges 10/100Base-TX copper to 100Base-FX multimode fiber at 100 Mbps. It features one RJ45 port with auto-negotiation and Auto MDI/MDI-X, plus one duplex SC fiber port for straightforward integration with existing network equipment. The copper side supports runs up to 300 ft., while the multimode fiber side supports links up to 1.24 miles using 62.5/125 or 50/125 µm fiber at 1310 nm. Front-panel LEDs show power, link/activity for both ports, 100 Mbps link status on the RJ45 side, optical signal input, and full/half duplex status to simplify monitoring and troubleshooting. Built in a compact metal housing measuring 4.2 x 2.8 x 1.0 in., it can be used as a standalone converter with the included 5 V DC power adapter or installed in a compatible 14-slot media converter chassis. It supports IEEE 802.3 and IEEE 802.3u standards, flow control, jumbo frames up to 1.6 KB, and power consumption up to 2.5 watts. Suitable for desktop, cabinet, or control-panel installations, it operates from 32 to 158°F with 10 to 90% non-condensing humidity.

Features:

• Converts 10/100 Ethernet over copper to 100Base-FX multimode fiber, adding fiber capability to Fast Ethernet links while maintaining 100 Mbps network performance.
• Includes one 10/100 RJ45 port with auto-negotiation and Auto MDI/MDI-X, plus one duplex SC multimode fiber port for straightforward copper-to-fiber connections.
• Supports copper cable runs up to 328 ft and multimode fiber links up to 1.24 miles using 1310 nm wavelength on 62.5/125 or 50/125 µm fiber cable.

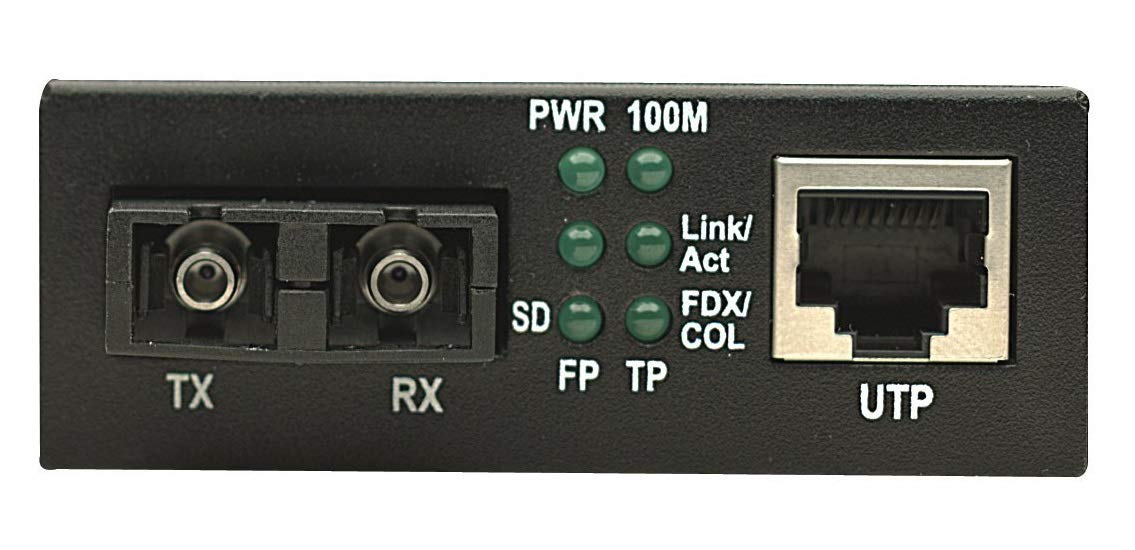

• Front-panel LEDs show power, link and activity for both ports, 100 Mbps RJ45 link speed, optical signal input, and full or half duplex status for quick connection checks.
• Compact metal housing measures 4.2 x 2.8 x 1.0 in. for desktop, wall-mount, or media converter chassis installations where space is limited.
• Supports IEEE 802.3 and IEEE 802.3u standards, flow control, and jumbo frames up to 1.6 KB for compatibility with Fast Ethernet network environments.
• Can be used as a stand-alone converter or with the 14-slot media converter chassis model 507356

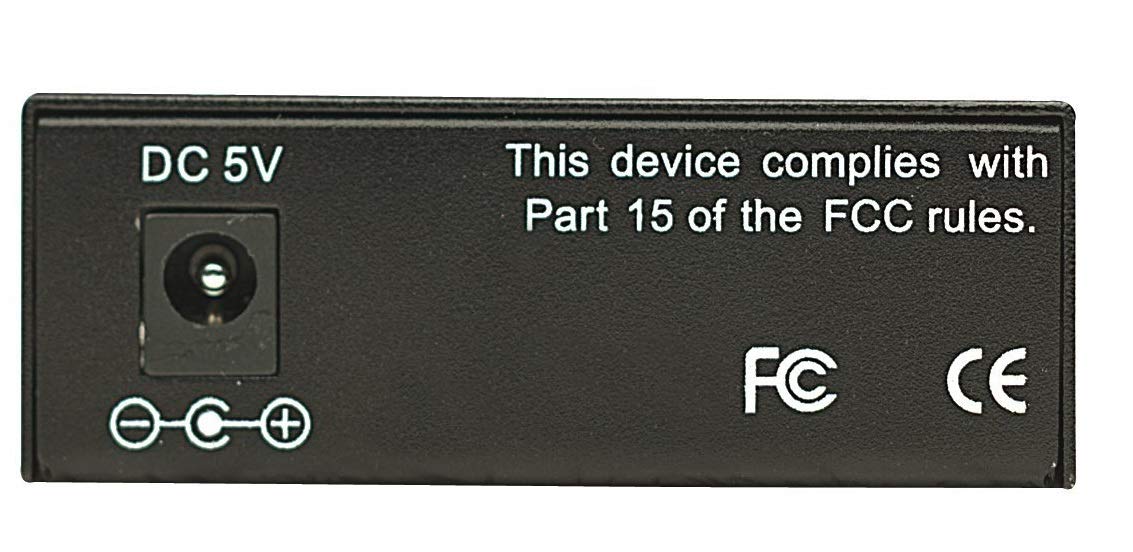

• includes an external 5V DC power adapter and is NDAA compliant.

Product Details:

• Color: Black
• Size: 10/100Base-TX to 100Base-FX (SC) Multi-Mode
• Model: 506502
• Package Quantity: 1
