Brand: INTELLINET NETWORK SOLUTIONS

Expand a home office or small business network with an unmanaged desktop switch featuring eight 10/100/1000 Mbps RJ45 ports. Each port automatically detects the connected device’s network speed and supports Auto MDI/MDX, allowing computers, printers, servers, routers, access points, and other Ethernet devices to connect through Cat3, Cat4, Cat5, or Cat6 UTP/STP cables. Plug-and-play installation requires no software or operating-system configuration. Store-and-forward switching, IEEE 802.3x flow control, and backpressure help manage network traffic. The switch provides a 16 Gbps switching fabric, an 11.9 million packets-per-second forwarding rate, 1.5 MB buffer memory, a 4,000-entry MAC address table with auto-learning and auto-aging, and jumbo frame support up to 9 kB. Full-duplex operation supports up to 2,000 Mbps per port when supported by connected equipment. Green Ethernet and IEEE 802.3az Energy Efficient Ethernet technology monitor port activity and reduce power use when ports are inactive. The fanless black enclosure supports quiet operation and measures 4.92 x 2.09 x 0.87 inches. Power, link/activity, and speed LEDs show connection status. The switch operates from the included 5 VDC external power adapter and has maximum power consumption of 4 watts. Package contents include one switch, a power adapter, and a quick instruction guide.

Features:

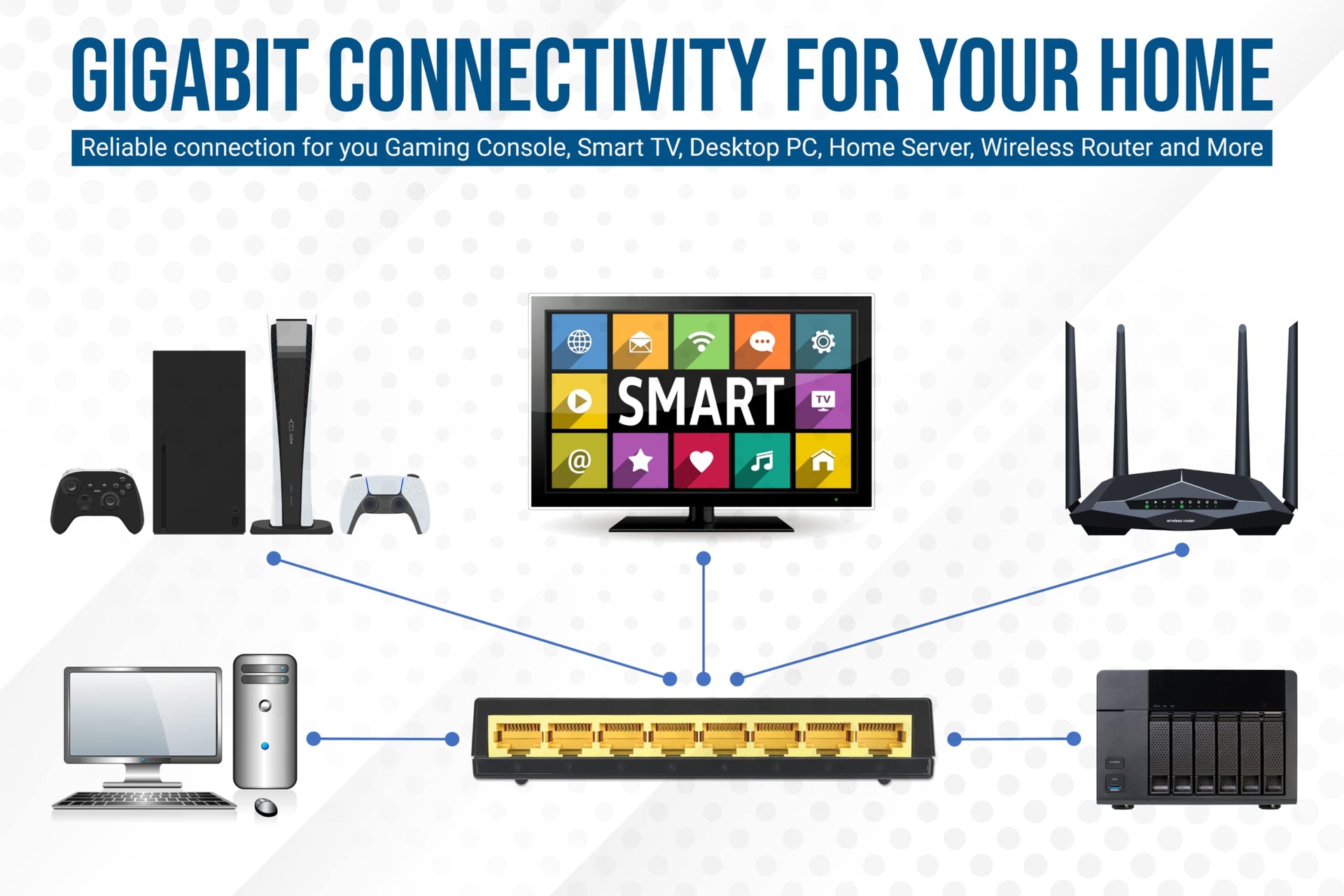

• Connect computers, printers, servers, routers, and other Ethernet devices through eight RJ45 ports on a compact desktop switch. The 10/100/1000 Mbps ports support mixed-speed networks, helping add wired connections for a home office or small business.
• Let each port select its network speed automatically with 10/100/1000 Mbps auto-sensing. Auto MDI/MDX supports all ports as uplinks, while full-duplex operation reaches up to 2000 Mbps for connected Ethernet equipment when supported.
• Set up the unmanaged switch without software or operating-system configuration: connect the included external power adapter and Ethernet cables, then start networking. Plug-and-play operation suits desktops, laptops, printers, servers, and other Ethernet d
• Green Ethernet and IEEE 802.3az Energy Efficient Ethernet technology monitor port activity and deactivate unused ports to reduce power use. The 4 W maximum consumption and 5 VDC external adapter fit everyday desktop networking setups.

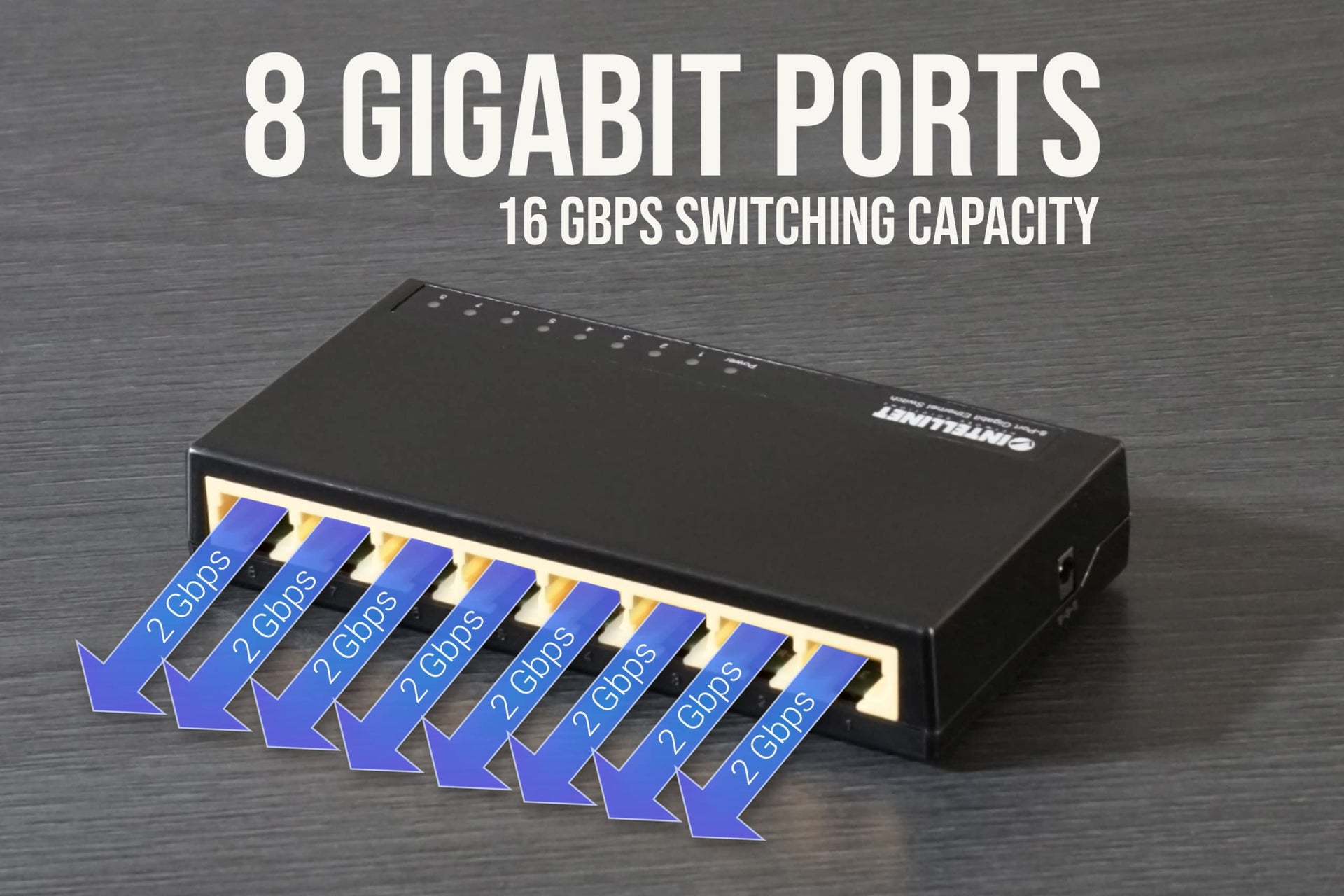

• Store-and-forward switching uses a 16 Gbps switch fabric, 1.5 MB buffer memory, and an 11,900,000 pps forwarding rate. A 4,000-entry MAC address table provides auto-learning and auto-aging for connected devices.

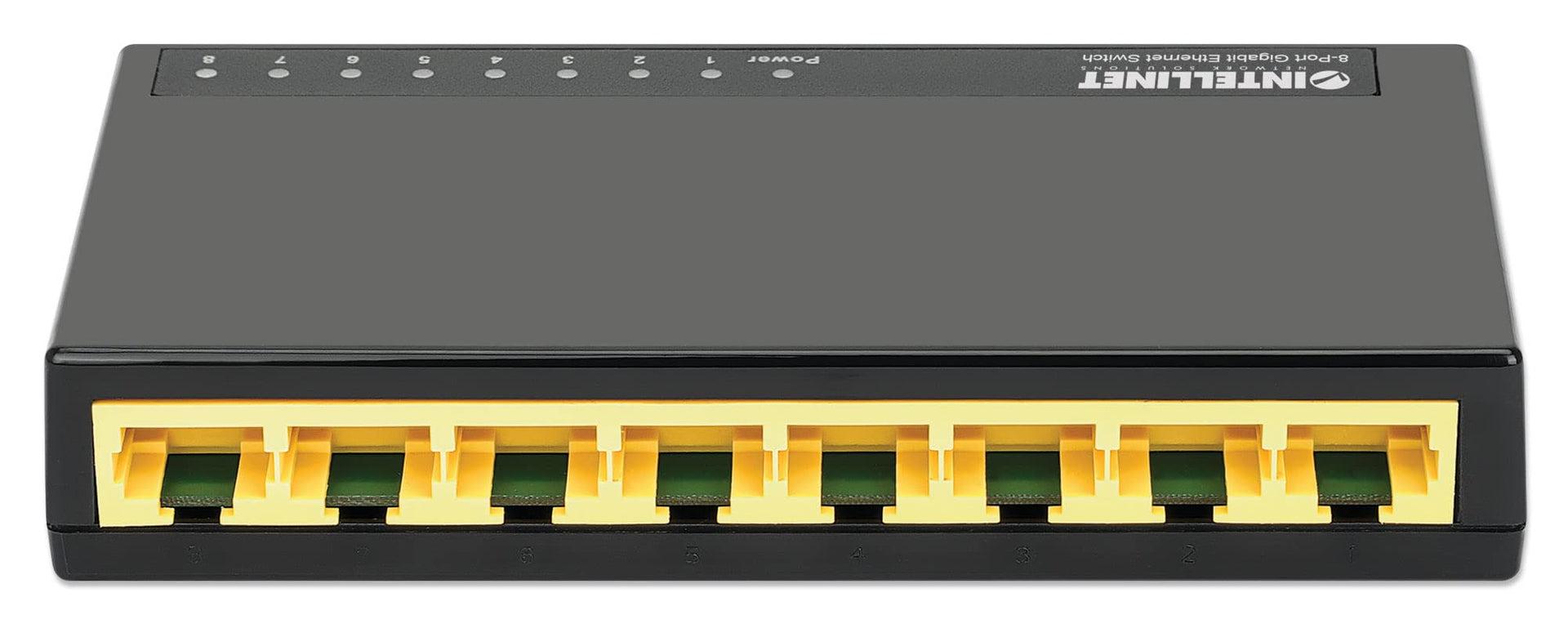

• An ultra-compact, fanless enclosure supports quiet desktop operation and measures 4.92 x 2.09 x 0.87 inches. Link/activity, speed, and power LEDs help you check connection status while the switch operates from 32 to 104°F.
• Use Cat3, Cat4, Cat5, or Cat6 UTP/STP Ethernet cabling with IEEE 802.3, 802.3u, 802.3ab, 802.3x, and 802.3az support. The package includes one switch, a power adapter, and a quick instruction guide.

Product Details:

• Color: Black
• Model: 561754
• Package Quantity: 1
