Brand: INTELLINET NETWORK SOLUTIONS

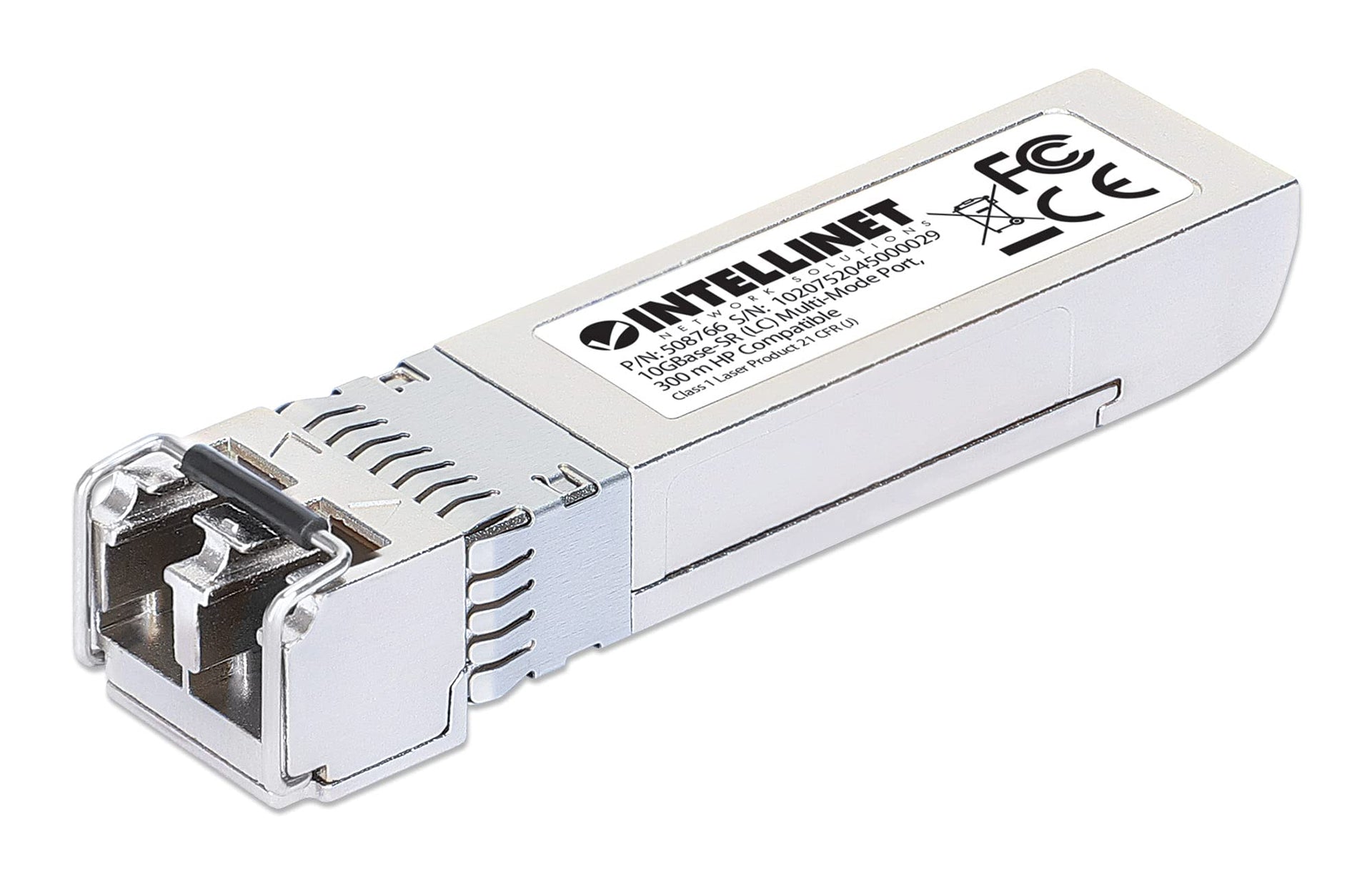

Intellinet 10GBase-SR SFP+ LC Fiber Transceiver, HPE Compatible Product Description: Add a 10 Gigabit fiber uplink with this Intellinet SFP+ transceiver module designed for 10GBase-SR multi-mode connections. It features one duplex LC port, an 850 nm wavelength, and supports data transfer rates up to 10 Gbps. The module is equivalent to J9150A, J9150D, JD092A, and JD092B, making it a practical option for use with compatible HPE switches and routers. For supported fiber runs, it reaches up to 984 ft. with 50/125 µm cable on 2000 MHz-km and up to 108 ft. with 62.5/125 µm cable on 200 MHz-km. The standard SFP+ form factor supports hot plugging for convenient installation and replacement without shutting down equipment. A fully metallic housing helps reduce electromagnetic interference, while digital diagnostics monitoring via the SFF-8472 interface provides access to operating data such as optical power, temperature, voltage, and laser bias current. This transceiver operates on 3.3 V with maximum power consumption of 1.0 W and is rated for temperatures from 32 to 158°F.

Features:

• 10GBase-SR SFP+ transceiver with one LC duplex multi-mode fiber port supports 10 Gbps network links for switches, routers, servers, and other SFP+ equipment.
• Designed for HPE-compatible hardware and equivalent to J9150A, J9150D, JD092A, and JD092B transceivers for matching 10G fiber deployments.
• Uses 850 nm wavelength over multi-mode fiber with support up to 984 ft. on 50/125 µm cable and up to 108 ft. on 62.5/125 µm cable.
• Hot-pluggable SFP+ form factor lets you install or replace the module without powering down compatible network equipment.

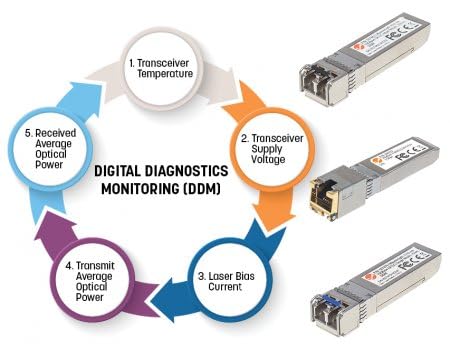

• Supports digital diagnostics monitoring through the SFF-8472 interface to report optical output, optical input, temperature, bias current, and supply voltage.

Product Details:

• Color: Silver
• Size: 1 pc
• Model: 508766
• Package Quantity: 1
