Description
Brand: Ideal Industries

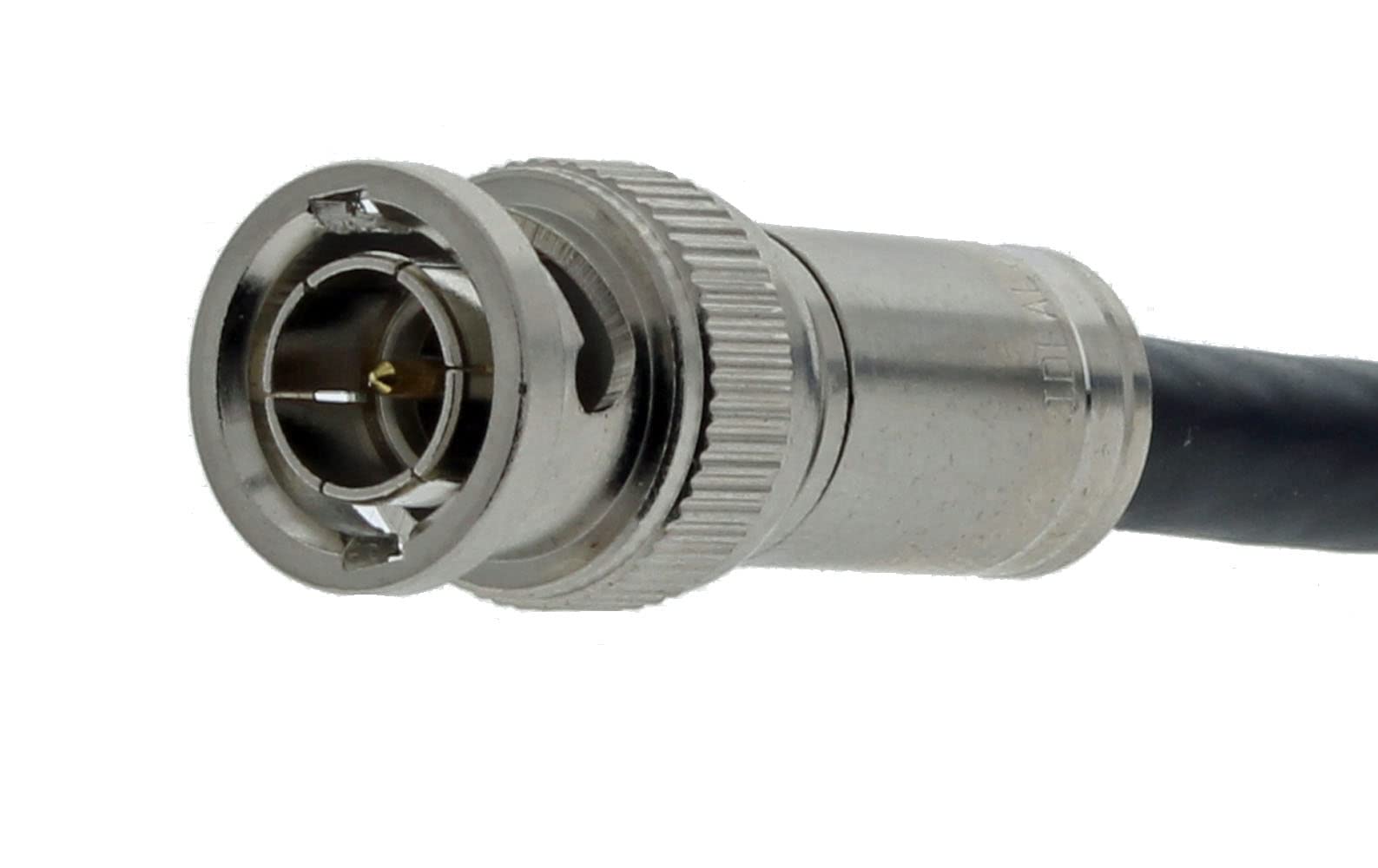

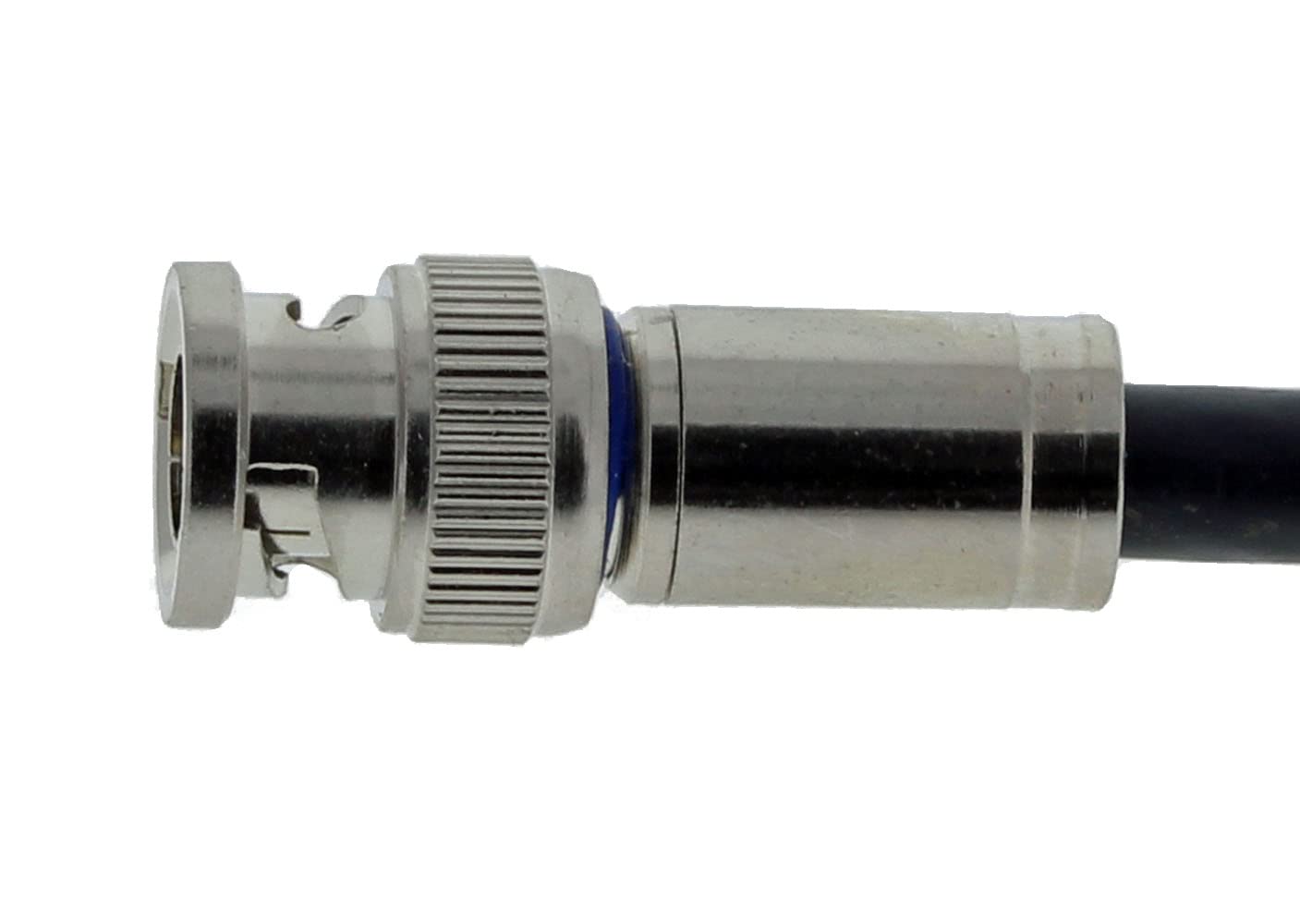

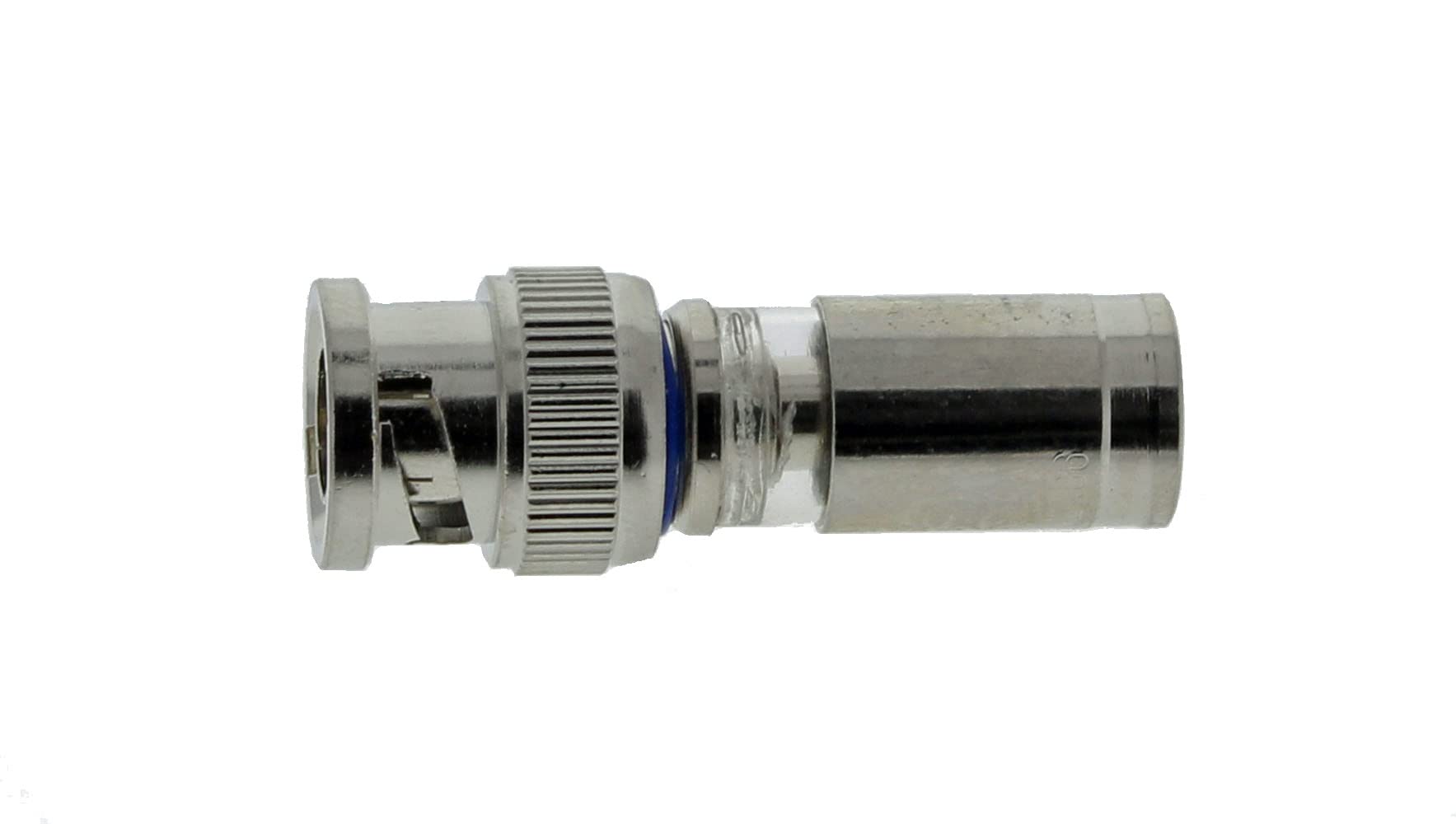

Installing one-piece compression BNC and right angle connectors just got easier. No more uncertainty when inserting the cable into the connector. No more collapsed center pins. No more wasted connectors and rework time on the job. With the patented InSITE Technology feature, now standard on all IDEAL BNC and right angle (90 degree) compression connectors, field termination of these blind entry connectors is simpler, faster and now provides a higher performance connection for all applications from CCTV to HD Video. The InSITE window is a 360 degree clear window which allows the installer to verify that the prepped cable has been inserted far enough into the connector to make contact with the fixed pin-before the connector is compressed.
• Cable specific - for RG-6/RG-6 Quad/RG-6 Plenum/RG-6 Plenum Quad coax cables, center conductor range: 23-18 AWG Solid (.023 in.- .040 in.), dielectric diameter range 0.168 in. to 0.183 in., outer jacket diameter range 0.226 in. to 0.305 in.
• Moisture-inhibiting design with corrosion-resistance nickel-plated brass construction
• Gold-plated fixed pin contact area and pin won’t come lose or pop out of the connector
• A redesigned funneled pin entry - centers angled pins, reduces pin collapsing
• Smoother and easier mating with sockets through increased BNC head travel range

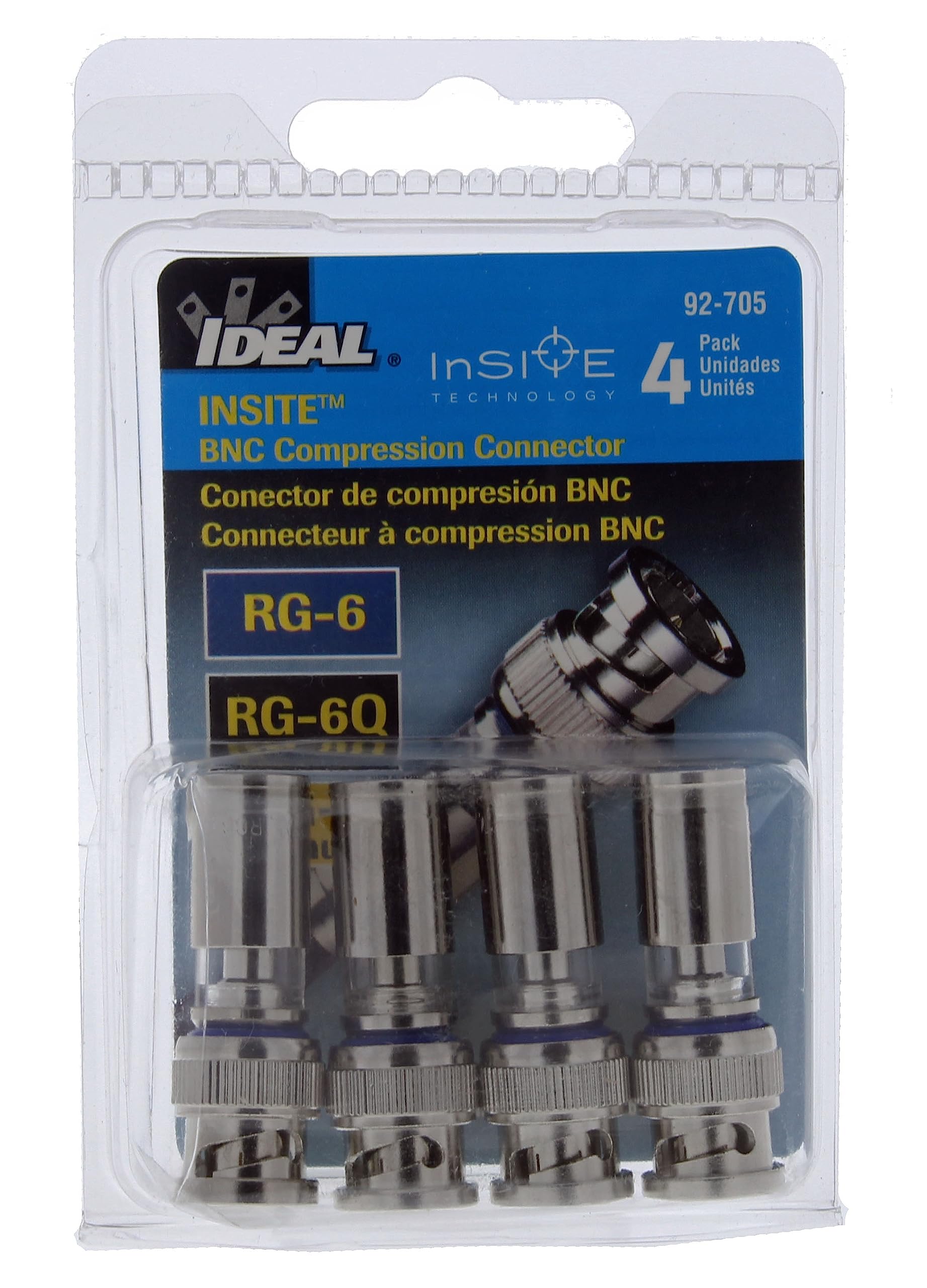

Model: 92-705
Installing one-piece compression BNC and right angle connectors just got easier. No more uncertainty when inserting the cable into the connector. No more collapsed center pins. No more wasted connectors and rework time on the job. With the patented InSITE Technology feature, now standard on all IDEAL BNC and right angle (90 degree) compression connectors, field termination of these blind entry connectors is simpler, faster and now provides a higher performance connection for all applications from CCTV to HD Video. The InSITE window is a 360 degree clear window which allows the installer to verify that the prepped cable has been inserted far enough into the connector to make contact with the fixed pin-before the connector is compressed.
• Cable specific - for RG-6/RG-6 Quad/RG-6 Plenum/RG-6 Plenum Quad coax cables, center conductor range: 23-18 AWG Solid (.023 in.- .040 in.), dielectric diameter range 0.168 in. to 0.183 in., outer jacket diameter range 0.226 in. to 0.305 in.
• Moisture-inhibiting design with corrosion-resistance nickel-plated brass construction
• Gold-plated fixed pin contact area and pin won’t come lose or pop out of the connector
• A redesigned funneled pin entry - centers angled pins, reduces pin collapsing
• Smoother and easier mating with sockets through increased BNC head travel range
Model: 92-705
