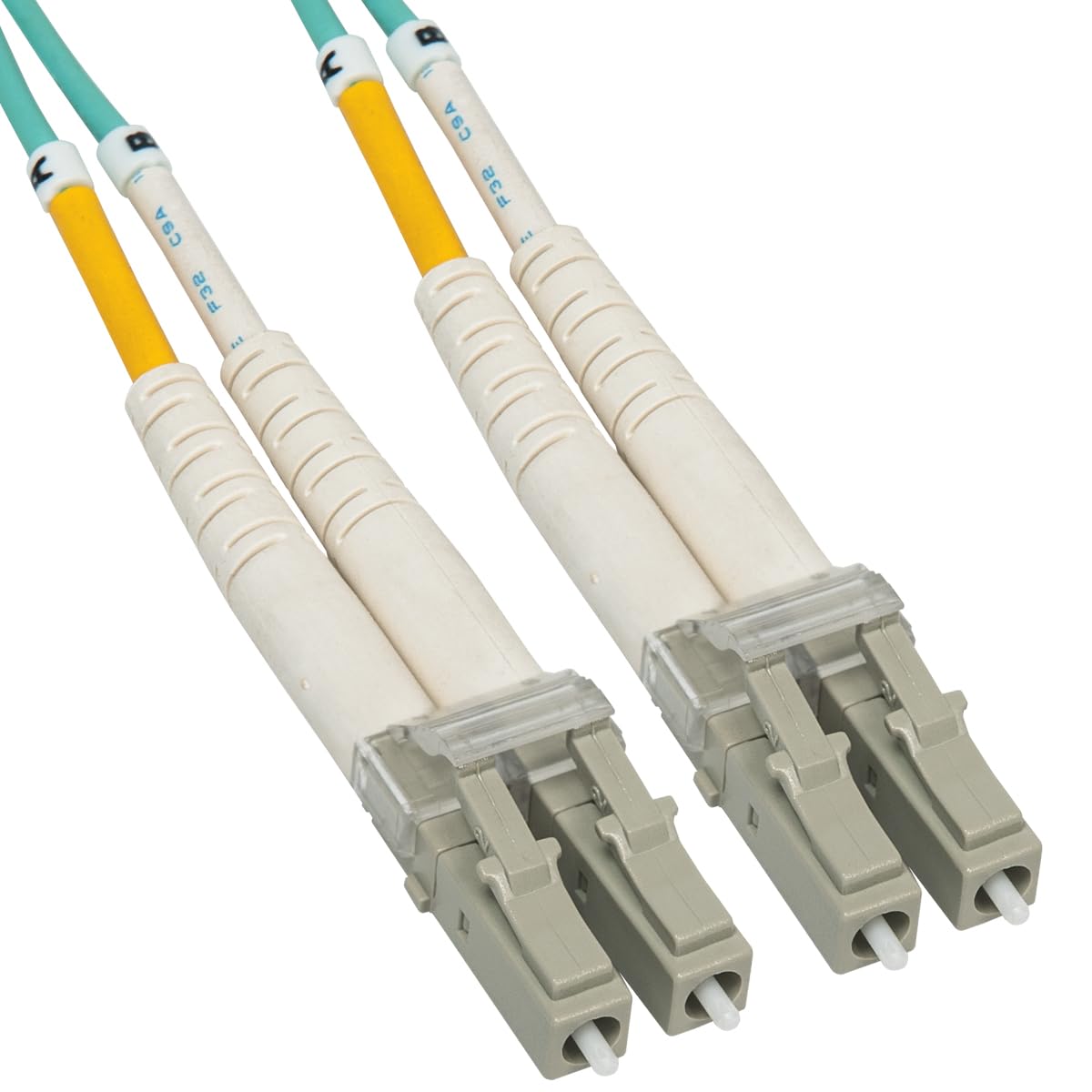

ICC offers a 50 micron LC-LC patch cable constructed with Corning Clearcurve OM3 glass in AB to BA polarity to support laser optimized multimode fiber LOMMF and high speed 10G cabling networks. The LC to LC fiber optical cord is OM3 50/125 Duplex Fiber Cable. The aqua jacket material around the OM3 50/125 multimode fiber optic cable is a polyolefin flame retardant compound for OFNR safety rating. It is colored aqua to signify the fiber optic jumper cable is suitable for 10Gb networking. The LC patch cord is assembled with LC connectors for a high density data center environment. Each assembly is 100% factory tested to meet Bellcore GR-326 and TIA/EIA standard with a maximum insertion loss at 0.2dB. The data center grade duplex multimode lc connector meets EIA/TIA 604-2 standards with ceramic ferrule. The ferrule on the end of the multimode fiber cable is pre-polished for a consequently consistent performance. Operating temperature for this OM3 fiber is -20C to +70C and minimum bend radius is 1.18in. ICC LC patch cable is RoHS compliant and complies with industry standards. Each fiber optic patch cord is factory built and tested.

Features

• SUPPORTS 10G HIGH-SPEED NETWORKS: ICC LC-LC patch cord provides optimal performance for 10 Gigabit Ethernet, Fibre Channel, and SAN applications in data centers. Compatible with VCSEL laser network equipment such as SFP+ transceivers and optical fiber NICs for high-density environments.
• PREMIUM CONSTRUCTION FOR DURABILITY: Features a 2.0 x 4.2mm duplex Zipcord with slim-profile boots for strain relief, pre-polished ceramic ferrules for consistent performance, and bend-insensitive design with a 7.5mm radius for enhanced flexibility and reduced signal loss.
• COMPLIES WITH INDUSTRY STANDARDS: This fiber optic cable meets TIA/EIA 604-2 and Bellcore GR-326 standards, with typical Insertion Loss of 0.1dB. It also supports IEEE 802.3, IEC-60793-1-10, and OM3 standards for reliable, high-speed data transmission.
• AQUA JACKET FOR EASY IDENTIFICATION: The polyolefin flame retardant aqua jacket ensures safety with an OFNR rating while making it easy to distinguish as OM3 50/125 fiber for 10Gb networking in your installations.

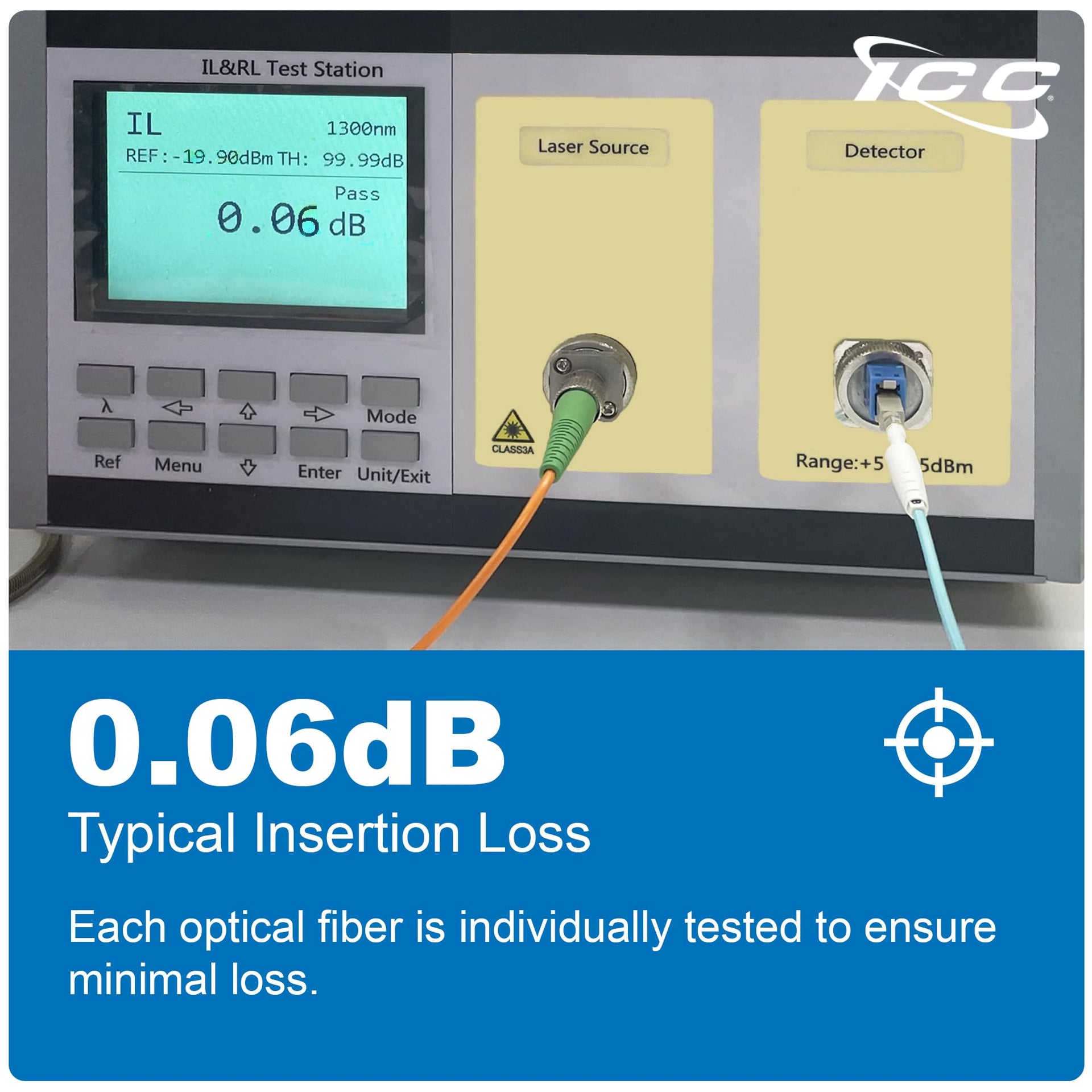

• RIGOROUSLY FACTORY TESTED: Each assembly undergoes 100% factory testing for quality assurance, providing reliable, low-loss performance in demanding environments. Operating temperature range: -20°C to +70°C with a minimum bend radius of 0.79 inches for versatility.

Product details

• Brand: ICC
• Color: OM3 LC-LC
• Size: 2m (7ft)
• Model: ICFOJ1G702
• Manufacturer: ICC
• Item count: 1
• Package quantity: 1
