Brand: ICC

Experience unparalleled network performance with the ICC CAT6 RJ45 Keystone Jack in EZ Style, which is engineered to meet the rigorous demands of Gigabit Ethernet applications and beyond. This keystone jack in EZ Style features CAT6-rated conductors and an advanced PCB design for optimal signal quality and maximum headroom. Its enhanced crosstalk cancellation technology significantly reduces noise and unwanted signals, thereby ensuring a clear and reliable connection. The jack's compliance with ANSI/TIA-568-D Category 6 standards and its backward compatibility ensure that it integrates seamlessly into any existing network setup, providing a future-proof solution for high-speed data transmission.

Features:

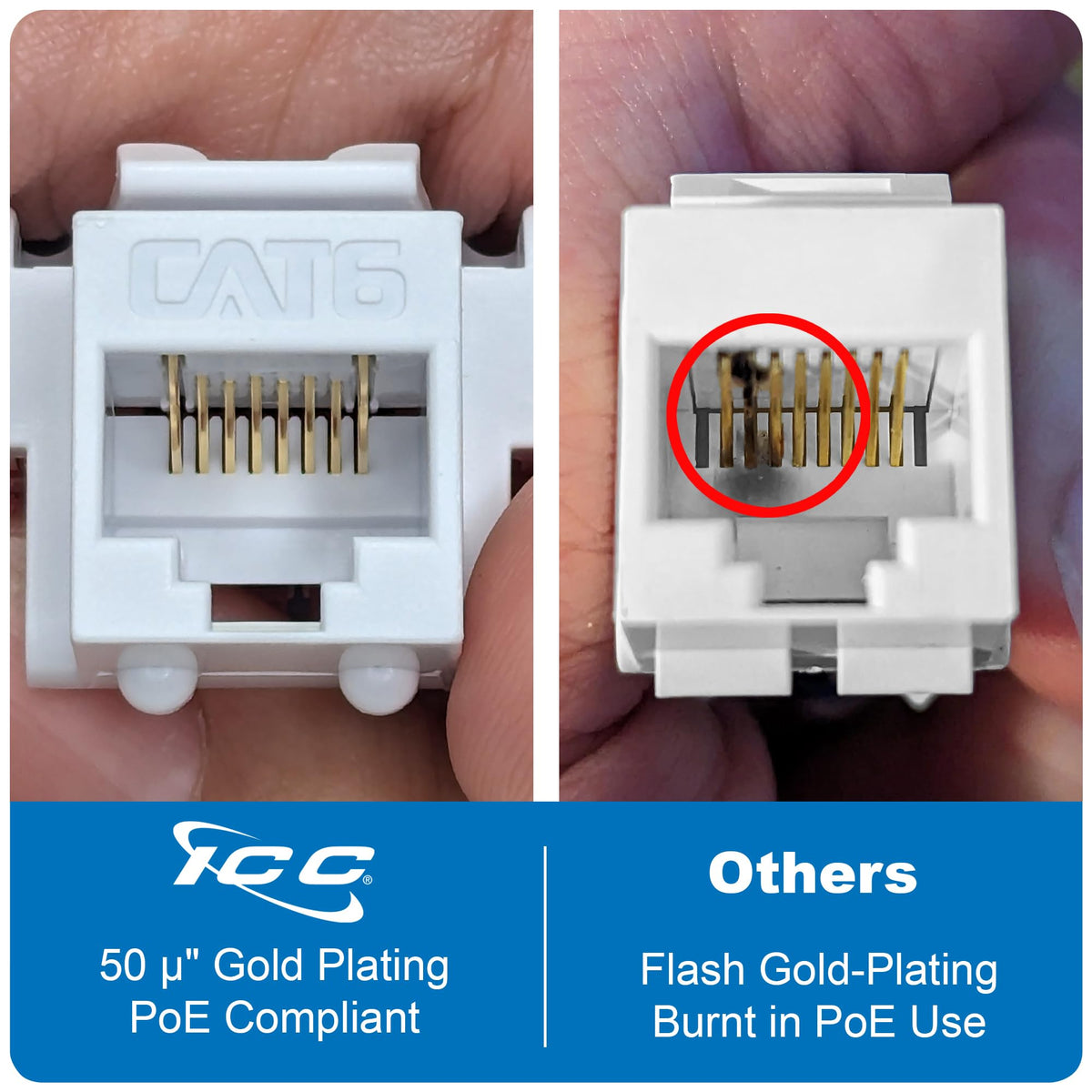

• PoE++ RATED FOR HIGH-POWER DEVICES: This CAT6 keystone jack features 50 micro-inch gold-plated high-retention contacts over 100 micro-inches of nickel, providing support for up to 100 watts of Power over Ethernet (PoE++). Ideal for powering devices such as pan-tilt-zoom security cameras, webcams, and other types of networked equipment, these RJ45 (8P8C) connectors are built for 8-position, 8-conductor configurations, ensuring a reliable connection for high-power applications.

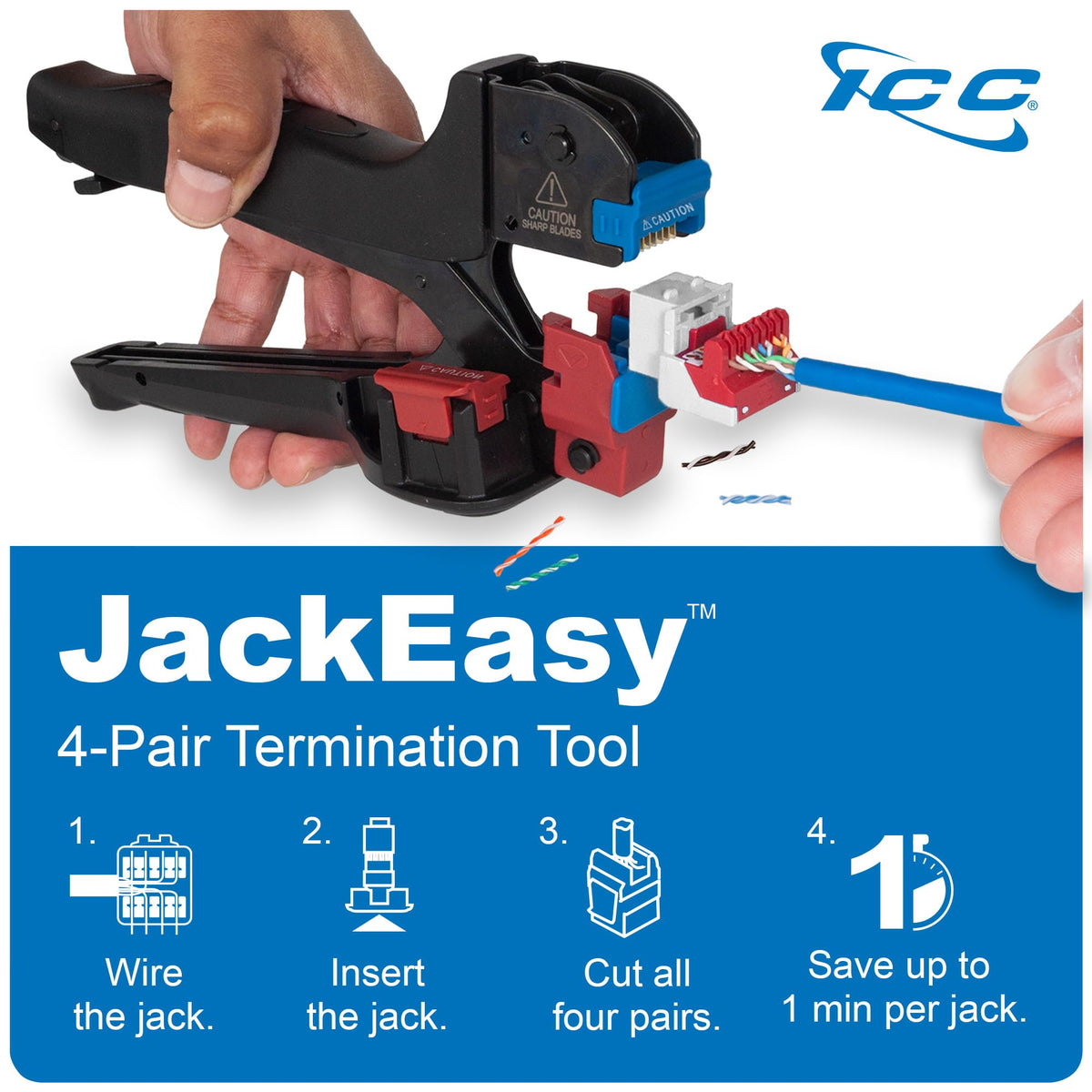

• FAST 4-PAIR TERMINATION: Built to work with ICC’s JackEasy 4-Pair Termination Tool (SKU ICACSPDTEH) enabling termination of all four pairs in a single squeeze. Features phosphor bronze alloy IDC pins, designed to withstand 100+ re-terminations for reliable and durable performance. Supports over 750 plug-to-jack insertion cycles for extended usability, with compatibility for RJ45 (8P8C) patch cables.
• TAA COMPLIANT & SECTION 889 CERTIFIED: ICC CAT6 keystone jacks meet U.S. government regulations, including TAA and Section 889. Manufactured in approved countries, with UL Certification and RoHS Compliance. UL 1863 compliant for safety, thereby ensuring adherence to the highest standards. ETL Verified for performance, they conform to TIA 568.2-D (U.S.) and IEEE 802.3 (International) standards, supporting Fast Ethernet (100BASE-TX) and Gigabit Ethernet (1000BASE-T) applications.

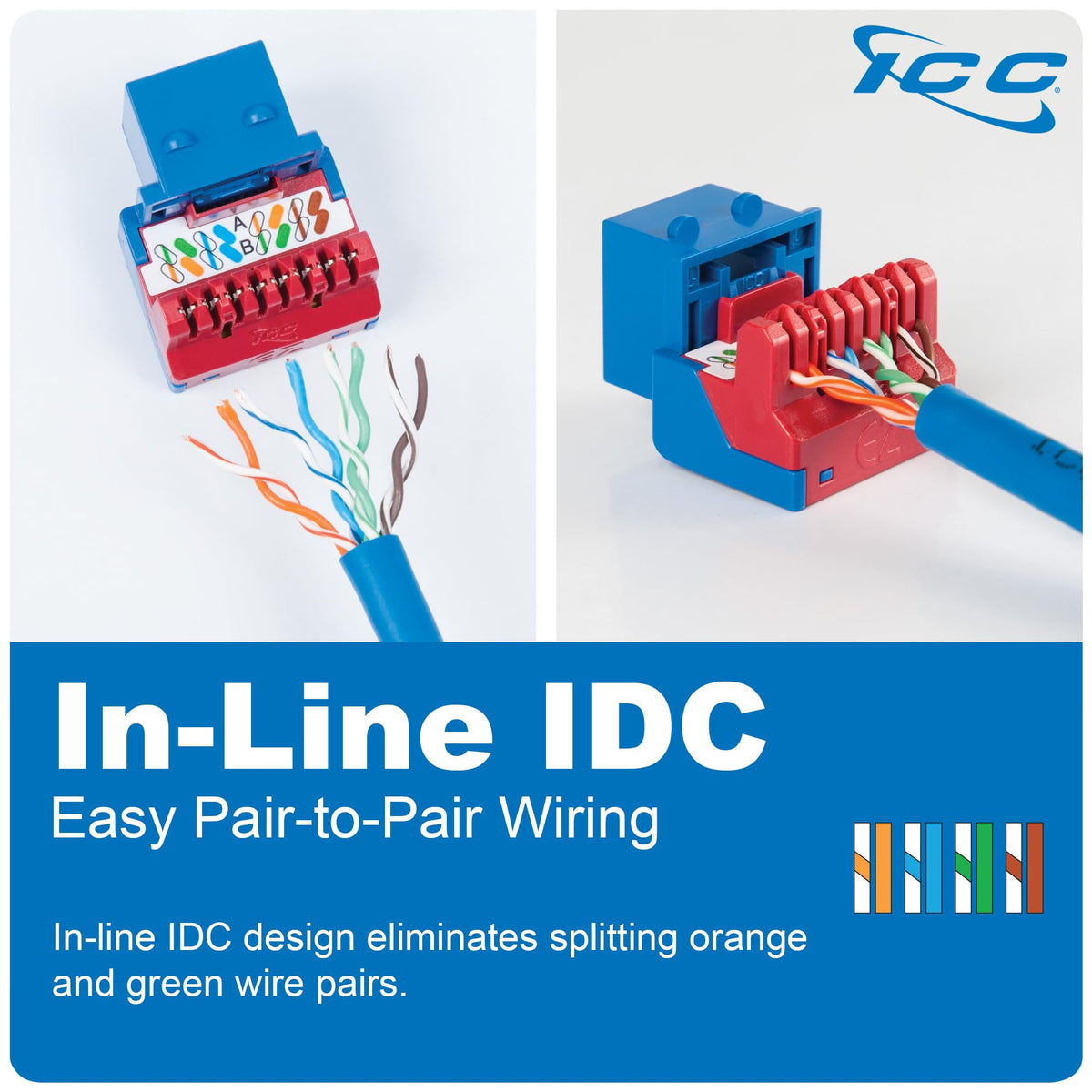

• FAST WIRING WITH IN-LINE IDC: In-line 110 IDC allows precise pair-to-pair wiring without splitting pairs, supporting efficient installations. A wide rear base offers a secure grip, simplifying handling, removal, and reattachment. Includes TIA-568A/B color-coded wiring diagrams conveniently displayed on the IDC for quick reference. Compatible with 8-position, 8-conductor configurations, ensuring versatility for a wide range of network installations.
• COMPLETE CABLING SYSTEM: Install ICC CAT6 Keystone Jacks with ICC CAT6 Cables, CAT6 Patch Panels, and CAT6 Patch Cables to achieve both Permanent Link and Channel Link specifications for end-to-end network performance. This configuration provides maximum NEXT headroom, exceeding ANSI/TIA-568 Category 6 requirements for enhanced crosstalk cancellation, reduced return loss, and improved network reliability. Backward compatible with Cat5e and Cat5 components and cabling.

Product Details:

• Color: Ivory

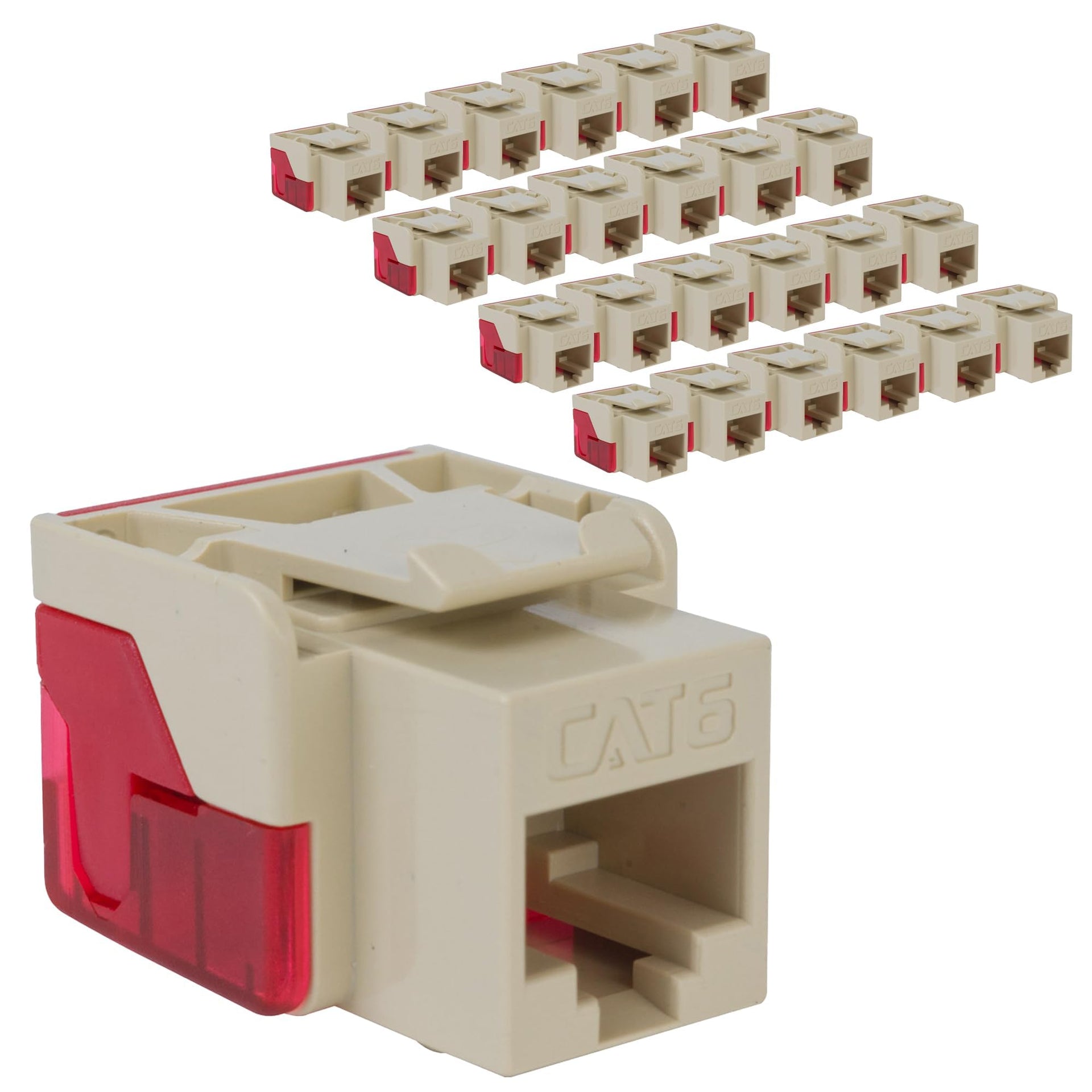

• Size: Pack of 25
• Model: ICC-CAT6JKPK-IV
• Package Quantity: 1
