Brand: Hosyond

<b>Parameter:</b></br> Chip: TPA3116D2*2</br> Input Mode: Bluetooth / 3.5mm AUX</br> Work Voltage: DC 5V-24V (Recommend 12V or more, 5A or more)</br> Channel: 2 channel Stereo Output</br> Bluetooth version: Bluetooth 5.0</br> Bluetooth transmission distance: 50 Ft</br> MAX Power Output: 100W x 2</br> Match Speaker: 50 - 300W, 4 - 8?</br> </br> <b>1. How to choose a power supply?</b></br> ?The power supply must be highly valued. It is recommended to use 18V 19V 24V power supply with a current of more than 5A.</br> ?If the voltage is too low, the sound will be easily distorted after the sound is amplified; if the current is too small, it will not work normally or the sound quality of the speaker will deteriorate.</br> ?If you only have 9V 12V or 1A 2A power supply, you can also use it, but it is recommended to use it with a speaker with low power. Otherwise, if the volume is maximized, it may be distorted and affect the sound quality.</br> </br> <b>2 How to choose a speaker?</b></br> ?Commonly used speakers are generally 8?, 4? speakers are also available, no distinction between positive and negative polarity.</br> ?If the power of your speaker is low, it may be between 10W-30W, then the power supply voltage should be lower to prevent the speaker from being burned after amplifying the sound, for example, choose a power supply below 15V.</br> ?If it is a 50W-300W speaker, you don’t have to worry about the speaker burning out. You can choose a 12V-24V power supply. The higher the voltage you choose, the greater the output sound or power.</br> </br> <b>Package Includes:</b></br> 1. Bluetooth Power Amplifier Module * 1</br> 2. Acrylic shell * 2</br> 3. 16mm Copper column * 4</br> 4. 9mm Screw * 8, 5. Steel nut, screw mat * 1</br> 6. 20cm power cable * 1</br> 7. Screwdriver * 1, </br> 8. Knob * 1</br>

• [Hi-fi] Using TPA3116D2(with AM interference suppression function) chip, excellent sound quality. Ensure that the THD is less than 0.1%, even with long periods of high power operation.

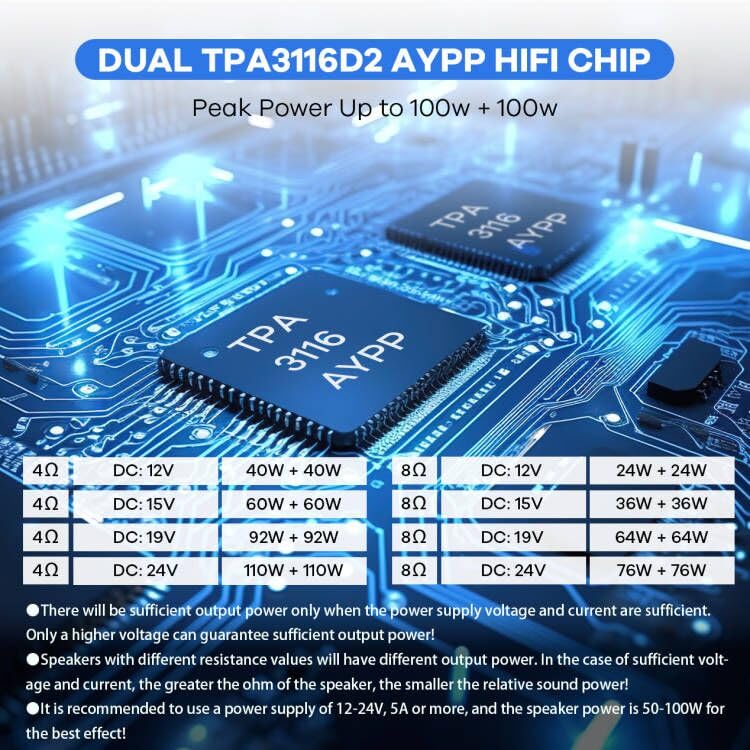

• [Mini and powerful] Dual channel stereo output power 100W+100W. Working voltage range DC5-24V(It is recommended to use a power supply with a working voltage above 12V and a current above 5A), suitable for 4-8?, It is recommended to use 50-100W speakers for the best effect.

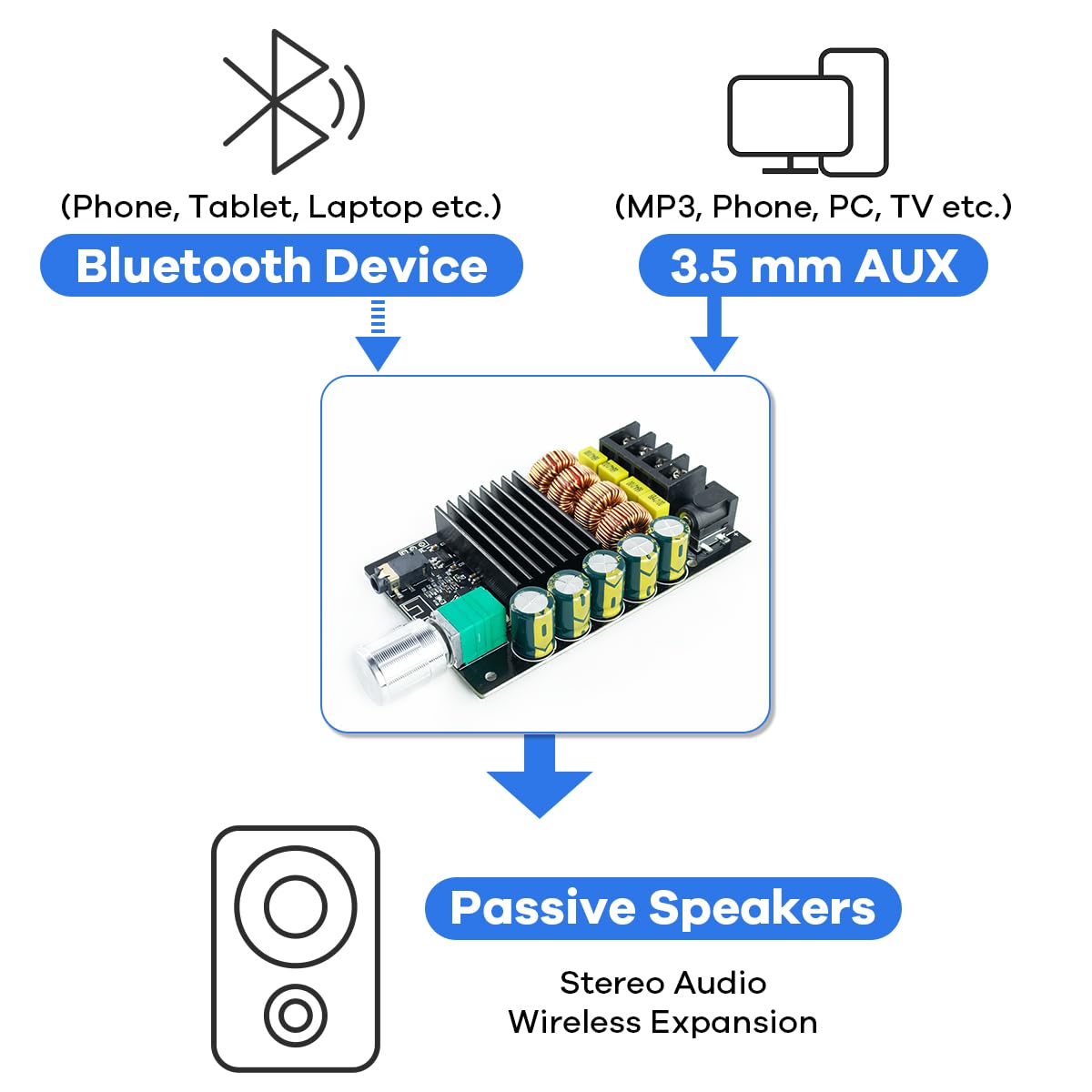

• [Two input methods] Support 3.5mm wired input and Bluetooth 5.0 input. With Bluetooth signals up to 49 feet away, it's perfect for your DIY passive speakers.

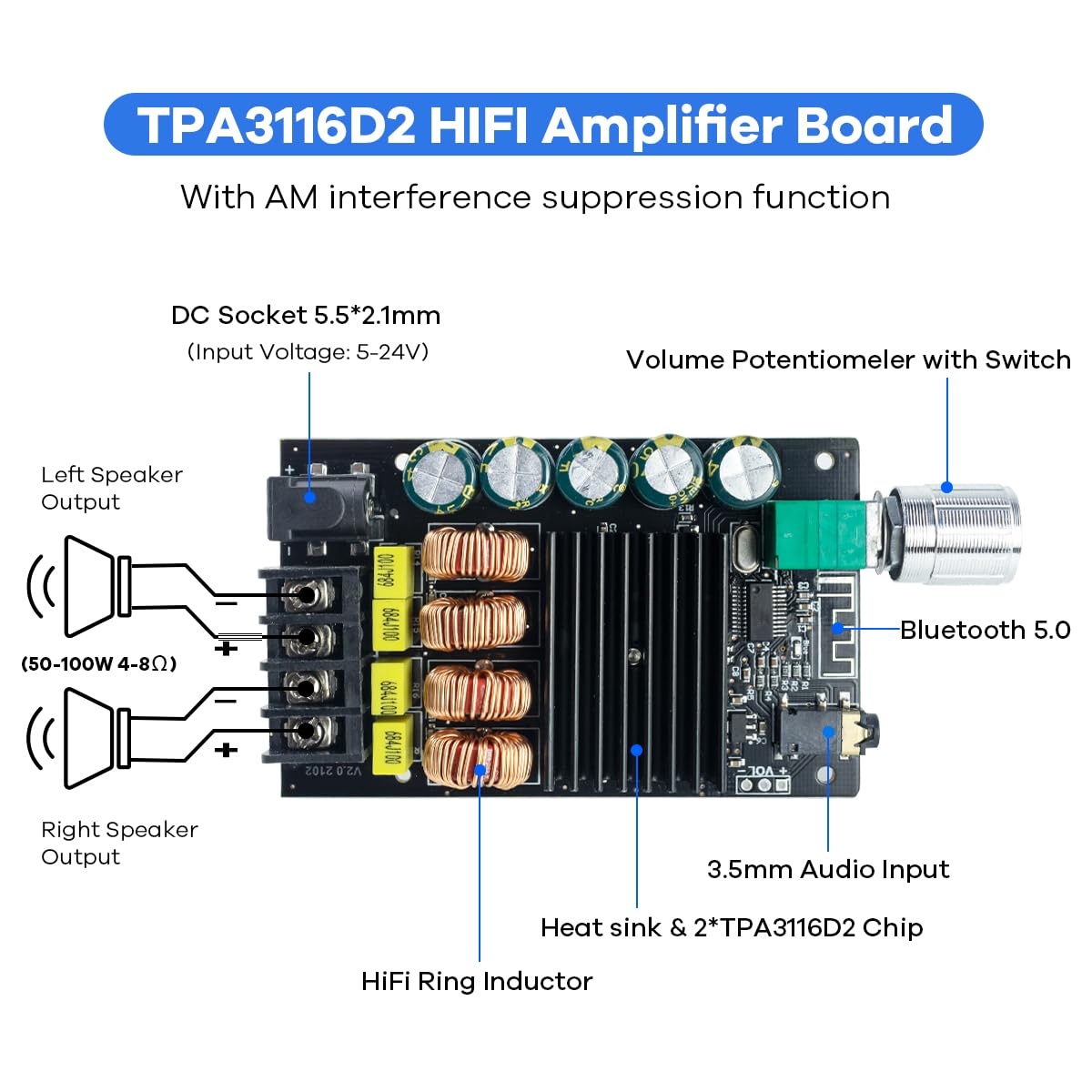

• [Continuous stability] 5 * 470uF high quality capacitor, stable output. Large area cooling system, high quality power module, long time high output will not overheat shutdown.
• [To ensure safety] The Bluetooth amplifier board has a bottom plate and a top plate, supporting reverse protection, overvoltage protection, undervoltage protection, overheat protection, short circuit protection.Widely used in home theaters, square speakers, etc.

Model: TPA3116D2
