Description
Brand: HIGH POWER

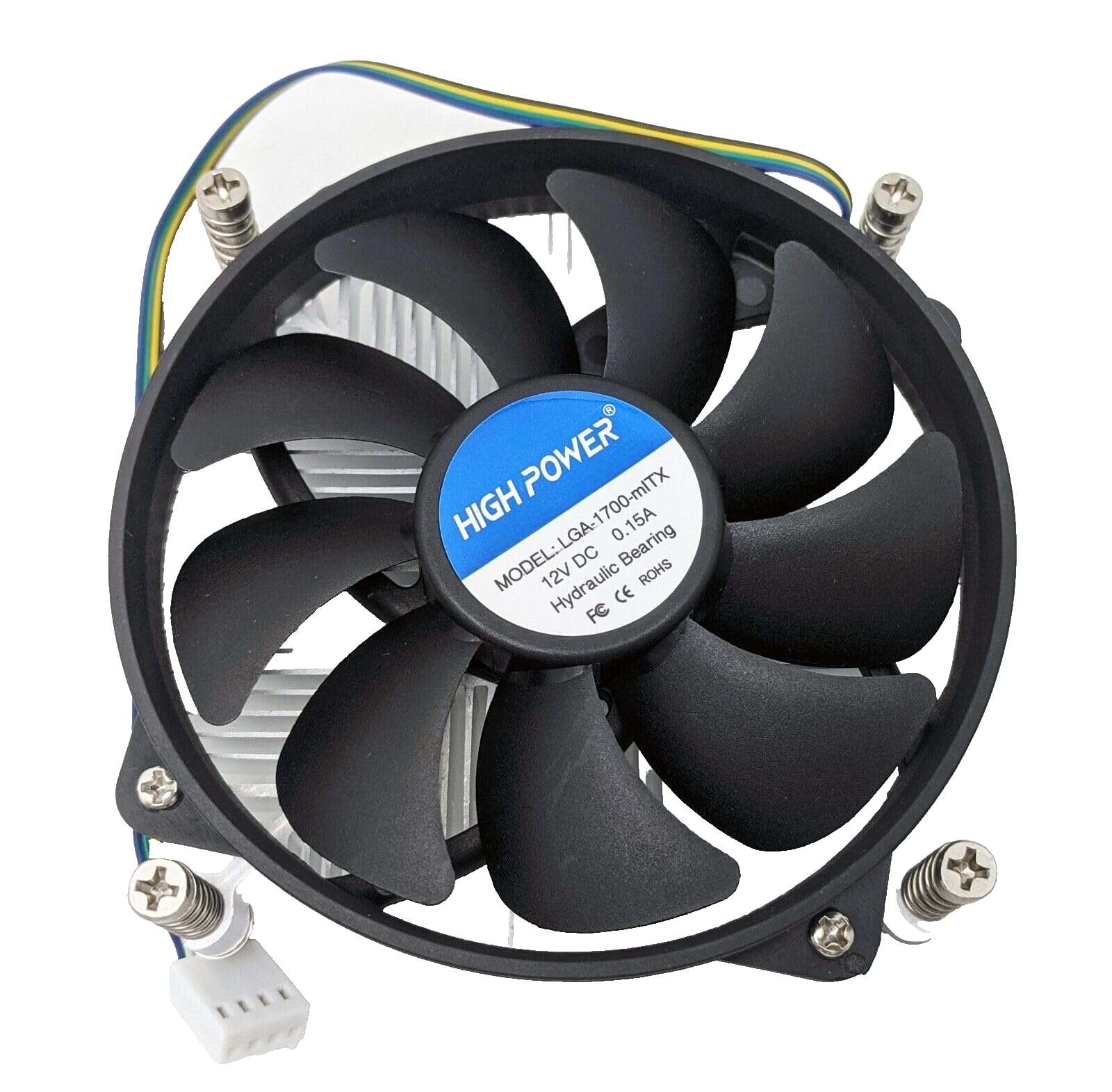

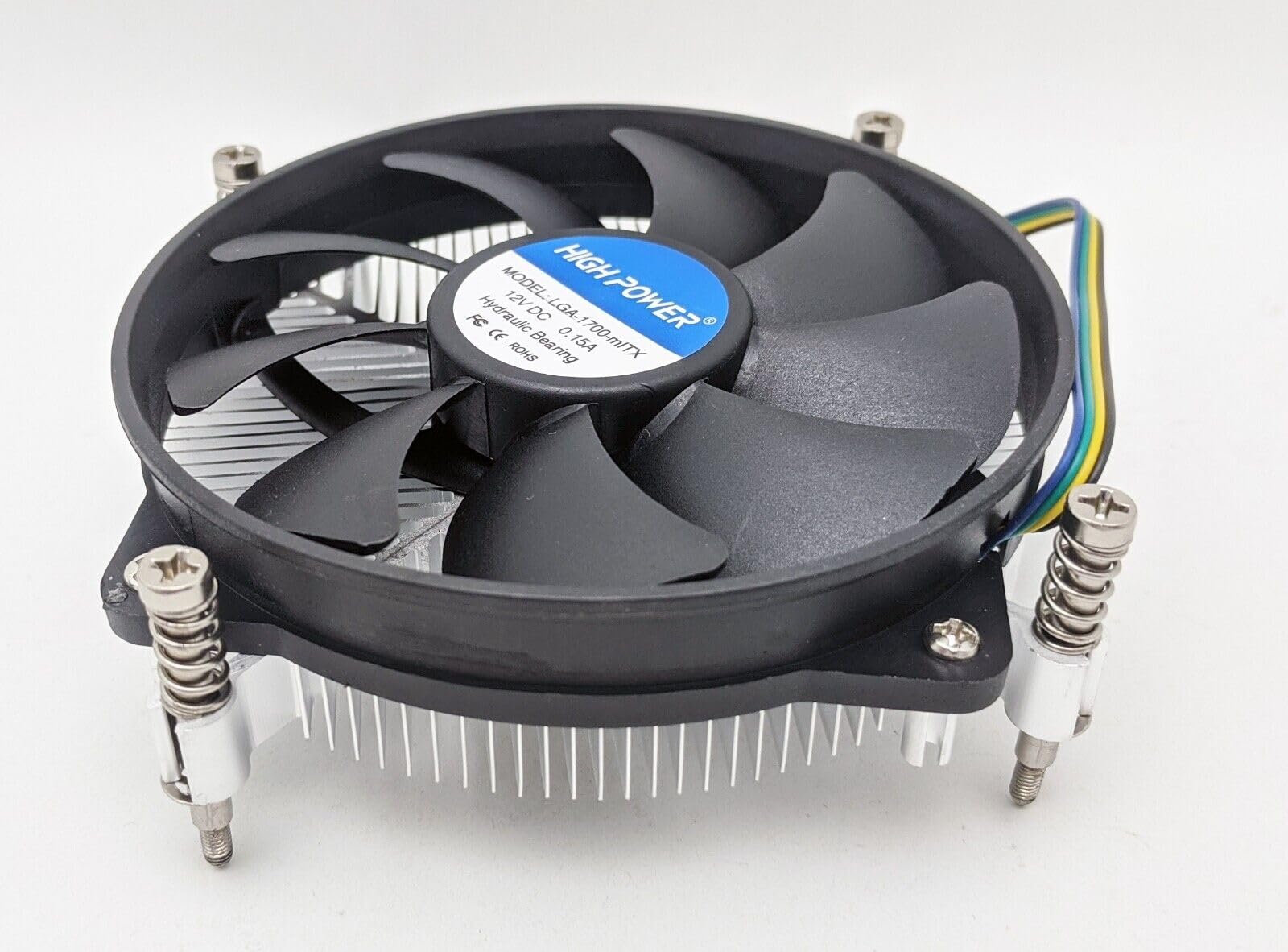

The stock fan that comes with Intel box processor would be too tall to fit in a 1U case or a compact mini ITX case (such as HIGH POWER mITX-0DB) HIGH POWER LGA-1700-mITX has a height clearance of only 28mm to fit in all mini ITX & 1U cases. Although it is lower profile than the stock Intel fan, its large 95mm fan delivers cooling capability that is not compromised. Set your BIOS to silent mode will enable the fan to start spinning at around 1000 RPM when it would be amazingly quiet. Noise level remains to be acceptably low during normal system operation. Heat Sink Material: Aluminum Secure 4-screw mount vs less reliable snap-on mount Fan Power Consumption: 12V DC @ 0.15A Fan Dimension: 95 x 95 x 15 mm Fan Speed: 1000 - 3100 RPM ± 10% Fan Air flow: 14.1 - 42.5 CFM ± 10% Fan Air Pressure: 0.84 - 2.52mm H2O ± 10% Bearing Type: Hydraulic Fan Life Expectancy: 40,000 hours Fan Noise Level: 18
• Designed to support Intel’s LGA1700 (LGA17xx family) platform. Screw-mount design provides easy & secured installation with the included

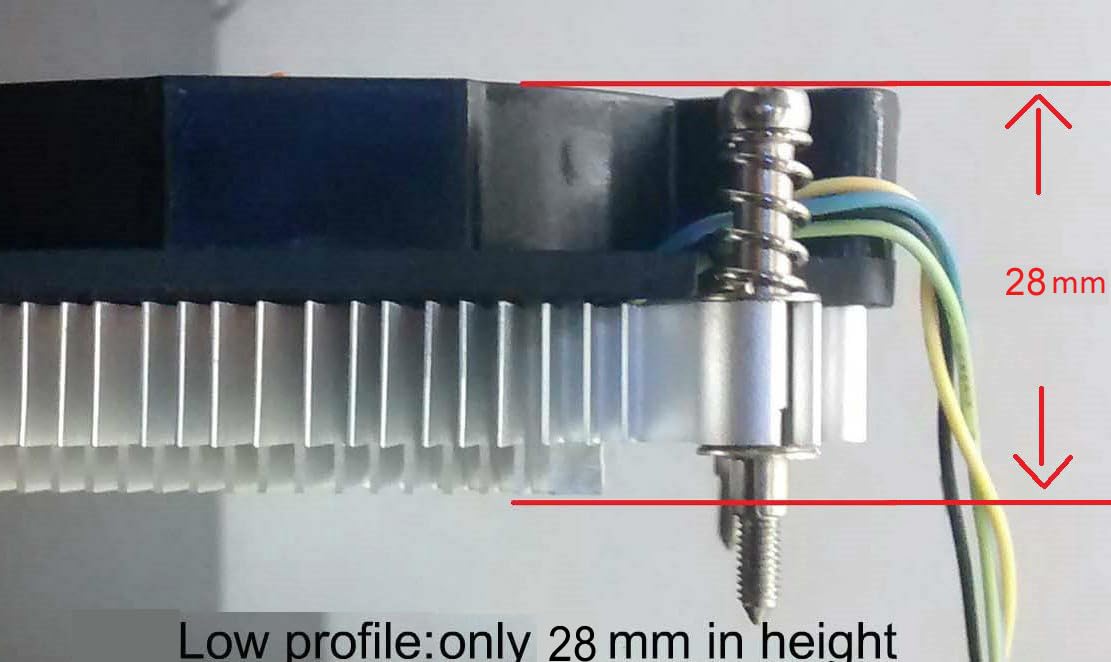

• Super low profile to fit in any chassis: only 28mm (1.10 inches) from processor contact point to the top of the fan.
• Automatic speed control (1100-3500 RPM) with 4pin PWM power connector, backward compatible with 3pin motherboard header

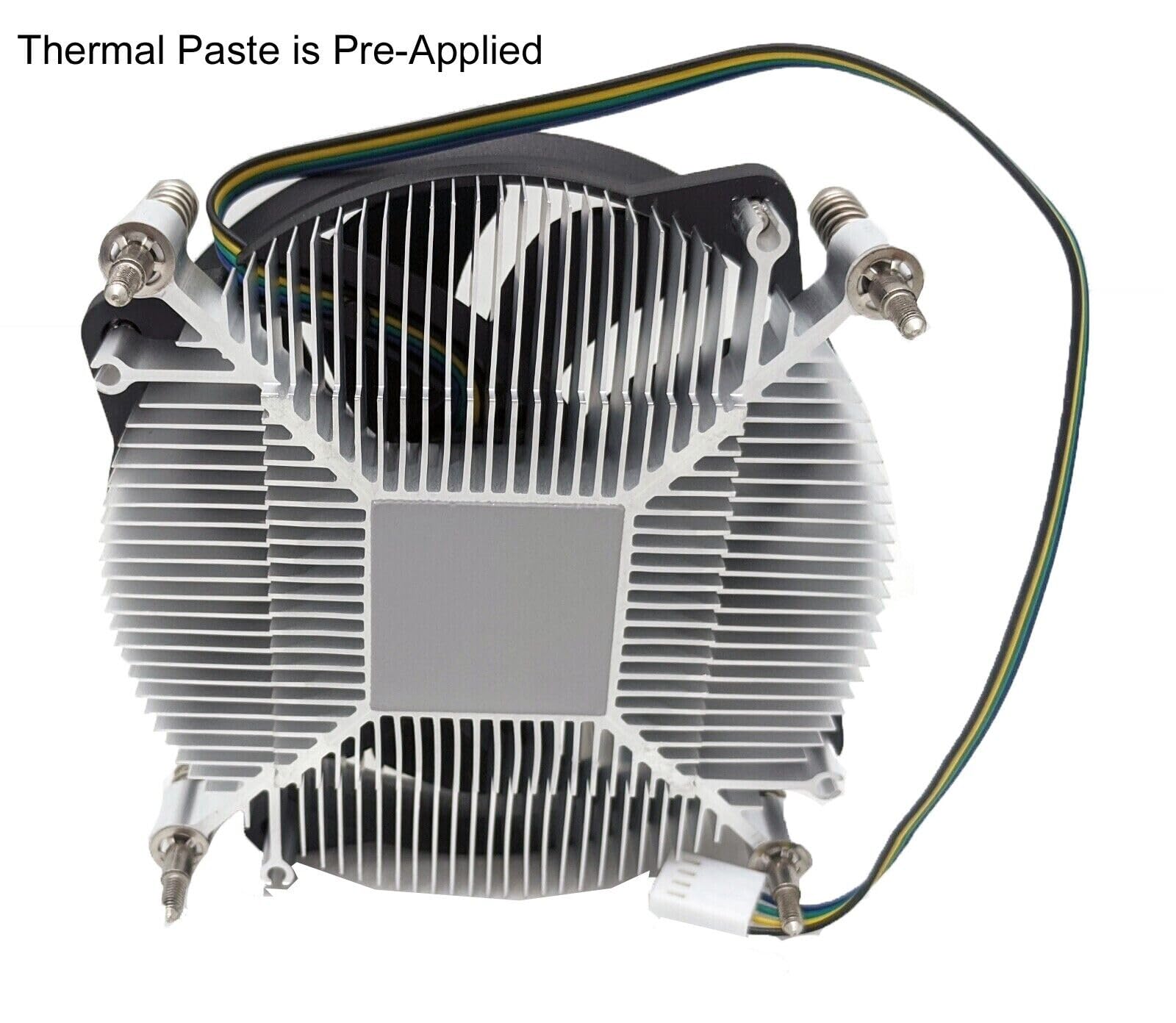

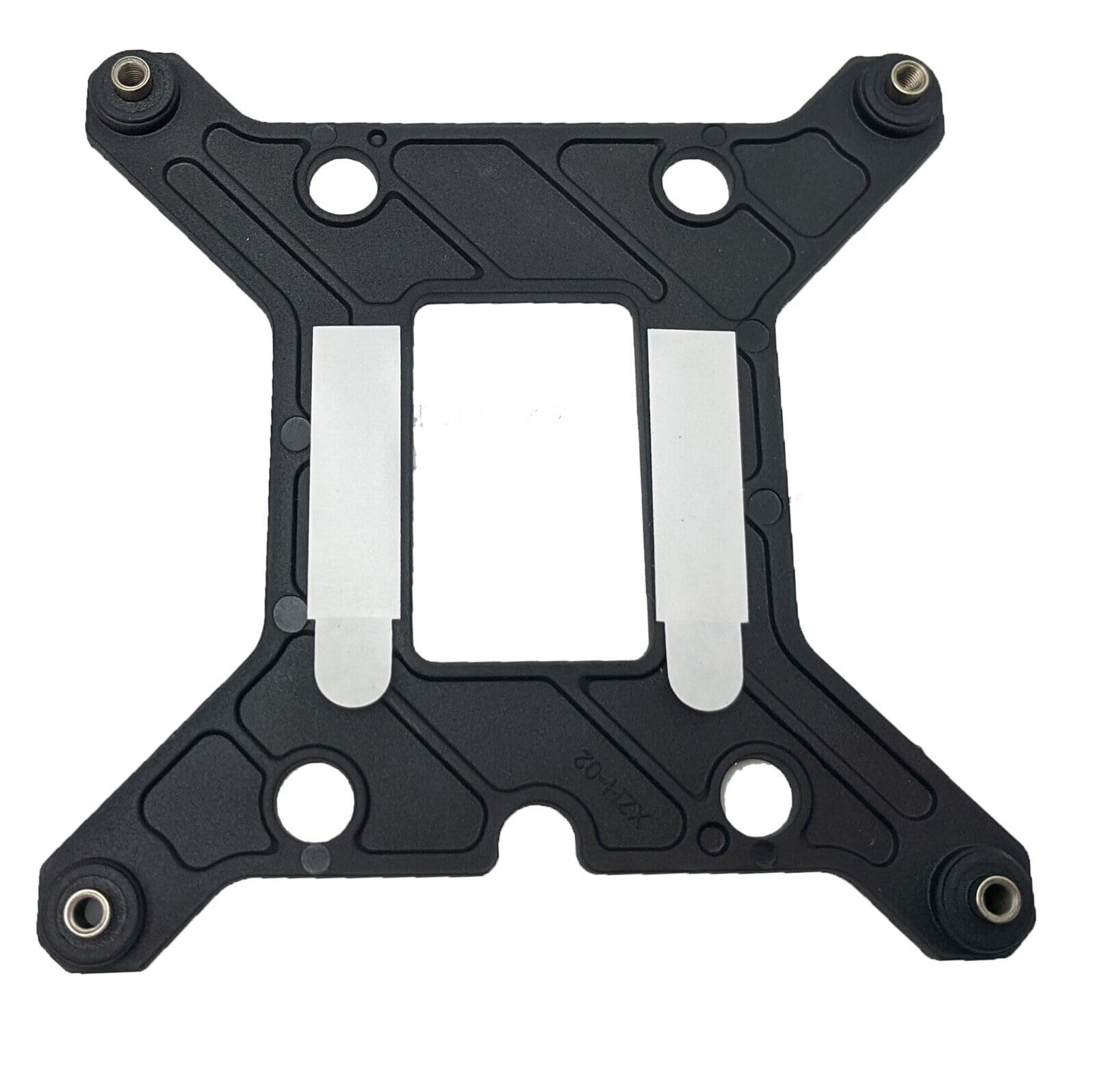

• Kit Content: Quiet 95mm cooling fan and aluminum heat-sink assembly, motherboard back plate. Thermal paste is already pre-applied to the
• TDP: 75W, 12V DC @ 0.15A, Operating Temperature: -10 °C ~ +70 °C, Supports Intel LGA-1700 Core i7, i5, and i3 series processors
The stock fan that comes with Intel box processor would be too tall to fit in a 1U case or a compact mini ITX case (such as HIGH POWER mITX-0DB) HIGH POWER LGA-1700-mITX has a height clearance of only 28mm to fit in all mini ITX & 1U cases. Although it is lower profile than the stock Intel fan, its large 95mm fan delivers cooling capability that is not compromised. Set your BIOS to silent mode will enable the fan to start spinning at around 1000 RPM when it would be amazingly quiet. Noise level remains to be acceptably low during normal system operation. Heat Sink Material: Aluminum Secure 4-screw mount vs less reliable snap-on mount Fan Power Consumption: 12V DC @ 0.15A Fan Dimension: 95 x 95 x 15 mm Fan Speed: 1000 - 3100 RPM ± 10% Fan Air flow: 14.1 - 42.5 CFM ± 10% Fan Air Pressure: 0.84 - 2.52mm H2O ± 10% Bearing Type: Hydraulic Fan Life Expectancy: 40,000 hours Fan Noise Level: 18
• Designed to support Intel’s LGA1700 (LGA17xx family) platform. Screw-mount design provides easy & secured installation with the included
• Super low profile to fit in any chassis: only 28mm (1.10 inches) from processor contact point to the top of the fan.
• Automatic speed control (1100-3500 RPM) with 4pin PWM power connector, backward compatible with 3pin motherboard header
• Kit Content: Quiet 95mm cooling fan and aluminum heat-sink assembly, motherboard back plate. Thermal paste is already pre-applied to the
• TDP: 75W, 12V DC @ 0.15A, Operating Temperature: -10 °C ~ +70 °C, Supports Intel LGA-1700 Core i7, i5, and i3 series processors
