Brand: eifagur

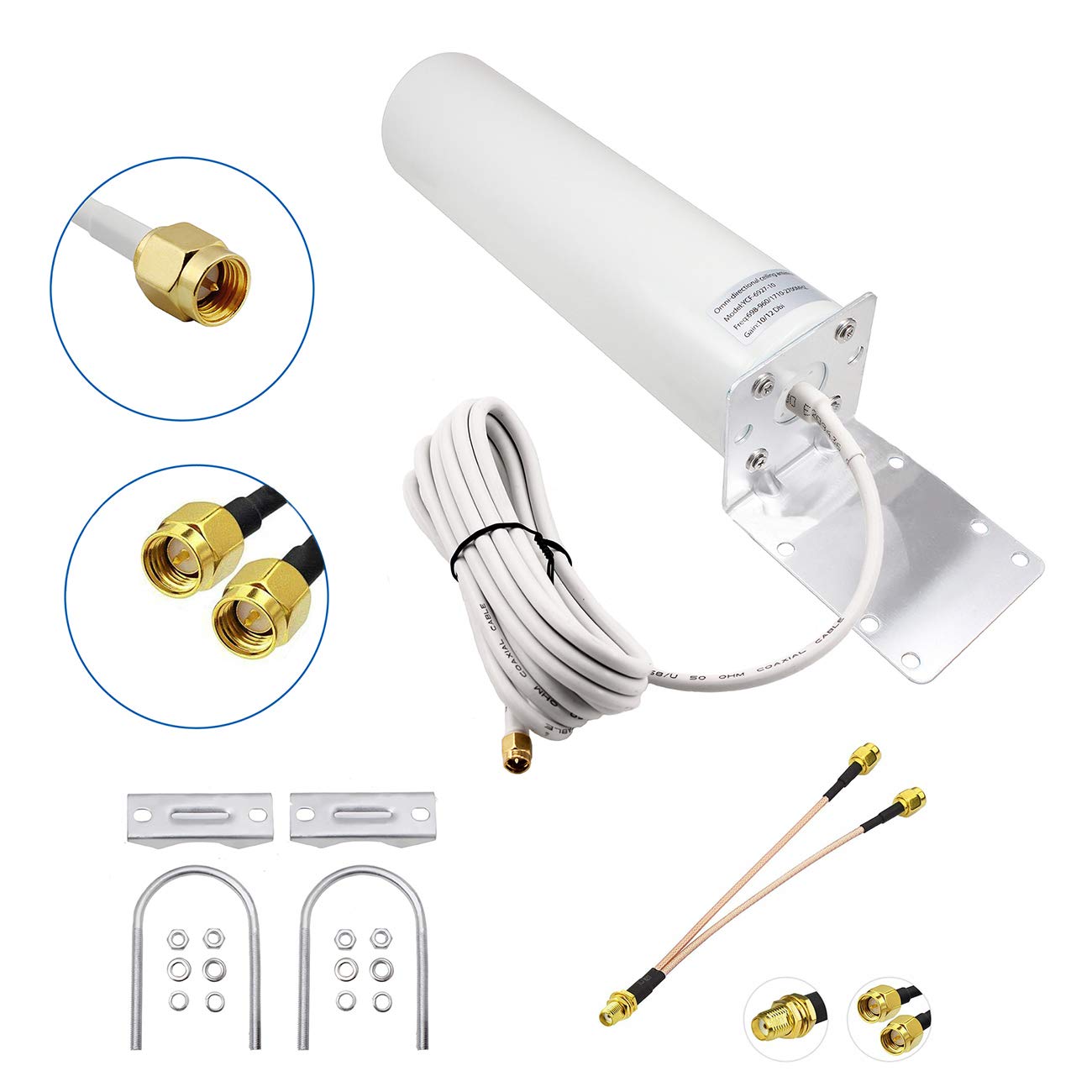

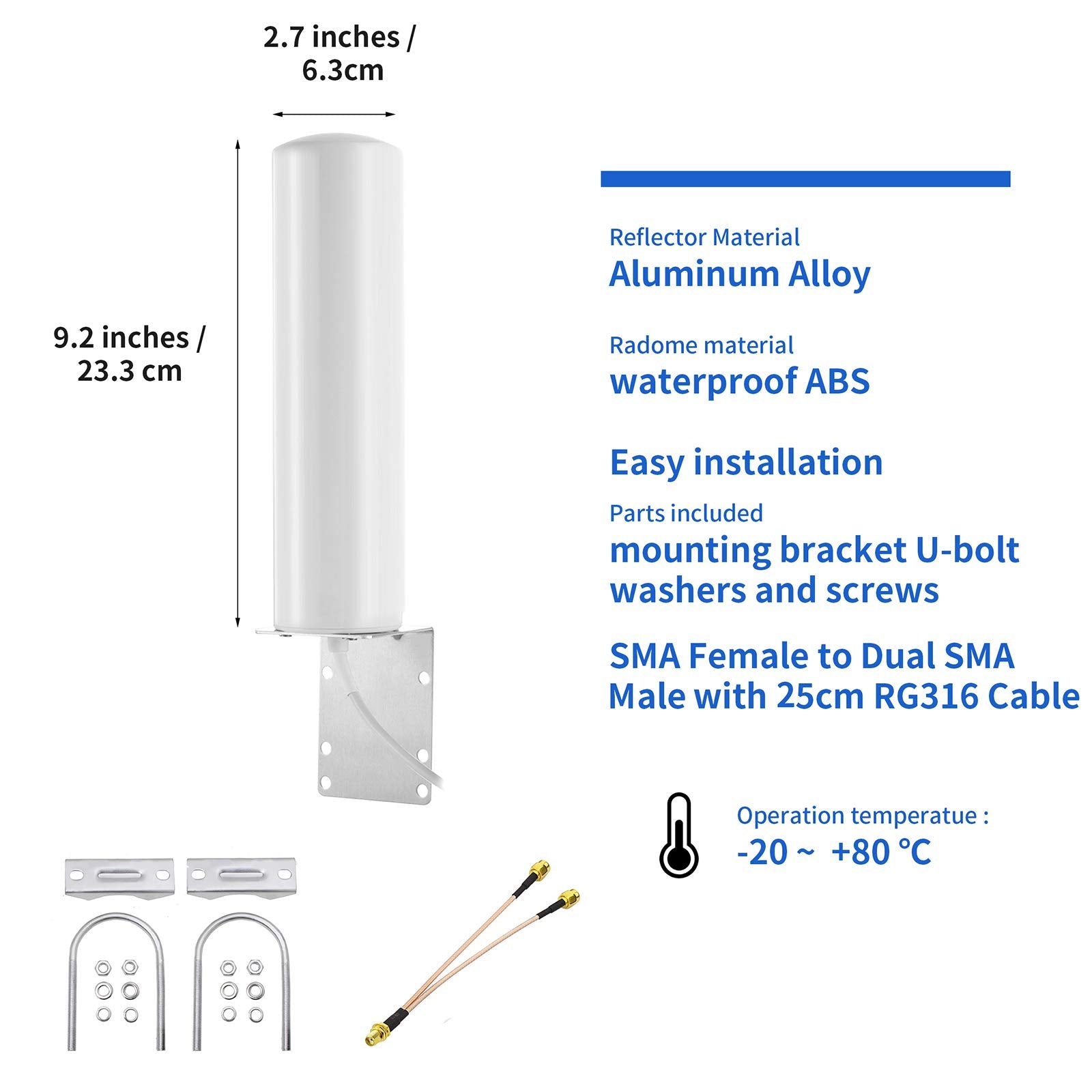

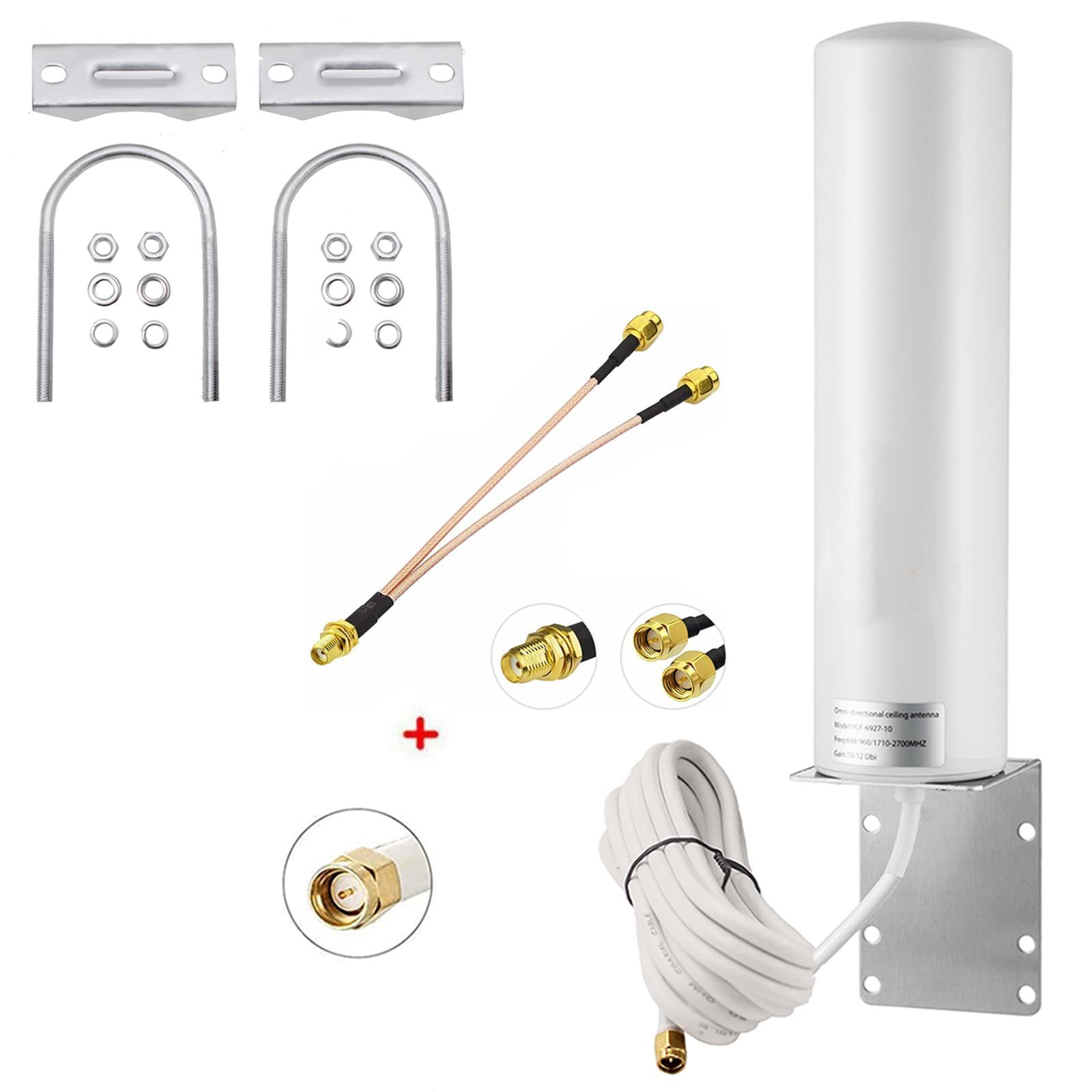

Bands supported :AT&T: B2, B4, B5, B12, B17, B29, B30, B66 | Verizon: B2, B4, B5, B13, B66 | T-Mobile: B2, B4, B5, B12, B66, B71 | Sprint: B25 B26, B41| Band 2 (1900 MHz) | Band 4 (1700/2100 MHz) | Band 5 (850 MHz) | Band 12 (700 MHz) | Band 13 (700 MHz) | Band 14 (700 MHz) | Band 17 (700 MHz) | Band 25 (1900 MHz) | Band 26 (850 MHz) | Band 30 (2100 MHz) | Band 66 (2100 MHz) | Band 71 (600 MHz) | All supported 5G Bands: n1, n2, n3, n5, n7, n8, n12, n14, n18, n20, n25, n26, n28, n29, n30 n34, n38, n39, n40, n41, n65, n66, n70, n71, n80, n81, n82, n83, n84, n86, n89, n90, n95 <br><br>Specifications:<br> Gain: 10dBi; <br> Frequency Range: 698-960 MHz, 1710-2170 MHz, 2300-2700 MHz; <br> VSWR: < 2.0; <br> Impedance: 50 ohm; <br> Direction: Omni-directional; <br> Feature: Fixed Wall Mount; <br> Antenna connector: SMA male; <br> Antenna Cable Length:5M LOW Loss Coaxial Cable; <br>Adapter Cable: SMA Female to Dual SMA Male with 25cm RG316 Cable;<br> Dimensions: Appox.23 X 6.5 X 6.5CM; <br> Operating Temperature: -20°? ~ +80°?; <br> Storage Temperature: -30°? ~ +85°?; <br> Package List: 1 x Antenna Kit; (As the Picture Shown);1 x Adapter Cable <br><br> Note: The installation mast is not included, only the Antenna kit and Adapter Cable. <br><br> Installation Reminder: When installing this Omni-directional antenna, please keep it as vertical as possible, In order to get a better signal, please keep the antenna as free as possible (especially the metal baffle) and high enough. <br><br>NOTE:*Use 50 Ohm RF coax cables?except RG174 ?,DON’T Use RG59/RG6 coax (75 Ohm cable) - signal will be seriously degraded.

Features:

• Frequency Range: 698 - 2700 MHz
• Gain?10dBi
• Direction: Omni-directional
• Antenna Connector: SMA Male?pin inside)
• Antenna Cable Length: 5 Meter LOW Loss Coaxial Cable

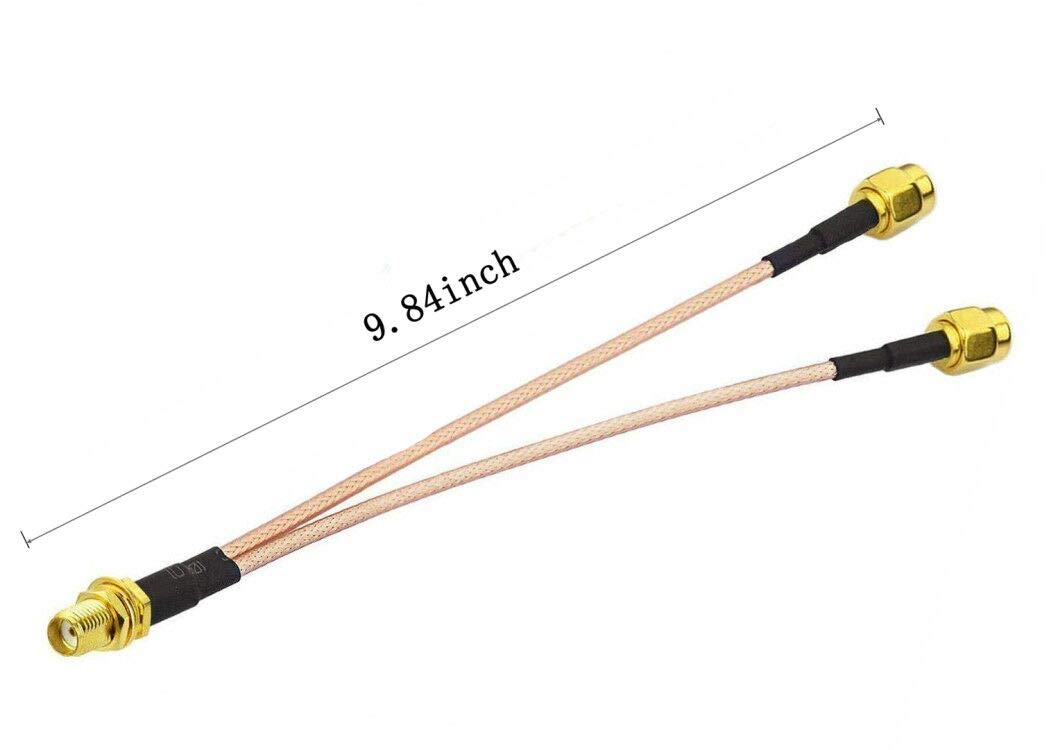

• Adapter Cable : SMA Female to Dual SMA Male with 25cm RG316 Cable
• Works on 3G, 4G, LTE Modems GSM CDMA cellular services with SMA connection includes Sierra Wireless Verizon AT T,Netgear Sprint,Novatel Wireless Verizon 4G router gateway mobile cell phone 4G LTE Router
• No need to worry about pointing this type of antenna as this is Omni-directional antenna, easy to install, Provide faster data rates, greater reliability, and lower latencies for your home internet network
• Compatible with: Huawei 4G LTE Wireless Router B525 B525S B315 B593 B880 B890 B310 E5186 E5175
• ZTE MF28G MF28D MF288 MF286 MF285 MF283 MF275U MF275R MF25D Z723EL WF721 MF279 MOFI 4500 Router

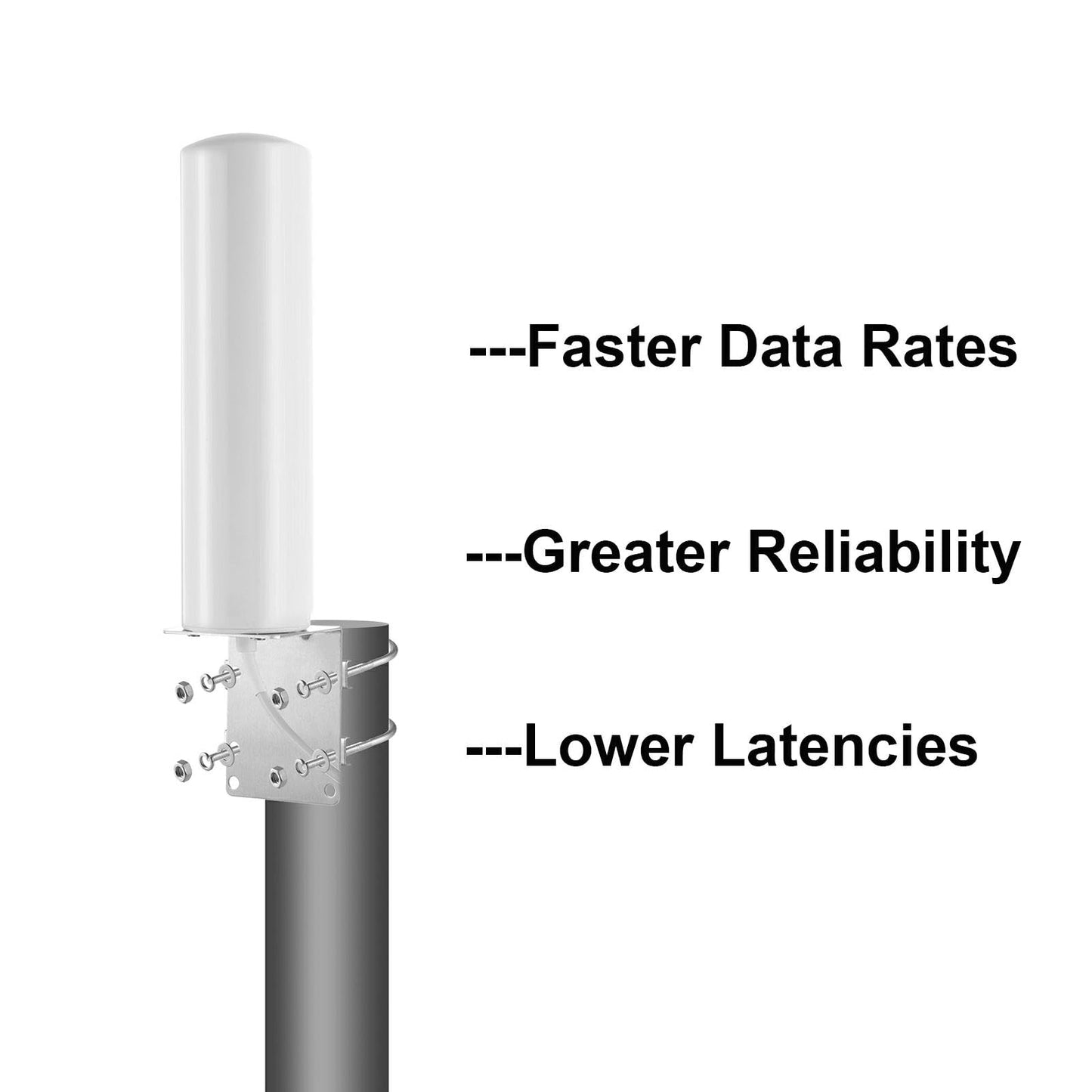

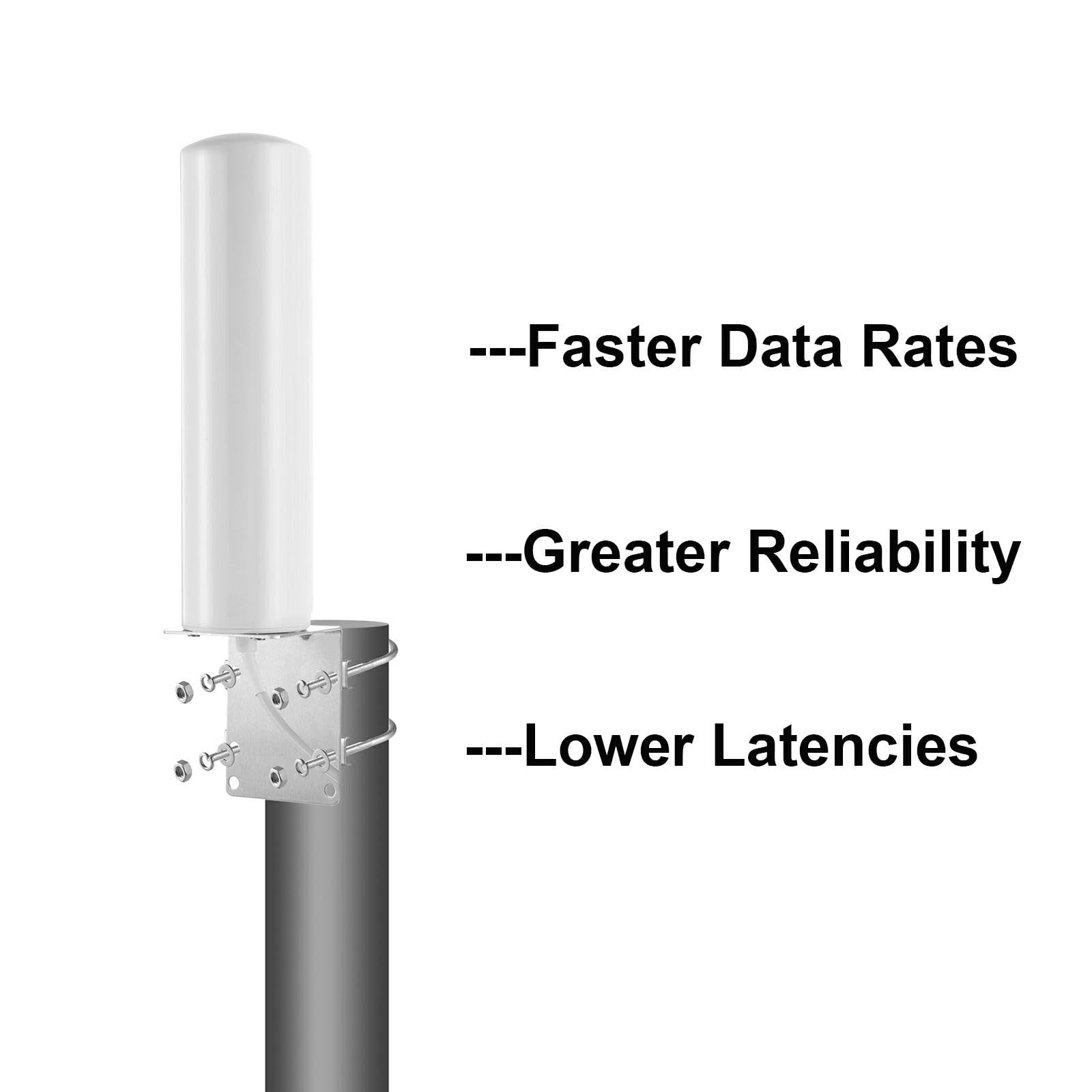

• EASY TO INSTALL: Designed for exterior installation, the 4g antenna from features a rugged waterproof structure that's designed to withstand damage from the elements.This package includes two U-bolt brackets for 1.5- to 2- inch pipe or mast
• Installation Reminder: When installing this Omni-directional antenna, please keep it as vertical as possible, In order to get a better signal, please keep the antenna as free as possible (especially the metal baffle) and high enough

Product Details:

• Color: Fixed Mount Antenna
• Model: fghea-724
• Package Quantity: 1
