Description
Brand: HFeng
Product Specifications
Access Control Keypad
User capacity: 3000
Material: ABS high quality material
Panel: touch screen panel

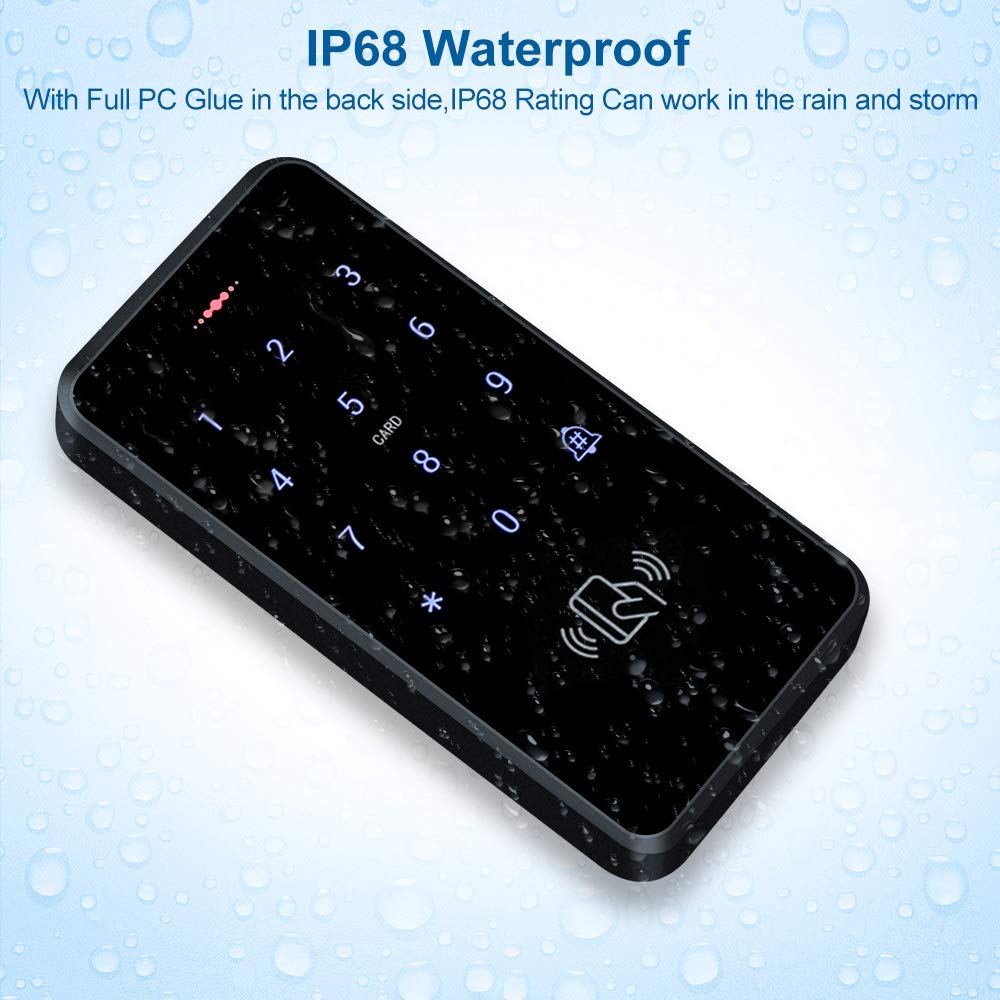

Waterproof level: IP68 waterproof, can be installed outdoor
Working frequency: 125KHz
Card reading type: support EM compatible card
Card reading distance: 0-10CM

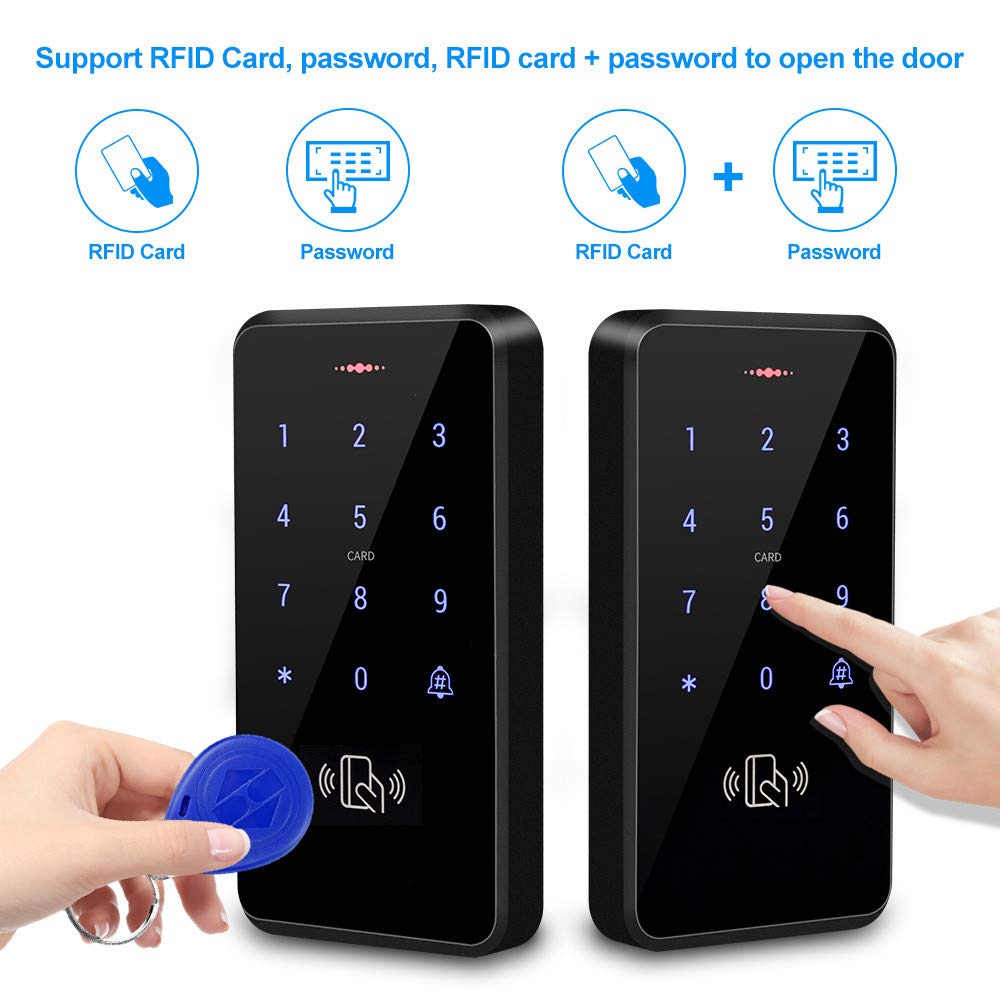

Identification method: card, password, card + password
Backlight: has blue backlight
Doorbell button: support wired doorbell
Wiegand signal: WG26/34 input/output
Can set management card: yes
Working voltage: DC 12V
Working current: ? 30mA
Door opening time: 0-255 seconds
Working temperature: -20 ° C ~ 70 ° C
Working Humidity: 20% ~ 90%
Product size: 140*70*16mm

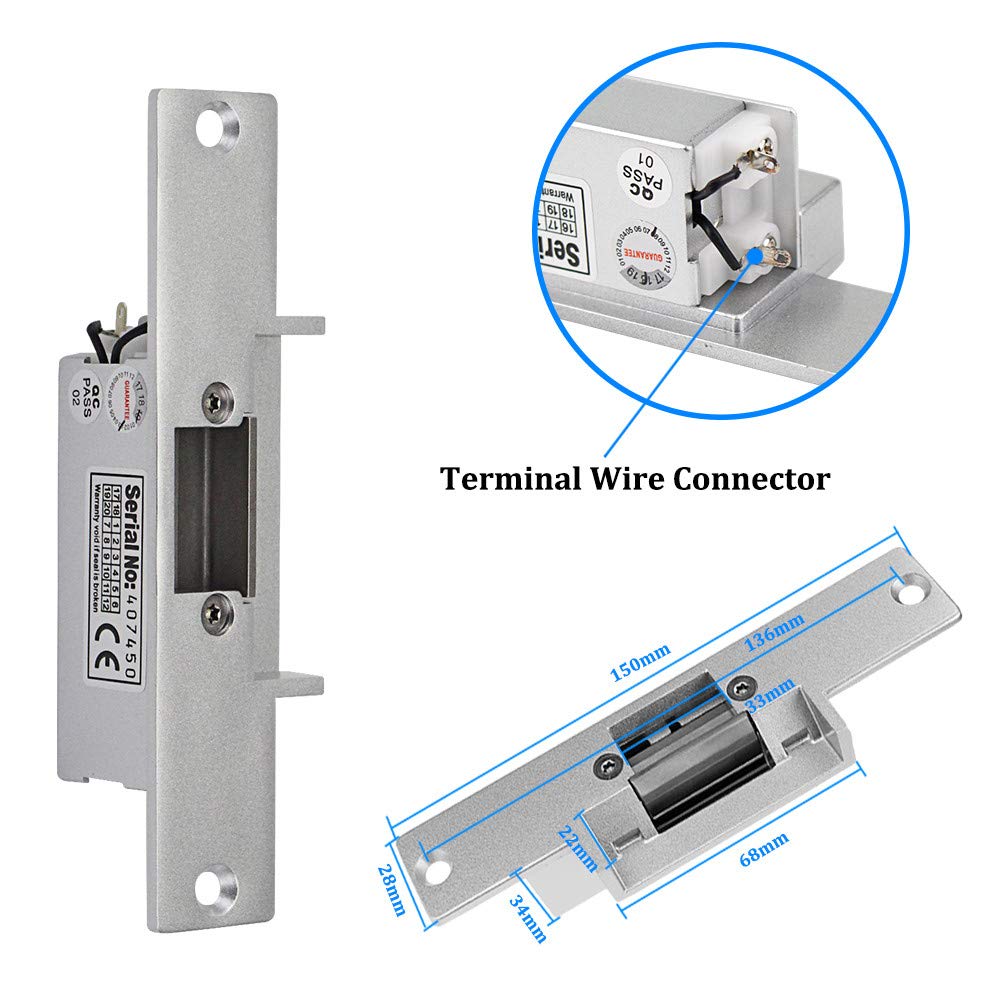

Electric Strike Lock
Material: stainless steel
Working Voltage: DC12V+/- 10%
Working Current: 110mA-250mA
Performance Testing: 1000000 time aging test
Dimension: 150*28 mm
Opening Mode: 90 degree swinging door
Secure Mode: NC type = fail safe type ( Locked when power on, unlocked when power off )
Suitable for wooden door, metal door

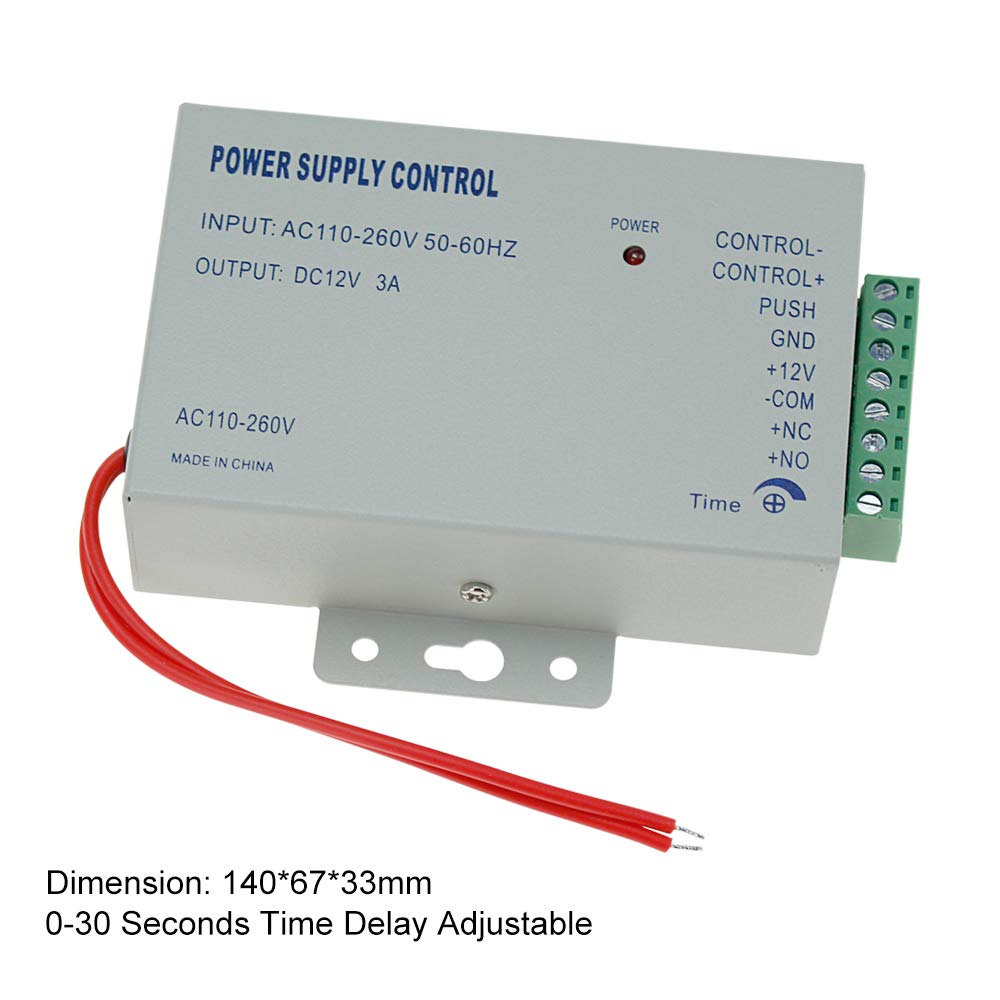

Power Supply
Material: stell
AC input: Standard AC100V-260V / 50-60HZ
DC output: DC12V/ 3 A
Time delay: 0-15 seconds adjustable.
Dimension: 140X67X33mm( L/W/H )
Door Exit Button
Material: Hard Plastic
Maximum Power Rating: 36V DC 3A-5A output
Support both NC Mode (Fail Safe Mode) & NO Mode (Fail Secure Mode)
Dimension: 86X86MM
10* RFID Keyfobs
Material: ABS
Operating frequency: 125kHz
Detection range: 0-10cm
Each card pre programmed and has a unique identity number on it.

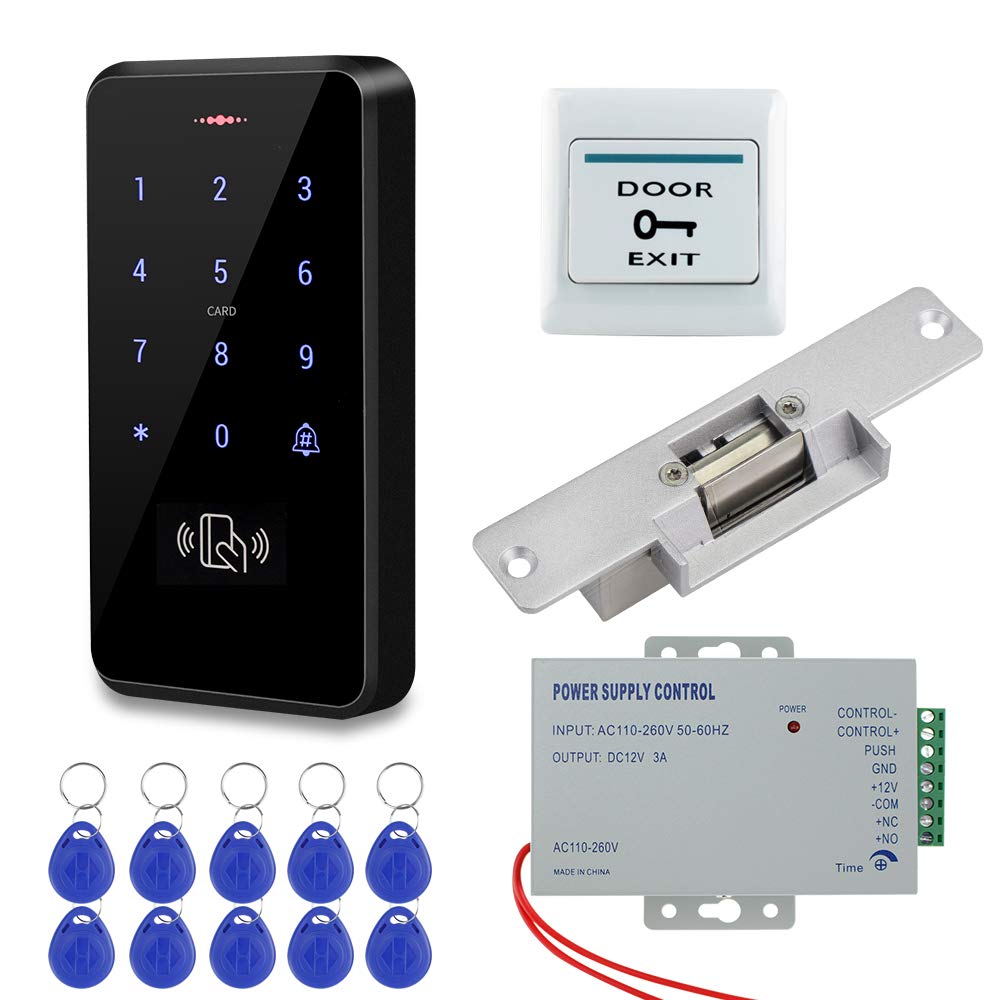

Package Including
?1x RFID access control keypad
1x Electric strike lock
1x Power supply
1x Exit button
?10x RFID blue keyfobs
• ? Support 3000 user capacity. Support RFID Card, password, RFID card + password to open the door. Has backlight, work indicating light, very convenient to use even at dark.
• ? Made of high quality, touch screen panel. The access control keypad is IP68 waterproof, can be used outside. Has a WG26/34 interface and door bell button.
• ? NC type (fail safe type) strike lock, the door will be locked when power on, unlocked when power off. Very suitable for wooden door, metal door.
• ? Working with DC12V system, very easy to install. Don't need to connect to computer. You can program the RFID cards or password on the device directly.
• ? Package including access control keypad + power supply + electric strike lock + door exit button +10pcs Keyfobs.
Product Specifications
Access Control Keypad
User capacity: 3000
Material: ABS high quality material
Panel: touch screen panel
Waterproof level: IP68 waterproof, can be installed outdoor
Working frequency: 125KHz
Card reading type: support EM compatible card
Card reading distance: 0-10CM
Identification method: card, password, card + password
Backlight: has blue backlight
Doorbell button: support wired doorbell
Wiegand signal: WG26/34 input/output
Can set management card: yes
Working voltage: DC 12V
Working current: ? 30mA
Door opening time: 0-255 seconds
Working temperature: -20 ° C ~ 70 ° C
Working Humidity: 20% ~ 90%
Product size: 140*70*16mm
Electric Strike Lock
Material: stainless steel
Working Voltage: DC12V+/- 10%
Working Current: 110mA-250mA
Performance Testing: 1000000 time aging test
Dimension: 150*28 mm
Opening Mode: 90 degree swinging door
Secure Mode: NC type = fail safe type ( Locked when power on, unlocked when power off )
Suitable for wooden door, metal door
Power Supply
Material: stell
AC input: Standard AC100V-260V / 50-60HZ
DC output: DC12V/ 3 A
Time delay: 0-15 seconds adjustable.
Dimension: 140X67X33mm( L/W/H )
Door Exit Button
Material: Hard Plastic
Maximum Power Rating: 36V DC 3A-5A output
Support both NC Mode (Fail Safe Mode) & NO Mode (Fail Secure Mode)
Dimension: 86X86MM
10* RFID Keyfobs
Material: ABS
Operating frequency: 125kHz
Detection range: 0-10cm
Each card pre programmed and has a unique identity number on it.
Package Including
?1x RFID access control keypad
1x Electric strike lock
1x Power supply
1x Exit button
?10x RFID blue keyfobs
• ? Support 3000 user capacity. Support RFID Card, password, RFID card + password to open the door. Has backlight, work indicating light, very convenient to use even at dark.
• ? Made of high quality, touch screen panel. The access control keypad is IP68 waterproof, can be used outside. Has a WG26/34 interface and door bell button.
• ? NC type (fail safe type) strike lock, the door will be locked when power on, unlocked when power off. Very suitable for wooden door, metal door.
• ? Working with DC12V system, very easy to install. Don't need to connect to computer. You can program the RFID cards or password on the device directly.
• ? Package including access control keypad + power supply + electric strike lock + door exit button +10pcs Keyfobs.
