Description
Brand: Diginex
Product Specifications
RFID Access Controller
User Capicity: 2000 user cards
WG interface: WG26
Working Frequency: 125KHz
Working Voltage: DC12V
Working Temperature: -35 to +60
Verification Method: RFID card, Password, RFID card+password
Reading Distance: 0-10cm

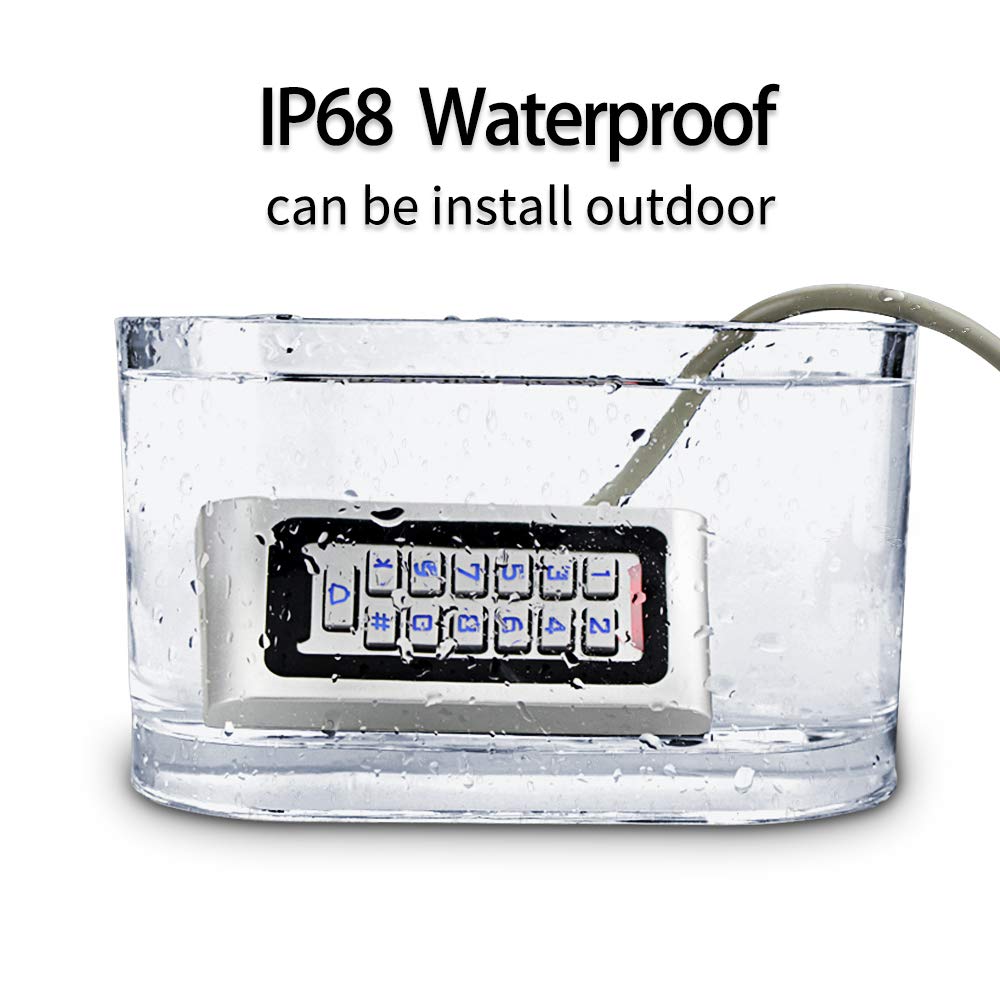

Waterproof level: IP68
Blacklight: blue

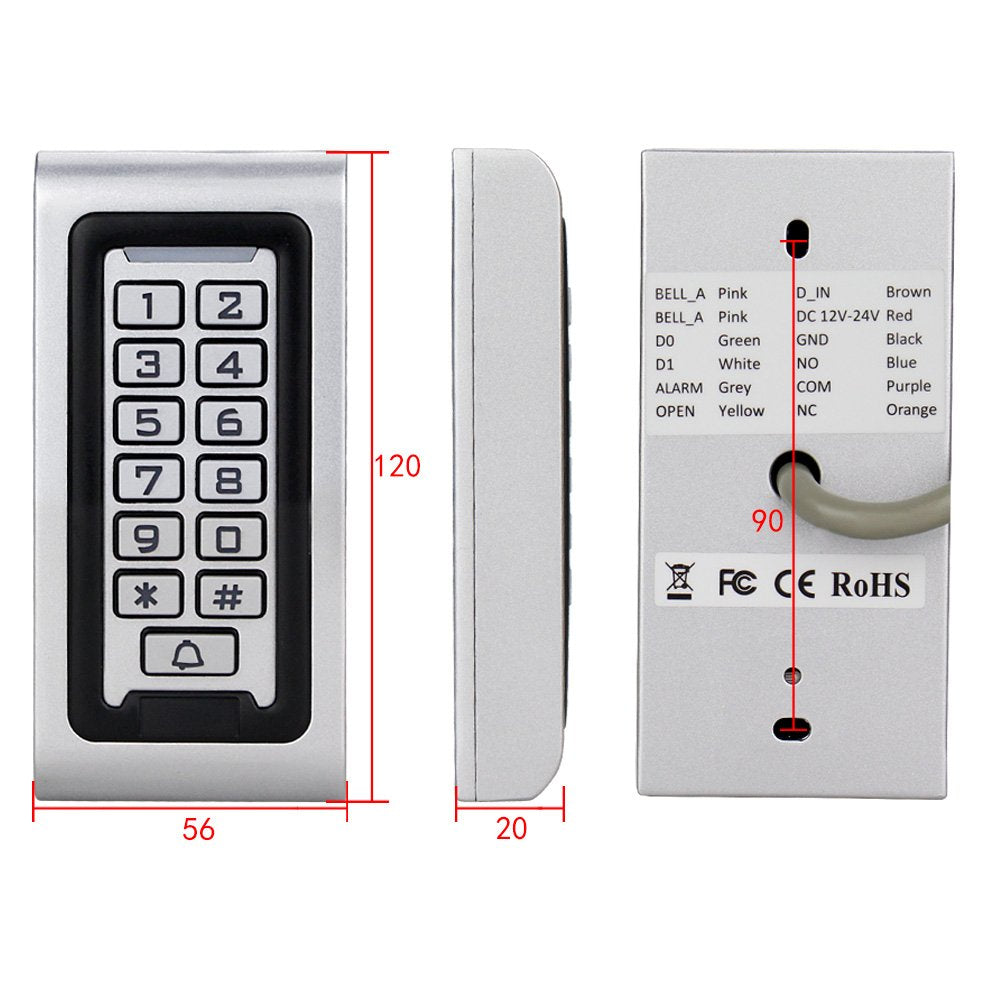

Size: 120 X 57 X 20mm
180KG Magnetic lock
Material: Aluminum alloy shell + iron plate
Holding force: 180KG/350lbs
Working Voltage: DC12V
Working Current: 380-430mA
Humidity: 0 to 95%
Working Temperature: -10 to 55 Celsius degree
Working mode: locked when power on, unlocked when power off
Waterproof: Yes. Can be install outside

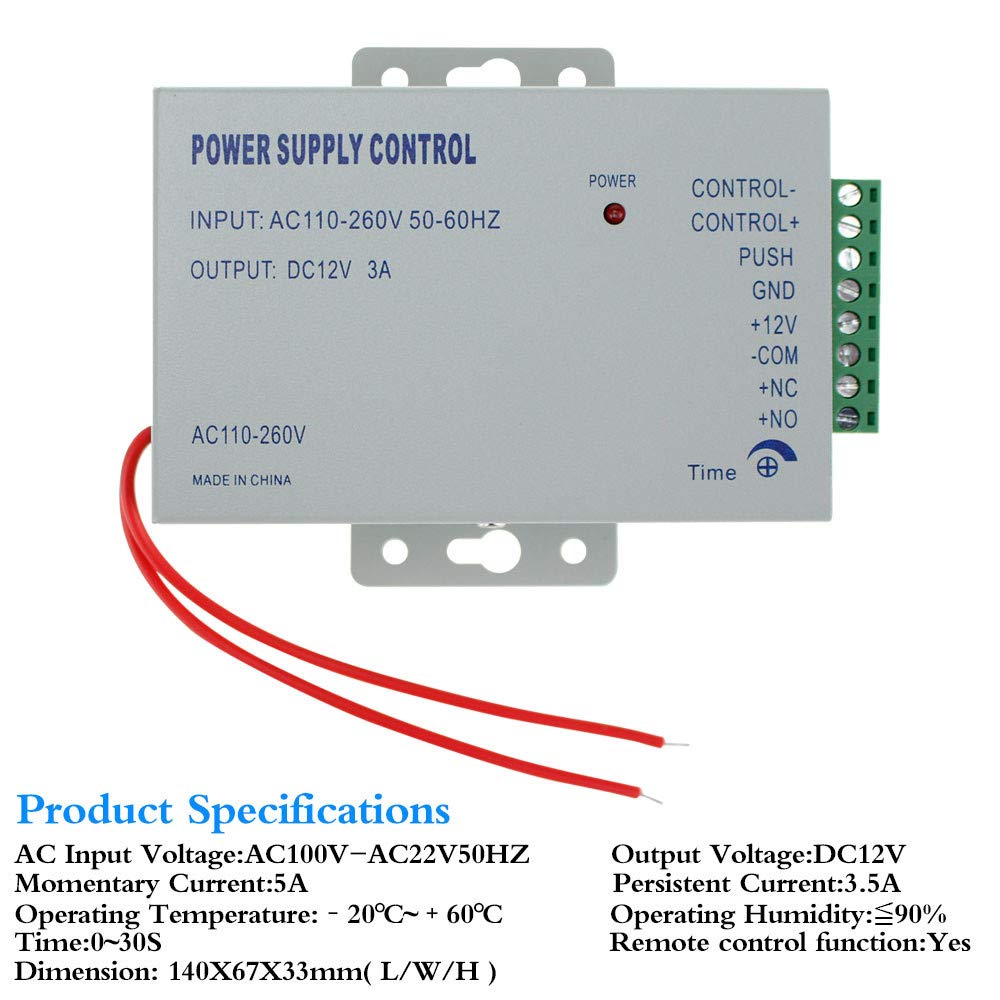

Power Supply
Material: Steel
Output Power: 36W
Durability Test: 500000 times
Input Frequency: 50-60Hz
Input Voltage: 110-260VAC
Output Voltage: DC12V/3A
Working Temperature: -20 to +65
Time Delay: 0-15 seconds adjustable
Dimension: 100*65*32mm
RFID Keyfobs
You can read these keys on the access controller keypad to open the door convenient. Only the key finished programed with our instruction then can be open the door.
Working Frequency: 125KHz
With ABS high quality
Each one has unique ID number on it
Reading Range: 1-10cm
Color: Blue
Quantity: 10pcs
Door Exit Button
Material: Fireproof plastic/ABS
Application: Home/ Office/ Hotel/ Factory/ Store, etc
Durability Test: 500000 times
Contact Rating: 3A/36VDC
Input: 12VDC
Output: NO/NC/COM
Working Temperature: -10 to +55
Suitable for Door: Hollow Door
Dimension: 86*86*20mm

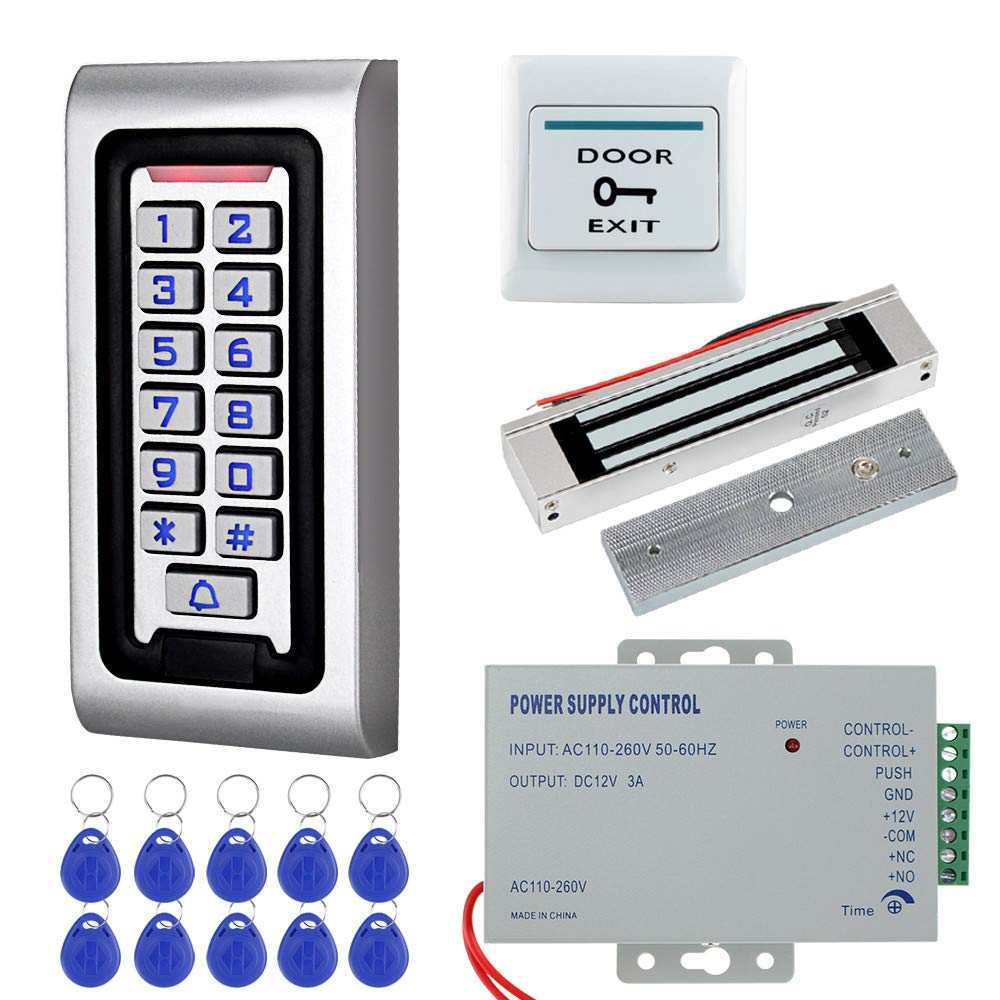

Package Including
1* RFID Keypad
1* 180KG Electric Magnetic lock
1* Power supply
1* Exit button
10* RFID keyfobs
• 1. Working with DC12V power supply system. Very easy to install. Don't need to connect to computer.
• 2. Made of high quality, the access control keypad is IP65 waterproof, can be used outside. Has a WG26 interface and door bell button.

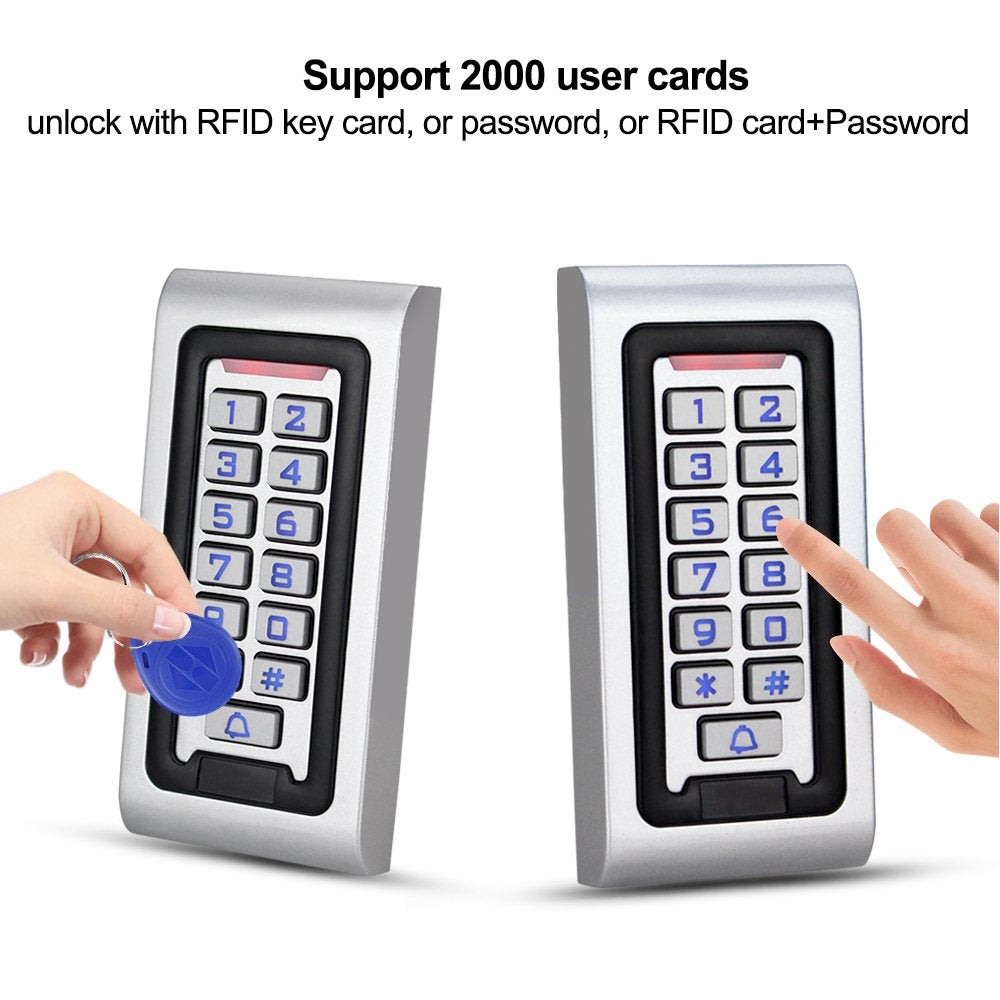

• 3. Support 2000 user capacity. Can open the door with RFID key cards, password, RFID key card+password.
• 4. Suitable for wooden door, metal door, glass door. Locked when power on, unlocked when power off.
• 5. Package including access control keypad + power supply + 180KG electric magnetic lock + door exit button +10pcs Keyfobs.
Product Specifications
RFID Access Controller
User Capicity: 2000 user cards
WG interface: WG26
Working Frequency: 125KHz
Working Voltage: DC12V
Working Temperature: -35 to +60
Verification Method: RFID card, Password, RFID card+password
Reading Distance: 0-10cm
Waterproof level: IP68
Blacklight: blue
Size: 120 X 57 X 20mm
180KG Magnetic lock
Material: Aluminum alloy shell + iron plate
Holding force: 180KG/350lbs
Working Voltage: DC12V
Working Current: 380-430mA
Humidity: 0 to 95%
Working Temperature: -10 to 55 Celsius degree
Working mode: locked when power on, unlocked when power off
Waterproof: Yes. Can be install outside
Power Supply
Material: Steel
Output Power: 36W
Durability Test: 500000 times
Input Frequency: 50-60Hz
Input Voltage: 110-260VAC
Output Voltage: DC12V/3A
Working Temperature: -20 to +65
Time Delay: 0-15 seconds adjustable
Dimension: 100*65*32mm
RFID Keyfobs
You can read these keys on the access controller keypad to open the door convenient. Only the key finished programed with our instruction then can be open the door.
Working Frequency: 125KHz
With ABS high quality
Each one has unique ID number on it
Reading Range: 1-10cm
Color: Blue
Quantity: 10pcs
Door Exit Button
Material: Fireproof plastic/ABS
Application: Home/ Office/ Hotel/ Factory/ Store, etc
Durability Test: 500000 times
Contact Rating: 3A/36VDC
Input: 12VDC
Output: NO/NC/COM
Working Temperature: -10 to +55
Suitable for Door: Hollow Door
Dimension: 86*86*20mm
Package Including
1* RFID Keypad
1* 180KG Electric Magnetic lock
1* Power supply
1* Exit button
10* RFID keyfobs
• 1. Working with DC12V power supply system. Very easy to install. Don't need to connect to computer.
• 2. Made of high quality, the access control keypad is IP65 waterproof, can be used outside. Has a WG26 interface and door bell button.
• 3. Support 2000 user capacity. Can open the door with RFID key cards, password, RFID key card+password.
• 4. Suitable for wooden door, metal door, glass door. Locked when power on, unlocked when power off.
• 5. Package including access control keypad + power supply + 180KG electric magnetic lock + door exit button +10pcs Keyfobs.
