Description
Brand: HFeng
Product Specifications

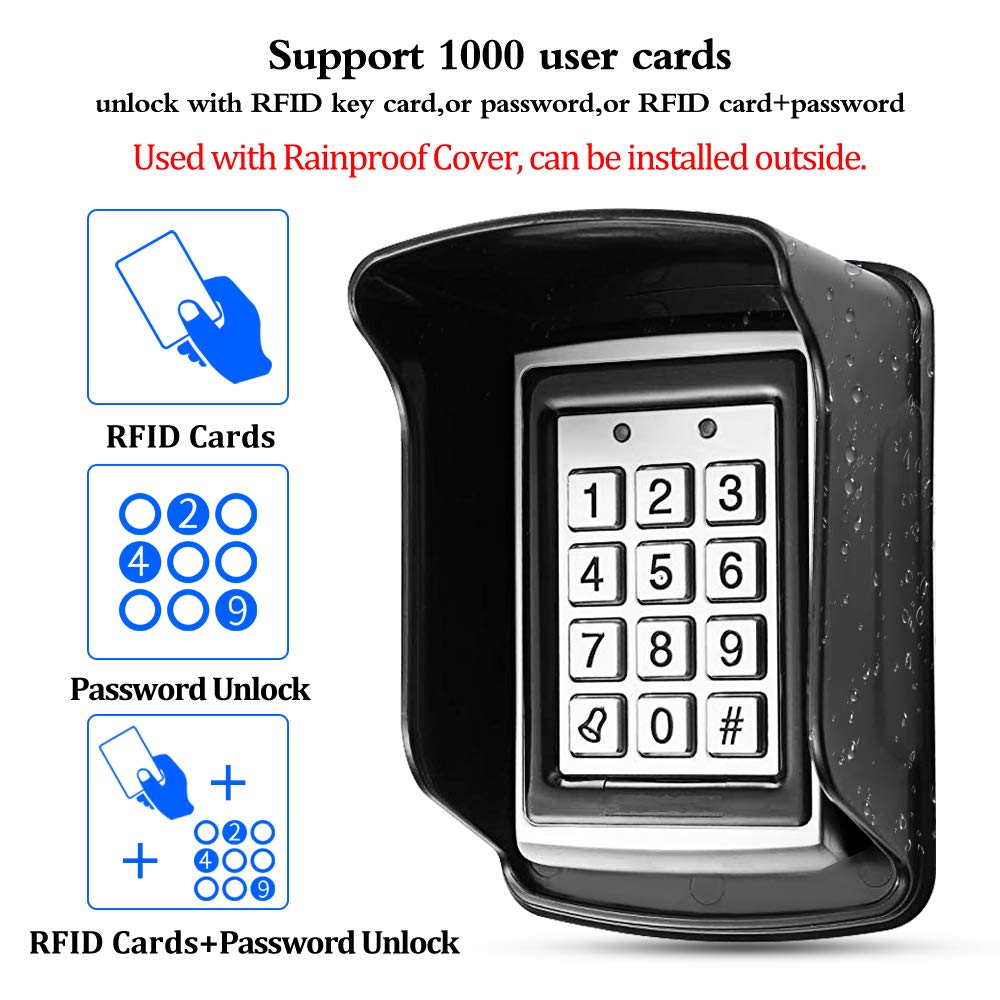

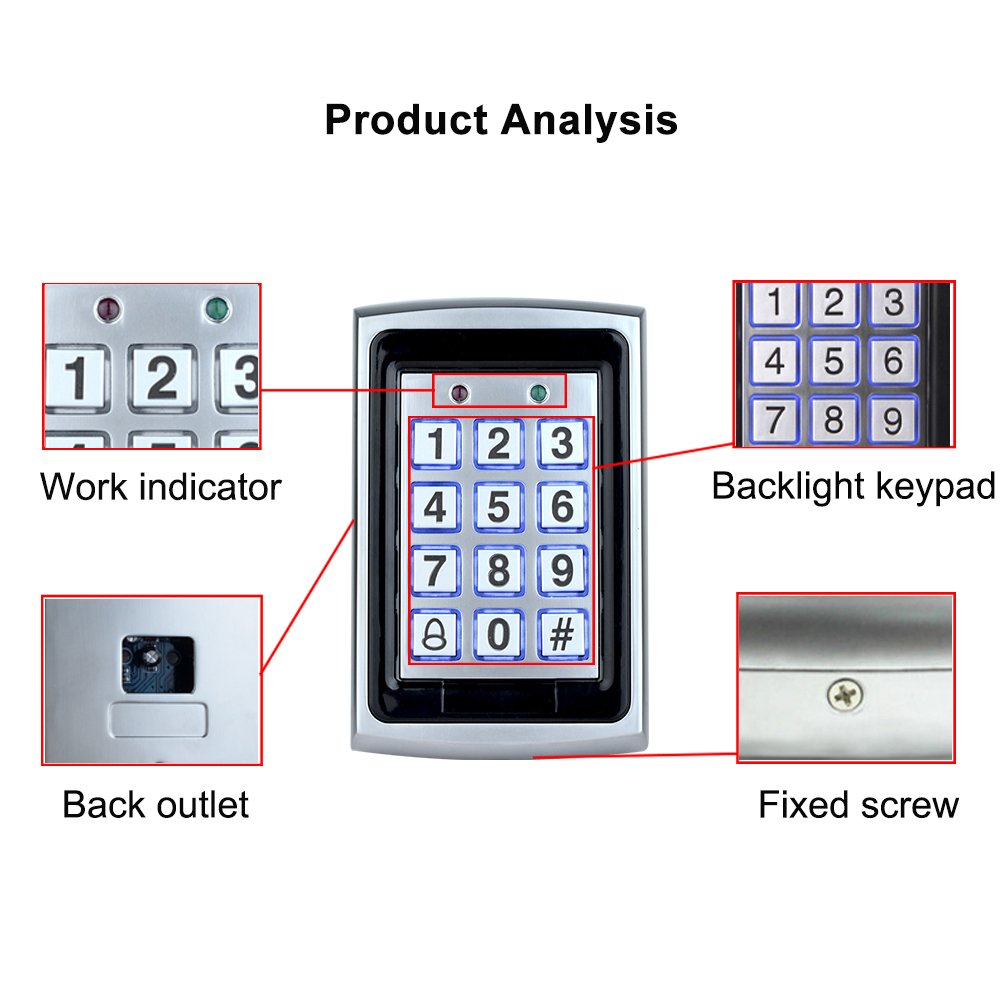

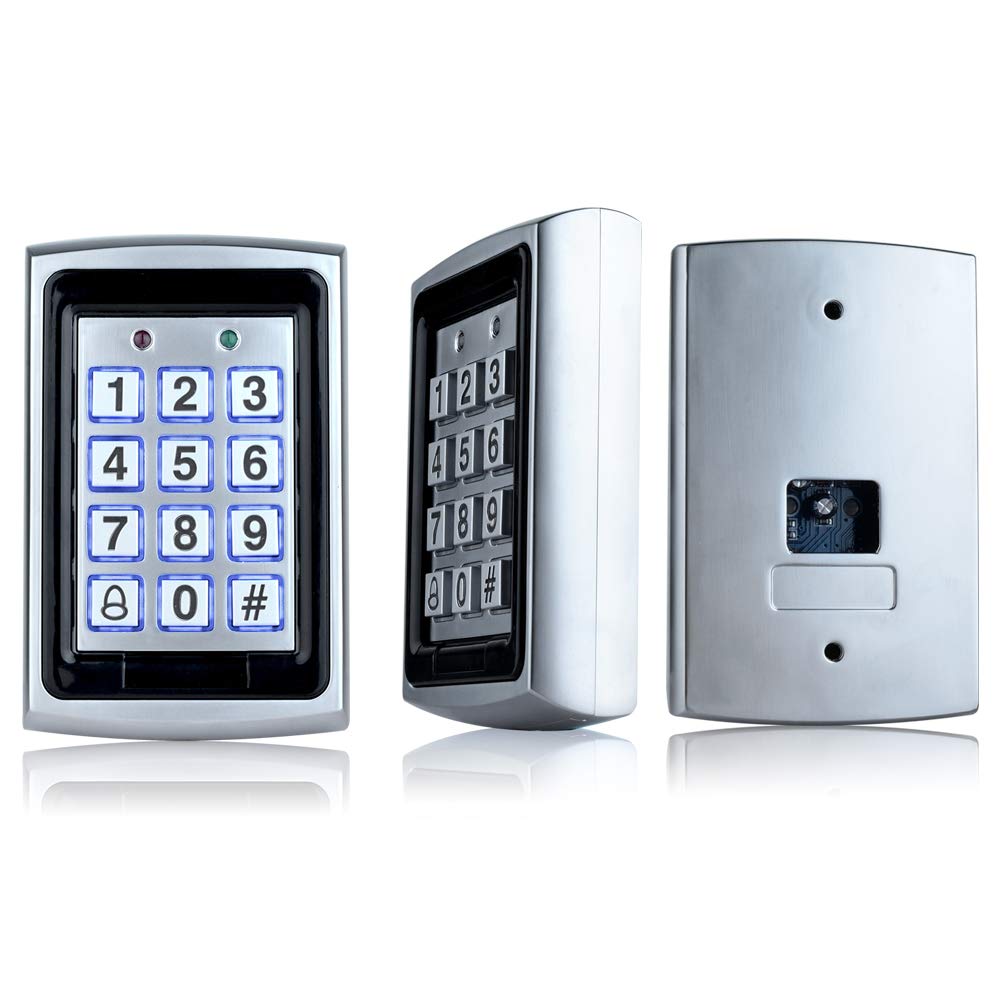

Access Control Keypad
Material: metal zinc alloy
Working frequency: 125KHz
Card reading type: EM card
Card reading distance: 0-10CM
Identification method: RFID card, password, card + password
User capacity: 1000 cards, 1 public password, 1000 private password
Door bell function: support
Digital backlit: support
Tamper alarm function: support
Time delay function: support
Has a WG26 interface, 2 relays output
Working Voltage: DC 12V ± 10%
Working Current: 1.2A
Working Temperature: -10 to +70
Relative Humidity: 20%-90%
Size: 77*120*27mm(L/H/W)

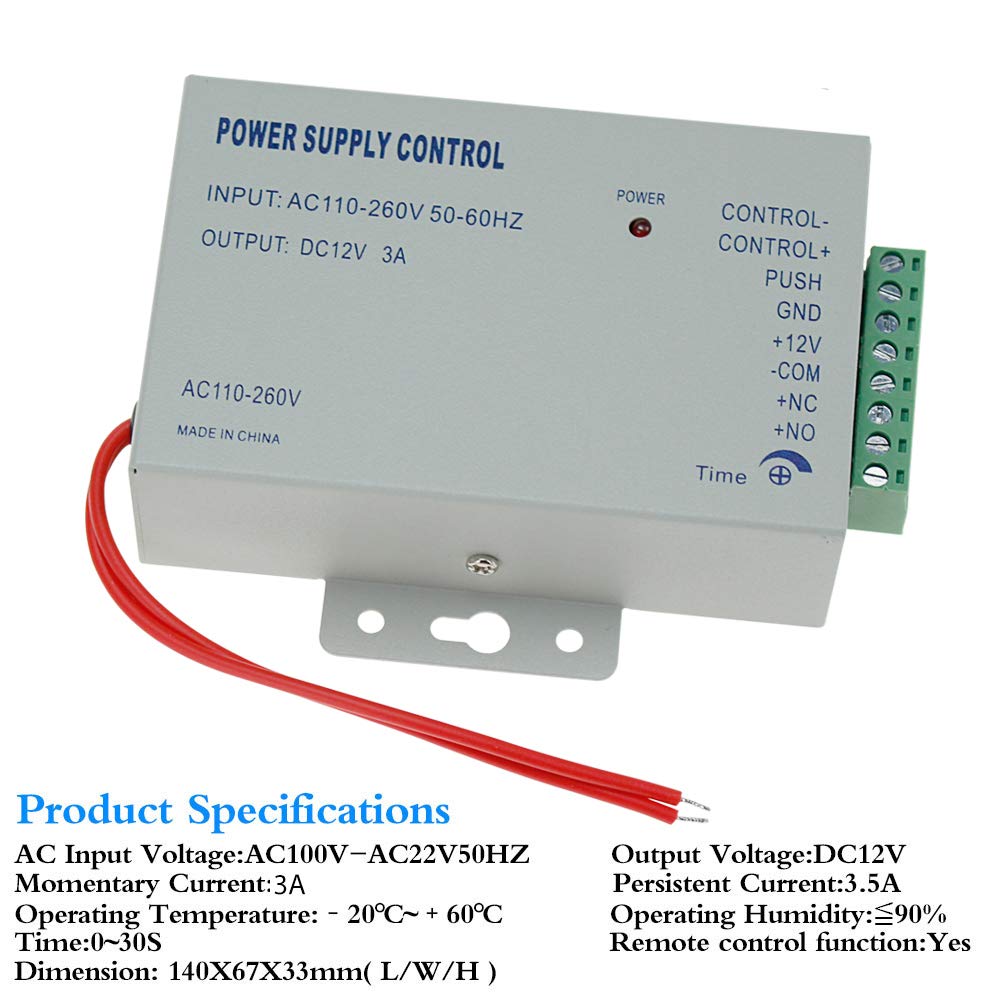

Power Supply
Material: stell
AC input: Standard AC100V-260V / 50-60HZ
DC output: DC12V/ 3 A
Time delay: 0-15 seconds adjustable.
Dimension: 140X67X33mm( L/W/H )
Rainproof Cover
This waterproof shell is suitable for fingerprint device, access controller,
standalone rfid door access controller, which length is less than 13cm, width is less than 8cm.
Dimension:
Outside: 15cm*10.4cm*9cm (L*W*H)
Inside: 13.5cm*8cm
Door Exit Button
Material: Hard Plastic
Maximum Power Rating: 36V DC 3A-5A output
Support both NC Mode (Fail Safe Mode) & NO Mode (Fail Secure Mode)
Dimension: 86X86MM
15* RFID Keyfobs
Material: ABS
Operating frequency: 125kHz
Detection range: 0-10cm
Each card pre programmed and has a unique identity number on it.

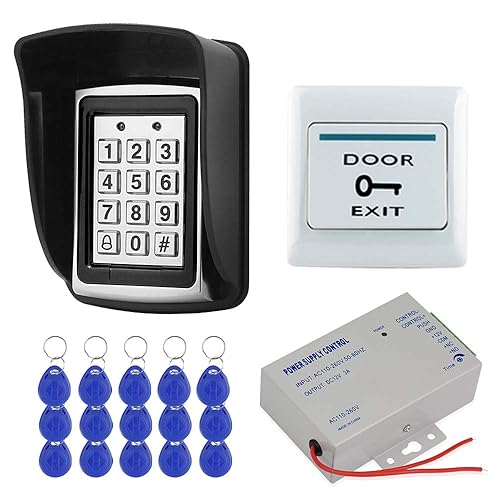

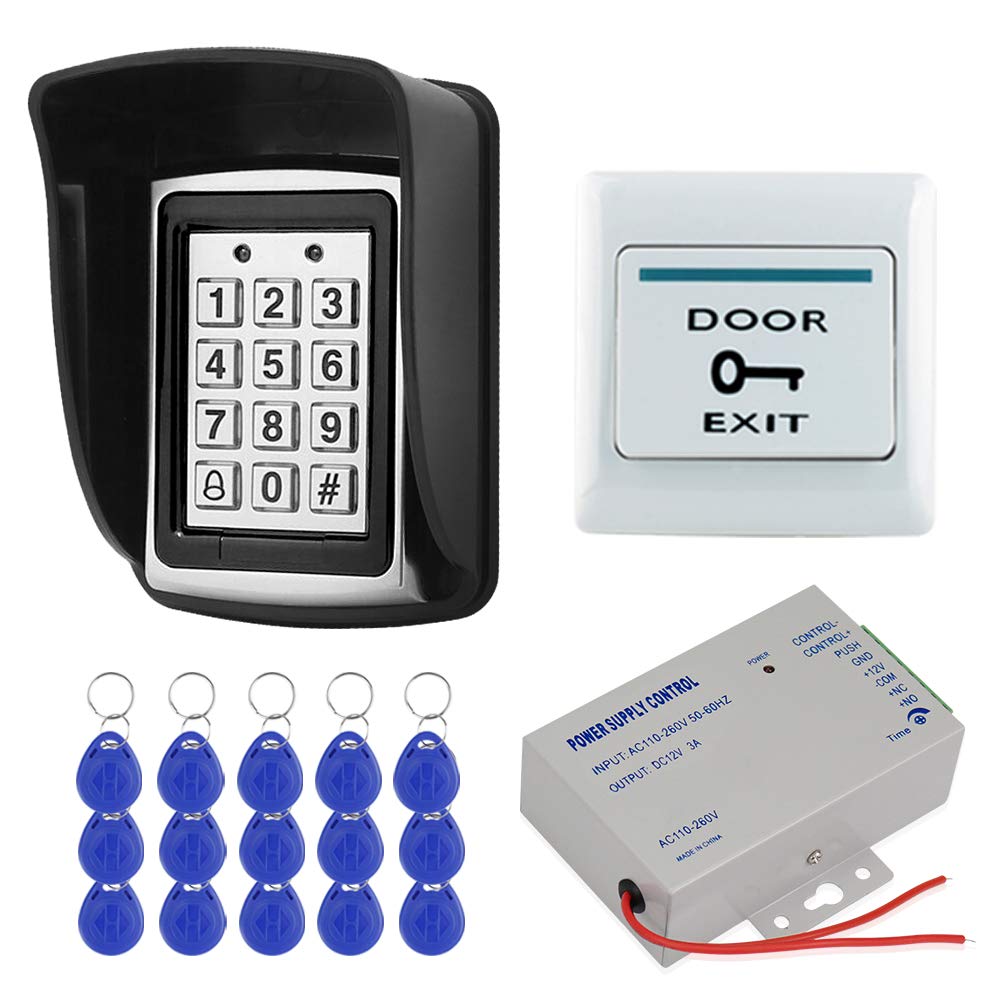

Package Including
?1x RFID Access Control Keypad
1x Power supply
1x Rainproof Cover
1x Exit button
?15x RFID blue keyfobs
Does Not including locks
• 1) Working with DC12V system, very easy to install. Don't need to connect to computer. Equiped with rainproof cover, can be installed outdoor.
• 2) Made of high quality zinc alloy. Has a WG26/34 interface and 2 relays output. Support door bell and time delay function.
• 3) Support 1000 user capacity. Support RFID Card, password, RFID card + password to open the door. Has backlight, work indicating light, very convenient to use even at dark.
• 4) Support tamper alarm function. Prevent the outdoor access control machine from being removed and automatically alarm when dismantling.
• 5) Package including Access Control Keypad + Power Supply + Door Exit Button + Rainproof Cover + 15pcs Keyfobs. Does NOT including electric lock.
Product Specifications
Access Control Keypad
Material: metal zinc alloy
Working frequency: 125KHz
Card reading type: EM card
Card reading distance: 0-10CM
Identification method: RFID card, password, card + password
User capacity: 1000 cards, 1 public password, 1000 private password
Door bell function: support
Digital backlit: support
Tamper alarm function: support
Time delay function: support
Has a WG26 interface, 2 relays output
Working Voltage: DC 12V ± 10%
Working Current: 1.2A
Working Temperature: -10 to +70
Relative Humidity: 20%-90%
Size: 77*120*27mm(L/H/W)
Power Supply
Material: stell
AC input: Standard AC100V-260V / 50-60HZ
DC output: DC12V/ 3 A
Time delay: 0-15 seconds adjustable.
Dimension: 140X67X33mm( L/W/H )
Rainproof Cover
This waterproof shell is suitable for fingerprint device, access controller,
standalone rfid door access controller, which length is less than 13cm, width is less than 8cm.
Dimension:
Outside: 15cm*10.4cm*9cm (L*W*H)
Inside: 13.5cm*8cm
Door Exit Button
Material: Hard Plastic
Maximum Power Rating: 36V DC 3A-5A output
Support both NC Mode (Fail Safe Mode) & NO Mode (Fail Secure Mode)
Dimension: 86X86MM
15* RFID Keyfobs
Material: ABS
Operating frequency: 125kHz
Detection range: 0-10cm
Each card pre programmed and has a unique identity number on it.
Package Including
?1x RFID Access Control Keypad
1x Power supply
1x Rainproof Cover
1x Exit button
?15x RFID blue keyfobs
Does Not including locks
• 1) Working with DC12V system, very easy to install. Don't need to connect to computer. Equiped with rainproof cover, can be installed outdoor.
• 2) Made of high quality zinc alloy. Has a WG26/34 interface and 2 relays output. Support door bell and time delay function.
• 3) Support 1000 user capacity. Support RFID Card, password, RFID card + password to open the door. Has backlight, work indicating light, very convenient to use even at dark.
• 4) Support tamper alarm function. Prevent the outdoor access control machine from being removed and automatically alarm when dismantling.
• 5) Package including Access Control Keypad + Power Supply + Door Exit Button + Rainproof Cover + 15pcs Keyfobs. Does NOT including electric lock.
